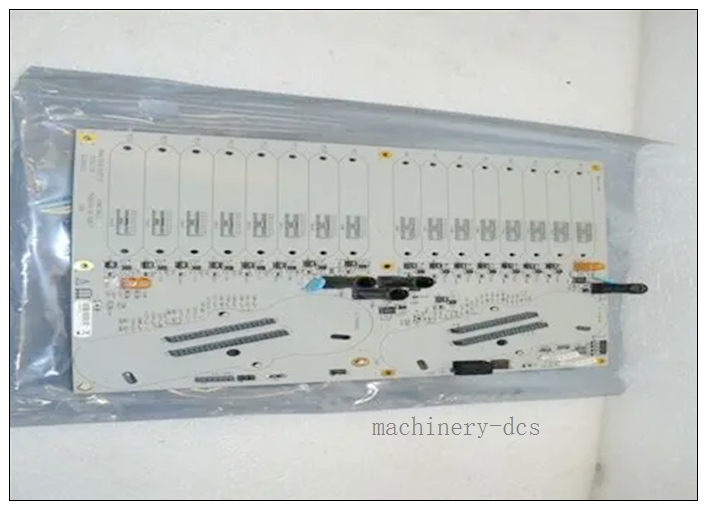

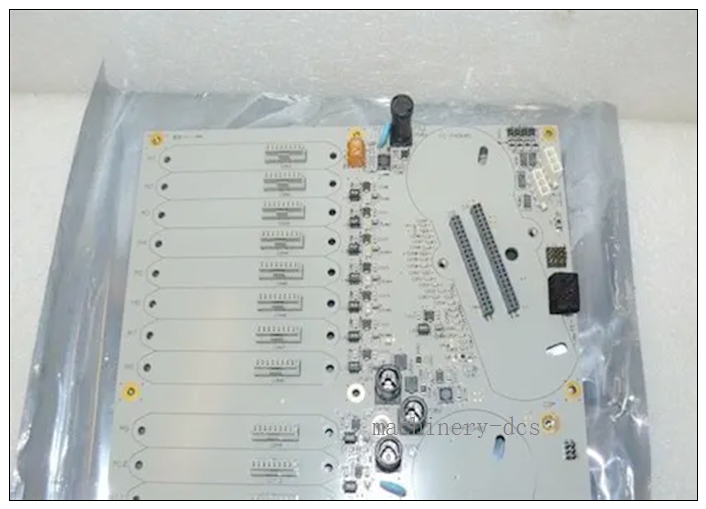

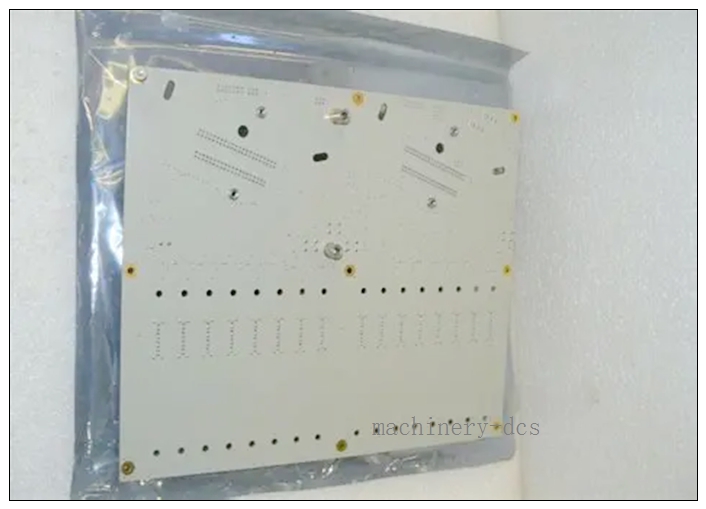

Honeywell CC-GAOX11 Redundant 8-Channel Analog Output IOTA Module

Description

Honeywell CC-GAOX11 Redundant 8-Channel Analog Output IOTA Module

Detailed Product Information

The Honeywell CC-GAOX11 is a robust industrial-grade redundant analog output module purpose-built for critical process control applications that demand fail-safe operation. As a core component of Honeywell’s industrial automation control system, it delivers stable 4-20mA constant current signals directly to field actuators, control valves, recording instruments and indicating devices. The module features full redundant output design to eliminate single points of failure, and supports comprehensive built-in self-diagnostics to continuously monitor loop health and internal circuit status. It is fully HART protocol capable, allowing seamless two-way communication with HART-compatible multivariable smart field instruments. Each individual channel supports independent configurable safe-state (FAILOPT) behavior, enabling users to set every output to either hold the last valid value or switch to a predefined safe value when a fault occurs, which effectively prevents unplanned process trips and ensures maximum operational safety.

CC-GAOX11

Technical Specifications

• Manufacturer: Honeywell
• Part Number: CC-GAOX11
• Product Type: Redundant Analog Output IOTA Module
• Number of Output Channels: 8 independent channels
• Standard Output Signal: 4-20mA per channel
• Power Supply Input: 24 VDC
• Power Consumption: 6 W
• Operating Temperature Range: 0°C to 60°C
• Humidity Resistance: 5% to 95% non-condensing
• Storage Temperature Range: -40°C to 85°C
• Physical Dimensions: 220 × 130 × 40 mm
• Net Weight: 0.8 kg (module only)
• Shipping Weight: 2.0 kg
• Housing: Robust industrial metal housing for enhanced mechanical protection
• Compliance: Non-incendive output design for general industrial hazardous area deployment
• Warranty: 12-month official manufacturer warranty
• Origin: USA

Compatibility & Installation Pitfalls

Compatibility

1. Natively interoperable with Honeywell Experion PKS distributed control system and matched redundant control processors
2. Fully compatible with Honeywell dedicated I/O racks, backplanes and certified 24V DC redundant power supply units
3. Seamlessly supports all standard 4-20mA field actuators, control valves, positioners and HART 5/6 compliant smart field devices
4. Works with Honeywell DCS engineering software for full channel configuration, HART device parameterization and advanced diagnostic operations
5. Matches with industry standard 2.5 mm² shielded field wiring without signal attenuation or control drift

Installation Pitfalls

1. Never install the CC-GAOX11 in a slot designated for non-redundant I/O modules. Mismatched slot configuration will break the redundant output architecture and disable the module’s fail-safe operation capability.
2. Do not connect field loads with resistance exceeding the module’s maximum rated load to the 4-20mA output channels. Overloaded loops will cause output signal distortion, trigger overcurrent protection and even damage the output drive circuits.
3. Avoid routing analog output signal cables in the same cable tray as high-power variable frequency drive or AC motor power cables. Severe electromagnetic interference will introduce signal noise and degrade the module’s output control accuracy.
4. Never perform hot-swap replacement while critical process control loops relying on this module are in automatic operation without pre-engaging the maintenance bypass. This action may cause momentary signal loss and trigger unplanned process trips.
5. Do not configure conflicting FAILOPT safe-state parameters for interconnected control channels. Mismatched safe-state settings will cause inconsistent process response during fault events and lead to unexpected operational risks.

CC-GAOX11

Standard Operating Procedure

1. Pre-installation verification: Inspect the CC-GAOX11 module for physical damage on circuit boards and connectors, confirm the I/O rack backplane 24V DC power output is stable within the 18-30V acceptable operating range.
2. Mechanical mounting: Align the module with the rack guide rails, slide it smoothly into the designated redundant analog output slot, and secure the front panel mounting hardware to ensure full and reliable electrical contact with the backplane.
3. Field wiring termination: Connect all field actuators, control valves and HART smart devices to their corresponding channel terminals, torque every connection to the manufacturer specified value, and apply clear permanent labels for each channel with its corresponding process tag number.
4. Power-on configuration: Access the Honeywell DCS engineering workstation, assign unique channel tags, configure output range, scaling parameters, and set independent FAILOPT safe-state behavior for each individual channel as per process safety requirements.
5. Functional validation: Send calibrated reference output values to every channel one by one, confirm the measured output signal at the field device end meets the specified accuracy requirement, verify output read-back, discrepancy alarm and redundant bumpless transition functions work correctly under simulated fault conditions.
6. Commissioning handover: Export and save the final configuration profile to secure backup, complete the loop check and calibration log, and confirm all analog output points are operating normally before releasing the system to full automatic process control.

Typical Application Scenarios

• Petrochemical refining operations: Delivers redundant 4-20mA control signals to critical process control valves, ensuring uninterrupted control for distillation columns, high-risk reactors and heat exchangers even if a single module fault occurs.
• Oil and gas production facilities: Deploys in onshore and offshore hazardous process zones to control choke valves, flow control actuators and safety shutdown devices, leveraging its non-incendive output design to meet strict area safety requirements.
• Power generation and utilities: Provides highly reliable redundant analog output signals to boiler control valves, turbine governing actuators and feedwater control systems, eliminating single points of failure for large-scale power generation unit control loops.
• Chemical processing plants: Leverages its native HART communication capability to access real-time diagnostic data from smart valve positioners, enabling predictive maintenance and reducing unplanned downtime for high-value continuous production loops.
• Pharmaceutical manufacturing facilities: Delivers highly stable redundant control signals to precision dosing pumps and process control valves, meeting strict regulatory requirements for process control accuracy and batch production consistency.

Recommended Supporting Components

• Honeywell dedicated redundant I/O rack with certified 24V DC redundant power supply unit
• Honeywell certified HART-enabled smart valve positioners, control actuators and 4-20mA field devices
• Shielded twisted-pair analog signal cables for interference-free field signal transmission
• Honeywell official DCS engineering configuration software and HART device management toolkit
• Flame-retardant 2.5 mm² industrial field wiring terminals with certified strain relief

Related Part Number Recommendations

• CC-PAOX01: Non-redundant 8-channel analog output module, for cost-effective standard 4-20mA output applications without full fail-safe redundancy requirements
• MC-PHAO01: 16-channel HART-enabled high-density analog output module, for large-scale projects that require more output channels in limited rack space
• CC-PAIH01: Redundant 8-channel analog input module, for complementary high-accuracy redundant process signal acquisition
• MC-PAIH03: 16-channel high-performance analog input module, for non-redundant high-density process signal collection
• 51304485-150: Honeywell MC-PDIX02 16-channel digital input module, for discrete status signal collection from field switches and safety interlock devices
