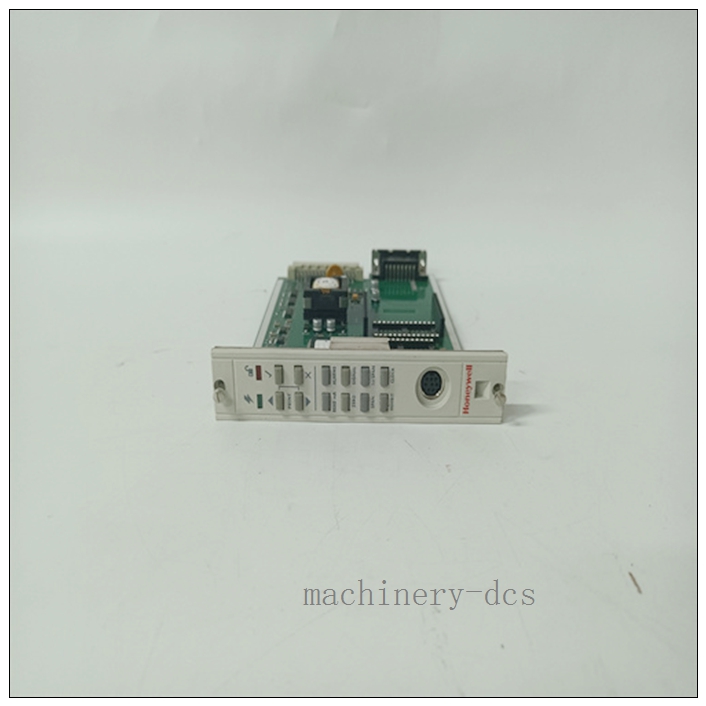

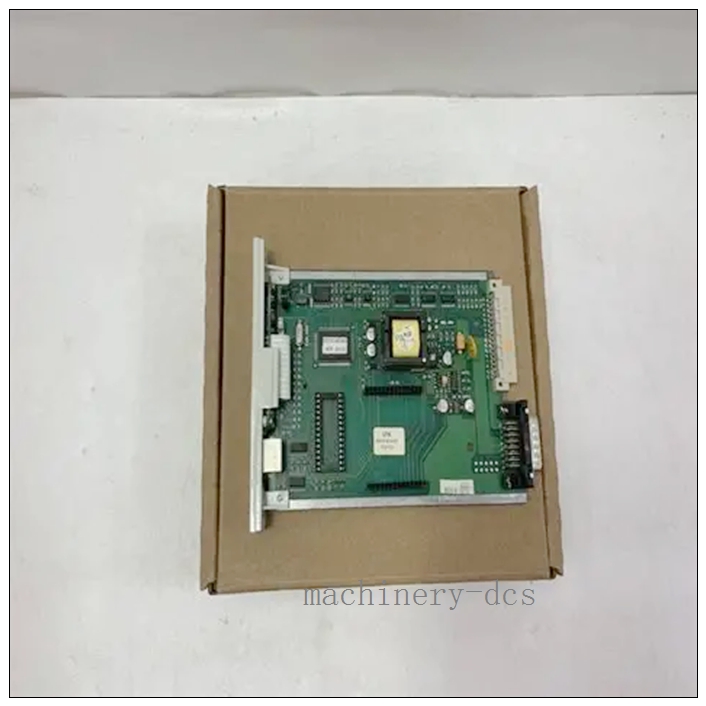

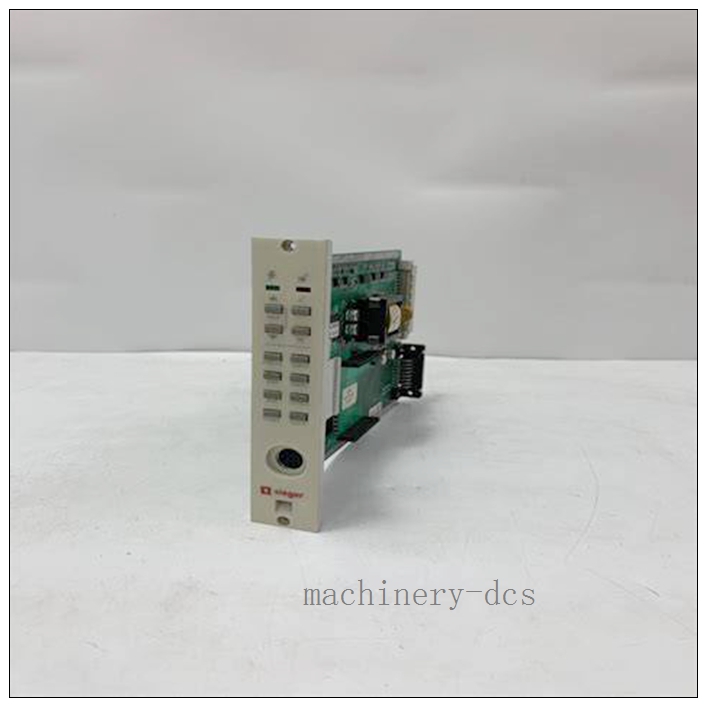

Honeywell 05701-A-0361 System 57 Dual-Function Engineering & Flame Signal Processing Module
Detailed Product Information
The Honeywell 05701-A-0361 is a purpose-built 3U hot-swappable module in the System 57 family, engineered to unify two core industrial functions: system engineering management for the entire rack, and real-time UV flame signal processing for combustion safety. Installed in the dedicated rightmost slot of a System 57 subrack, it serves as the exclusive local access point for on-site technicians to configure, calibrate, and troubleshoot all connected gas detection and flame monitoring channels without requiring full system shutdown. Its built-in signal conditioning circuit converts faint ultraviolet radiation captured by field UV flame sensors into two standardized industrial outputs: a discrete digital status signal for direct interlock logic, and a proportional analog signal that reflects real-time flame intensity. The module features native self-verification routines for its internal circuits, firmware operation and backplane communication, supports timestamped event logging for all alarms and faults, and can be expanded with Modbus RTU communication to seamlessly integrate with plant SCADA, DCS or PLC platforms.
Honeywell 05701-A-0361
Technical Specifications
- Manufacturer: Honeywell
- Part Number: 05701-A-0361
- Product Family: System 57 Industrial Safety & Monitoring Platform
- Form Factor: 3U hot-swappable card for standard 19″ subrack
- Mandatory Installation Slot: Dedicated rightmost position in System 57 rack
- Power Input: 24V DC via rack backplane, 18V to 30V wide operating voltage range
- Native Interface: RS-232 engineering port for on-site configuration and calibration
- Optional Communication: Modbus RTU over RS-422 / RS-485, supporting up to 32 nodes and 1.2km transmission distance
- Flame Detection Outputs: Digital (DO) high/low level for flame presence status, analog (AO) 4-20mA / 0-10V proportional to flame intensity
- Supported Field Wiring: Up to 2.5 mm² copper conductors
- Operating Temperature Range: -10°C to +60°C for control cabinet deployment
- Dimensions: 2.5 × 17 × 12.8 cm
- Net Weight: 0.14 kg
- Factory Rating: IP20 for indoor industrial cabinet installation
- Warranty: 1-year original manufacturer warranty for brand new sealed units
Compatibility & Installation Pitfalls
Compatibility
- 100% native interoperable with all standard Honeywell System 57 19″ full and half subracks, dedicated backplanes and redundant power supply units
- Fully matched with Honeywell original UV flame detectors and System 57 series industrial gas detection sensors
- Seamlessly compatible with mainstream PLC, DCS and combustion safety controllers via standard Modbus RTU protocol
- Supports full parameter access, calibration and diagnostic operations through official Honeywell System 57 engineering software
- Works with industry standard 2.5 mm² shielded industrial field wiring without signal attenuation or measurement drift
Installation Pitfalls
- Never insert the 05701-A-0361 into non-designated slots on the System 57 rack. Placing it in a general I/O slot will disable both engineering access and flame signal processing functions, and may cause unexpected system reset.
- Do not connect uncalibrated third-party UV flame sensors directly to the module. Mismatched signal gain and response thresholds will lead to frequent false flame alarms or missed detection events under normal combustion conditions.
- Avoid routing flame sensor signal cables in the same cable tray as high-power AC motor or variable frequency drive cables. Uncontrolled electromagnetic interference will distort weak UV sensing signals and compromise detection reliability.
- Never perform hot-swap operations while the combustion system is in normal running state without activating the pre-configured maintenance bypass. This action will interrupt flame signal output and trigger unplanned fuel cut-off safety interlock.
- Do not share the 24V DC power bus of the 05701-A-0361 with other high-inductive load devices on the same rack backplane. Voltage transients generated by inductive load switching can cause unexpected module reset during critical combustion operation.
Honeywell 05701-A-0361
Standard Operating Procedure
- Pre-installation verification: Inspect the 05701-A-0361 module for physical damage on circuit boards and connectors, confirm the System 57 rack backplane 24V DC output remains stable within the 18V to 30V acceptable range.
- Mechanical mounting: Align the module with the rack guide rails, slide it smoothly into the dedicated rightmost slot, and tighten the front panel locking screws to ensure full and reliable electrical contact with the backplane.
- Field termination: Connect UV flame sensor cables, RS-232 engineering communication lines and optional Modbus expansion wires to their corresponding terminals, torque all connections to the manufacturer specified value and apply clear, permanent labels for every signal path.
- Power-on configuration: Apply rack power, connect the engineering workstation via the native RS-232 port, set the unified system real-time clock, configure flame detection sensitivity, alarm delay parameters and unique Modbus communication address for plant network identification.
- Functional validation: Perform simulated flame presence and flame loss tests to confirm digital output status changes correctly, verify analog output varies proportionally with flame intensity, and confirm all alarm events are correctly transmitted to the upper DCS or combustion controller with accurate timestamp.
- Commissioning handover: Export and save the final configuration profile to secure local backup, complete the installation and calibration log, and confirm the module enters normal continuous monitoring state before releasing the system to operational service.
Typical Application Scenarios
- Steel mill reheating furnace combustion safety: Real-time multi-burner flame presence detection, triggering immediate fuel shutoff interlock when flame loss is detected to eliminate furnace explosion risks during continuous production.
- Petrochemical process heater safety protection: Continuously monitors burner combustion status, delivers accurate flame intensity data to DCS for combustion efficiency optimization and safety interlock management in hazardous process zones.
- Thermal power plant boiler flame monitoring system: Acts as the core signal processing unit for boiler UV flame sensors, effectively reducing false trip rates during unit load fluctuation and ensuring stable long-term boiler operation.
- Industrial furnace and thermal oxidizer safety control: Integrates with plant safety instrumented systems to provide continuous flame verification, fully meeting local regulatory requirements for combustion equipment safety management and audit trail logging.
- Chemical plant combined gas & flame monitoring: Deployed in hazardous production zones to manage both System 57 gas detectors and local flame sensors, delivering unified safety event logging, alarm routing and compliance reporting.
Recommended Supporting Components
- Honeywell System 57 standard 19″ safety rack with certified redundant 24V DC power supply
- Honeywell original industrial UV flame detectors with matched UV sensing wavelength
- Shielded RS-232 / Modbus communication cables for interference-free engineering access and system data exchange
- Honeywell official System 57 engineering configuration software and dedicated calibration toolkit
- Flame-retardant 2.5 mm² industrial field wiring terminals with certified strain relief for sensor connections
Related Part Number Recommendations
- Honeywell 05701-A-0502: Extended multi-channel flame detection control variant with additional hardwired relay output channels for direct interlock connection
- Honeywell 05704-A-0144: System 57 auxiliary communication expansion module for building redundant Modbus network connection to eliminate single point of failure
- Bently Nevada 3500/60: Position monitoring module that can be integrated to provide combined flame safety and shaft axial position protection for large rotating combustion equipment
- TRICONEX 3625A: TMR SIL 3 digital output module for constructing triple modular redundant flame interlock protection architecture in high-risk safety critical applications
