Description

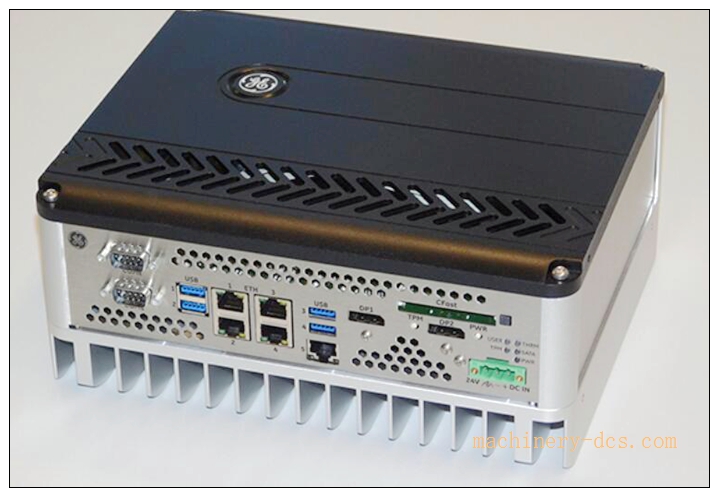

GE‑Vernova RXi‑042 (RXI042) HPCi Industrial Drive Controller
Product Brand & Model Title
Official Product Name: RXi‑042 HPCi Industrial Drive Controller Brand: GE Vernova (Former GE Intelligent Platforms) Model No: RXi042 / RXi‑042 Alternate part numbers: 04220FL11234A, 04220FD11232A Product Grade: Obsolete legacy high‑performance controller for MV7 / SD7 medium‑voltage drive systems; replacement model: RXi‑142
General Product Overview
The RXi‑042 is a compact high‑performance HPCi‑platform controller developed for GE medium‑voltage variable‑speed drive systems (MV7 / SD7 series). It serves as the core processing unit for drive logic execution, motor vector control, sequence management, fault diagnosis and fieldbus communication. Equipped with dual‑core CPU and rich onboard interfaces, it handles high‑speed closed‑loop motor control tasks. This legacy product has reached end‑of‑manufacture; RXi‑142 is the drop‑in successor with identical mechanical footprint, enhanced CPU performance, VxWorks 7 OS and IEC 62443‑4‑2 cybersecurity compliance. It supports hot‑swap capable rack‑mount installation and conformal coating options for heavy‑industrial environments.
Model Coding Definition
- RXi: R‑series modular industrial controller platform for drive automation
- 042: Hardware generation identifier for first‑generation HPCi drive controller
Note: Full order‑able part numbers contain extended suffixes for CPU variant, memory, interface configuration; base model RXi‑042 refers to the core controller hardware platform. Successor RXi‑142: 2nd‑generation HPCi controller, mechanically compatible upgrade replacement for RXi‑042.
RXI042
Technical Specifications
CPU & Memory
- Processor: Dual‑core Intel CPU, base frequency 1.4 GHz
- RAM: 4 GB
- On‑board non‑volatile storage for firmware & application logic
- Operating System: VxWorks real‑time OS (legacy version)
- Control cycle: High‑speed loop optimized for medium‑voltage motor drive control
Communication Interfaces
- Gigabit Ethernet ×2; PROFINET IO supported
- PCI expansion slots for optional communication mezzanine cards
- Serial RS‑422 service port for local commissioning
- Front‑panel status LED indicators for power, run, fault and network status
Electrical Parameters
- Supply Voltage: 24 VDC
- Typical power consumption: 70‑85 W
- Rack‑mount powered via system backplane
Environmental Specifications
- Operating Temperature: 0 ℃ ~ +60 ℃; conformal‑coated variant −25 ℃ ~ +70 ℃
- Storage Temperature: −40 ℃ ~ +85 ℃
- Relative Humidity: 5 %‑95 %, non‑condensing
- Vibration & Shock: Compliant with IEC 60068‑2 for industrial drive cabinet applications
- Conformal coating option: ISA‑S71.04 G3 for corrosive plant atmosphere
- Ingress rating: IP20 (cabinet‑mount only)
Mechanical & Certification
- Mounting: Standard rack‑mount unit inside MV7 / SD7 drive cabinet
- Dimensions: 252 mm × 207 mm × 158 mm
- Weight: Approx. 4.3 kg
- Certifications: CE, UL for power‑conversion equipment
- End‑of‑life status: Obsolete, no longer produced; supported via spare‑part stock & RXi‑142 upgrade path
Core Product Features
- High‑speed motor drive control: Executes vector control, torque‑speed closed‑loop algorithms for GE medium‑voltage MV7 / SD7 drives.
- Dual Gigabit Ethernet & PROFINET: Seamless connection to DCS, SCADA and plant‑level automation networks.
- Expandable hardware architecture: PCI‑based mezzanine slots add extra communication or signal‑interface options.
- Comprehensive drive fault diagnostics: Captures drive trip events, historical fault logs for troubleshooting.
- Conformal‑coated rugged option: Adaptable to corrosive chemical, mining and offshore industrial environments.
- Drop‑in upgrade path: RXi‑142 successor shares identical mechanical footprint for field retrofit without cabinet modification.
- Real‑time operating system: Deterministic VxWorks‑based execution ensures stable drive control cycles.
- Front‑panel diagnostic LEDs: Quick visual status review for power, running state and fault conditions.
Application Fields
‑ Power industry: Medium‑voltage variable‑speed drives for large fans, pumps and compressors ‑ Oil & gas: Refinery & petrochemical plant large‑motor variable‑speed control ‑ Mining & metals: Heavy‑process motor drive control for mineral‑processing equipment ‑ Water‑wastewater industry: Large‑pump MV‑drive control ‑ Retrofit projects: Spare‑part replacement for existing installed‑base MV7 / SD7 drive systems
Product Advantages & Value
‑ Purpose‑built for GE MV7/SD7 medium‑voltage drives, optimised for high‑power motor‑control performance. ‑ Rich communication interfaces simplify integration with plant‑wide automation systems. ‑ Ruggedized conformal‑coated option extends service life in harsh industrial cabinet environments. ‑ Well‑defined upgrade solution (RXi‑142) enables modernization of legacy drive installations without cabinet rework. ‑ Rich fault‑logging functionality reduces drive‑downtime troubleshooting time.
Compatible System & Interface Description
‑ Compatible Drive System: GE Vernova MV7 and SD7 medium‑voltage variable‑speed drive systems ‑ Mounting: Installed inside dedicated drive cabinet rack, powered by drive backplane ‑ Configuration Tool: Proficy Machine Edition programming software for logic download, parameter setup and diagnostics ‑ Upgrade Replacement: Direct mechanical replacement by RXi‑142 controller (firmware migration required)
Related Recommended Products
- RXi‑142: Second‑generation HPCi controller, drop‑in upgrade replacement for RXi‑042
- 04200WL11201A: RXi‑042 series communication mezzanine module
- MV7 drive power unit: Medium‑voltage power stack matching RXi‑042 control platform
- SD7‑PSU: Drive cabinet power‑supply unit for RXi‑042 rack
- RXi‑042 conformal coating spare variant: G3 protected version for corrosive site retrofits
- HPCi firmware package: Firmware software for RXi‑042 controller commissioning
