GE Vernova HYDRAN M2-X – Next-Generation Continuous Online Dissolved Gas & Moisture Monitor for Power Transformers

Description

GE Vernova HYDRAN M2-X – Next-Generation Continuous Online Dissolved Gas & Moisture Monitor for Power Transformers

Executive Summary
The GE Vernova HYDRAN M2-X is the next-generation evolution of the field-proven Hydran family of Dissolved Gas Analysis (DGA) monitoring solutions. Engineered to provide continuous, real-time monitoring of dissolved fault gases and moisture levels in transformer oil, the M2-X delivers enhanced sensor life, optimized low-maintenance operation, and robust diagnostic capabilities. By integrating IEEE-based mathematical models and supporting extensive communication protocols (Modbus, DNP 3.0, IEC 61850), it serves as a critical asset for predictive maintenance, fleet-level APM deployments, and the prevention of unplanned substation outages.

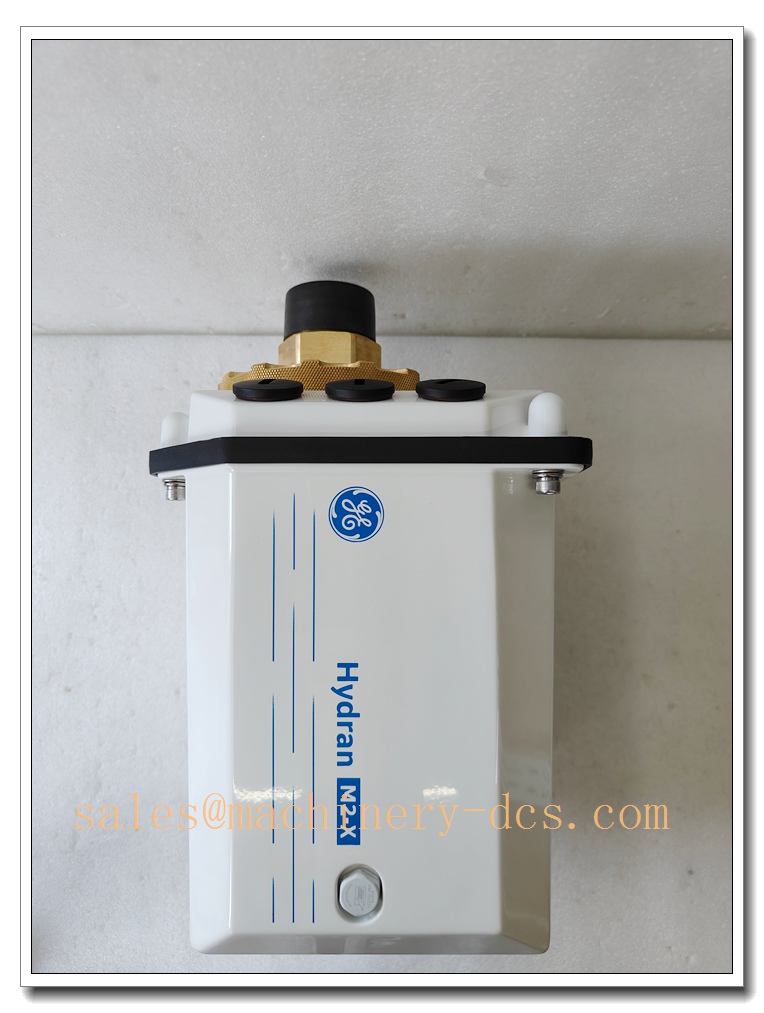

Hydran M2-X

Core Technical Specifications

• Manufacturer: GE Vernova (formerly GE Grid Solutions)
• Product Series: Hydran M2-X (Successor to Hydran M2 Mark III)
• Module Type: Online Transformer DGA & Moisture Monitor
• Gas Measurement Principle: Vacuum-resistant gas-permeable membrane with electrochemical gas detector (Fuel cell type)
• Moisture Measurement Principle: Thin-film capacitive moisture sensor
• Gas Measurement Range: 25 – 2,000 ppm (H₂ equivalent, volume/volume); provides trending up to 5,000 ppm
• Gas Accuracy: ±10% of reading ± 25 ppm (Ref: ASTM D3612)
• Moisture Measurement Range: 0 – 100% RH
• Moisture Accuracy: ±2% RH
• Relative Gas Sensitivity: H₂: 100%; CO: ~15 ± 4%; C₂H₂: ~8 ± 2%; C₂H₄: ~1.5 ± 0.5%
• Response Time: ~10 minutes (to reach 90% of step change)
• Communication Interfaces: Standard RS-232 (local) and RS-485 (remote); Optional Ethernet (10/100BaseT copper or 100BaseFX fiber), Dial-up Modem
• Supported Protocols: Modbus, DNP 3.0, IEC 61850 (via optional Ethernet)
• I/O Expansion: Up to 4 optional I/O cards (isolated 4-20mA analog input/output, dual digital inputs)
• Alarm Relays: 4 programmable SPDT alarm relays (Type C) + 1 self-test relay
• Power Supply: Universal switch-mode power supply (90–132 Vac or 180–264 Vac, 47–63 Hz)
• Enclosure Rating: NEMA 4X / IP56 (Cast aluminum, powder-coated white)
• Operating Temperature: -40°C to +55°C (ambient); Sensor heater maintains 15–65°C
• Oil Pressure Tolerance: 0–700 kPa (0–100 psia); 2 bar absolute for HazLoc versions

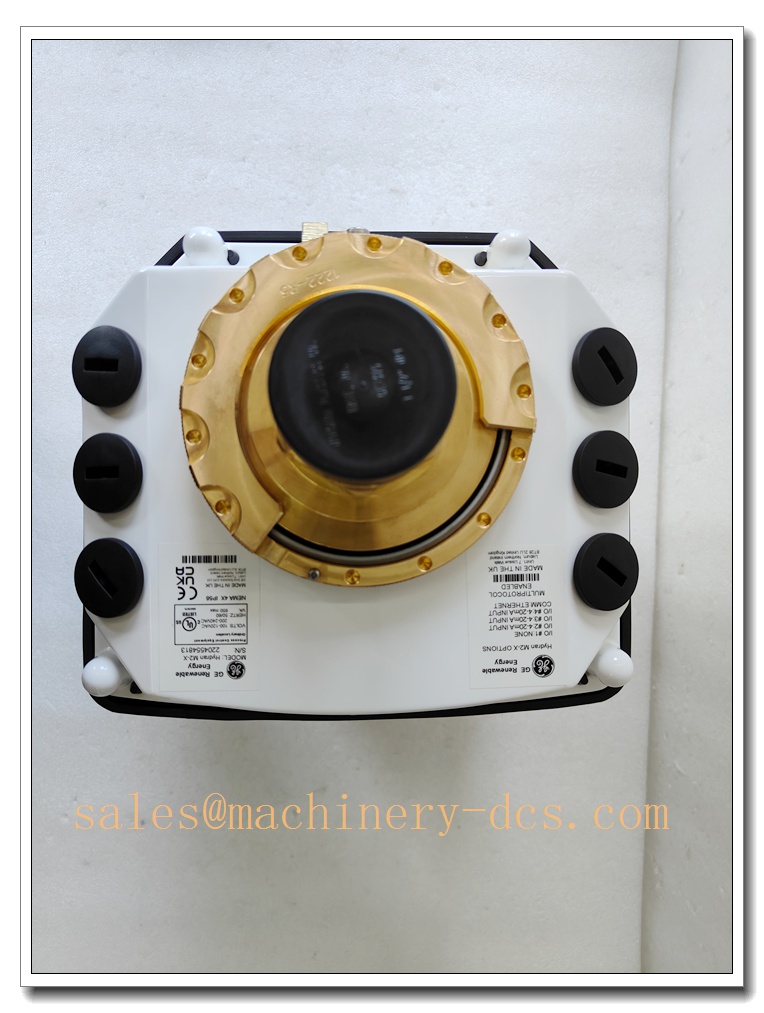

• Mounting: Direct installation on a single transformer oil valve (1.5″ NPT male threads); no extra piping or pump required

Key Features and Advantages

• Extended Sensor Life & Low Maintenance: The M2-X builds on the legacy Hydran platform with optimized sensor durability, significantly extending service intervals and reducing lifecycle costs.
• Dual Sensor Configuration: Offers a choice between a “Composite Gas” sensor (sensitive to H₂, CO, C₂H₂, C₂H₄) and a discrete “Hydrogen Only” (H₂) sensor, tailored to specific diagnostic needs.
• Onboard IEEE Transformer Models: Utilizes built-in mathematical models based on IEEE standards to convert raw DGA and moisture data into actionable insights, including estimated winding hotspot temperature, moisture in paper, and insulation aging.
• Seamless SCADA/DCS Integration: Supports a wide range of industrial protocols (Modbus, DNP 3.0, IEC 61850) and optional I/O cards, enabling straightforward integration into existing utility automation ecosystems.
• Pump-Free, Solid-State Design: Features no moving parts, pumps, or required reagents. Installs directly onto a single transformer valve without the need for additional piping, often without requiring a transformer outage.
• HazLoc Certified Option: Available in a UL-certified HazLoc version (Part Number: M2-X-HZ) for installation on transformers in Class I, Division 2 hazardous locations.
• Comprehensive Self-Diagnostics: Performs automatic periodic self-tests to detect faults such as power loss, closed oil valves, or sensor failures, triggering a service alarm if issues are found.
• Broad Oil Compatibility: Fully compatible with standard mineral insulating oils as well as newer natural and synthetic ester-based fluids.

Application Scenarios

• Power Utility Substations: Continuous condition monitoring of critical transmission and distribution transformers to prevent unexpected grid outages and optimize asset replacement strategies.
• Industrial Power Systems: Monitoring transformers in heavy industrial facilities (e.g., steel mills, refineries, data centers) to minimize costly production downtime caused by transformer failures.
• Renewable Energy Plants: Remote monitoring of step-up transformers in wind and solar farms, reducing the need for manual oil sampling in hard-to-reach locations.
• Fleet-Wide Asset Performance Management (APM): Providing critical real-time DGA and moisture data for GE Vernova APM software analytics, enabling predictive maintenance and fleet-level deployment strategies.
• Legacy Transformer Retrofit: Upgrading older transformers with online monitoring capabilities without requiring major modifications, additional piping, or planned outages.
• Hazardous Location Installations: Deploying the M2-X-HZ variant in environments where ignitable concentrations of flammable gases may exist under abnormal conditions (Class I, Div 2).

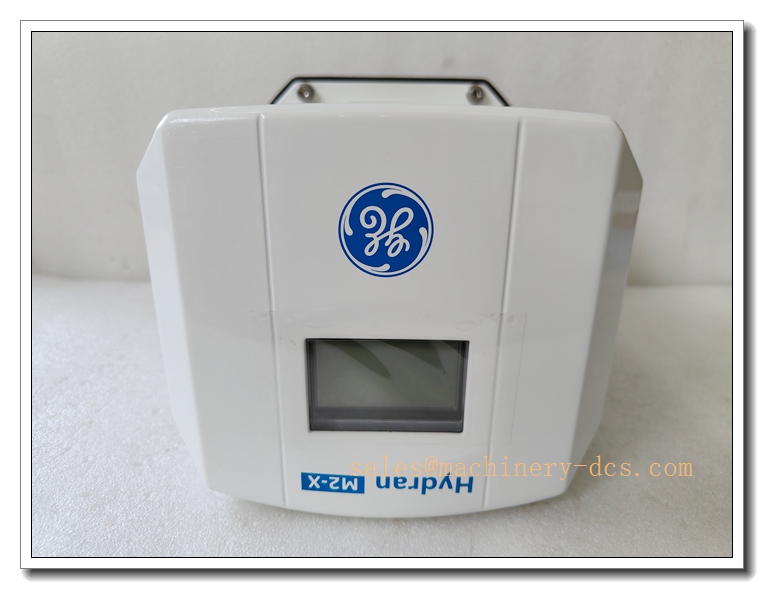

Hydran M2-X

Related Product Recommendations
For comprehensive transformer monitoring and system integration, consider the following compatible GE Vernova products:

1. GE Hydran M2 (Mark III): Previous-generation transformer DGA monitor, still widely deployed and supported for existing installations.
2. GE Hydran 201Ti / 201Ci: Earlier generation transformer gas monitoring systems for basic DGA applications.
3. GE Kelman MultiGas DGA Devices: Advanced multi-gas DGA solutions for more detailed gas analysis, compatible with Hydran integration.
4. GE Multilin 845 / 850: Advanced transformer protection relays that can integrate with Hydran data for comprehensive electrical and chemical monitoring.
5. GE Vernova Perception™ Software: Transformer fleet management software for downloading, trending, and analyzing Hydran M2-X data.
6. GE Vernova APM Software: Asset Performance Management platform for fleet-level analytics, predictive maintenance, and transformer health scoring.
7. GE Vernova M2-X-HZ: UL-certified HazLoc version of the M2-X for hazardous location installations.

Frequently Asked Questions (FAQ)

• Q: What is the difference between the Hydran M2-X and the Hydran M2 (Mark III)?
  A: The M2-X is the next-generation successor to the M2 Mark III, featuring extended sensor life, optimized low-maintenance design, and enhanced durability while retaining full compatibility with existing M2 communication protocols and mounting configurations.
• Q: What is the difference between the “Composite Gas” and “Hydrogen Only” sensors?
  A: The Composite Gas sensor responds 100% to Hydrogen (H₂) and is also sensitive to Carbon Monoxide (CO), Acetylene (C₂H₂), and Ethylene (C₂H₄), providing a broader view of fault types. The Hydrogen Only sensor responds exclusively to H₂, offering a more cost-effective solution for basic monitoring.
• Q: Does the Hydran M2-X require a pump to extract oil samples?
  A: No. The M2-X installs directly onto a single transformer oil valve and uses a passive, vacuum-resistant gas-permeable membrane for gas extraction. No pumps, extra piping, or moving parts are required.
• Q: What communication protocols does the Hydran M2-X support?
  A: Standard communication includes RS-232 (local) and RS-485 (remote) supporting Modbus and DNP 3.0 protocols. Optional Ethernet cards (copper or fiber) enable TCP/IP communication and support IEC 61850.
• Q: Can the Hydran M2-X monitor transformer oil temperature and load?
  A: Yes. Through optional analog input cards, the M2-X can accept external sensor inputs for top/bottom oil temperature, transformer load, or ambient temperature. This data is used in conjunction with onboard IEEE transformer models to provide deeper insights into transformer health.
• Q: Is the Hydran M2-X compatible with ester-based transformer oils?
  A: Yes. The M2-X is fully compatible with both standard mineral insulating oils and newer natural or synthetic ester-based fluids.
• Q: What is the M2-X-HZ version?
  A: The M2-X-HZ is a UL-certified HazLoc version of the M2-X, designed for installation on transformers located in hazardous locations designated as Class I, Division 2, where ignitable concentrations of flammable gases may exist under abnormal conditions.
