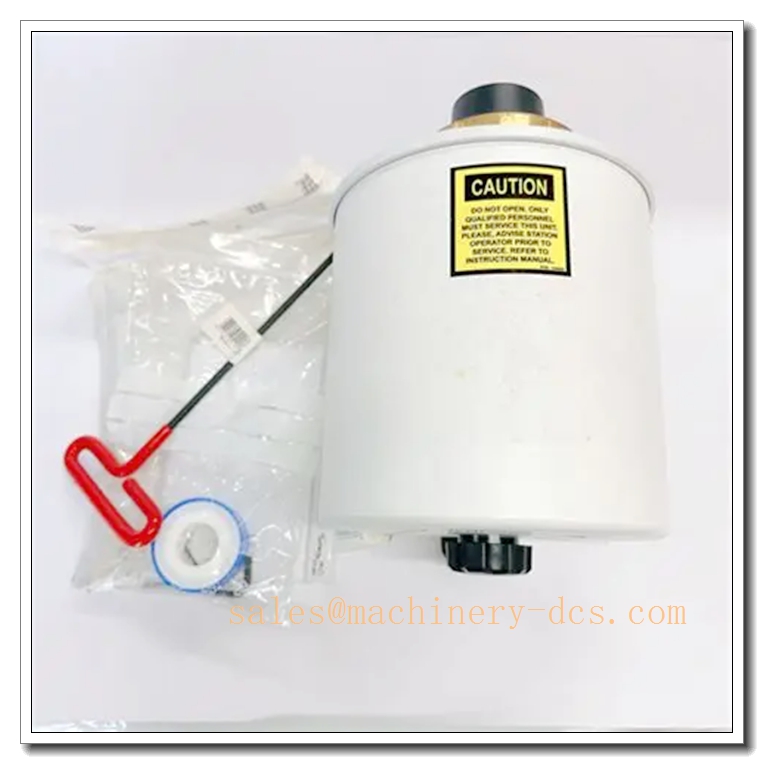

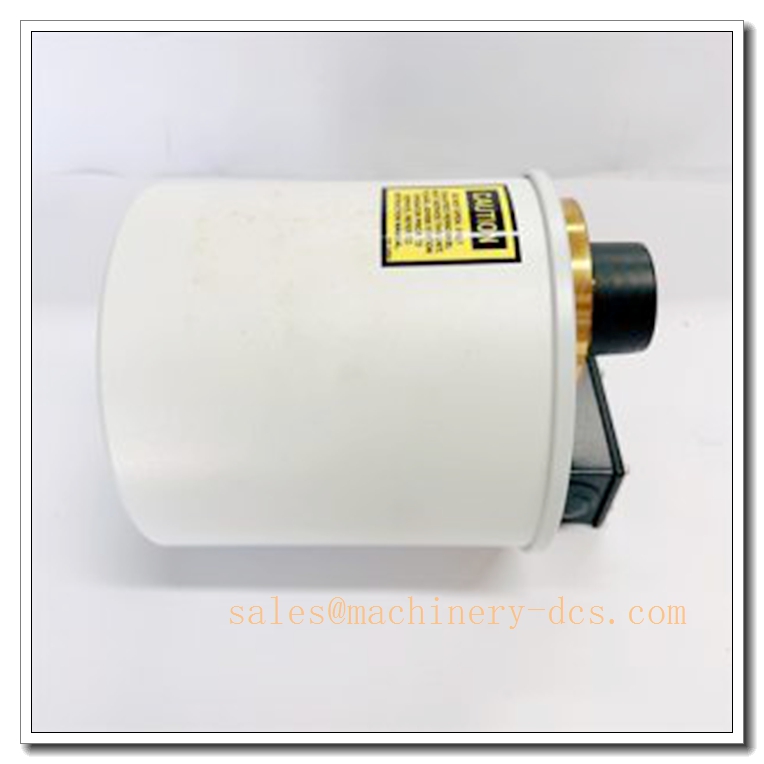

GE Vernova HYDRAN 201Ti (Mark IV) – Compact Continuous Dissolved Gas Monitor for Power Transformers

Description

GE Vernova HYDRAN 201Ti (Mark IV) – Compact Continuous Dissolved Gas Monitor for Power Transformers

Executive Summary
The GE Vernova HYDRAN 201Ti is a compact, easy-to-install continuous Dissolved Gas-in-oil Analysis (DGA) monitor designed to provide early warning of developing transformer faults. As the latest Mark IV generation of GE’s widely deployed Hydran family, it features updated electronics and power supply compliant with RoHS standards. The 201Ti delivers the fundamental information required by IEEE® Standard C57.104, serving as an essential first line of defense for transformer fleets by continuously monitoring fault gas levels and minimizing the risk of unplanned outages. Its pump-free, single-valve mounting design makes it a cost-effective and reliable solution for asset supervision.

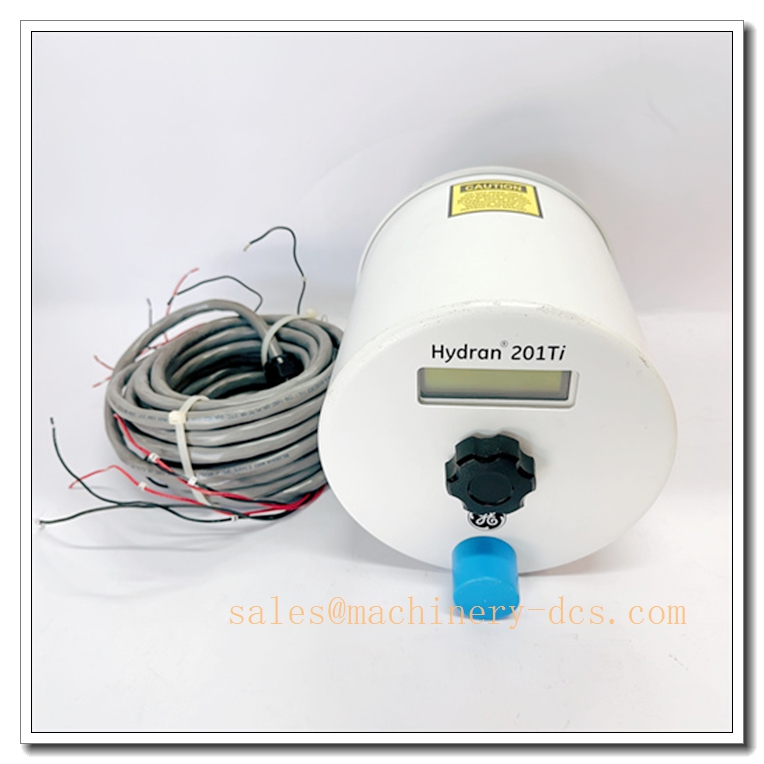

HYDRAN 201TI

Core Technical Specifications

• Manufacturer: GE Vernova (formerly GE Digital Energy / GE Grid Solutions)
• Product Series: Hydran 201Ti (Mark IV)
• Module Type: Online Transformer DGA Monitor
• Sensor Technology: Fuel cell type sensor behind a gas-permeable membrane (Fixed Instrument – Method 3 per ASTM D3612)
• Gas Measurement Range: 0 – 2,000 ppm (volume/volume, H₂ equivalent)
• Gas Accuracy: ±10% of reading ± 25 ppm (H₂ equivalent)
• Relative Gas Sensitivity: H₂: 100%; CO: ~15–18% (overheated paper); C₂H₂: ~8% (arcing); C₂H₄: ~1.5% (overheated oil)
• Response Time: ~10 minutes (to reach 90% of step change)
• Display: Backlit LCD, 2 lines × 16 characters, with keypad for setup and alarm acknowledgment
• Communication Interfaces: USB port (Type B, local configuration); RS-485 (isolated to 2000 VacRMS, remote communication)
• Supported Protocols: Modbus RTU or Hydran Protocol over RS-485
• Analog Output: Optional 4–20 mA analog output for dissolved gas ppm value
• Alarm Relays: 2 SPDT relays for fault gas alarms (Alert/Alarm levels) + 1 relay for service alarm
• Power Supply: Wide-range AC/DC input (100–240V AC 50/60Hz or 24V DC ±10%)
• Enclosure Rating: IP65 (dustproof and waterproof, suitable for outdoor substation installation)
• Operating Temperature: -30°C to +60°C
• Mounting: Direct installation on a single transformer oil valve (1.5″ NPT); no extra piping or pump required

Key Features and Advantages

• Mark IV Generation – RoHS Compliant: The latest Mark IV version features completely overhauled electronic boards and power supply, ensuring RoHS compliance, addressing obsolescence concerns, and improving long-term reliability.
• Dual Sensor Options: Offers a choice between a “Composite Gas” sensor (responds to H₂, CO, C₂H₂, C₂H₄ – covering all major transformer fault root causes) and a simpler “Hydrogen Only” sensor for basic monitoring needs.
• Pump-Free, Single-Valve Installation: Installs directly onto a single transformer oil valve using dynamic oil sampling. No pumps, extra piping, or moving parts are required, significantly reducing installation complexity and maintenance.
• Configurable Alarms: Two alarm levels (Alert and Alarm) can be set based on gas ppm thresholds or gas rate of change (ROC) over one hour or one day, enabling proactive fault detection.
• Comprehensive Self-Diagnostics: Automatic full-system self-test every 15 days detects faults such as power failure, closed oil valve, or sensor/battery replacement needs, triggering a service alarm if issues are found.
• Local Data Logging: Built-in memory stores up to one year of historical data and major events for offline analysis and trend review.
• Seamless Software Integration: Compatible with GE Vernova Perception™ software for downloading, trending, and analyzing transformer DGA data across a fleet.
• No Field Calibration Required: The solid-state sensor design eliminates the need for on-site calibration, reducing lifecycle maintenance costs.

Application Scenarios

• Power Utility Substations: Continuous DGA monitoring for non-critical and medium-voltage transformers, providing an essential early warning system for fault conditions.
• Industrial Power Systems: Monitoring transformers in manufacturing plants, refineries, and data centers to reduce the risk of process interruption and costly unplanned downtime.
• Renewable Energy Plants: Remote monitoring of step-up transformers in wind and solar farms, eliminating the need for frequent manual oil sampling in dispersed locations.
• Transformer Fleet Management: Serving as a cost-effective first-line defense for large transformer fleets, enabling centralized asset supervision and prioritized replacement strategies.
• Legacy Transformer Retrofit: Upgrading older transformers with online DGA monitoring capability without requiring major modifications, additional piping, or planned outages.

HYDRAN 201TI

Related Product Recommendations
For comprehensive transformer monitoring and system integration, consider the following compatible GE Vernova products:

1. GE Hydran M2 / M2-X: Advanced DGA monitors with moisture measurement, IEEE transformer models, and broader communication protocol support (DNP 3.0, IEC 61850).
2. GE Hydran 201Ci: Communication controller that aggregates data from up to four 201Ti monitors, providing a single communication point for multi-transformer installations.
3. GE Kelman MultiGas DGA Devices: Advanced multi-gas DGA solutions for detailed gas analysis in critical transformer applications.
4. GE Multilin 845 / 850: Advanced transformer protection relays that can integrate with Hydran data for comprehensive electrical and chemical monitoring.
5. GE Vernova Perception™ Software: Transformer fleet management software for downloading, trending, and analyzing Hydran 201Ti data.
6. GE Vernova APM Software: Asset Performance Management platform for fleet-level analytics and predictive maintenance.

Frequently Asked Questions (FAQ)

• Q: What is the difference between the “Composite Gas” and “Hydrogen Only” sensors?
  A: The Composite Gas sensor responds 100% to Hydrogen (H₂) and is also sensitive to Carbon Monoxide (CO), Acetylene (C₂H₂), and Ethylene (C₂H₄), covering all major transformer fault types. The Hydrogen Only sensor responds exclusively to H₂, providing a simpler, more cost-effective solution for basic monitoring.
• Q: What improvements does the Mark IV version offer?
  A: The Mark IV generation features completely new electronic boards and power supply, making the unit RoHS compliant and resolving any obsolescence issues. It also includes a USB port (replacing the older RS-232) for local configuration and improved sensor durability.
• Q: Does the Hydran 201Ti require a pump or extra piping?
  A: No. The 201Ti installs directly onto a single transformer oil valve and uses dynamic oil sampling through a gas-permeable membrane. No pumps, extra piping, or moving parts are required.
• Q: What communication protocols does the Hydran 201Ti support?
  A: The 201Ti supports Modbus RTU or Hydran Protocol over an isolated RS-485 interface for remote communication. A USB port (Type B) is provided for local laptop configuration.
• Q: Can the Hydran 201Ti be daisy-chained for multi-transformer monitoring?
  A: Yes. Up to 32 controllers or 201Ti units can be daisy-chained through their RS-485 port, with a maximum total chain distance of 1,200 m (4,000 ft). The Hydran 201Ci controller can also aggregate data from up to four 201Ti monitors.
• Q: How often does the Hydran 201Ti perform self-diagnostics?
  A: The device automatically performs a full system self-test every 15 days. If a fault is detected (e.g., power loss, closed oil valve, sensor failure), a service alarm is triggered to alert maintenance personnel.
• Q: Is the Hydran 201Ti suitable for outdoor installation?
  A: Yes. The enclosure is rated IP65, making it dustproof and waterproof, suitable for direct outdoor substation installation without additional protective housing.
