Description
GE IS420YDOAS1B is a Discrete Output I/O Pack Module
Model：IS420YDOAS1B（YDOA）
Product Title & Description
The GE IS420YDOAS1B is a Discrete Output I/O Pack Module for GE Vernova Speedtronic Mark VIe / Mark VIeS turbine control & EX2100 generator excitation systems. It is distributed remote I/O hardware, receiving control commands from Mark VIe controller over IONet dual Ethernet network, driving relay outputs for field equipment and collecting relay status feedback. Widely applied in gas turbine, steam turbine, combined cycle power plants, oil & gas compressor control and safety interlock systems, used for valve control, breaker switching, solenoid actuation and emergency trip output.
Core Product Overview
IS420YDOAS1B (YDOA) is a Mark VIe distributed discrete output I/O pack. It communicates with main controller via dual redundant RJ45 Ethernet IONet. It can drive up to 12 relay output channels (depends on matched TRLY relay terminal board). It has per-channel relay coil diagnostic monitoring, detecting coil failure, open/short circuit. Supports simplex and TMR Triple Modular Redundancy architecture, applicable for both standard turbine control and Mark VIeS safety related applications. It converts controller logic commands into dry-contact relay switching signals to operate solenoid valves, contactors, trip relays and auxiliary devices. Equipped with channel LED indicators for local fault diagnosis. Configuration and online monitoring are completed by ToolboxST / ControlST software. It is a critical spare for power plant Mark VIe and EX2100 excitation cabinet maintenance and retrofit.

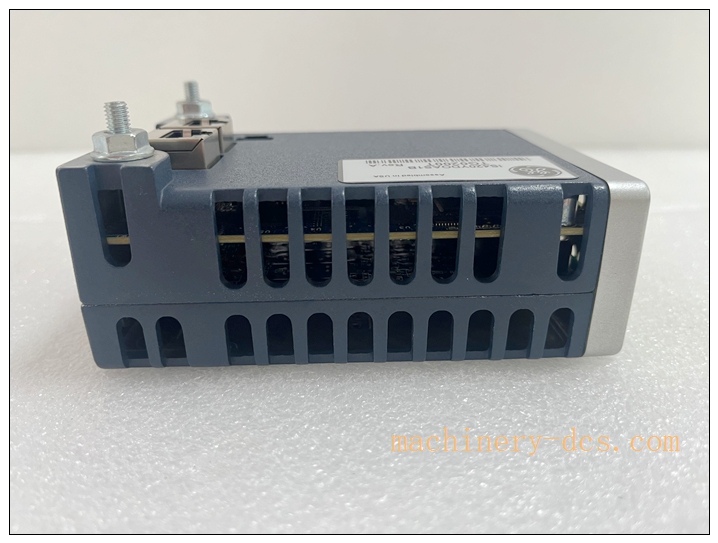

IS420YDOAS1B
Main Technical Specifications
- Manufacturer: GE Vernova (General Electric)
- Part Number: IS420YDOAS1B
- Type: Discrete Output I/O Pack (YDOA)
- Compatible System: Mark VIe / Mark VIeS Turbine Control, EX2100 Excitation System
- Network: Dual RJ45 Ethernet IONet, network redundancy support
- Max Output Channels: 12 relay outputs (matched with TRLY terminal board)

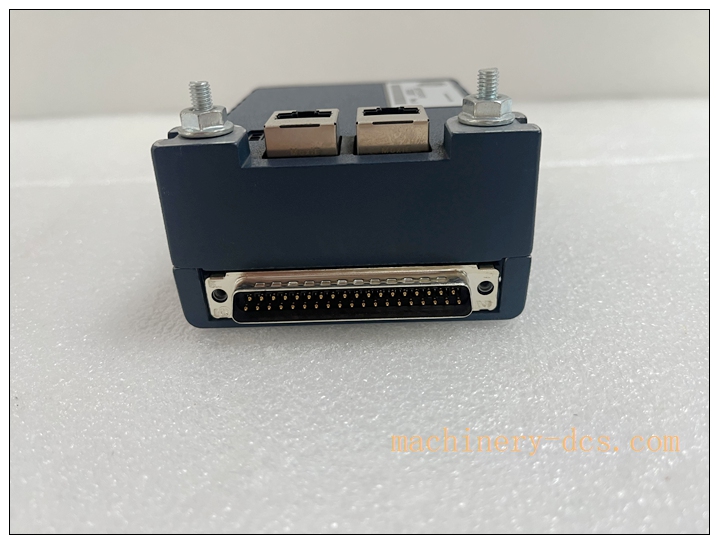

- Connector: DC37 connector for terminal board connection; 3-pin 24VDC power connector
- Auxiliary Supply: 24VDC
- Response Time: ~6ms

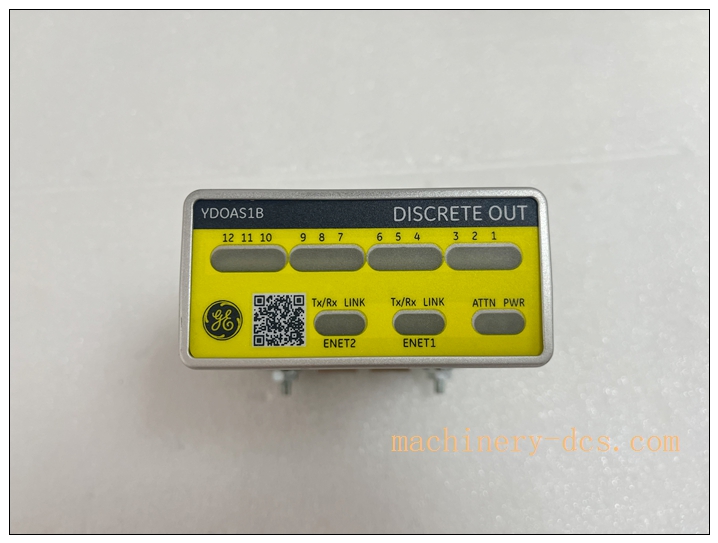

- Diagnostic: Per-channel relay coil status monitoring, module health LED
- Redundancy: Simplex / TMR triple modular redundancy supported
- Configuration Software: ToolboxST / ControlST
- Mounting: DIN rail mount inside control cabinet
- Operating Temperature: 0°C ~ +60°C
- Storage Temperature: -40°C ~ +85°C
- Relative Humidity: 5% ~95%, non-condensing
- Protection Class: IP20 (cabinet installation)
- Certifications: CE, UL
Quality Control Procedures
GE Mark VIe I/O modules comply with ISO9001 and IEC power generation control standards.
- Incoming Component Inspection: Network chips, relay drive circuits, diagnostic IC and PCB screened from qualified suppliers.
- Automated SMT assembly, each module with unique serial number for full lifecycle traceability.
- Full functional test: dual Ethernet communication test, 12-channel relay drive test, channel diagnostic and fault simulation.
- Environmental stress screening: thermal cycling, vibration, EMC surge test for power control cabinet environments.
- Final inspection & packing: visual inspection, ESD anti-static packaging with factory test report.
Brand Related Matching & Replacement Models
- IS420YDIAS1B (YDIA): Mark VIe discrete input I/O pack, paired with IS420YDOAS1B
- IS420UCSAH1A: Mark VIe controller module
- TRLY terminal board: relay terminal board matched for YDOA module
- IS420YDOBS1B: alternative revision discrete output I/O pack
IS420YDOAS1B
Frequently Asked Questions (FAQ)
Q1: What system is used for? A1: GE Mark VIe / Mark VIeS turbine control system and EX2100 generator excitation system.
Q2: What is YDOA? A2: YDOA is the module type code, meaning discrete relay output I/O pack for Mark VIe distributed I/O.
Q3: Does it support TMR redundancy? A3: Yes, it supports TMR triple modular redundant configuration for safety-critical turbine protection applications.
Q4: What software is used for programming and commissioning? A4: ToolboxST / ControlST software for hardware configuration, logic download, online monitoring and fault diagnosis.
Q5: What is the warranty for original GE ? A5: Original GE module carries standard 12-month factory warranty against manufacturing defects under proper installation and operating conditions.
Installation & Configuration Guide
7.1 Pre-installation Preparation
Verify , inspect dual RJ45 port, DC37 connector and 24V power connector. Prepare TRLY relay terminal board, shielded Ethernet cable, 24VDC auxiliary power, ToolboxST software. Cut power before installation, wear ESD protection. Confirm firmware compatibility and TMR architecture design if redundant.
7.2 Installation Steps
Mount I/O pack on DIN rail inside cabinet. Connect 24VDC auxiliary power via 3-pin connector. Connect DC37 cable from module to TRLY relay terminal board. Wire dual IONet Ethernet cables for network communication, support daisy chain. Wire field relay/solenoid/breaker cables to terminal board. Use shielded cables with single-point shield grounding. Check cabinet ventilation.
7.3 System Configuration & Commissioning
Open ToolboxST, add and matched terminal board into hardware tree, define channel assignment and relay diagnostic settings. Download database to Mark VIe system. Power up module, check LED status. Perform offline channel simulation to verify relay switching and coil fault detection. Conduct field no-load test then on-load test for valve, breaker and interlock control. Save configuration database and commissioning logs.
7.4 Maintenance & Precautions
During unit outages, inspect Ethernet connection, DC37 connector, terminal wiring and module LED status. Keep cabinet clean and dust-free. If relay output failure or communication dropout occurs, check IONet network, 24V power supply and TRLY terminal board before replacing .
