GE IS420ESWBH2A (ESWB) is an industrial IONet Ethernet switch module

Description

GE IS420ESWBH2A (ESWB) is an industrial IONet Ethernet switch module

Product Title & Description

Model: IS420ESWBH2A The GE IS420ESWBH2A (ESWB) is an industrial IONet Ethernet switch module engineered exclusively for GE Mark VIe / Mark VIeS gas and steam turbine control systems. This utility-grade network switch delivers deterministic, high-reliability packet switching for real-time control traffic between Mark VIe controllers, distributed I/O packs and plant supervisory networks. Built to withstand severe vibration, high EMI and wide temperature fluctuations inside turbine cabinets, it is widely used in power generation, combined-cycle plants and petrochemical turbine safety & control systems to build redundant IONet ring topologies.

Core Product Overview

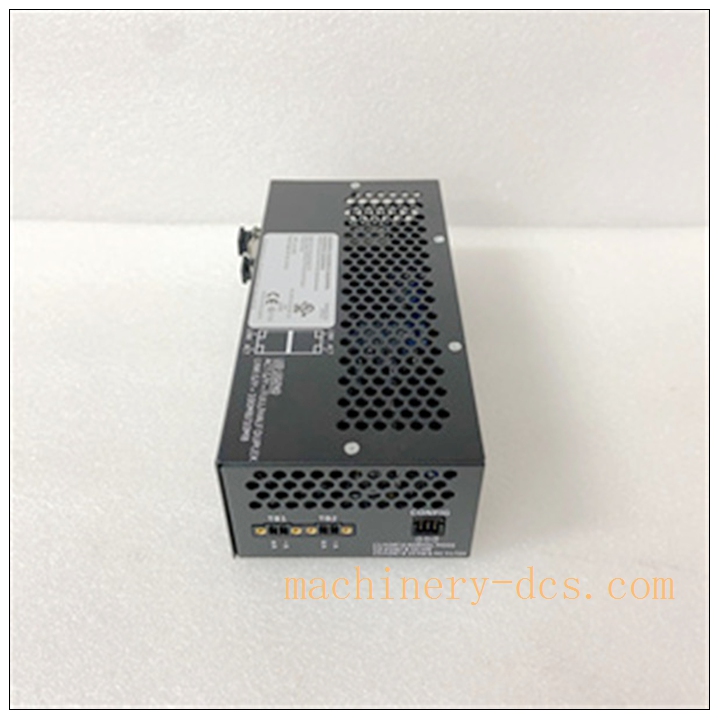

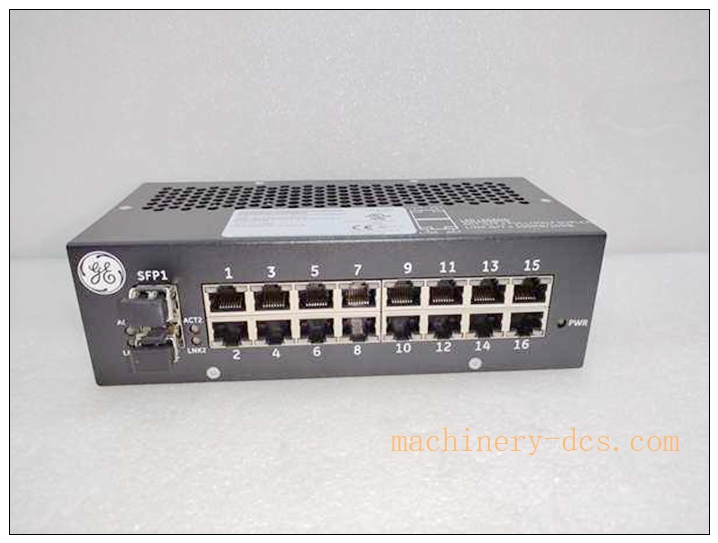

IS420ESWBH2A is a dedicated industrial Ethernet switch for the Mark VIe IONet, not a standard commercial network switch. It provides 16 × 10/100Base-TX copper RJ45 ports plus 2 × 100Base-FX multimode fiber uplink ports. The fiber ports enable long-distance, noise-immune interconnection between control cabinets and support redundant ring network architecture. It prioritizes time-critical turbine control messages over non-critical diagnostic data via IEEE 802.1p QoS. The module continuously monitors port link status and reports network faults back to Mark VIe controllers. Dual DC power inputs offer power redundancy to eliminate single point of failure for the control network. With comprehensive built-in diagnostics and SNMP support, operators can monitor network health, link loss and traffic status remotely. This switch forms the backbone of distributed Mark VIe IONet for critical turbine protection and control.

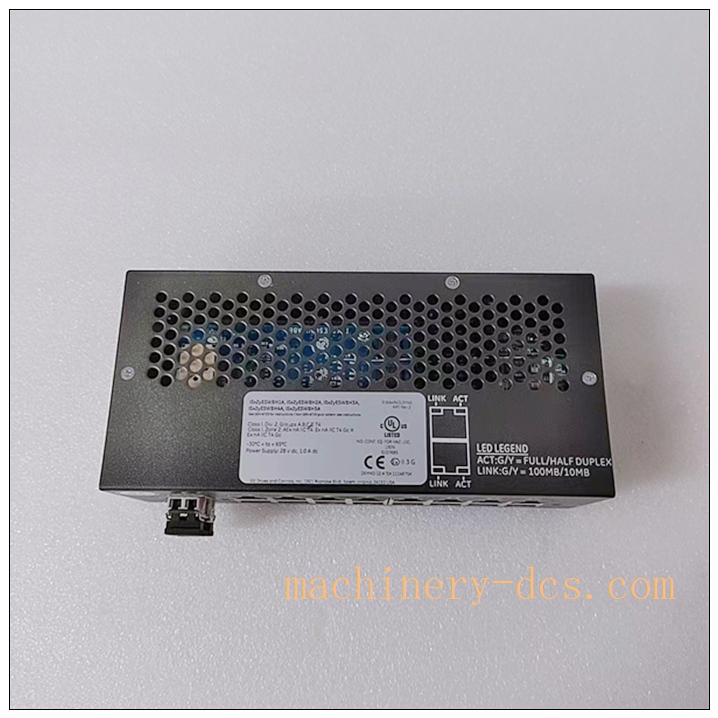

IS420ESWBH2A

Main Technical Specifications

• Manufacturer: GE (General Electric)
• Part Number: IS420ESWBH2A
• Product Type: IONet Industrial Ethernet Switch Module (ESWB)
• Compatible System: Mark VIe, Mark VIeS turbine control systems
• Port Configuration:
  • 16 × 10/100Base-TX RJ45 copper ports, auto-negotiation, Auto-MDIX
  • 2 × 100Base-FX multimode fiber ports
• Network Standards: IEEE 802.3, 802.3u, 802.3x
• Supported Features: RSTP, VLAN, IEEE802.1p QoS, IGMP snooping, SNMP
• Redundancy: Dual 24VDC power input; supports IONet redundant ring topology
• Rated Power Supply: 24 VDC nominal
• Operating Temperature: -40°C ~ +70°C
• Relative Humidity: 5% ~95%, non-condensing
• Mounting: DIN rail mount
• Environmental Compliance: G3 industrial grade, ATEX / IECEx Class 1 Div 2 / Zone 2
• LED Indicators: Per-port link/activity/speed, power and system fault indicators
• MAC Address Table: 8,000 entries
• Switching Capacity: 3.2 Gbps

Quality Control Procedures

GE Mark VIe series modules are manufactured in compliance with ISO9001 and IEC industrial standards for power utility applications.

1. Component Incoming Inspection: Fiber transceivers, PHY chips, PCBs and power components are sourced from approved suppliers and 100% screened before assembly.
2. Automated Assembly & Traceability: SMT assembly and soldering are automated. Unique serial number enables full lifecycle traceability.
3. Full Functional Network Test: Every finished unit undergoes port continuity, packet forwarding, QoS, RSTP ring redundancy and fault reporting testing.
4. Environmental Stress Screening: Batch samples are subjected to thermal cycling, vibration, surge and EMC testing to validate performance inside turbine cabinets.
5. Final Inspection & Packing: Units passing all tests receive visual inspection, anti-static and shock-resistant export packaging with factory test records.

IS420ESWBH2A

Brand Related Model Recommendations

• IS420ESWBH3A: Higher port density ESWB switch variant for larger Mark VIe IONet networks.
• IS420ESWAH1A / IS420ESWAH2A: ESWA series compact IONet switches for smaller I/O cabinet applications.
• IS420UCSBH1A: Mark VIe controller I/O pack, paired device communicating over IONet via IS420ESWBH2A.
• IS420SIMTH2A: Mark VIe signal input module, connected to IONet through ESWB switch. All above models belong to Mark VIe IONet ecosystem and share the same network topology design rules.

Frequently Asked Questions (FAQ)

Q1: What is the main purpose of ? A1: It is the dedicated IONet Ethernet switch for Mark VIe turbine control systems, connecting controllers and distributed I/O packs to build real-time redundant control networks.

Q2: Can I replace it with a regular commercial managed switch? A2: No. Standard commercial switches are not validated for Mark VIe IONet deterministic real-time traffic and cannot be used as substitute.

Q3: What are the fiber ports used for? A3: The 100Base-FX multimode fiber ports are used for long-distance cabinet interconnection and redundant ring construction, immune to heavy electromagnetic interference.

Q4: Does this switch support redundant power supply? A4: Yes, dual 24VDC power inputs. Loss of one power feed will not interrupt network operation.

Q5: What is the warranty for original GE ? A5: Original GE module carries standard 12-month factory warranty against manufacturing defects under proper installation and operating conditions.

Installation & Configuration Guide

7.1 Pre-installation Preparation

Verify the part number and inspect the housing, RJ45 and fiber ports for physical damage. Prepare DIN rail, shielded Cat5e copper cables, multimode fiber cables, 24VDC redundant power supplies and Mark VIe configuration software. Disconnect cabinet power before handling the module. Wear ESD protection. Plan IONet ring topology and grounding scheme in advance.

7.2 Installation Steps

Mount onto standard DIN rail inside control cabinet. Connect two independent 24VDC power sources to dual power terminals. Wire copper RJ45 ports to Mark VIe controllers and IONet I/O packs. Connect multimode fiber cables between switches for ring topology. Terminate cable shields with single-point grounding at cabinet side. Check all cable connections for tightness. Reserve sufficient airflow clearance around the switch for heat dissipation.

7.3 System Configuration & Commissioning

Configure IONet network parameters and RSTP ring redundancy in Mark VIe engineering tool. Define VLAN and QoS priority for turbine control traffic. Power up the switch and verify power, link and activity LED status. Build the IONet ring and test automatic ring recovery upon fiber/cable break. Verify controller and I/O pack communication health. Simulate port fault and power supply loss to validate redundancy response. Record network commissioning logs.

7.4 Maintenance & Precautions

Periodically inspect cable integrity, fiber connector cleanliness and module temperature during planned outages. Keep cabinet clean and prevent dust accumulation on ventilation openings. Do not exceed rated voltage or connect non-IONet unapproved devices to switch ports. If communication interruptions happen, inspect fiber/cable, grounding and power supply before replacing the switch. Do not open the module housing.
