GE IS220PTURH1A Turbine‑Specific Primary Trip I/O Pack



Product Brand & Model Title

Official Product Name: Turbine‑Specific Primary Trip I/O Pack Brand: General Electric (GE Energy) Model No: IS220PTURH1A Alternative Part: IS220PTURH1AD Product Grade: Safety‑critical turbine protection I/O pack for Mark VIe Speedtronic control system, TMR‑capable industrial grade moduleMoore Auto…



General Product Overview

The IS220PTURH1A is a dedicated primary turbine trip I/O pack for GE Mark VIe Speedtronic distributed turbine control system. It acquires high‑priority safety signals including turbine speed, emergency stop and trip‑chain status from field sensors, executes primary overspeed and emergency trip protection logic, and communicates protection data to Mark VIe controller via IONet dual‑Ethernet network. It supports simplex and TMR triple‑modular‑redundant deployment for different safety‑level requirements. Equipped with conformal coating, it adapts to high‑vibration, wide‑temperature turbine‑skid environment. This module mates with TTURH1C terminal board via 62‑pin DC connector, providing electrical isolation between field devices and control hardware for gas & steam turbine safety protection loopsMoore Auto….

IS220PTURH1A

Model Coding Definition

  • IS220: Mark VIe distributed I/O pack series identifier
  • PTUR: Primary Turbine trip, function code for turbine‑specific primary protection I/O unit
  • H1: Hardware platform variant
  • A: Hardware revision A; suffix‑D indicates derivative variant IS220PTURH1AD



Technical Specifications

Electrical Parameters

  • Power Supply: 27.4‑28.6 VDC, max 0.41 A DC
  • Speed Sensor Input: 4‑channel passive magnetic speed input, −15 V ~ +15 V DC sensing range, capable of detecting as low as 2 RPM cranking speed
  • TRPA Voltage Detection Input: 16‑140 VDC
  • E‑stop Input Range:18‑140 VDC
  • E‑stop Power Output: 28 VDC open‑circuit, 17 mA short‑circuit max
  • Trip Contact Output: 24‑28 VDC, max 7 A DC

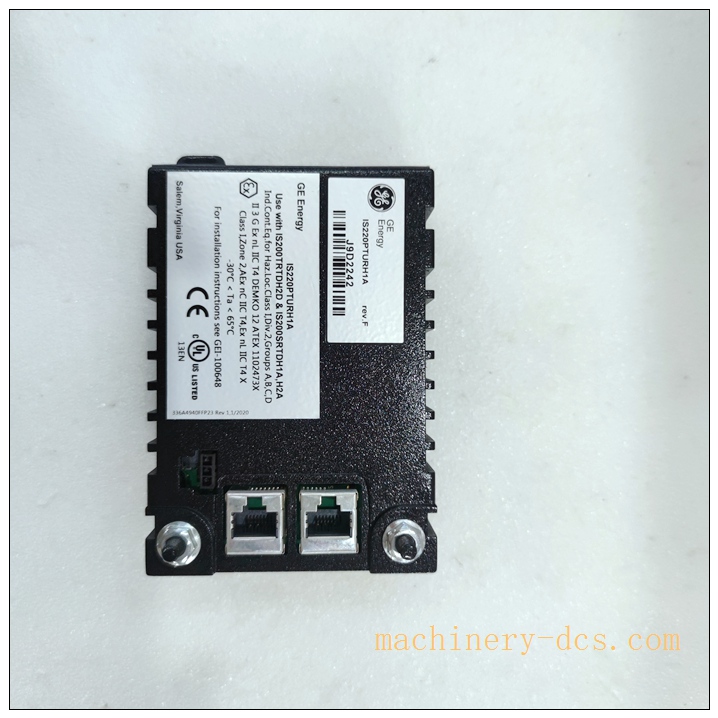

  • Communication: Dual 10/100 Mbps full‑duplex Ethernet for GE IONet distributed I/O network

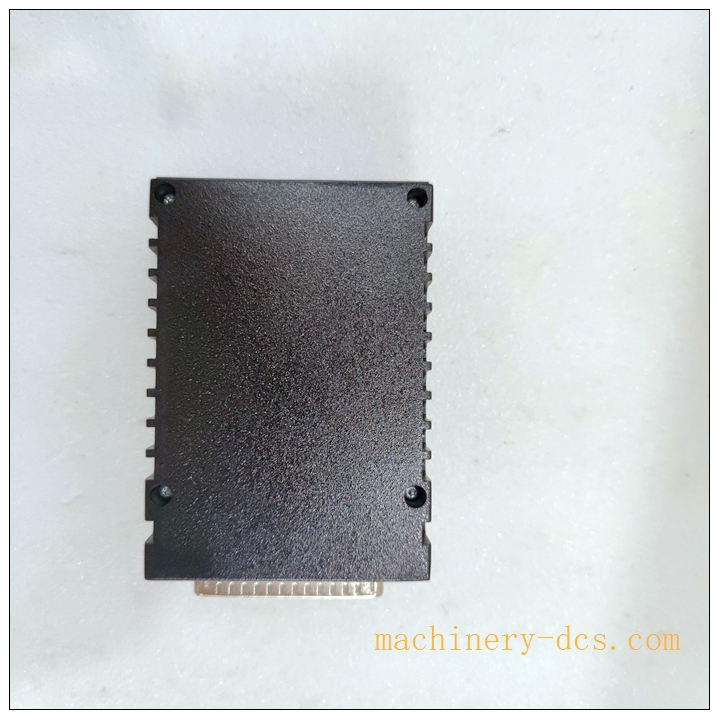

  • Connector: DC‑62‑pin interface for mating with TTURH1C terminal board
  • On‑board Interface: IR service port, multi‑channel LED status indicators for power, alarm, link and fault diagnosisMoore Auto…

Environmental Specifications

  • Operating Temperature: −40 ℃ ~ +60 ℃
  • Storage Temperature: −55 ℃ ~ +90 ℃
  • Relative Humidity: 5 %‑95 % non‑condensing
  • PCB Treatment: Conformal coated for corrosive industrial atmosphere
  • Vibration Resistance: 0.03 g RMS, 5 Hz‑500 Hz
  • Shock Resistance: 15 g, 20 ms half‑sine wave
  • Ingress Rating: IP20 (inside control cabinet)

Mechanical & Certification

  • Weight: Approx. 0.56 kgMoore Auto…
  • Mounting: Installed onto TTURH1C terminal board inside Mark VIe I/O rack
  • Certifications: CE, UL compliant for power generation safety applications
  • Compliance: Designed per GE Speedtronic turbine control safety specifications

IS220PTURH1A

Core Product Features

  1. Primary turbine overspeed & emergency trip protection: Dedicated hardware for overspeed detection and turbine emergency shutdown, implements critical safety trip logic for gas/steam turbines.
  2. TMR / Simplex dual‑mode support: Supports triple‑modular‑redundant safety architecture or simplex configuration, flexible for different project safety requirements.
  3. Dual redundant Ethernet IONet interface: Two independent 10/100 Mbps Ethernet ports enhance network communication reliability for distributed Mark VIe I/O network.
  4. Multi‑channel magnetic speed input: Accepts passive magnetic pickup sensor signals, covers cranking speed up to full turbine operating speed range.

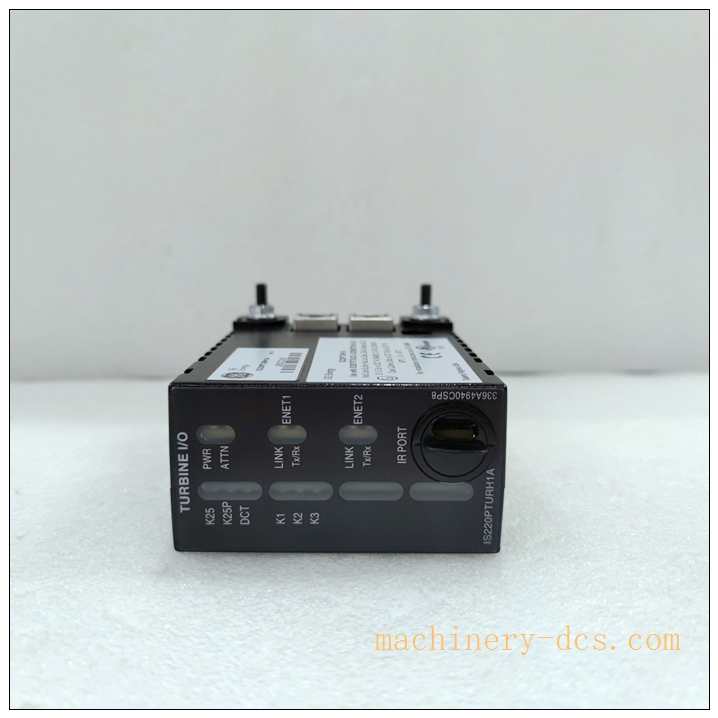

  5. On‑board comprehensive diagnostics: Front‑panel LED array indicates power status, alarm, link status and fault information for fast on‑site troubleshooting. IR service port supports local maintenance access.

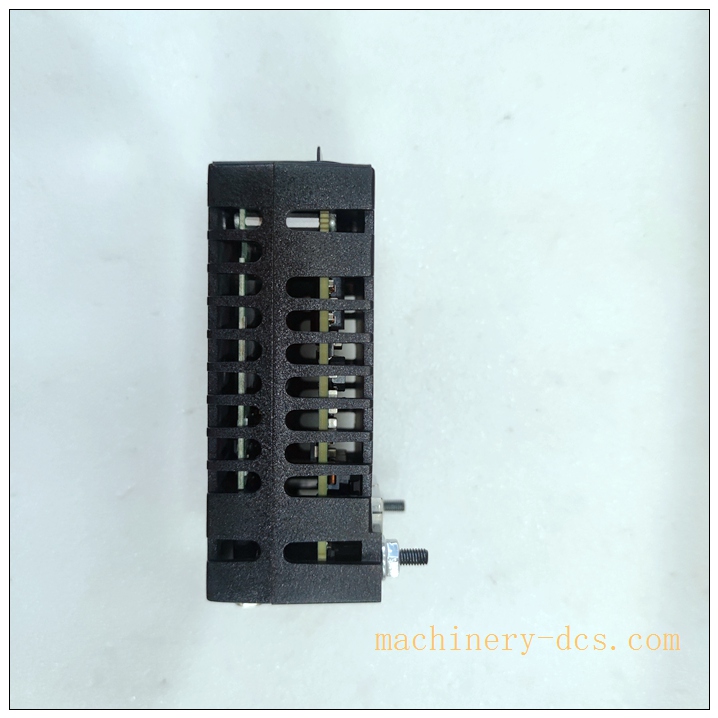

  6. Conformal coated rugged construction: Conformal coating improves resistance against humidity, dust and airborne contaminants near turbine skids.
  7. Electrical isolation design: Provides galvanic isolation between field‑side turbine sensors and controller‑side circuits to suppress field interference.
  8. Hot‑swap compatible architecture: Supports hot‑swap replacement within Mark VIe system for maintenance without full‑system shutdown.



Application Fields

‑ Power generation industry: Gas turbine & steam turbine primary safety protection in thermal power plants ‑ Oil & gas: Captive power unit turbine protection for refineries and petrochemical complexes ‑ Heavy‑process industry: Industrial turbine safety monitoring for process‑driven compressor trains ‑ Turbine retrofit projects: Replacement spare for existing Mark VIe Speedtronic control systems ‑ Combined‑cycle power plants: Critical trip‑chain protection for gas‑steam combined cycle units



Product Advantages & Value

‑ Dedicated safety hardware for turbine primary trip function, reduces safety‑logic burden on main controller. ‑ TMR‑ready architecture meets high‑availability safety requirements for critical power‑generation assets. ‑ Ruggedized turbine‑skid‑oriented design adapts to high‑vibration and temperature‑fluctuation environments. ‑ Built‑in diagnostic LED and IR service port shorten commissioning and fault‑repair time. ‑ Dual‑Ethernet redundant communication lowers single‑point communication‑failure risk. ‑ Standard Mark VIe IONet architecture ensures seamless interoperability with other Mark VIe system components.



Compatible System & Interface Description

‑ Compatible Control System: GE Mark VIe Speedtronic Turbine Control System ‑ Matching Terminal Board: TTURH1C terminal board (mandatory mating hardware) ‑ Communication Bus: GE IONet (dual‑port Ethernet) ‑ Mounting: Plug‑in I/O pack installed onto TTURH1C terminal board inside system rack ‑ Configuration Tool: Mark VIe control software suite for protection‑logic setup, parameter tuning and diagnostic review
