Description

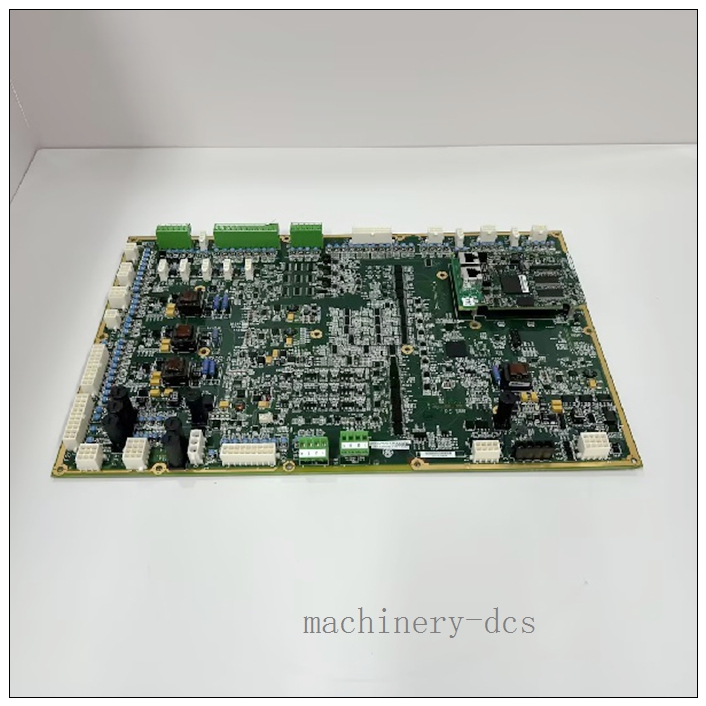

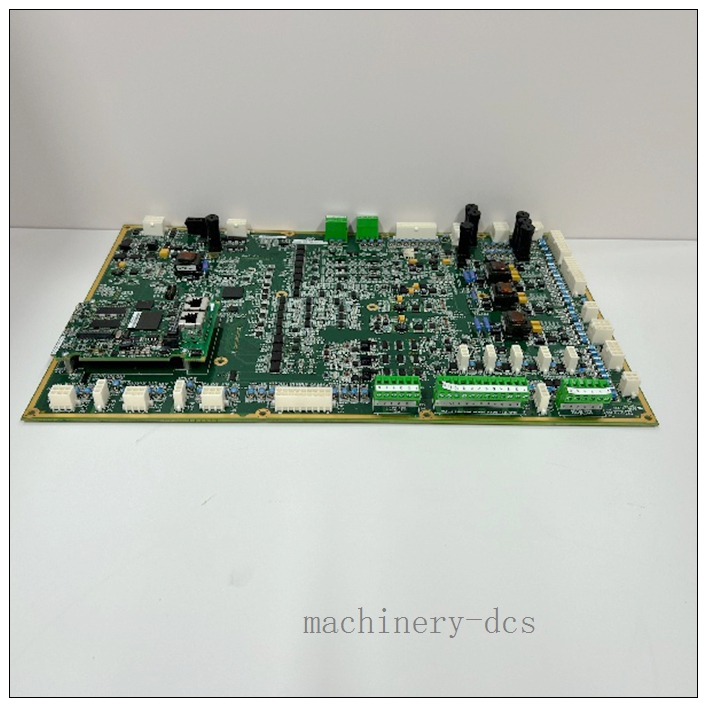

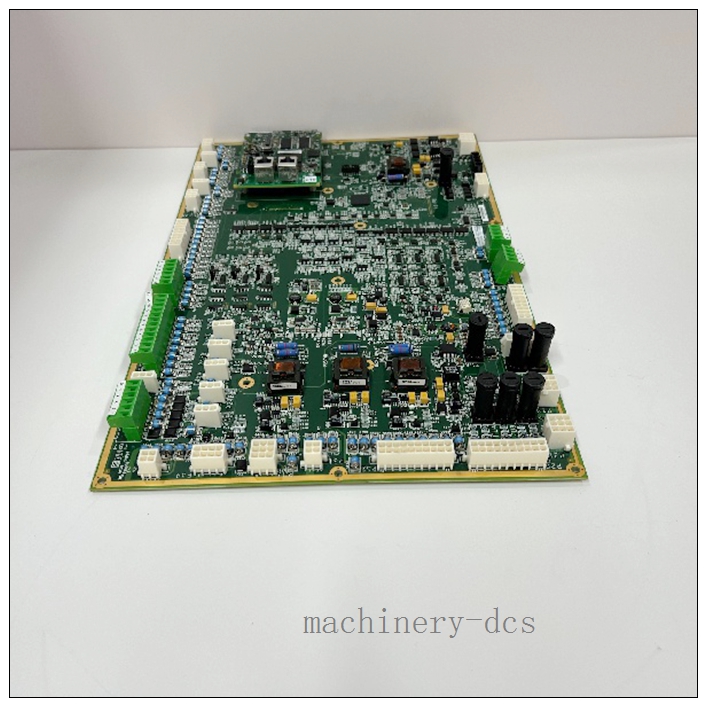

GE IS215WETAH1C dedicated Wide Enhanced Trip Analog (WETA) module
Product Brand & Model Title
General Electric IS215WETAH1C Wide Enhanced Trip Analog Module for GE Energy Mark VI Control System
Product Core Introduction
The GE IS215WETAH1C is a dedicated Wide Enhanced Trip Analog (WETA) module designed for the GE Energy Mark VI control system, focused on high-precision analog signal acquisition and processing for turbine control, protection and monitoring workflows. It features robust on-site configurable hardware jumpers, standardized industrial bus interfaces, and rugged industrial-grade construction, enabling seamless integration with existing Mark VI system architectures to deliver reliable signal conditioning and transmission for critical power generation equipment.
IS215WETAH1CA
Main Technical Specifications
- Brand & Origin: General Electric, USA
- Part Number: IS215WETAH1C
- Product Category: Analog Input/Output Module for Turbine Control
- Output Current Range: Configurable up to 20mA or 200mA via on-board jumpers
- On-Site Configuration: Hardware jumpers J1/J2 for milliamp output circuit selection, J5/J6 for current range setup, J7 for RS232 port card testing, J8 for oscillator startup
- Communication Interfaces: 3PL data bus for conditioned signal transmission to COREBUS, JE connector for generator and line signal communication with TCQC board
- Weight: Approximately 1KG
- Warranty: 12-month official warranty for brand new original units
- Packaging: Original factory sealed packaging
Recommended Same-Series Models
- IS215WETAH1CA: The direct variant of IS215WETAH1C, fully compatible with the same Mark VI system, with identical signal processing performance and form factor
- IS215VCMIH2B: Mark VI VCMI communication module, designed to pair with WETA modules to expand system analog signal transmission capacity
- IS215TCQSH2A: TCQC turbine control board, the native matching counterpart that directly communicates with IS215WETAH1C via JE connector for complete turbine signal processing loops
- IS200WETAH1A: Compact WETA module for Mark VIe systems, optimized for smaller footprint control cabinet layouts with reduced channel count
Professional Quality Control Test Standard Operating Procedure
- Pre-Power Visual Inspection: Verify module housing integrity, all jumper pins are intact, no physical damage, loose components or residual contamination on the circuit board
- Jumper Configuration Validation: Set J1/J2, J5/J6 to different current range positions, confirm each configuration can be correctly identified by the system via RS232 test port
- Power Supply Performance Test: Apply rated operating voltage, monitor steady-state power consumption and temperature rise to confirm no abnormal heating or overcurrent
- Signal Processing Calibration: Inject standard analog signals covering 4-20mA full range, verify the module outputs conditioned signals with accuracy within ±0.1% tolerance
- Interface Communication Test: Connect the module to 3PL data bus and JE connector, confirm stable data transmission with COREBUS and TCQC board for 2 consecutive hours with zero data loss
- Environmental Stress Screening: Complete industrial temperature cycle test, followed by EMC interference test to confirm no signal drift or processing error under harsh electromagnetic noise conditions
- Final Sign-off: Archive all test data, generate traceable quality report, label qualified unit with unique serial number before delivery.
IS215WETAH1CA
New Module Installation
- Power off the Mark VI control rack, confirm all connected turbine protection loops are placed in locked bypass state to prevent unintended trip during installation
- Mount the module securely in the designated slot of the control cabinet, ensure no mechanical looseness and proper alignment with the backplane connector
- Configure all on-board hardware jumpers strictly according to on-site system requirements, set the correct milliamp output circuit and current range before powering on
- Terminate 3PL data bus wiring, JE connector signal cables and power wiring strictly following GE official Mark VI technical drawings, torque all terminals to specified standard value
- Restore rack power, use J7 RS232 port to complete initial card testing, confirm the oscillator starts normally and all status indicators show normal state
- Complete system configuration synchronization, perform full signal loop test to verify all analog acquisition and transmission functions work correctly before removing safety bypasses and returning the system to normal operation.
Application Scenarios and Features
This module is primarily deployed in gas turbine, steam turbine and combined cycle power generation units, responsible for high-precision acquisition and processing of critical analog signals including temperature, pressure, rotating speed and flow rate. Its core features include highly flexible on-site hardware configuration without modifying program code, seamless interoperability with Mark VI system COREBUS and TCQC boards, and rugged industrial design that supports long-term stable operation in harsh power plant environments. It helps end users improve turbine control accuracy, enhance protection system response speed, and reduce unplanned downtime risk of critical power generation assets.
Frequently Asked Questions
- Q: Can I reconfigure the output current range after the module is installed and powered on?
A: No, you must power off the module first before adjusting J5/J6 jumpers, otherwise it may cause signal abnormality or even damage the internal circuit. - Q: What is the function of the J7 RS232 port?
A: It is dedicated for factory and on-site card testing, used to verify module hardware performance and signal processing status without relying on the main control system. - Q: Can be directly replaced with IS215WETAH1CA?
A: Yes, the two models share identical hardware interface, jumper definition and function, supporting drop-in replacement with no wiring or configuration modification required. - Q: What is the standard lead time for a brand new original unit?
A: Regular in-stock units can be shipped within 3-5 working days from Xiamen port, with 1-year full official warranty provided.
