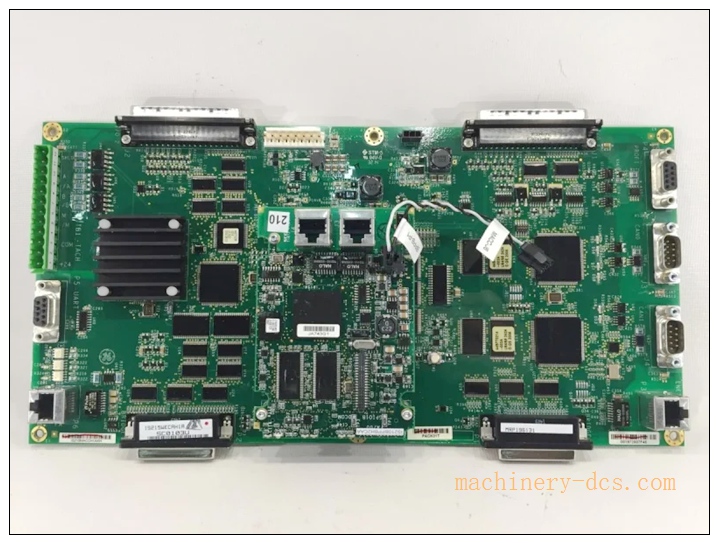

GE IS210MACCH1AKH MACS Cabinet Hub Communication Board for Mark VIe / Mark VIeS Turbine Control System

Description

GE IS210MACCH1AKH MACS Cabinet Hub Communication Board for Mark VIe / Mark VIeS Turbine Control System

Product Details

The IS210MACCH1AKH is cabinet‑level central communication hub board for GE Mark VIe and Mark VIeS turbine control systems. Origin: USA. Lifecycle status: EOL discontinued, OEM new production stopped; market supply includes NOS surplus and fully‑tested refurbished spare‑parts for power‑plant maintenance.

It acts as bridge between UDH (Unit Data Highway) and IONet distributed I/O network, performs 10/100 Ethernet packet switching for cabinet internal communication. Supports TMR triple‑modular‑redundant R/S/T network paths. Dual redundant 28 VDC power supply input. AKH suffix means conformal‑coated PCB (G3) for corrosive cabinet environment. Equipped with SFP slots for fiber‑optic IONet extension to remote I/O cabinets. On‑board diagnostics monitor cabinet temperature, fan status and power health. Operating temperature: ‑30℃ ~ +65℃. Weight approx 0.65 kg. Hardware revision must match original during replacement.

Applications

‑ Combined‑cycle gas / steam turbine Mark VIe control cabinet core network backbone ‑ Thermal‑power plant, nuclear‑grade Mark VIeS safety‑related system communication ‑ Power‑plant turbine cabinet IONet distributed‑I/O network routing ‑ Petrochemical turbo‑machinery control system spare‑part replacement ‑ Retrofit and component swap for legacy Mark VIe / Mark VIeS racks ‑ Spare inventory for power‑plant turbine‑control maintenance department

IS210MACCH1AKH

Related Series Models (6+)

1. IS210MACCH1AH (Non‑conformal coating baseline version)
2. IS220PAICH1A (IONet analog I/O pack)
3. IS220PDIAH1A (IONet discrete input pack)
4. IS220UCSAH1A (Mark VIe controller CPU module)
5. IS215UCVHM06A (Controller communication board)
6. IS200TPROH1B (Terminal board)
7. IS220PPROH1A (Processor pack)

Key Features

1. Dedicated MACS cabinet hub board, interconnect UDH main control network and IONet distributed‑I/O fieldbus for Mark VIe platform.
2. Supports TMR triple‑redundant R/S/T network channels, satisfies high‑reliability turbine control requirements.
3. Dual 28VDC redundant power inputs, improves power‑supply fault‑tolerance.
4. SFP fiber‑optic ports support long‑distance IONet extension to remote I/O cabinets.
5. AKH hardware variant with conformal coating, suitable for G3 corrosive, high‑humidity plant cabinet environment.
6. On‑board comprehensive diagnostics: temperature, fan, power‑supply and link‑status monitoring.
7. Multiple hardware revisions exist; strict revision verification required before field replacement.
8. Manufactured in USA; EOL obsolete, only NOS or fully‑tested refurbished spare‑parts available.

Main Functions

1. High‑speed Ethernet switching and data routing between Mark VIe main processors and distributed IONet I/O packs.
2. Bridge UDH unit‑level highway and cabinet‑internal IONet network, realize deterministic real‑time data transmission.
3. Support TMR triple‑modular‑redundant network path operation for safety‑critical turbine control loops.
4. Use SFP fiber ports to extend IONet bus, connect remote distributed I/O cabinets.
5. Monitor cabinet operating conditions (temperature, fan, power), report fault alarms to turbine HMI.
6. Conformal‑coated PCB ensures stable long‑term operation under harsh power‑plant cabinet atmosphere.
7. Cooperate with CPU packs and various IONet I/O modules to complete gas‑steam turbine whole‑set control architecture.
8. Serve as central network backbone hub inside GE Mark VIe / Mark VIeS turbine control cabinet.
