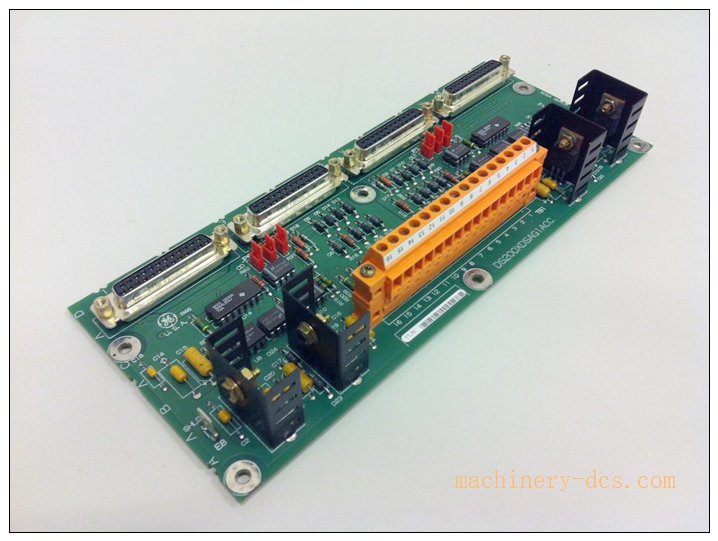

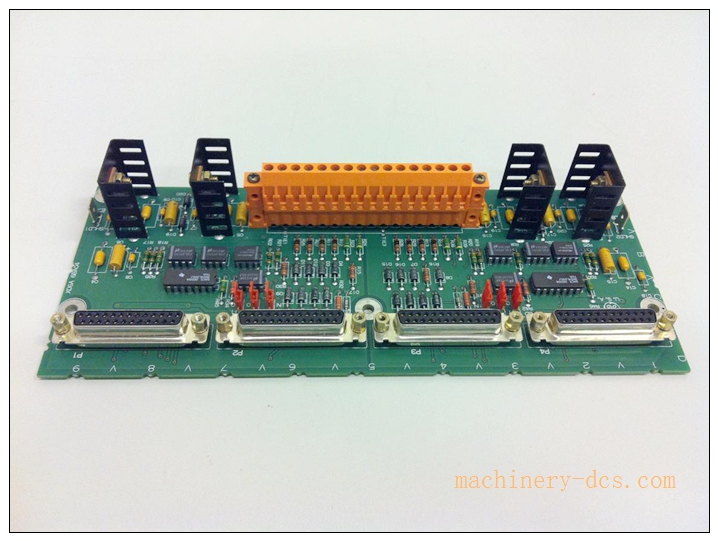

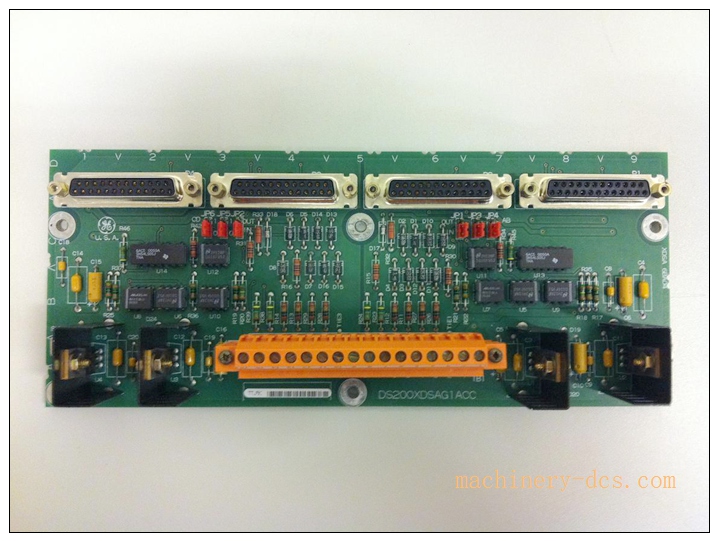

GE DS200XDSAG1A – Excitation and Auxiliary Contact Interface Board for GE Speedtronic Mark V DS200 Series

Description

GE DS200XDSAG1A – Excitation and Auxiliary Contact Interface Board for GE Speedtronic Mark V DS200 Series

Executive Summary

The DS200XDSAG1A is a critical component designed by General Electric for the Speedtronic Mark V turbine control systems, specifically within the DS200 series family. This board functions primarily as an interface module, bridging the core control logic with external field devices, particularly focusing on excitation control and contact management. It serves as a vital link in the communication chain, translating digital signals from the main processor into physical actions and feedback. Known for its robustness, the DS200XDSAG1A is engineered to withstand the harsh electrical and physical environments typical of power generation facilities, ensuring reliable operation for gas and steam turbines.

DS200XDSAG1ACC

Core Technical Specifications

Key Features and Advantages

• High-Density Signal Processing: The board is designed to handle a high density of input and output signals, facilitating complex control logic execution for the turbine exciter system.
• Robust Electrical Isolation: Provides essential galvanic isolation between the sensitive microprocessor logic and the high-power field devices, protecting the control system from voltage spikes and electrical noise.
• Durability: Constructed with high-grade materials to resist thermal stress, vibration, and dust ingress, which is critical for the longevity of turbine control systems.
• Direct Integration: Designed specifically for the DS200 series architecture, ensuring seamless plug-and-play compatibility with other Mark V modules without the need for custom adapters.
• Diagnostic Capability: Often features status LEDs or test points to assist maintenance personnel in troubleshooting signal integrity and board health during operation.

Application Scenarios

The DS200XDSAG1A is primarily utilized in heavy-duty power generation and industrial drive applications:

• Gas Turbine Control: Used in large-scale gas turbines (Frame 5, Frame 6, Frame 7, Frame 9) for managing the excitation system and auxiliary contacts within the control cabinet.
• Steam Turbine Operations: Facilitates critical control signals in steam turbine plants, ensuring precise synchronization and load control.
• Generator Excitation Systems: Acts as the interface board for static excitation systems, regulating the field current to the generator rotor.
• Industrial Mechanical Drives: Employed in large mechanical drive applications (such as compressors and pumps) where precise motor control and feedback are required.

Recommended Related Models (Brand: GE)

• DS200TCQAG1: A terminal board often used in conjunction with the DS200XDSAG1A for signal termination.
• DS200ADGIH: An analog-to-digital interface board that works alongside the excitation board to process analog signals.
• DS200TBCAG1: A terminal board specifically designed for contact inputs and outputs.
• DS200FCRMG1: A flash memory and configuration board used for storing system parameters.
• DS200DSPCH1: A digital signal processor board that may work in tandem with the interface board.

DS200XDSAG1ACC

Frequently Asked Questions (FAQ)

Q: What is the main difference between the DS200XDSAG1A and the DS200XDSAG1ACC?
A: The is the base hardware version or an earlier revision, while the DS200XDSAG1ACC typically represents a specific revision or modification status designated by the suffix “ACC.” Functionally, they perform similar roles within the DS200 series, but the revision status may indicate firmware updates, hardware component changes, or specific compatibility requirements. It is always recommended to verify the exact revision needed against the system’s Bill of Materials (BOM).

Q: Can the be replaced with a generic industrial I/O board?
A: No. The is custom-designed for the GE Mark V series architecture. It uses proprietary backplane connectors and communication protocols specific to GE Speedtronic systems. A generic board would not fit physically or function correctly within the control system.

Q: How do I determine if the board is faulty?
A: Common indicators of failure include the turbine failing to start, erratic excitation behavior, or specific diagnostic alarms appearing on the operator interface (HMI). Physically, one should check for blown fuses, damaged capacitors, or burnt components on the circuit board. Testing the I/O points with a multimeter against the schematics is also a standard troubleshooting step.

Q: Is this board still manufactured by GE?
A: The Mark V and series are legacy systems and are generally no longer in active production by GE. Parts are typically sourced as refurbished or from surplus inventory. It is critical to source these boards from reputable suppliers who offer proper testing and warranty services.

Q: What maintenance is required for the ?
A: Maintenance primarily involves keeping the board clean and dust-free. Periodic inspections should be conducted to check for corrosion on connectors and to ensure all retaining screws are tight. Since it contains sensitive electronics, it should be handled with proper electrostatic discharge (ESD) precautions.
