Description

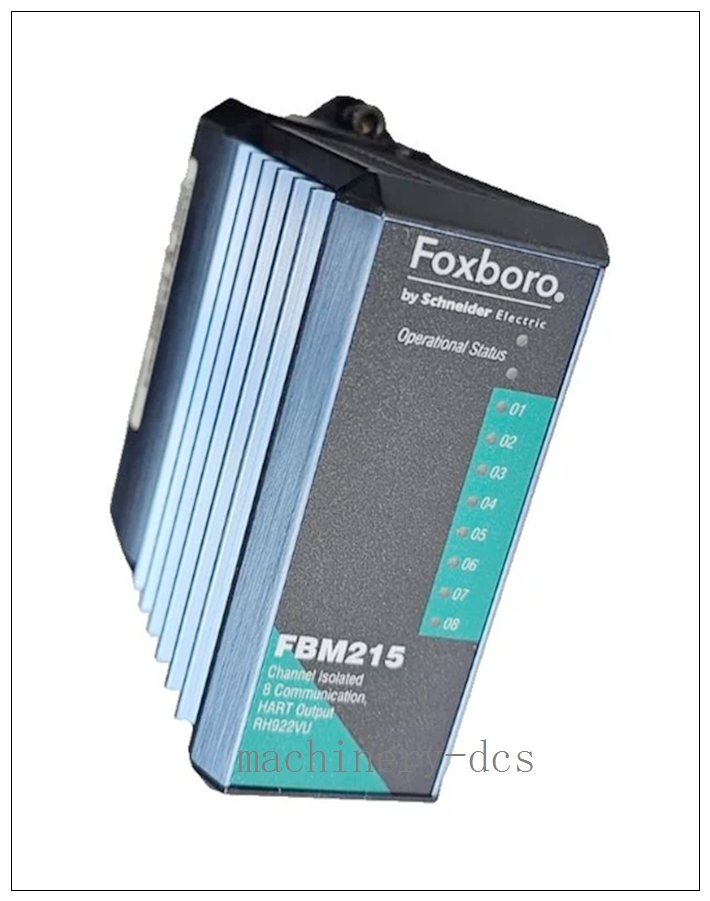

Foxboro FBM215 RH922VU 8-Channel Isolated HART Communication Output Module
Detailed Product Information
The Foxboro FBM215 is a dedicated 8-channel, channel-isolated HART communication output module designed for the Foxboro I/A Series and Evo distributed control systems (DCS). As a critical component of industrial process control architectures, this module provides reliable analog output and bidirectional digital communication with HART-enabled field devices, supporting seamless integration of smart instruments into automation workflows. It is electrically fully compatible with standard 4-20 mA analog signals, allowing industrial plants to upgrade their field devices to HART smart instruments without modifying the existing control system hardware. The module acts as a HART field device host, enabling the Foxboro Evo system to receive up to two digital messages per second from each connected field device, supporting HART universal, common practice and device-specific commands via the Intelligent Field Device Configurator (IFDC) tool.

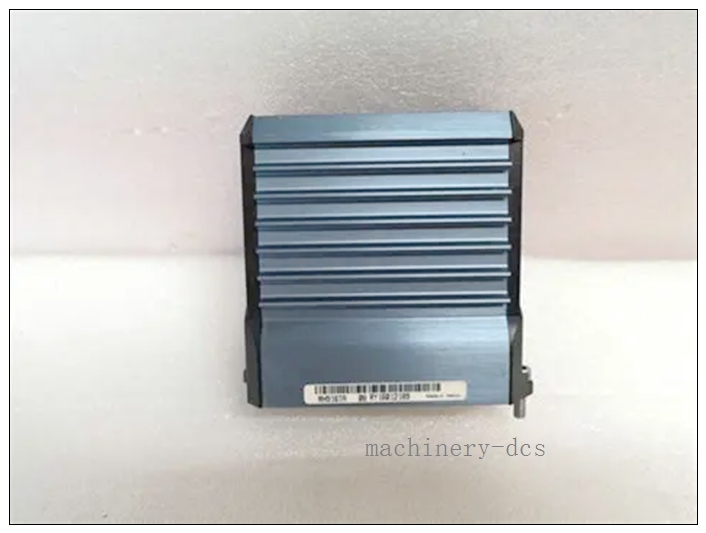

RH922VU
Technical Specifications
- Manufacturer: Foxboro
- Part Number: FBM215 (RH922VU / P0922VU)
- Product Type: 8-Channel Isolated HART Communication Output Module
- Number of Output Channels: 8 fully channel-isolated HART output channels
- Signal Compatibility: Electrically compatible with standard 4-20 mA analog signals
- HART Communication Performance: Receives up to 2 digital messages per second from each connected field device
- Supported HART Commands: HART universal commands, common practice commands and device-specific commands (burst communication mode not supported)
- Dimensions (W × H × D): 147 mm × 51.5 mm × 114 mm
- Net Weight: Approximately 0.6 kg
- Country of Origin: United States of America
- HS Code: 85371090
- Operating Environment: Industrial-grade design for heavy process control environments
- Warranty: 12 months official manufacturer warranty
Compatibility & Installation Pitfalls
Compatibility
- Natively interoperable with Foxboro I/A Series and Foxboro Evo distributed control systems
- Fully compatible with all standard 4-20 mA analog field devices and HART-enabled smart field instruments
- Seamlessly integrates with the Intelligent Field Device Configurator (Foxcom™ and HART™ Protocols IFDC) for HART device configuration
- Matches with Foxboro dedicated modular baseplate backplanes and standard industrial control cabinet DIN rail mounting systems
- Supports seamless integration with existing 4-20mA analog control loops without system hardware modification
Installation Pitfalls
- Never install the FBM215 in a non-designated slot on the control system baseplate. Mismatched slot configuration will break the backplane signal path and cause partial or total output signal loss.
- Do not connect field devices with load resistance exceeding the module’s maximum rated output load directly to the output channels. Excessive load will cause output signal distortion and permanent damage to the internal drive circuits.
- Avoid routing HART output signal cables connected to this module in the same cable tray as high-power variable frequency drive or AC motor power cables. Severe electromagnetic interference will corrupt HART digital communication and cause intermittent smart device communication dropouts.
- Never perform hot-swap replacement while critical process control loops relying on this module are in automatic operation without pre-engaging the configured redundant output path. This action will cause momentary output loss and trigger unplanned process trips.
- Do not deploy FBM215 modules with drastically different firmware revisions in the same redundant pair. Inconsistent firmware versions will cause asynchronous HART data timing and unexpected output mismatch during redundant switchover.
RH922VU
Standard Operating Procedure
- Pre-installation verification: Inspect the FBM215 module for physical damage on circuit boards and output terminals, confirm the control system baseplate 24V DC power output is stable within the acceptable operating range.
- Mechanical mounting: Align the module with the designated slot on the modular baseplate, slide it smoothly into place, and secure the mounting lugs to ensure full and reliable electrical contact with the backplane.
- Field wiring termination: Connect all 4-20mA/HART field actuators and smart valve positioners to their corresponding designated channels on the termination assembly, secure all cable connections properly and apply clear permanent labels for each channel with its corresponding device tag number.
- Power-on configuration: Access the Foxboro DCS engineering workstation, register the new module to the control system, configure output signal range, HART communication parameters and device mapping settings.
- Functional validation: Inject calibrated reference control signals to every channel one by one, confirm the output current value measured on site falls within the specified accuracy range, verify HART digital communication with all connected smart devices is operating normally.
- Commissioning handover: Export and save the final HART device configuration profile to secure backup, complete the loop check and wiring verification log, and confirm all 8 HART output channels are operating normally before releasing the system to full operational service.
Typical Application Scenarios
- Petrochemical refining operations: Serves as the dedicated HART output module for smart control valves in distillation columns, reactors and heat exchanger control loops, supporting both 4-20mA analog control and HART digital device diagnostics.
- Chemical processing plants: Leverages its full per-channel galvanic isolation design to eliminate cross-channel signal interference, ensuring stable and accurate output signal transmission in high-electromagnetic-interference industrial environments.
- Power generation and utilities: Deploys in thermal power plant DCS control cabinets, providing reliable HART output control for boiler control valves and smart actuator positioners.
- Oil and gas production facilities: Adapts to the harsh operating environment in onshore and offshore control cabinets, supporting 24/7 non-stop operation for process control loops with HART smart instruments.
- Industrial manufacturing facilities: Enables full access to HART smart valve diagnostic data, supporting predictive maintenance for field control devices to reduce unplanned downtime.
Recommended Supporting Components
- Foxboro dedicated modular baseplate with matched DIN rail mounting accessories and redundant power supply unit
- Foxboro official Intelligent Field Device Configurator (IFDC) software for HART smart device configuration and diagnostics
- Shielded twisted-pair HART compliant field signal cables for interference-free HART digital communication
- Foxboro official I/A Series / Evo DCS engineering configuration software and HART communication diagnostic toolkit
- Portable precision process calibrator for on-site output channel calibration and routine maintenance operations
Related Part Number Recommendations
- FBM216B P0927AJ: Foxboro HART communication input module, for HART 5/6/7 compliant smart field sensor signal acquisition scenarios
- FBM217: Foxboro 16-channel high-density HART input module, for industrial systems that require more HART input channels
- FBM218: Foxboro HART analog output module, for high-density HART smart actuator control applications
- FBM221: Foxboro standard 8-channel analog output module, for non-HART 4-20mA analog output control scenarios
- FBM233 P0926GX: Foxboro high-performance redundant Ethernet fieldbus communication module, for industrial network communication scenarios
