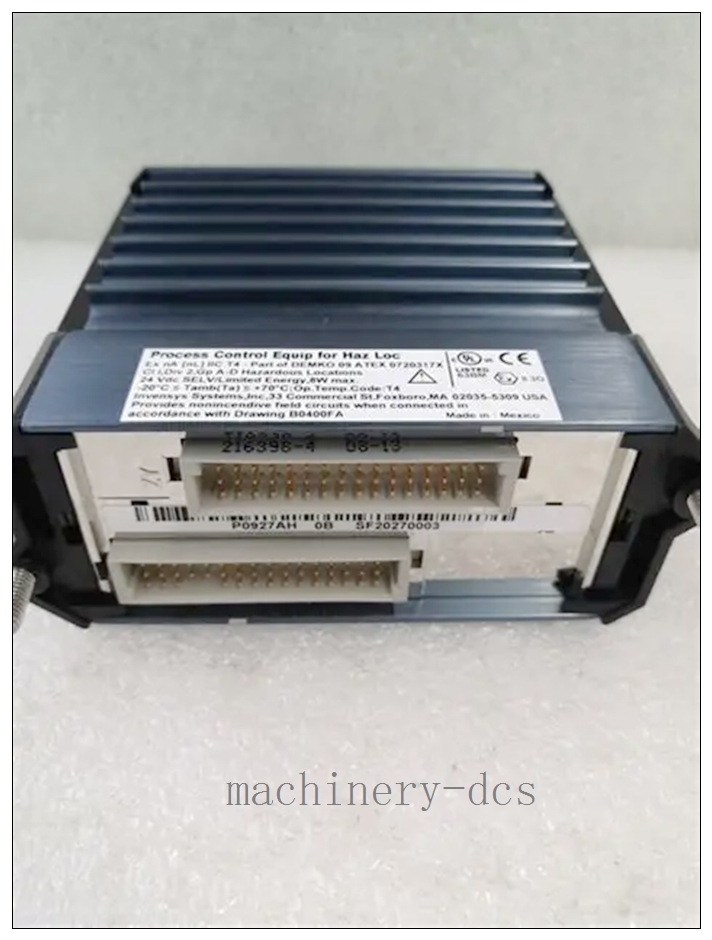

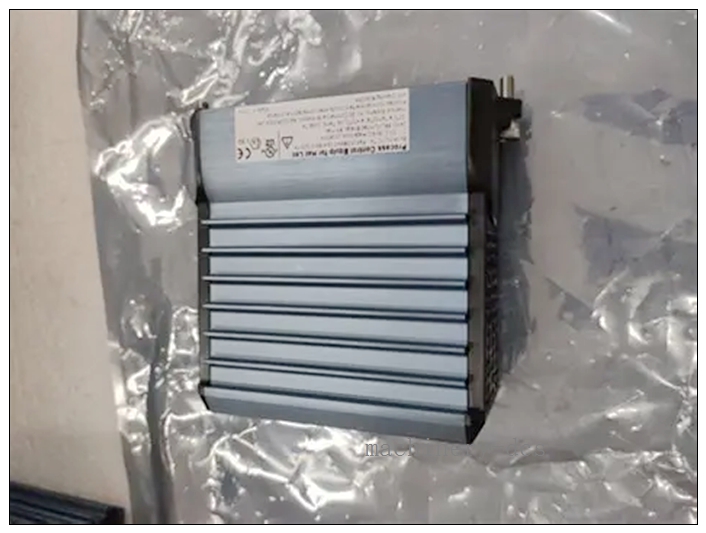

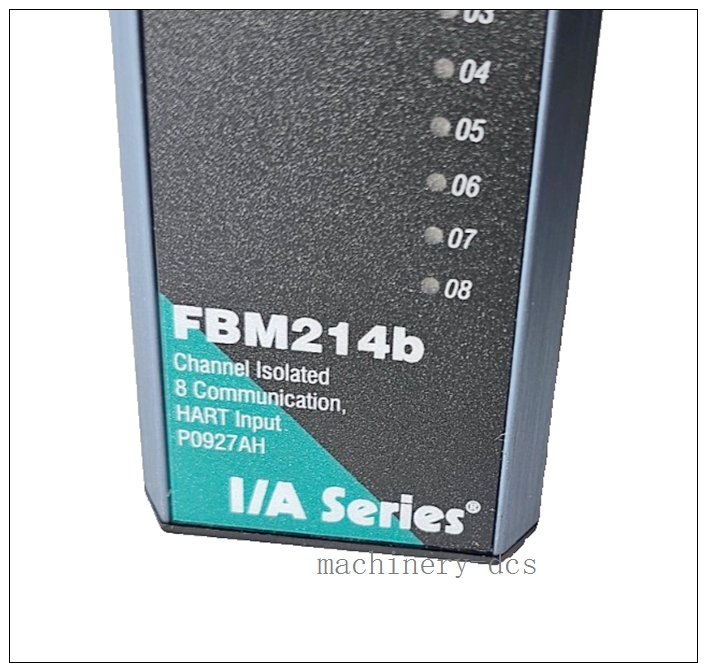

Foxboro FBM214B P0927AH 8-Channel Individually Isolated Analog Input Fieldbus Module
Detailed Product Information
The Foxboro FBM214B P0927AH is a compact industrial-grade analog input fieldbus module purpose-built for distributed control system signal acquisition, designed to deliver highly reliable, high-precision analog signal processing for heavy industrial process control environments. It features 8 fully individually isolated input channels, which eliminates cross-channel signal interference and ground loop current issues to preserve exceptional signal integrity even in high-electromagnetic-interference industrial sites. The module adopts a compact 200 Series design, which can be directly mounted on a 16-slot horizontal baseplate, supporting DIN rail installation or 19-inch standard rack mounting via dedicated mounting kits, making it extremely flexible for different control cabinet layout requirements. It is widely recognized as a cost-effective, high-stability analog input solution for process industries that demand continuous 24/7 non-stop operation.
P0927AH
Technical Specifications
- Manufacturer: Foxboro
- Part Number: FBM214B P0927AH
- Product Type: 8-Channel Individually Isolated Analog Input Fieldbus Module
- Number of Input Channels: 8 fully individually isolated channels
- Redundant Input Voltage Range: 24 V DC (+5% / -10%)
- Maximum Power Consumption: 7 W
- Maximum Heat Dissipation: 4 W
- Module Operating Temperature Range: -20°C to +70°C (-4°F to +158°F)
- Termination Assembly Operating Temperature Range: -20°C to +70°C (-4°F to +158°F)
- Operating Relative Humidity: 5% to 95% non-condensing
- Operating Altitude Range: -300 m to +3000 m (-1000 ft to +10000 ft)
- Storage Temperature Range: -40°C to +70°C (-40°F to +158°F)
- Storage Relative Humidity: 5% to 95% non-condensing
- Storage Altitude Range: -300 m to +3658 m (-1000 ft to +12000 ft)
- Module Approximate Mass: 185 g (6.5 oz)
- Termination Assembly Approximate Mass: 181 g (0.40 lb)
- Module Dimensions: Height 130 mm (5.12 in), Width 25 mm (0.98 in), Depth 150 mm (5.9 in); 139 mm (5.46 in) depth including baseplate connectors
- Supported Termination Cable Maximum Length: Up to 30 m (98 ft)
- Supported Termination Cable Materials: Polyurethane (PVC) or Low Smoke Zero Halogen (LSZH) industrial grade cables
- Mounting Compatibility: Compact 200 Series 16-slot horizontal baseplate, DIN rail, 19-inch standard rack with dedicated mounting kit
- Condition: Brand new in stock
- Warranty: 2 years official manufacturer warranty
- Origin: USA
Compatibility & Installation Pitfalls
Compatibility
- Natively interoperable with Foxboro Compact 200 Series 16-slot horizontal baseplate and Foxboro I/A Series distributed control systems
- Fully compatible with standard 4-20mA analog process transmitters, pressure, temperature, flow and level industrial sensors
- Seamlessly integrates with Foxboro Experion DCS engineering software for full channel configuration, parameter mapping and diagnostic operations
- Matches with standard 32 mm and 35 mm DIN rail mounting systems in industrial control cabinets without additional adapter modification
- Supports standard polyurethane (PVC) and Low Smoke Zero Halogen (LSZH) termination cables up to 30 meters in length
Installation Pitfalls
- Never install the FBM214B in a non-designated slot on the Compact 200 Series baseplate. Mismatched slot configuration will break the backplane signal path and cause partial or total analog input signal loss.
- Do not connect field signals with voltage levels exceeding the module’s maximum rated input tolerance directly to the input terminals. Uncontrolled overvoltage transients will permanently damage the internal signal conditioning circuits.
- Avoid routing analog input signal cables connected to this module in the same cable tray as high-power variable frequency drive or AC motor power cables. Severe electromagnetic interference will degrade the module’s measurement accuracy and cause unexpected signal noise.
- Never perform wiring modification or FBM214B replacement while critical process control loops relying on this module are in automatic operation without pre-engaging the configured maintenance bypass. This action may cause momentary signal loss and trigger unplanned process trips.
- Do not use uncertified non-industrial grade signal cables longer than 30 meters for field wiring. Excessively long non-shielded cables will introduce severe signal attenuation and measurement drift that violates system accuracy requirements.
P0927AH
Standard Operating Procedure
- Pre-installation verification: Inspect the FBM214B module for physical damage on circuit boards and input terminals, confirm the Compact 200 Series baseplate 24V DC power output is stable within the acceptable operating range.
- Mechanical mounting: Align the module with the designated slot on the 16-slot horizontal baseplate, slide it smoothly into place, and secure the mounting lugs to ensure full and reliable electrical contact with the backplane.
- Field wiring termination: Connect all analog field transmitters and sensors to their corresponding designated channels on the termination assembly, secure all compression terminals properly and apply clear permanent labels for each channel with its corresponding process tag number.
- Power-on configuration: Access the Foxboro I/A Series DCS engineering workstation, register the new module to the control system, configure channel signal type, range mapping and process variable scaling parameters.
- Functional validation: Inject calibrated standard reference signals to every channel one by one, confirm the measured value displayed on the DCS HMI falls within the specified accuracy range, verify all 8 isolated channels are operating normally without cross-interference.
- Commissioning handover: Export and save the final channel mapping documentation to secure backup, complete the loop check and wiring verification log, and confirm all analog input points are operating normally before releasing the system to full operational service.
Typical Application Scenarios
- Petrochemical refining operations: Serves as the core analog signal acquisition module for refinery process units, delivering high-stability 8-channel isolated signal termination for critical 4-20mA process transmitters.
- Chemical processing plants: Leverages its full per-channel galvanic isolation design to eliminate ground loop interference, ensuring accurate and reliable analog signal transmission in high-electromagnetic-interference industrial environments.
- Power generation and utilities: Deploys in thermal power plant DCS control cabinets, providing reliable analog signal acquisition for boiler temperature, pressure and flow process monitoring loops.
- Oil and gas production facilities: Adapts to the harsh operating environment in onshore wellhead control cabinets, supporting 24/7 non-stop operation for process monitoring and control systems.
- Industrial manufacturing facilities: Acts as a compact, high-density analog input hub for continuous production process control loops, maximizing control cabinet space utilization while ensuring high signal integrity.
Recommended Supporting Components
- Foxboro Compact 200 Series 16-slot horizontal baseplate with matched DIN rail or 19-inch rack mounting accessories
- Foxboro certified termination assembly with compression terminals for secure field wiring connection
- Shielded twisted-pair industrial analog signal cables for interference-free 4-20mA signal transmission
- Foxboro official I/A Series DCS engineering configuration software and analog signal diagnostic toolkit
- Portable precision process calibrator for on-site channel calibration and routine maintenance operations
Related Part Number Recommendations
- FBM216B P0927AJ: Foxboro HART communication analog input module, for HART 5/6/7 compliant smart field device connection scenarios
- FBM217: Foxboro 16-channel high-density isolated analog input module, for large-scale industrial systems that require more analog input channels
- FBM212: Foxboro standard non-isolated analog input module, for cost-effective deployment in mild industrial environments
- FBM218: Foxboro HART analog output module, for HART smart valve positioner and actuator control applications
- FBM224: Foxboro enhanced high-precision analog input module, for metrology-grade high-accuracy process signal acquisition scenarios
