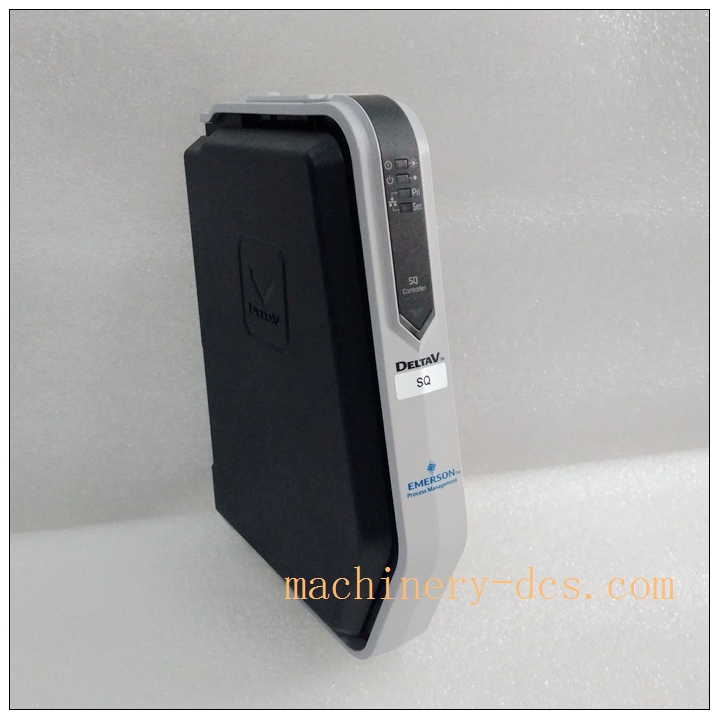

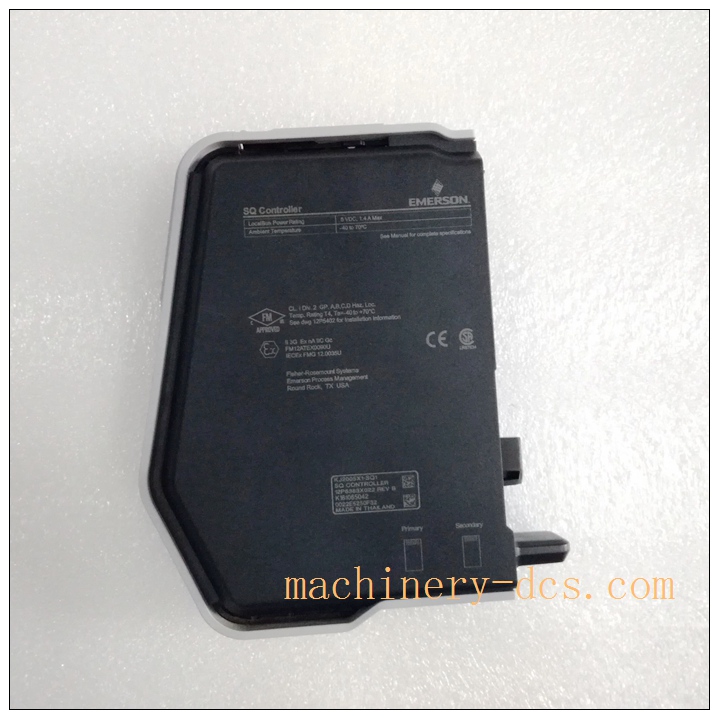

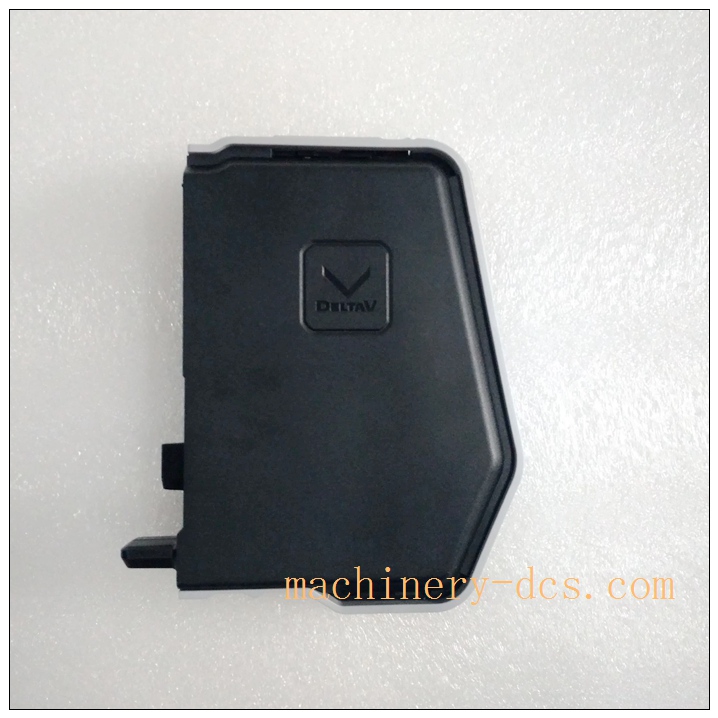

Emerson SE3008 (Part No: KJ2005X1-SQ1, 12P6383X032) DeltaV SQ high-performance process controller
Product Title & Description
Model: SE3008 (Part No: KJ2005X1-SQ1, 12P6383X032) The Emerson SE3008 is the DeltaV SQ high-performance process controller for Emerson DeltaV DCS system. It supports 1:1 hot standby redundancy, CHARM electronic marshalling technology, PID closed-loop regulation, sequence control and interlock logic execution. Widely deployed in petrochemical, power generation, oil & gas, pharmaceutical and water treatment continuous process plants, delivering reliable distributed control for critical production loops.
Core Product Overview
SE3008 belongs to DeltaV S-series controller family, acting as the core processing unit of DeltaV DCS. It executes continuous control, batch sequencing and safety interlock logic independently. It is designed to work with DeltaV CHARM I/O modules, eliminating traditional hardwired marshalling cabinets. The controller is equipped with dual redundant Ethernet control network ports. Primary and standby controllers continuously synchronize program, variable and I/O status. If primary controller fails, seamless bumpless transfer to standby without disrupting plant operation. Built-in comprehensive diagnostics monitor controller health, memory, network and connected CHARM I/O status. Conformal coated version is available for corrosive, high humidity industrial cabinet environments. It communicates with DeltaV workstations, HMI, historians and field instruments.
SE3008
Main Technical Specifications
- Manufacturer: Emerson
- Model: SE3008
- Alternate part numbers: KJ2005X1-SQ1 / 12P6383X032
- Product Type: DeltaV SQ Process Controller
- Series: DeltaV S Series DCS
- Redundancy: 1:1 Hot Standby redundant
- Network: Dual 10/100 Mbps Ethernet (control network)
- I/O Support: DeltaV CHARM I/O (Electronic Marshalling)
- Programming: IEC 61131-3, DeltaV control studio, PID, SFC sequence logic
- Power Supply: 24 VDC
- Mounting: Single slot in DeltaV S-series rack
- Operating Temperature: 0°C ~ +60°C
- Storage Temperature: -40°C ~ +85°C
- Relative Humidity: 5% ~95%, non-condensing
- Certifications: CE, UL, CSA, ATEX, IECEx
- Diagnostic: Self-test, network fault, I/O communication monitoring, watchdog alarm
Quality Control Procedures
Emerson DCS controllers are manufactured according to ISO9001 and IEC 61131-2 standards.
- Incoming Material Inspection: Processors, memory, PCBs and network chips from approved vendors with full screening.
- Automated Assembly & Serial Traceability: SMT automated assembly. Unique serial number for full lifecycle traceability.
- Full Functional Testing: Every unit undergoes logic execution test, dual Ethernet communication, redundancy sync and CHARM I/O interface verification.
- Environmental Stress Screening: Batch samples perform temperature cycling, vibration, EMC and power cycling test for process plant cabinet environment validation.
- Final Inspection & Packing: Visual inspection, anti-static shockproof export packaging, factory test certificate included.
SE3008
Brand Related Model Recommendations
- SE3001: Compact SQ controller for small-scale DeltaV projects, fewer I/O capacity.
- SE3010: High-end SQ controller, larger memory and higher logic execution speed for heavy control load.
- KJ2005X1-MQ2: SE3008 variant with different firmware revision for legacy DeltaV system upgrade.
- VE5001: DeltaV CHARM I/O baseplate, matched I/O hardware for controller. All controllers run DeltaV engineering software and support CHARM electronic marshalling I/O.
Frequently Asked Questions (FAQ)
Q1: Which system is used for? A1: It is Emerson DeltaV DCS S-series SQ controller, used for process control in continuous process industries.
Q2: Does support hot standby redundancy? A2: Yes, 1:1 hot standby. Primary and standby synchronize data, bumpless switchover upon primary fault.
Q3: What is CHARM technology? A3: CHARM is electronic marshalling I/O. No traditional marshalling cabinet; each channel is configurable AI/AO/DI/DO directly.
Q4: What software configures ? A4: DeltaV Engineering Station software for hardware configuration, control logic programming, download and diagnostics.
Q5: What is the warranty for original Emerson ? A5: Original Emerson controller has standard 12-month factory warranty for manufacturing defects under proper installation and operation.
Installation & Configuration Guide
7.1 Pre-installation Preparation
Verify part number, check module housing and connectors for damage. Prepare DeltaV S-series rack, 24VDC redundant power supply, shielded Ethernet cables, CHARM I/O baseplates and DeltaV engineering workstation. Cut rack power before handling module. Wear ESD protection. Confirm firmware version matching between primary and standby controllers.
7.2 Installation Steps
Insert into designated slot of DeltaV S rack and lock latch. Install the second identical for redundant pair. Wire dual Ethernet control network, single point grounding for cable shields. Connect 24VDC power supply to rack. Install CHARM baseplates and CHARM modules in the cabinet. Keep proper airflow clearance for heat dissipation.
7.3 System Configuration & Commissioning
Open DeltaV engineering software, add redundant controllers into hardware tree. Enable hot standby redundancy and set synchronization parameters. Configure CHARM I/O channel types and control logic. Download project to primary controller, auto-sync logic and data to standby. Power up rack and check RUN, REDUNDANCY and FAULT LEDs. Perform manual failover test to verify bumpless transfer. Record commissioning parameters and baseline logs.
7.4 Maintenance & Precautions
Check cabinet temperature, fan, power supply and Ethernet connections during planned outages. Inspect CHARM module status and cable connections. Do not exceed rated 24VDC supply. Do not open module housing. If redundancy sync fails, verify firmware consistency, network health and power before replacing controller.
