Description

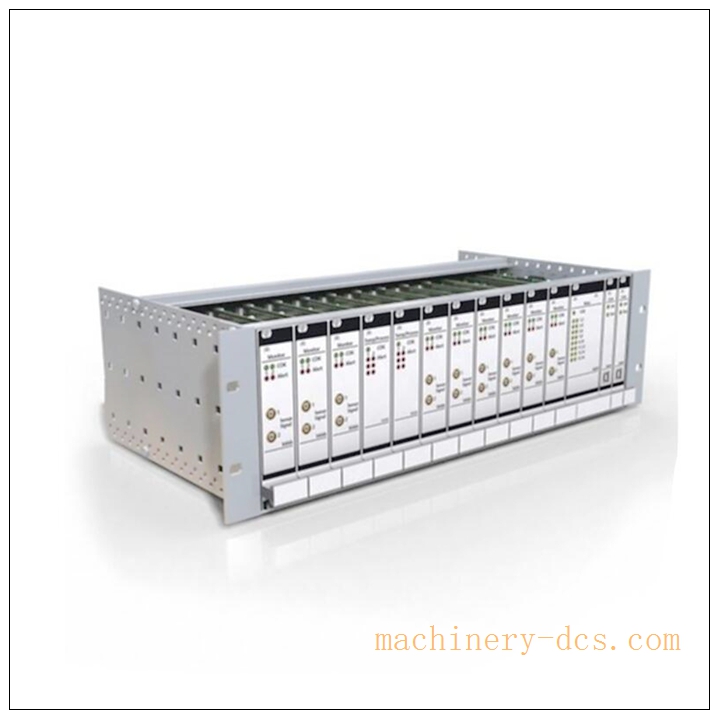

Emerson A6500‑SR Standard System Rack
Product Brand & Model Title
Official Product Name: A6500‑SR Standard System Rack Brand: Emerson / EPRO Model No: A6500‑SR Product Grade: 19‑inch 3U standard rack for AMS 6500 ATG API‑670 machinery‑protection system; available as new‑stock and spare‑part supplyEmerson
General Product Overview
The A6500‑SR is a 19‑inch 3RU standard system rack for Emerson AMS 6500 ATG machinery‑protection platform. It provides backplane bus, power distribution and card slots for measurement cards, relay logic card and communication cards. It supports hot‑swap for all plug‑in modules without powering down the whole rack. Backplane integrates spring‑loaded press‑in terminals and D‑Sub connectors for raw sensor signals, key‑phase and binary input signals. Multiple A6500‑SR racks can be cascaded to expand measurement channels. Widely used for steam turbines, gas turbines, compressors and other critical rotating‑equipment protection complying with API‑670 standard。
Model Coding Definition
‑ A6500: AMS6500 ATG machinery‑protection system platform ‑ SR: Standard Rack, standard‑type 19‑inch 3U system rack
Variant option: ‑SR‑EX for ATEX / IECEx Zone 2 hazardous‑area applicationEmerson
Slot allocation: ‑ 11 slots for measurement cards (‑UM / ‑TP) ‑ 1 slot for ‑RC relay card ‑ 2 slots for communication cards (support redundant ‑CC / ‑CP)
A6500‑SR
Technical Specifications
Electrical Parameters
‑ Supply Voltage: 24 VDC (19‑32 VDC), supports redundant power supply access ‑ Max total power consumption: ＜150 W ‑ Backplane bus: High‑speed internal system bus for inter‑module data exchange ‑ Signal interface: Press‑in spring terminals; D‑Sub connectors for raw sensor signals, key‑phase signal ‑ DIP switch: Geographic‑address setting and key‑phase configurationEmerson
Mechanical Parameters
‑ Form Factor: 19‑inch standard rack, 3U height, 84HP width ‑ Weight: Approx. 2.4 kg ‑ Mounting: 19‑inch cabinet‑rack mounting ‑ Compatible card size: 3U Eurocard plug‑in modules
Environmental Specifications
‑ Operating Temperature: −20 ℃ ~ +70 ℃; −20 ℃ ~ +55 ℃ without forced cooling ‑ Storage Temperature: −40 ℃ ~ +85 ℃ ‑ Relative Humidity: 5 %‑95 %, non‑condensing ‑ Vibration: Compliant with IEC 60068‑2‑6; Shock: IEC 60068‑2‑27 ‑ Pollution Degree: G3 (ISA‑S71.04) for heavy‑industrial environment ‑ Ingress Rating: IP20 (cabinet‑mount only) ‑ Max altitude: ＜2000 m above sea‑levelEmerson
Mechanical & Certification
‑ Certifications: CE, API‑670 compliance;‑EX variant supports ATEX / IECEx Zone 2, Class 1 Div 2 ‑ Lifecycle Status: Active new‑stock & spare‑part supply
Core Product Features
- Rich slot‑resource layout: Accommodates up to 11 measurement cards, 1 relay card and 2 redundant communication cards, supports up to 22 measurement channels in one rack.
- Full‑module hot‑swap support: All plug‑in cards support live replacement without rack power‑off, reducing maintenance downtime.
- Integrated backplane signal terminals: Spring‑loaded press‑in terminals and D‑Sub interfaces for sensor raw‑signal wiring, simplifies field‑wiring work.
- Redundant 24 VDC power‑supply access: Supports dual‑power redundant feeding to improve system reliability for protection‑loop applications.
- Multi‑rack cascading capability: Multiple ‑SR racks can be cascaded to expand measurement channels, controlled by communication cards of the main rackManualsLib.
- DIP‑switch geographic‑address configuration: Convenient rack‑address and key‑phase‑signal setting on‑site.
- Heavy‑industrial environmental adaptability: Supports G3 pollution‑degree environment for turbine‑skid and petrochemical cabinet‑site.
- Complete API‑670 system carrier: Matches full series of AMS6500‑ATG cards to build complete rotating‑machinery protection system.
Application Fields
‑ Power‑generation industry: Steam turbine, gas‑turbine machinery‑protection system rack ‑ Oil‑gas & petrochemical: Centrifugal‑compressor protection, API‑670 machinery‑monitoring system ‑ Refineries: Critical rotating‑equipment vibration‑protection system ‑ Hydro‑power plant: Hydro‑turbine shaft‑vibration and position‑monitoring rack ‑ Heavy‑industry: Large blower, large‑pump critical‑equipment monitoring ‑ Retrofit‑maintenance projects: Spare‑part replacement for existing AMS6500‑ATG installed‑base systems
Product Advantages & Value
‑ Standard 19‑inch 3U size, fits universal industrial cabinet, convenient for project cabinet design. ‑ Flexible slot allocation, supports single‑rack or multi‑rack cascading for different‑channel‑count requirements. ‑ Hot‑swap function reduces production‑stop risk during module‑maintenance. ‑ Integrated backplane terminals reduce intermediate‑terminal‑block requirement. ‑ Mature API‑670‑compliant hardware platform widely‑proven in global turbine & compressor sites.
Compatible System & Interface Description
‑ Compatible Platform: Emerson AMS 6500 ATG machinery‑protection system ‑ Matched cards: ‑UM Universal measurement card; ‑TP Temperature / process‑measurement card; ‑RC Relay‑logic card; ‑CC / ‑CP Communication card ‑ Power source: ‑PSU rack power‑supply unit provides 24 VDC for backplane ‑ Configuration Tool: AMS 6500 engineering software for system configuration and fault‑diagnosis ‑ Cascading: Multiple ‑SR racks can be interconnected, controlled by main‑rack communication‑cardsManualsLib
Related Recommended Products
- A6500‑PSU: Rack power‑supply unit for A6500‑SR
- A6500‑RC: 16‑channel programmable relay‑card
- A6500‑UM: Universal vibration‑measurement card
- A6500‑TP: Temperature & process‑signal measurement card
- A6500‑CC: Communication card for Ethernet / Modbus TCP/IP / OPC UA
- A6500‑RR: Redundant‑relay‑version rack (alternative hardware platform)
