Emerson A6500‑RC System Relay Card (16‑Channel Relay Output Module)

Description

Emerson A6500‑RC System Relay Card (16‑Channel Relay Output Module)

Product Brand & Model Title

Official Product Name: A6500‑RC System Relay Card (16‑Channel Relay Output Module) Brand: Emerson / EPRO Model No: A6500‑RC Product Grade: Programmable relay logic card for AMS 6500 ATG machinery protection system; API‑670 compliant, available as new‑stock and spare‑part supplyEmerson

General Product Overview

The A6500‑RC is a microprocessor‑controlled plug‑in relay card for the AMS 6500 ATG machinery protection rack system. It receives alarm, alert and OK status signals from all measurement boards via rack backplane, supports user‑configurable Boolean logic, logic gating and time‑delay functions, and drives 16 independent SPDT relay outputs for interlock, trip and alarm actions. It implements complex machine‑protection logic without external PLC. Widely used for steam turbines, gas turbines, compressors and hydro‑turbine protection conforming to API‑670 standardEmerson.

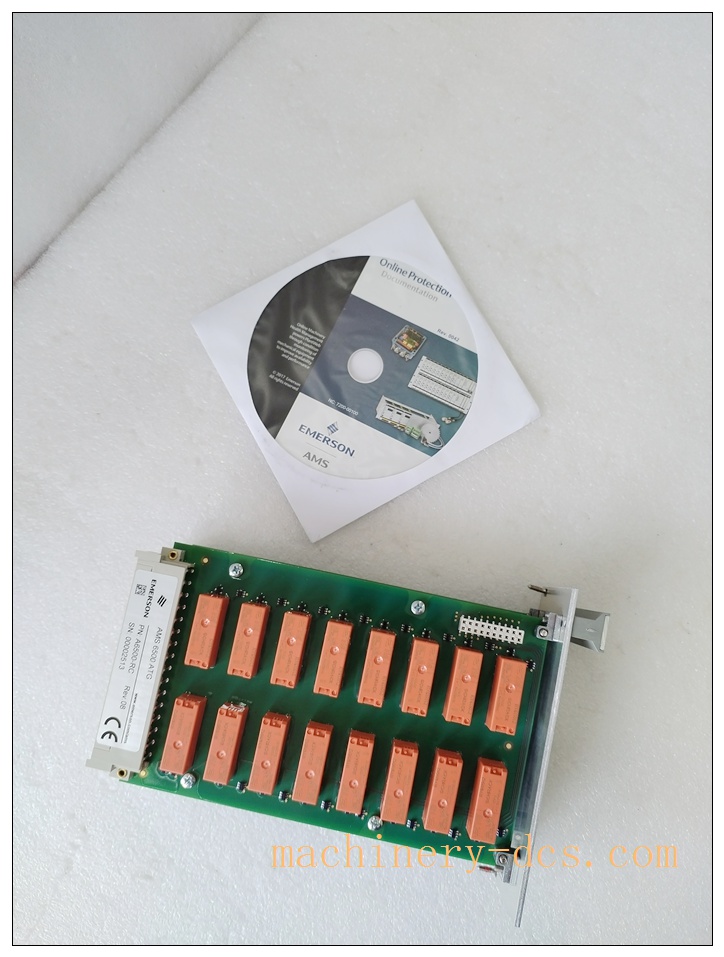

A6500-RC

Model Coding Definition

‑ A6500: AMS6500 ATG machinery‑protection system platform ‑ RC: Relay Card, system programmable relay output module

Designed for A6500‑SR / ‑xR system rack, 3U height, 12TE slot widthEmerson.

Technical Specifications

Electrical Parameters

‑ Power Supply: 24 VDC (19‑32 VDC), redundant power input; max 6 W power consumption ‑ Digital Input: 66 internal logic inputs via backplane; logic low 0‑3 V, logic high 13‑32 V DCEmerson ‑ Relay Output: 16‑channel SPDT single‑pole‑double‑throw relays ‑ Relay Contact Rating:   DC‑13: 24 V DC / 1 A   AC‑15: 24 V AC / 2 A   Max voltage: 32 V DC / 48 V AC ‑ Relay Switch Time: ≤10 ms (NO), ≤13 ms (NC), excluding logic processing delay ‑ Communication: RS485 interface for system bus and configuration software ‑ Front‑panel: Multi‑LED status indicators for power OK and each relay channel status

Logic Function

‑ Programmable Boolean logic, support AND / OR / NOT gates, time‑delay configuration ‑ Up to 256 logic gates, password‑protected configuration storage on‑board

Environmental Specifications

‑ Operating Temperature: −20 ℃ ~ +70 ℃; −20 ℃ ~ +55 ℃ under forced cooling ‑ Storage Temperature: −40 ℃ ~ +85 ℃ ‑ Relative Humidity: 5 %‑95 %, non‑condensing ‑ Vibration & Shock: Compliant with IEC 60068‑2 for turbine‑skid cabinet environment ‑ EMC: EN50081‑1, EN50082‑2 industrial EMC standard ‑ Ingress Rating: IP20 (cabinet‑mount only)

Mechanical & Certification

‑ Form Factor: 3U Eurocard, 100 mm × 160 mm, 12TE slot width for ‑SR rackEmerson ‑ Weight: Approx. 320 gEmerson ‑ Certifications: CE, API‑670 machinery‑protection compliance ‑ Lifecycle Status: Active spare‑part & new‑stock supply

Core Product Features

1. 16‑channel SPDT relay outputs: Provides hard‑wired trip / alarm contact outputs for rotating‑machinery protection.
2. Rich internal logic‑input resources: 66 logic signals read from all measurement cards via rack backplane, no extra field‑wiring required for alarm status acquisition.
3. On‑board programmable Boolean logic: Realizes complex voting logic, AND‑OR combination and time‑delay functions inside the card, reduces PLC dependency.
4. API‑670 compliant turbine‑protection solution: Designed for critical rotating‑equipment protection in power‑plant and oil‑gas sites.
5. Redundant 24 VDC power‑supply input: Improves power‑supply reliability for protection‑loop application.

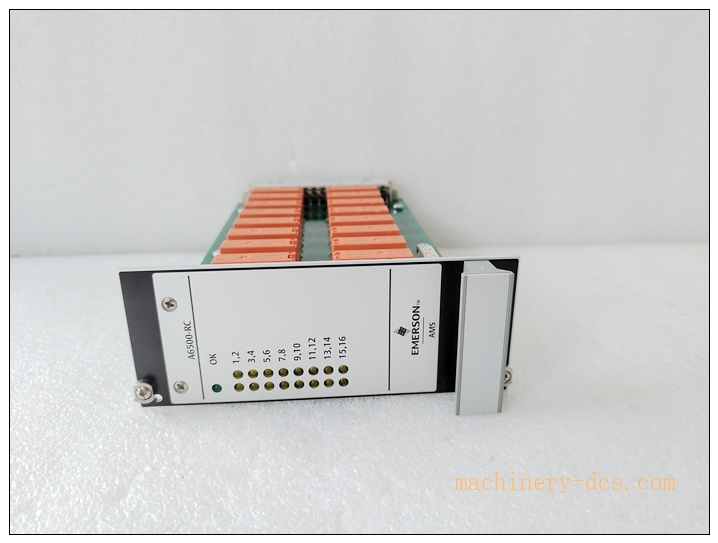

6. Front‑panel LED channel indication: Direct visual status check for each relay output for quick site troubleshooting.
7. Software‑based graphical configuration: Parameter setup and logic programming via AMS 6500 engineering software with password protection.
8. Hot‑swap support: Permits live card replacement in ‑SR rack without system shutdown.

Application Fields

‑ Power‑generation industry: Steam turbine, gas‑turbine vibration‑protection trip‑relay logic ‑ Oil‑gas & petrochemical: Centrifugal‑compressor protection system, API‑670 machinery‑monitoring ‑ Refineries: Critical rotating‑machinery alarm and emergency‑trip interlock ‑ Hydro‑power plant: Hydro‑turbine vibration and shaft‑position protection ‑ Heavy‑industry: Large‑blower, pump critical‑equipment monitoring system ‑ Retrofit‑maintenance projects: Spare‑part replacement for existing AMS6500‑ATG installed‑base systems

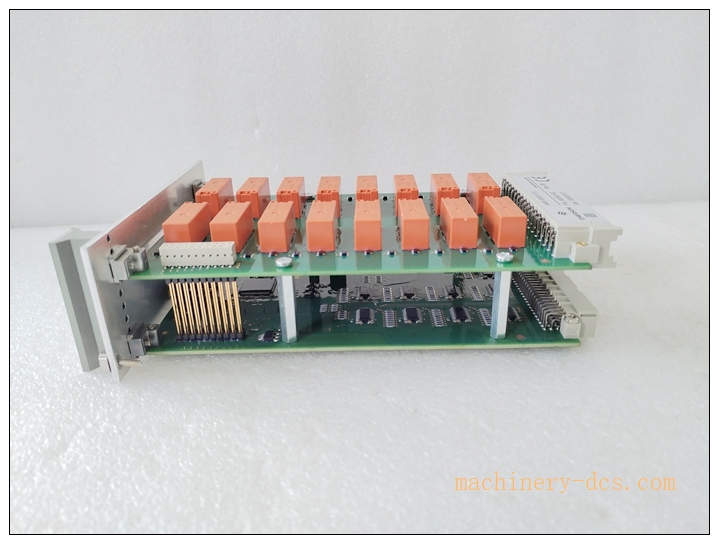

A6500-RC

Compatible System & Interface Description

‑ Compatible Platform: Emerson AMS 6500 ATG machinery‑protection system ‑ Installation: Plug‑in into ‑SR / ‑xR system rack, powered and signal‑exchanged via backplane ‑ Matched hardware: series measurement cards, ‑SR rack, rack power‑supply ‑ Configuration Tool: AMS 6500 engineering software for logic programming, parameter setting and fault‑diagnosis review
