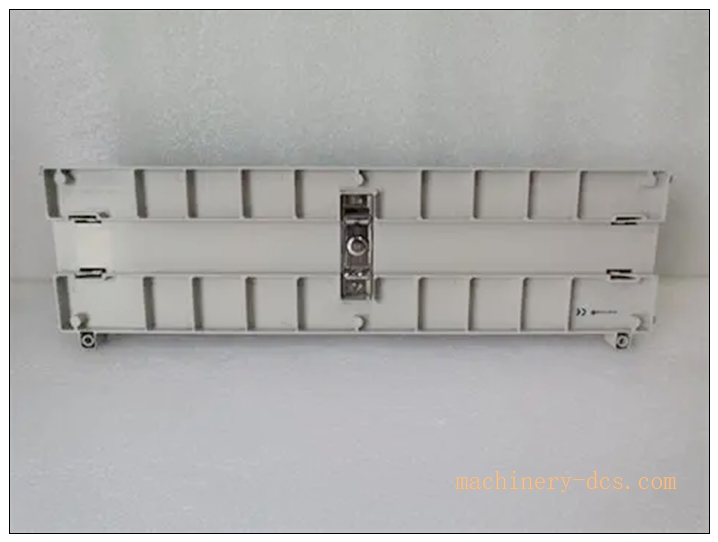

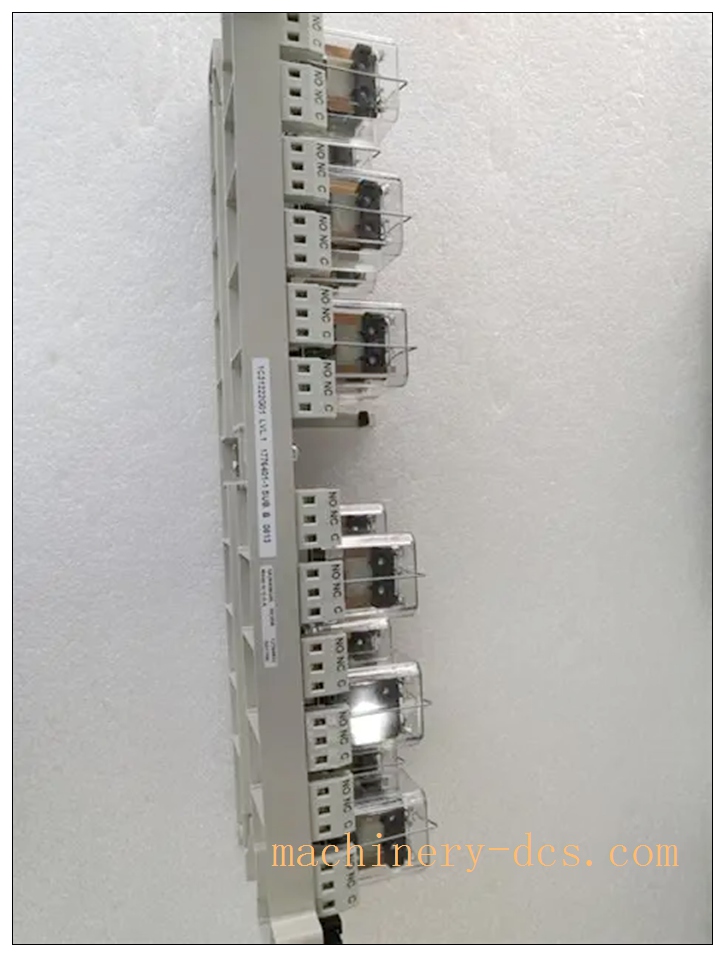

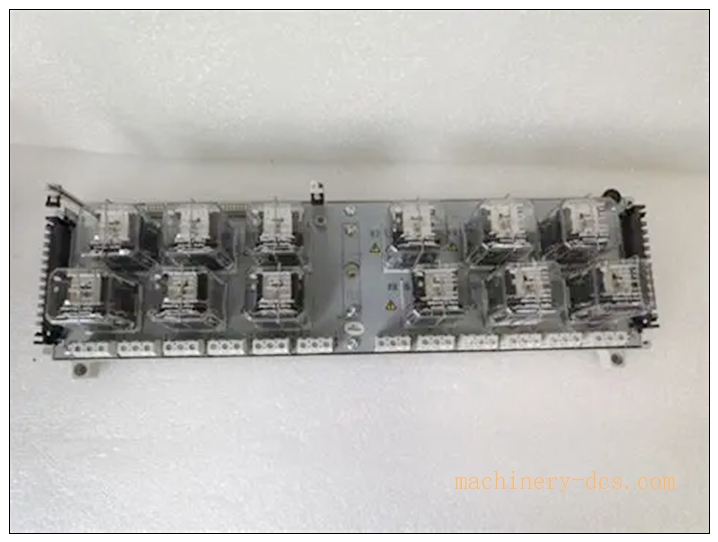

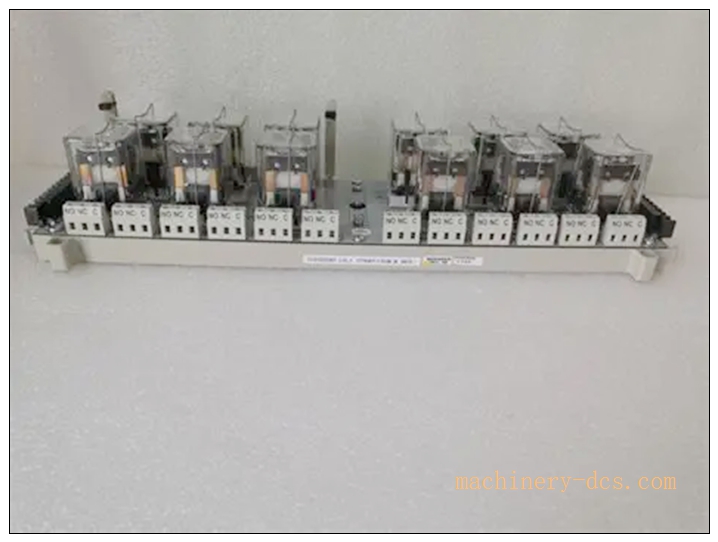

Emerson Ovation 5A26457G01 16-Channel Form-C Relay Digital Output Module

Description

Emerson Ovation 5A26457G01 16-Channel Form-C Relay Digital Output Module

Product Description

The 5A26457G01 is a hot-swappable relay digital output module for Emerson Ovation distributed control system (originally Westinghouse Ovation). It receives digital logic commands from the Ovation controller backplane and drives field loads via 16 independent Form-C relay contacts. Each relay provides common, normally open and normally closed contacts, suitable for switching solenoid valves, contactors, alarm beacons and trip interlock circuits. Built-in channel status feedback and relay fault detection are used to report contact operational status back to the Ovation controller. Isolation between DCS logic circuit and field high voltage circuit protects the DCS rack from surge and back EMF interference. It is widely used in power plant, petrochemical and large process DCS as interlock and alarm output spare module.

5A26457G01

Technical Specifications

• Part Number: 5A26457G01
• Manufacturer: Emerson (Westinghouse)
• Series: Ovation DCS
• Device Type: 16-CH Form-C Relay Digital Output Module
• Output: 16 channels, Form-C (SPDT) relay contacts
• Contact Rating: 250VAC, 5A resistive load per channel
• Dielectric Withstand: 2500VAC isolation between coil and contact side
• Power Supply: Powered by Ovation rack backplane
• Power Consumption: ＜5W typical
• Operating Temperature: -40°C ~ +85°C
• Storage Temperature: -55°C ~ +85°C
• Relative Humidity: 5%~95%, non-condensing
• Mounting: Ovation standard rack slot, hot swappable
• Weight: Approx. 0.42 kg
• Certifications: CE

Key Features

1. 16 independent SPDT Form-C relay channels for field on/off interlock control
2. 250VAC /5A contact rating for driving contactors, solenoids and alarm circuits
3. Galvanic isolation between DCS backplane and field wiring side
4. Hot-swappable design for rack maintenance without system shutdown
5. Built-in relay channel diagnostic and status feedback to Ovation controller
6. Supports both NO/NC wiring configuration for flexible interlock logic
7. Industrial robust design for power plant and heavy process environment
8. LED indicators for quick on-site module and channel status inspection

Application Scenarios

• Thermal power plant boiler and turbine protection interlock output
• Petrochemical refinery emergency trip, alarm and solenoid valve control
• Pulp & paper mill large machinery interlock and alarm annunciator
• Water treatment plant pump, valve and alarm signal control
• Cement plant kiln and fan interlock protection
• District heating station DCS field relay output
• Mining plant process emergency shutdown interlock
• Large chemical plant safety related auxiliary on-off control

5A26457G01

Matching / Auxiliary Components

• Ovation controller rack and backplane
• Ovation controller card (1C31167G01 etc.)
• Ovation power supply module
• Ovation I/O personality card
• Shielded field wiring cables and terminal blocks
• Surge protection device for relay output circuit
• Ovation engineering station and Ovation Developer Studio software
• Rack mounting accessories and front cover
