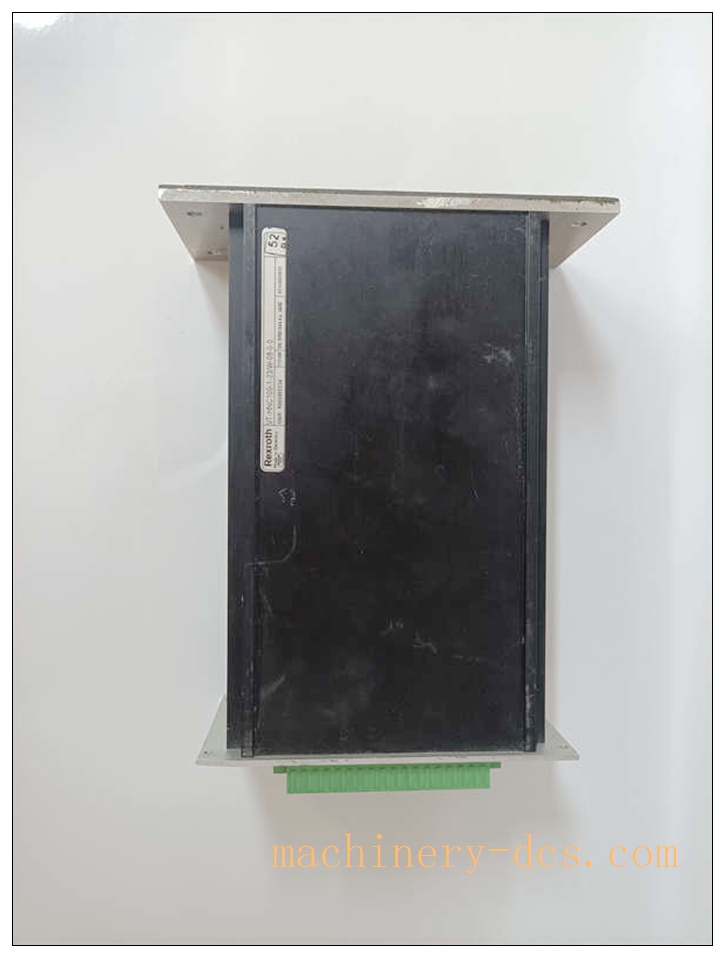

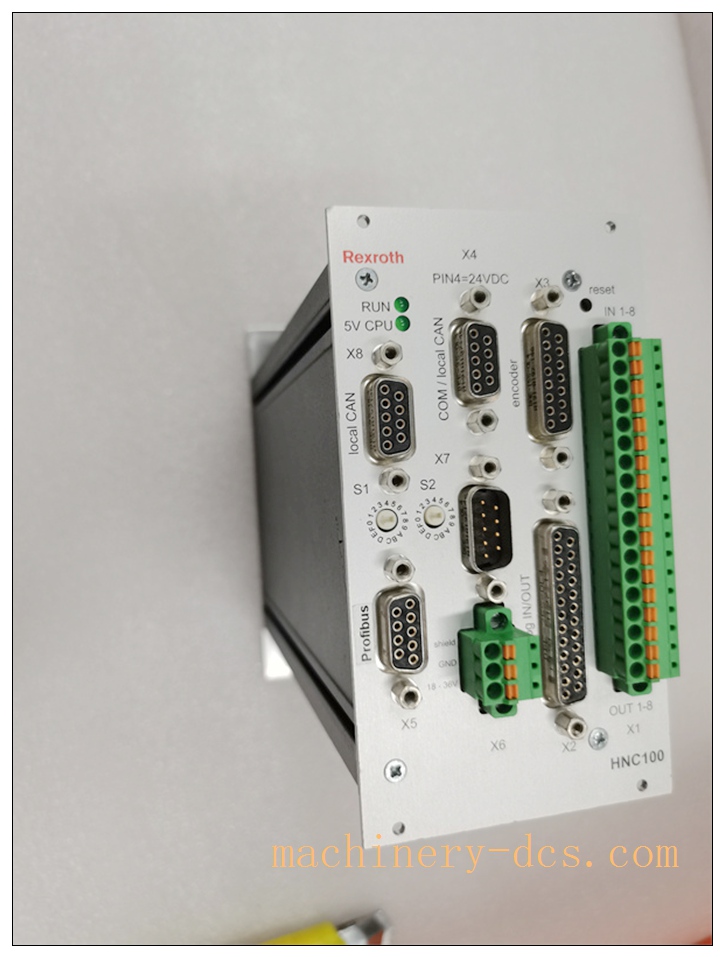

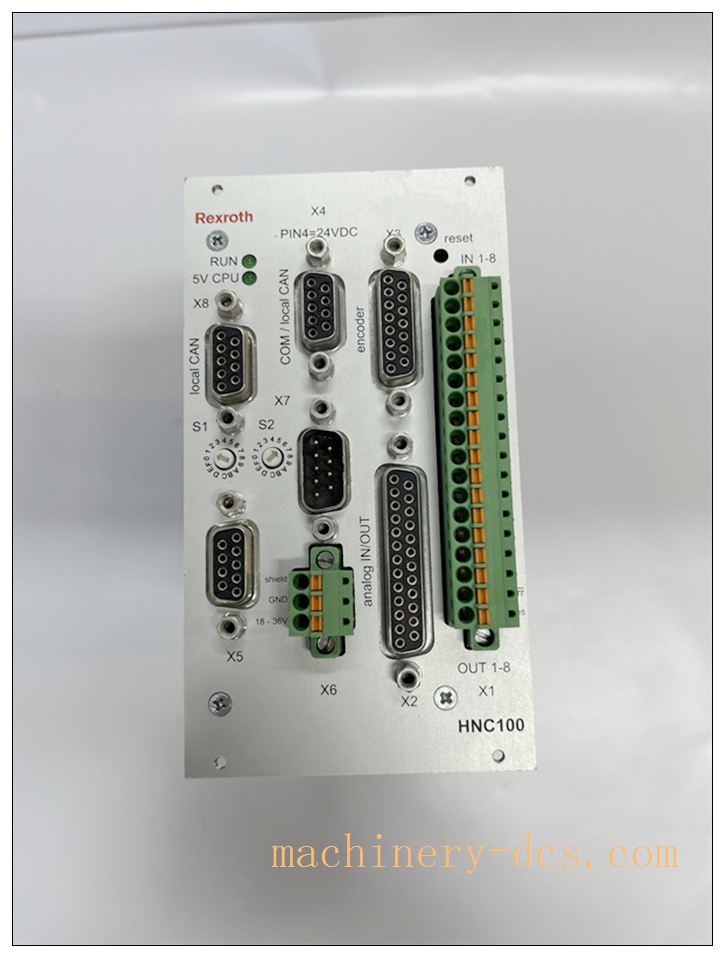

Bosch Rexroth VT‑HNC100‑1‑2X/W‑08‑0‑0 VT‑HNC100 Single‑Axis Programmable Electro‑Hydraulic Digital Axis Controller
Product Brand & Model Title
Official Product Name: VT‑HNC100 Single‑Axis Programmable Electro‑Hydraulic Digital Axis Controller Brand: Bosch Rexroth (Indramat) Model No: VT‑HNC100‑1‑2X/W‑08‑0‑0 Material Number: R900958999 Product Grade: Legacy wall‑mount NC motion controller for hydraulic axis closed‑loop control; end‑of‑original‑production, available as spare‑part stockIndramat U…
General Product Overview
The VT‑HNC100‑1‑2X/W‑08‑0‑0 is a compact programmable NC‑style motion controller dedicated for single electro‑hydraulic axis closed‑loop regulation. It executes position, velocity, pressure and force control for hydraulic actuators, supporting incremental / SSI absolute encoder feedback and valve drive output for proportional hydraulic valves. This 2X‑series variant adopts wall‑mount housing design and integrates 8‑channel digital I/O, without onboard fieldbus interface. It runs Rexroth NC‑style motion sequence programs, delivers comprehensive axis monitoring, following‑error alarm and travel‑limit supervision. Widely deployed in presses, injection‑molding machines and special‑purpose hydraulic machinery; original manufacturing has been discontinued, used for spare‑part replacement of existing installed‑base equipment.
VT-HNC100-1-2X-W-08-0-0
Model Coding Definition
- VT‑HNC100: HNC100 series digital electro‑hydraulic axis controller platform
- 1: Single hydraulic axis control (1 controlled axis)
- 2X: Component series 20‑29; fixed mechanical mounting and connector layout
- W: Wall‑mount housing type
- 08: 8 digital input / output channels onboard
- 0: No fieldbus communication interface
- 0: Standard base hardware variant, no extra evaluation board fitted
Technical Specifications
Electrical Parameters
- Supply Voltage: 24 VDC (18‑30 VDC)
- Power Consumption: Approx. 45 W
- Encoder Interfaces: TTL incremental encoder; SSI absolute encoder (RS485, max 28 bit)
- Valve Output: Analog ±10 V for proportional hydraulic valve driving
- Digital I/O: 8‑channel configurable digital input / output
- On‑board Diagnostics: Multi‑LED status indicators for power, run, fault and axis alarm
Motion Control Performance
- Control Loops: Position loop, velocity loop, pressure / force closed‑loop control
- Control Cycle: Min 2 ms real‑time cycle
- Programming Language: Rexroth NC‑program syntax, supporting sub‑programs, conditional jumps and motion profiles
- Monitoring Functions: Following‑error monitoring, software travel limit, sensor fault detection
Environmental Specifications
- Operating Temperature: 0 ℃ ~ +50 ℃ (cabinet / wall‑mount indoor environment)
- Storage Temperature: −20 ℃ ~ +70 ℃
- Relative Humidity: 5 %‑95 %, non‑condensing
- Vibration & Shock: Compliant with IEC 60068‑2 industrial machinery standard
- Ingress Rating: IP20
- Conformal Coating: Not fitted on this base model
Mechanical & Certification
- Mounting: Wall‑mount installation (not DIN‑rail)
- Weight: Approx. 580 g
- Certifications: CE compliance for industrial machinery
- Lifecycle Status: EOP (End‑of‑Production); spare‑part supply only, successor is VT‑‑1‑3X seriesBuyRexroth
Core Product Features
- Single‑axis electro‑hydraulic closed‑loop control: Integrated position, speed, pressure and force regulation for hydraulic actuators.
- Multiple feedback support: Compatible with incremental TTL encoders and SSI absolute position transducers.
- Built‑in NC programming capability: Executes standalone motion sequence programs without upper‑level CNC.
- 8‑channel integrated digital I/O: Handles interlock signals, sensor trigger and actuator logic for machine‑local logic.
- Comprehensive axis monitoring: Following‑error detection, travel‑limit supervision and sensor fault diagnostics for machine safety.
- Direct proportional‑valve drive: ±10 V analog output to drive Rexroth and third‑party hydraulic proportional valves.
- Wall‑mount compact housing: Simple mechanical installation for machine‑body mounting.
- PC‑based commissioning: Parameter setup, program download and fault diagnosis via PC service tool.
VT-HNC100-1-2X-W-08-0-0
Application Fields
‑ Press machinery: Hydraulic press closed‑loop position‑force compound control ‑ Plastic industry: Injection‑molding machine hydraulic‑axis motion control ‑ Special‑purpose machinery: Hydraulic test‑benches, forming equipment ‑ Machine‑tool industry: Hydraulic spindle and hydraulic slide‑way control ‑ Retrofit & maintenance projects: Spare‑part replacement for legacy ‑equipped hydraulic machines ‑ Metallurgical equipment: Hydraulic actuator precise motion control
Product Advantages & Value
‑ Purpose‑optimized for hydraulic closed‑loop control, outperforms general‑purpose PLC on fast hydraulic‑loop response. ‑ Stand‑alone NC‑program execution reduces dependency on upper‑level controller. ‑ Integrated I/O removes requirement for extra external I/O modules for basic machine interlocks. ‑ Rich monitoring functions improve machine safety and simplify fault location. ‑ Mature proven hardware for large installed‑base of hydraulic machinery.
Compatible System & Interface Description
‑ Matched Actuators: Rexroth proportional hydraulic valves, hydraulic cylinders with position transducers ‑ Feedback Devices: TTL incremental encoders, SSI absolute position sensors ‑ Service Interface: RS232 service port for PC commissioning software ‑ Mounting: Wall‑mount housing, machine‑body installation ‑ Configuration Tool: Rexroth HNC‑PC‑Tool software for parameter tuning, NC‑program editing and diagnostic review ‑ Note: This variant has no onboard fieldbus, cannot connect to PROFIBUS / CANopen without additional external gateway.
Related Recommended Products
- : 3X‑series upgraded single‑axis controller, successor replacement for 2X hardware
- VT‑‑2‑2X/W‑16‑0‑0: Dual‑axis controller with 16 digital I/O
- Rexroth proportional valve 4WREE series: Matched hydraulic proportional valve for control output
- VT‑‑1‑2X/W‑08‑P‑0: Variant with PROFIBUS‑DP fieldbus interface
- SSI absolute position transducer: Position feedback sensor for hydraulic cylinder
- HNC‑PC‑Tool commissioning software: Official parameter‑setting and diagnostic tool for series
