Bently Nevada 3500/94M-03-00-00 Display Interface Module, Local Rack HMI for 3500 Machinery Protection System

Description

Bently Nevada 3500/94M-03-00-00 Display Interface Module, Local Rack HMI for 3500 Machinery Protection System

Product Description

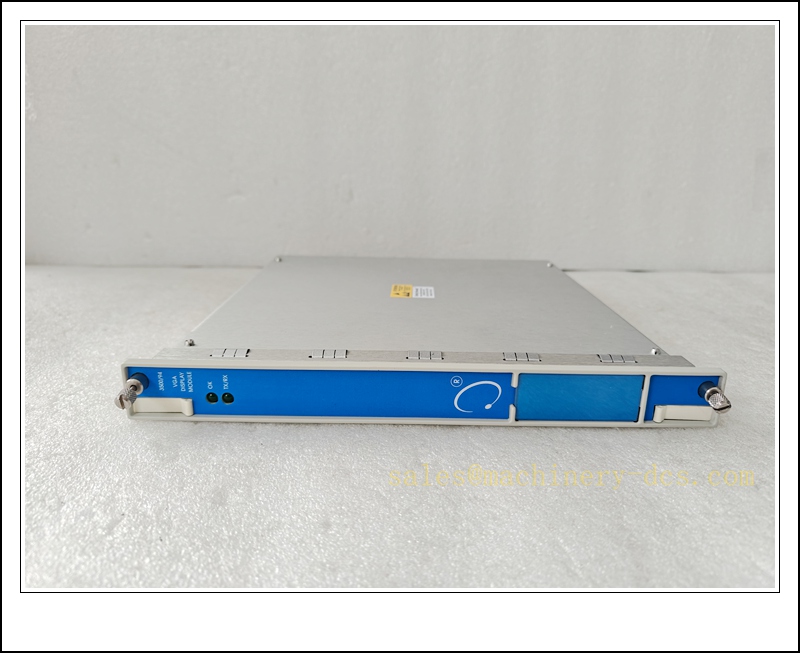

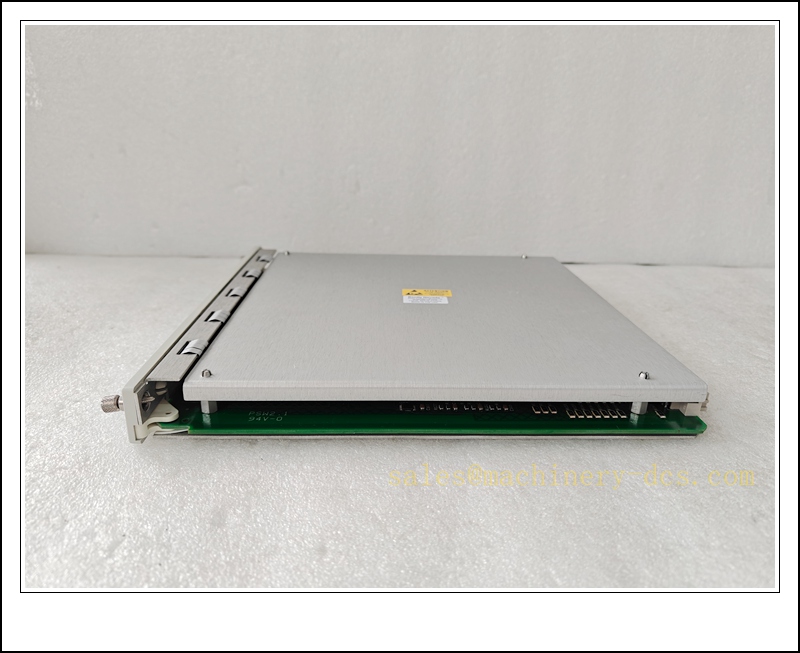

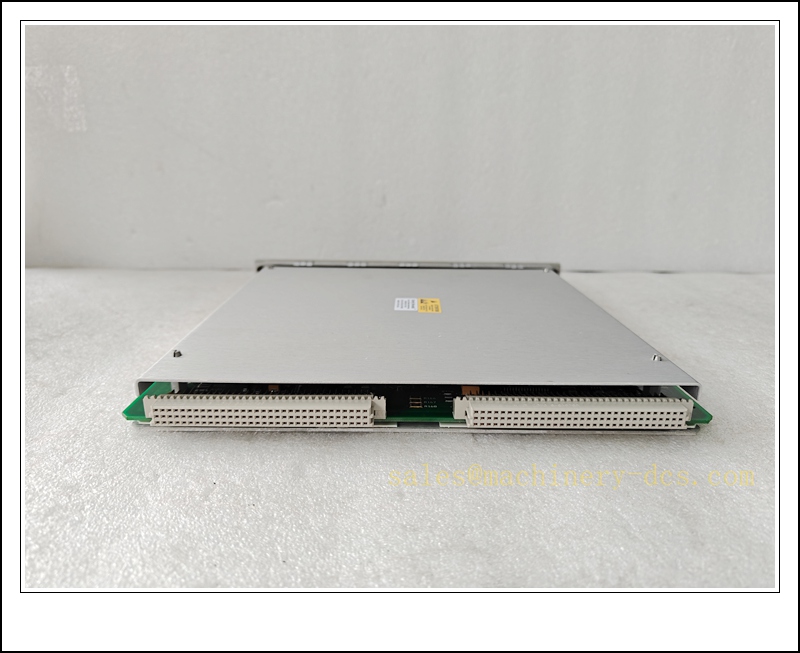

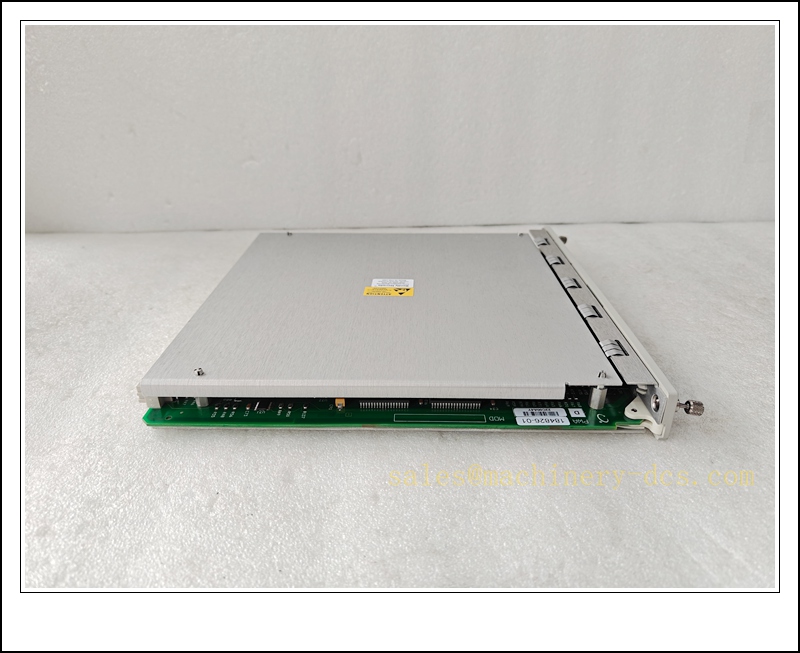

The 3500/94M is the local display and operator interface module for the Bently Nevada 3500 TSI machinery protection rack. The part number 3500/94M-03-00-00 represents a variant equipped with a front-panel LCD screen, keypad and LED status indicators. It connects to the 3500 proprietary backplane to retrieve real-time channel measurements, alarm states, transducer status and rack diagnostic data. It allows on-site technicians to view vibration, thrust position, speed and gap voltage locally at the rack, acknowledge alarms, and access module diagnostics without a PC or remote System 1 host. This unit does not perform protection voting or waveform capture; it is purely a human-machine interface for local status visualization and basic operator actions. Commonly used on steam turbines, gas turbines, centrifugal compressors and generators in power, oil & gas and petrochemical facilities.

Technical Parameters

Recommended Related Models (8 units)

1. 3500/42 SIL2-04-00: 4-channel proximitor/seismic SIL2 machinery monitor
2. 3500/91-01-01-01: TDI Transient Data Interface for waveform capture
3. 161204-01: 3500/91 EGD Ethernet gateway for DCS communication
4. 3500/22M: Keyphasor speed and phase reference module
5. 3500/50: Tachometer speed monitor
6. 3500/05-01-01-00-00-00: 13-slot 3500 system rack and backplane
7. 3500/15: Rack power supply module
8. 100M2833: USB configuration service cable for 3500 rack

3500/94M-03-00-00

Compatibility & Installation Traps

Compatibility

• Primary host system: Bently Nevada 3500 machinery protection rack
• Compatible rack modules: 3500/42, 3500/22M, 3500/50, 3500/91 TDI/EGD and other standard 3500 monitor cards
• Software: Bently Nevada 3500 Rack Configuration Software
• Note: The 3500/94M is only a local display module; it cannot replace TDI or EGD gateway for transient waveform or DCS data transmission. Different 3500/94M suffix versions are not always drop-in compatible and may require rack configuration update.

Critical Installation Traps

1. Configuration Upload Requirement: The replacement display module needs the rack configuration loaded to populate channel names, engineering units and alarm thresholds. Without the correct config, only raw values will show, and channel labels will be missing.
2. Backplane Firmware Compatibility: The 3500/94M firmware must be compatible with the firmware of all monitors in the rack. Version mismatch leads to missing channel data, blank screens or communication timeouts.
3. No Trip Control from Display: Local alarm acknowledgment via 3500/94M only resets visual indicators; it cannot bypass or disable hardware protection trip voting logic. Safety trips remain governed by monitor modules.
4. ESD Sensitivity: Display controller, keypad circuit and backplane interface are ESD-sensitive. Module replacement must be done on a grounded ESD workstation with wrist strap.
5. Slot Assignment Rules: Install in designated communication/auxiliary slots of the 3500 rack. Improper slot placement blocks backplane data reading and results in no channel readings.
6. Keypad Mechanical Wear Risk: Excessive force on front keys can damage the internal membrane switch array, leading to unresponsive buttons. Do not use sharp objects to operate the keypad.
7. Display Environmental Limits: Direct sunlight, high cabinet heat or condensation can degrade LCD contrast and accelerate backlight failure. Maintain cabinet ventilation within rated temperature range.
8. Hot Swap Assessment: Many 3500 racks support hot swap of the 3500/94M display module, but it is non-safety auxiliary hardware. Still confirm site work permit procedure before removal on running SIL protection loops.

Standard Operating Procedure (SOP)

1. Pre-installation inspection: Inspect LCD screen, keypad, front LEDs and backplane edge connector for scratches, broken keys, bent pins or burn damage. Confirm full part number 3500/94M-03-00-00.
2. Configuration backup: Export the complete rack configuration, channel tags, units and alarm setpoints using 3500 configuration software from the existing rack.
3. System preparation: Notify control room that local display interface will be replaced; protection monitoring and trip logic remain active. Apply work permit as required.
4. Energy isolation: If hot swap is not approved, de-energize the 3500 rack power supply and apply lockout/tagout. Allow internal capacitors to discharge.
5. Mechanical replacement: Release ejector latches and extract the faulty display module. Insert the replacement 3500/94M-03-00-00 fully into the assigned slot and engage latches to seat the backplane connector.
6. Power-up and self-test: Restore rack power. Observe front-panel LEDs, verify LCD boots and run module self-test. Confirm backplane communication to all monitor cards.
7. Display and function validation: Load the saved rack configuration. Verify channel readings, tag names, engineering units, alarm indication and local alarm acknowledge function. Cross-check readings with TDI/EGD and System 1 values.
8. Process qualification: Confirm all vibration, position and speed channels update correctly and alarms trigger as expected. No spurious protection actions should occur. Return rack to normal operation.
9. Decommissioning: Pack the defective 3500/94M module in anti-static shielding bags, label fault symptoms for failure analysis. Archive the latest rack configuration file.

Application Scenarios

• Local on-rack visualisation of TSI measurements and alarm status for Bently Nevada 3500 machinery protection racks
• Field technician access to gap voltage, radial vibration, thrust position, speed and transducer OK status without laptop
• Local alarm acknowledgment and rack diagnostic review at the equipment cabinet
• Auxiliary HMI complement to System 1 condition monitoring and DCS EGD interfaces
• Preventive maintenance spare for LCD backlight failure, unresponsive keypad or backplane communication faults
• Commissioning and routine inspection of API 670 turbine supervisory instrumentation
• Power generation, oil & gas and petrochemical rotating machinery supervision systems

3500/94M-03-00-00

Supporting Components

• ESD wrist strap, anti-static shielding bags and conductive work mat
• 3500 rack ejector latches and screwdriver set
• 3500/15 rack power supply
• 3500/42, 3500/22M, 3500/91 spare monitor and communication modules
• 3300 XL proximity probes and extension cables
• 100M2833 USB configuration cable and 3500 configuration software
• Shielded industrial Ethernet cable for TDI/EGD network
• Site wiring diagrams and safety work permit documentation
