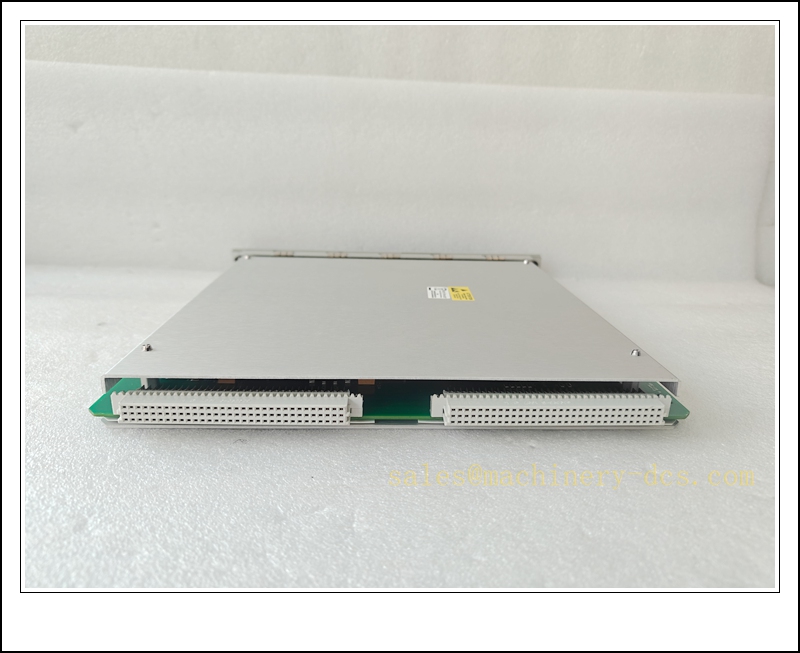

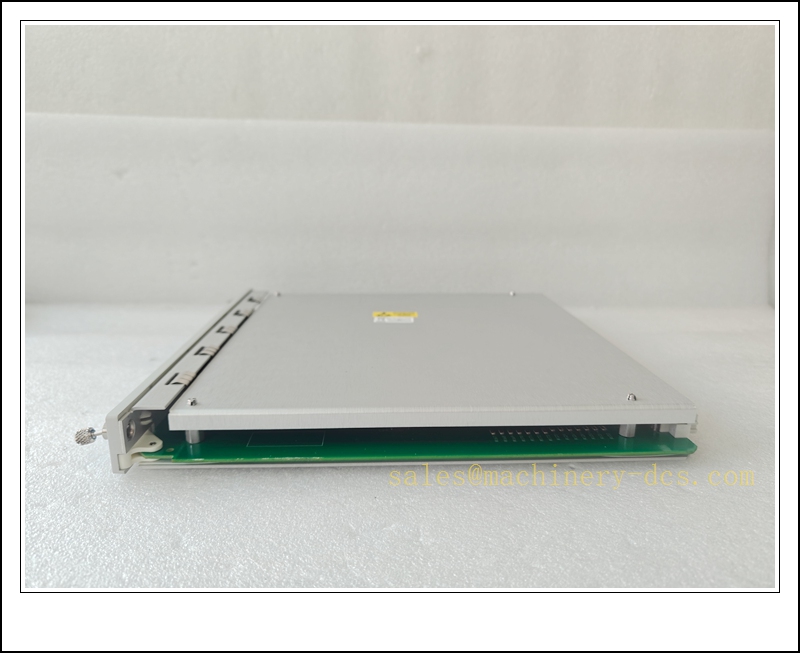

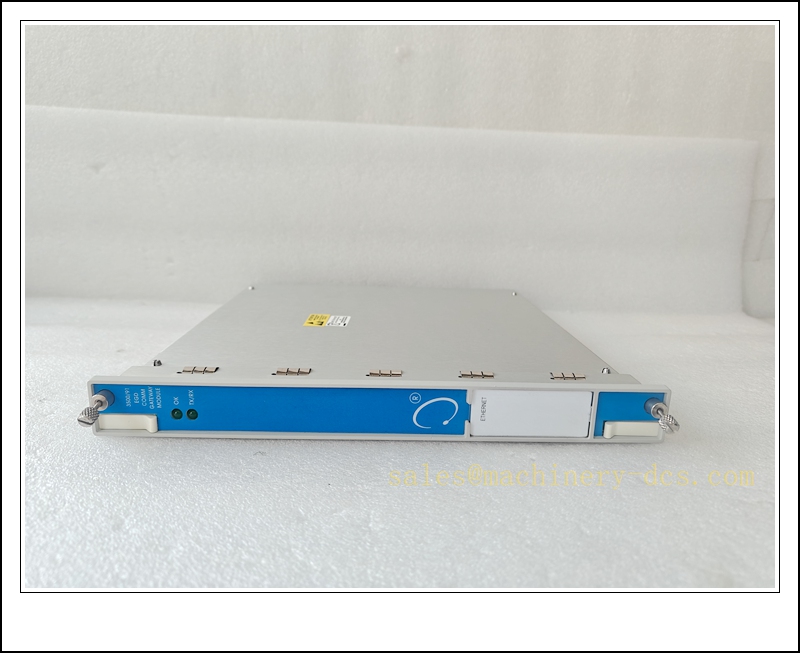

Bently Nevada 161204-01 3500/91 EGD Gateway Module, Machinery Protection Ethernet Global Data Communication Interface

Description

Bently Nevada 161204-01 3500/91 EGD Gateway Module, Machinery Protection Ethernet Global Data Communication Interface

Product Description

The 161204-01 is the EGD (Ethernet Global Data) variant of the Bently Nevada 3500/91 communication module for the 3500 machinery protection rack. It connects to the proprietary 3500 backplane and delivers real-time machinery monitoring and protection data over Ethernet UDP/IP using EGD v2.01 protocol. It publishes rack health, vibration, shaft position, speed, alarm setpoints and channel status as EGD producer exchanges, and accepts consumer commands including alarm inhibit, group reset and trip multiply from external DCS or host controllers. Unlike the standard TDI version of 3500/91 focused on transient waveform capture, this variant is optimized for deterministic control-system data sharing. It is widely deployed on steam/gas turbines, centrifugal compressors and generators in power and oil & gas plants.

Technical Parameters

Recommended Related Models (8 units)

1. 3500/91-01-01-01: Standard TDI Transient Data Interface (waveform capture variant)
2. 3500/22M: Keyphasor / Speed & Phase Reference Module
3. 3500/42M: Vibration and Shaft Position Monitor
4. 3500/50: Tachometer Speed Monitor
5. 3500/15: 3500 Rack Power Supply
6. 3500/05: 3500 System Rack Chassis & Backplane
7. 3500/93: Local Display Interface Module
8. 3300 XL 8mm Proximity Probe: Shaft vibration and position sensor

161204-01

Compatibility & Installation Traps

Compatibility

• Primary host system: Bently Nevada 3500 machinery protection rack
• Compatible monitor modules: 3500/42M, 3500/50, 3500/22M and other 3500 monitor cards
• Software: 3500 Configuration Software; EGD-capable host DCS/PLC
• Note: This EGD gateway (161204-01) is not functionally identical to the 3500/91 TDI transient module. They are not drop-in replacements; swapping them requires reworking the rack communication configuration.

Critical Installation Traps

1. EGD Exchange Configuration Binding: The replacement module must be loaded with the original rack EGD producer/consumer exchange list. Missing or mismatched EGD tables cause loss of alarm status, setpoint values or host control commands.
2. Ethernet Network Isolation: EGD uses UDP broadcast/multicast. Do not connect this port to a general office LAN; broadcast storms can disrupt deterministic data delivery and cause DCS status mismatch.
3. Backplane Firmware Sync: This module’s firmware must be compatible with the firmware revision of all monitors in the rack. Version mismatch triggers backplane communication faults and invalid EGD data.
4. Keyphasor Dependency for Synchronized Data: Speed and phase-related EGD values rely on a healthy 3500/22M Keyphasor signal. A noisy or missing Keyphasor produces invalid speed and phase data even if the gateway is online.
5. ESD Sensitivity: High-speed FPGA, Ethernet transceivers and backplane interface circuits are ESD-sensitive. Module replacement must be performed at a grounded ESD workstation with wrist strap.
6. Slot Assignment Rules: The 3500 rack requires communication modules to occupy designated communication slots. Improper slot placement prevents backplane data access and disables EGD publishing.
7. RJ45 Cable Integrity: Damaged RJ45 pins, poor crimps or unshielded cables cause intermittent UDP packet loss, which may only surface during machine load transients and is difficult to reproduce on bench tests.
8. Hot Swap Limitation: Older 3500 rack revisions do not support hot removal of the 3500/91 family. Live extraction can reset monitor channels and trigger machinery protection alarms.

Standard Operating Procedure (SOP)

1. Pre-installation inspection: Inspect front panel, PCB and backplane connector for burn marks or mechanical damage. Confirm full part number 161204-01 against the site spare register.
2. Configuration backup: Export the complete rack configuration, channel list, alarm thresholds and EGD producer/consumer exchange tables via Bently 3500 configuration software.
3. System preparation: Confirm machinery protection voting logic remains online. If hot swap is not approved, suspend EGD status reporting and obtain the plant isolation permit.
4. Energy isolation: De-energize the 3500 rack power supply and apply lockout/tagout if required. Allow internal capacitors to discharge before module removal.
5. Mechanical replacement: Release the module ejector latches and extract the faulty EGD gateway. Insert the replacement 161204-01 fully into the assigned communication slot and seat the backplane connector.
6. Power-up and self-test: Restore rack power. Observe front-panel LEDs. Run module self-test and verify backplane communication to all monitor cards.
7. Network and function validation: Load the saved rack and EGD configuration. Verify Ethernet link to the DCS host, confirm published EGD values (vibration, speed, alarm status) and test consumer commands including alarm inhibit and group reset.
8. Process qualification: Perform static and dynamic machine tests, cross-check EGD values against local 3500 display and confirm no spurious protection alarms before returning to normal machinery monitoring.
9. Decommissioning: Pack the defective gateway in anti-static shielding bags and label with fault symptoms for failure analysis.

Application Scenarios

• Deterministic EGD Ethernet data exchange between Bently 3500 machinery protection rack and external plant DCS/PLC
• Publishing vibration, shaft position, speed, alarm status and setpoint values to host control systems
• Receiving remote commands: alarm inhibit, group reset and trip multiply from the control room
• Continuous machinery protection monitoring for gas turbines, steam turbines, centrifugal compressors, generators and critical pumps
• Preventive maintenance spare stocking for 3500 machinery protection systems
• Troubleshooting missing EGD data, intermittent Ethernet UDP packet loss and backplane communication faults
• Power generation, oil & gas and petrochemical plant machinery protection system lifecycle maintenance
• Commissioning of EGD-based integration between vibration protection systems and distributed control platforms

161204-01

Supporting Components

• ESD wrist strap, anti-static shielding bags and conductive work mat
• 3500 rack ejector latches and screwdriver set
• 3500/15 rack power supply unit
• Industrial shielded Ethernet cable and managed multicast-capable switch for EGD network
• Bently Nevada 3500 configuration software and communication adapter
• 3500 rack chassis and backplane repair kit
• 3500/22M Keyphasor module and transducer cable assembly
• 3300 XL proximity probe and extension cable set
