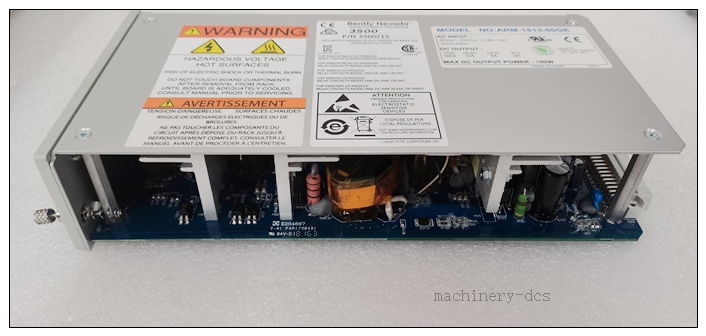

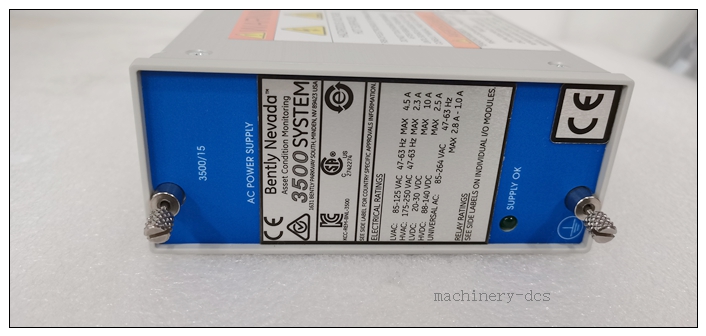

Bently Nevada 3500/15 129489-01 Low-voltage AC Power Input Module

Description

Bently Nevada 3500/15 129489-01 Low-voltage AC Power Input Module

Executive Brief

The Bently Nevada 3500/15 129489-01 is a high-reliability low-voltage AC power input module (PIM) purpose-built for the Bently Nevada 3500 Series Machinery Protection System. It converts incoming wide-range low-voltage AC power into stable, regulated DC power for all vibration monitors, communication gateways and control modules in the 3500 system rack, serving as a critical power management component that guarantees uninterrupted 24/7 operation of industrial automation and rotating machinery protection systems. Brand new original units are in stock globally, with a standard 1-year manufacturer warranty.

129489-01

Core Technical Specifications

1. Manufacturer: Bently Nevada (Baker Hughes)
2. Exact Part Number: 129489-01
3. Model: 3500/15
4. Product Category: Low-voltage AC Power Input Module
5. Product Origin: USA
6. Outer Dimensions: 210 mm (W) × 150 mm (H) × 100 mm (D)
7. Net Weight: 2.1 kg
8. Operating Temperature Range: 0 °C to 60 °C
9. Storage Temperature Range: -20 °C to 85 °C
10. Humidity Tolerance: 0 to 95% non-condensing
11. Vibration Resistance: 10 to 55 Hz, 0.375 mm amplitude
12. Input Voltage Type: Wide-range low-voltage AC input
13. Core Function: Converts AC input into stable DC power supply for the entire 3500 system rack
14. Installation Rule: Half-height module, must be installed in designated slots on the left side of the 3500 system rack
15. Redundancy Support: Each 3500 rack can accommodate 1 or 2 power supplies, supporting mixed AC and DC redundant configuration
16. Hot-swap Feature: Removing or inserting the module does not disrupt rack operation when a second backup power supply is installed
17. Inventory Status: Available as spot goods or futures order
18. Delivery Time: 3-4 days for spot units, about 1 month for futures orders
19. Warranty: 1-year official manufacturer warranty for brand new original units

Key Features & Advantages

• Dedicated Low-voltage AC Adaptation: Optimized for industrial low-voltage AC power grid environments, delivering highly stable power conversion performance for the 3500 system.
• Full Redundancy & Hot-swap Capability: Natively supports dual-power redundant configuration, and allows hot-swappable on-site replacement without system shutdown, eliminating power supply single point of failure.
• Harsh Environment Durability: 0-60 °C wide operating temperature range, 95% non-condensing humidity tolerance and 10-55 Hz vibration resistance enable stable operation in complex industrial field environments.
• Native 3500 System Compatibility: Perfectly integrates with all Bently Nevada 3500 series machinery protection system modules, no additional adaptation work required for system deployment.
• Industrial-grade High Reliability: Rugged metal enclosure and high-quality components ensure long-term 24/7 continuous operation, consistent with the 3500 system’s mission-critical positioning.

Typical Application Scenarios

1. Petrochemical Rotating Machinery Protection: Core power supply unit for 3500 machinery protection systems on large compressors, pumps and turbines in refineries and chemical plants.
2. Power Generation Turbine Monitoring: Stable power supply for 3500 protection systems on steam turbines and gas turbines in thermal power and combined cycle power plants.
3. Offshore Oil & Gas Platforms: Reliable power supply for 3500 monitoring systems on offshore oil and gas production facilities, adapting to harsh marine operating conditions.
4. Mining & Metallurgical Equipment Monitoring: Power supply unit for 3500 protection systems on large motors, rolling mills and mining equipment in metallurgical and mining sites.
5. Industrial Automation Control Systems: Critical power management component for other industrial automation control systems that use the Bently Nevada 3500 series platform.

Related Supporting Product Model Display

1. Bently Nevada 3500 System Rack: Standard 3500 series system frame, providing dedicated half-height installation slots for 129489-01 power modules.
2. Bently Nevada 3500/16 DC Power Supply Module: DC input power unit, which can form AC-DC mixed redundant power configuration with 129489-01 in the same rack.
3. Bently Nevada 3500/42M Vibration & Position Monitor: Core monitoring module powered by 129489-01, for continuous vibration and shaft position monitoring of rotating machinery.
4. Bently Nevada 136719-01 Internal Barrier Ground / Power Module: Intrinsically safe power distribution accessory, working with 129489-01 to provide safe power for hazardous area I/O modules.

Frequently Asked Questions

Q1: What is the core function of Bently Nevada 3500/15 129489-01?
A1: It is a low-voltage AC power input module that converts incoming AC power into stable DC power for all modules in the 3500 machinery protection system.

Q2: Does 129489-01 support hot-swappable replacement?
A2: Yes, when a second backup power supply is installed in the rack, removing or inserting this module will not disrupt the normal operation of the system.

Q3: What is the operating temperature range of this module?
A3: It supports an industrial operating temperature range from 0 °C to 60 °C.

Q4: Can multiple power supplies be installed in one 3500 rack?
A4: Yes, each 3500 rack can accommodate 1 or 2 power supplies, supporting any combination of AC and DC power supplies.

Q5: What is the standard warranty period for brand new original units?
A5: All brand new original 129489-01 modules come with a 1-year official manufacturer warranty.
