Bently Nevada 3500/15 106M1081-01 Universal AC Power Input Module

Description

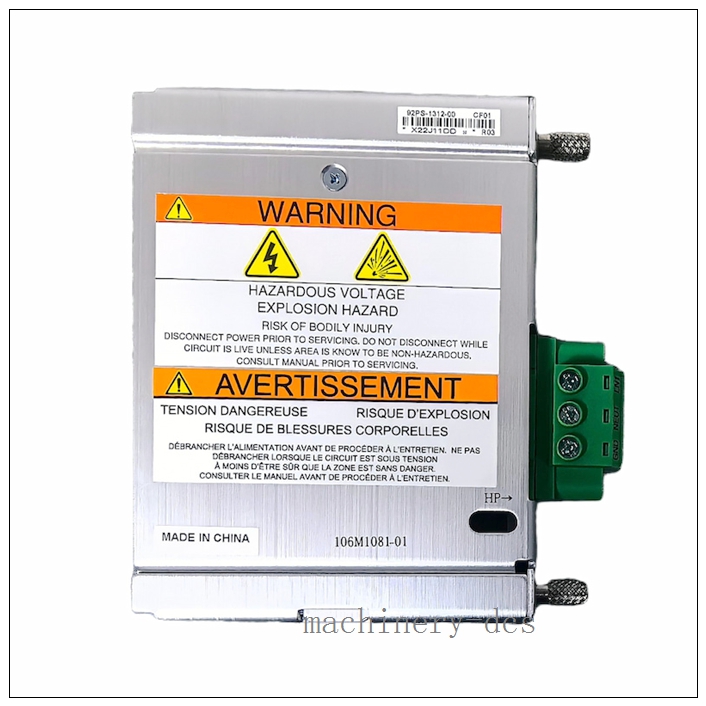

Bently Nevada 3500/15 106M1081-01 Universal AC Power Input Module

Executive Brief

The Bently Nevada 3500/15 106M1081-01 is a half-height Universal AC Power Input Module (PIM) designed exclusively for the Bently Nevada 3500 Machinery Monitoring System, serving as the core power input component that converts wide-range industrial AC power into multiple regulated DC outputs for all functional modules in the 3500 rack. It supports hot-swappable replacement and redundant dual-power configuration, and is certified for hazardous area deployment, making it a reliable power foundation for mission-critical rotating machinery protection systems.

106M1081-01

Core Technical Specifications

1. Manufacturer: Bently Nevada (GE/Baker Hughes)
2. Exact Part Number: 106M1081-01
3. Model: 3500/15
4. Product Category: Universal AC Power Input Module
5. Product Origin: Sweden
6. AC Input Range: 85–264 VAC, 47–63 Hz, global industrial grid compatible
7. DC Outputs: ±5 Vdc, ±15 Vdc, 24 Vdc, total 24 VDC / 7.5A output capacity
8. Conversion Efficiency: >85%
9. Electrical Isolation: Full input-to-output safety isolation
10. Built-in Protection: Overcurrent, overvoltage, undervoltage, overtemperature, reverse polarity, short-circuit protection
11. Redundancy Capability: Supports dual-power redundant configuration, automatic bumpless switching
12. Form Factor: Half-height modular, metal enclosure
13. Physical Dimensions: 146×89×38 mm
14. Weight: 0.9 kg
15. Operating Temperature Range: -40 °C to +70 °C, industrial-grade wide temperature tolerance
16. EMC Performance: High electromagnetic interference immunity
17. Hazardous Area Certification: Class 1, Division 2 / Zone 2 certified
18. Hot-swap Support: Hot-swappable, allows replacement without system shutdown under redundant power configuration
19. System Compatibility: Exclusively for Bently Nevada 3500 Series machinery monitoring systems

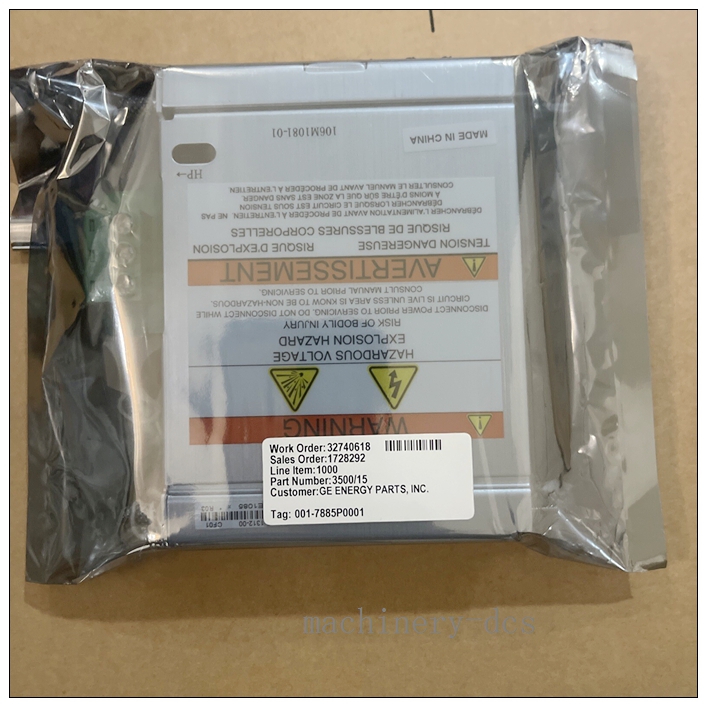

20. Stock Status: 100 units in stock, brand new factory-sealed
21. Warranty: 1-year official manufacturer warranty

Key Features & Advantages

• Ultra-wide Universal AC Compatibility: 85–264 VAC wide input range automatically adapts to all standard industrial AC power grids worldwide, no additional voltage conversion equipment required.
• Multi-channel Regulated DC Output: Provides stable ±5 Vdc, ±15 Vdc and 24 Vdc outputs simultaneously, directly powering all monitor, communication and I/O modules in the 3500 system rack.
• Full Redundancy & Hot-swap Design: Natively supports primary/backup dual-power redundant configuration, and allows hot-swappable on-site replacement without system shutdown, minimizing maintenance downtime.
• Multi-layer Full Protection Mechanism: Integrated overcurrent, overvoltage, undervoltage, overtemperature, reverse polarity and short-circuit protection, eliminating almost all common power safety hazards.
• Harsh Environment Adaptability: -40 °C to +70 °C wide operating temperature range and high EMC immunity enable stable operation in extremely harsh industrial field environments.
• Hazardous Area Deployment Eligibility: Class 1 Division 2 / Zone 2 certification allows direct installation in flammable gas hazardous industrial areas, meeting strict safety compliance requirements.

Typical Application Scenarios

1. Petrochemical Rotating Machinery Protection: Core power supply unit for 3500 machinery monitoring systems on large compressors, pumps and turbines in refineries and chemical plants.
2. Power Generation Turbine Monitoring: Stable power supply for 3500 protection systems on steam turbines and gas turbines in thermal power and combined cycle power plants.
3. Offshore Oil & Gas Platforms: Reliable power supply for 3500 monitoring systems on offshore oil and gas production facilities, meeting strict marine hazardous area safety standards.
4. Mining & Metallurgical Equipment Monitoring: Power supply unit for 3500 protection systems on large motors, rolling mills and mining equipment in metallurgical and mining sites.
5. Pipeline & Compressor Station Monitoring: Continuous power supply for 3500 machinery protection systems on long-distance natural gas pipeline compressor stations.

Related Supporting Product Model Display

1. Bently Nevada 3500 System Rack: Standard 3500 series system frame, providing dedicated left half-height installation slots for 106M1081-01 power modules.
2. Bently Nevada 3500/16 DC Power Supply Module: DC input power unit, which can form AC-DC mixed redundant power configuration with 106M1081-01 to further improve system reliability.
3. Bently Nevada 3500/42M Vibration & Position Monitor: Core monitoring module powered by 106M1081-01, for continuous vibration and shaft position monitoring of rotating machinery.
4. Bently Nevada 136719-01 Internal Barrier Ground / Power Module: Intrinsically safe power distribution accessory, working with 106M1081-01 to provide safe power for hazardous area I/O modules.

Frequently Asked Questions

Q1: What is the core function of Bently Nevada 106M1081-01?
A1: It is a universal AC power input module that converts wide-range AC power into multiple regulated DC outputs to power all modules in the 3500 machinery monitoring system.

Q2: Does 106M1081-01 support hot-swappable replacement?
A2: Yes, it supports hot-swappable on-site replacement, no system shutdown required when operating under redundant power configuration.

Q3: What hazardous area certifications does this module have?
A3: It is certified for Class 1, Division 2 / Zone 2 hazardous area deployment, suitable for flammable gas industrial scenarios.

Q4: What is the maximum operating temperature of 106M1081-01?
A4: It supports an ultra-wide industrial operating temperature range from -40 °C to +70 °C.

Q5: What is the standard warranty period for brand new original units?
A5: All brand new original 106M1081-01 modules come with a 1-year official manufacturer warranty.
