Bently Nevada 3500/15 106M1079-01 Universal AC Power Supply Module

Description

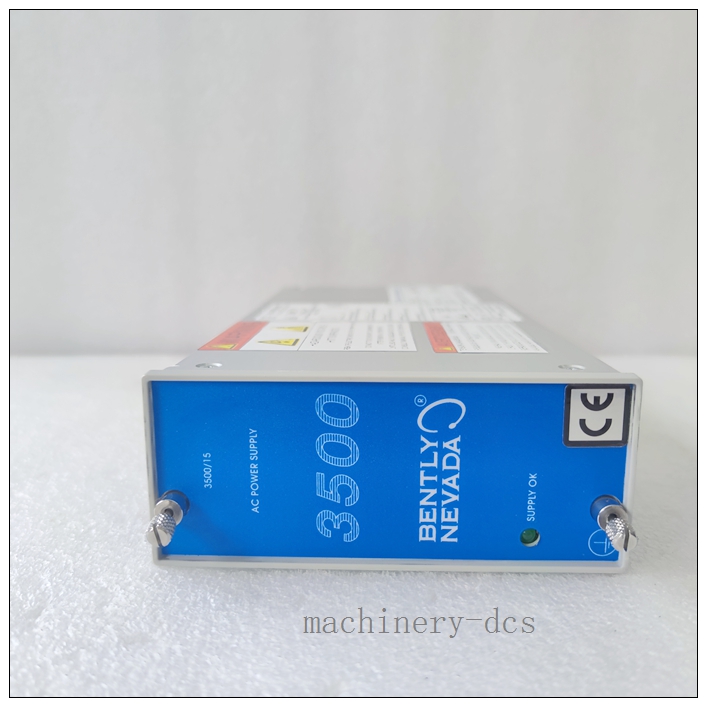

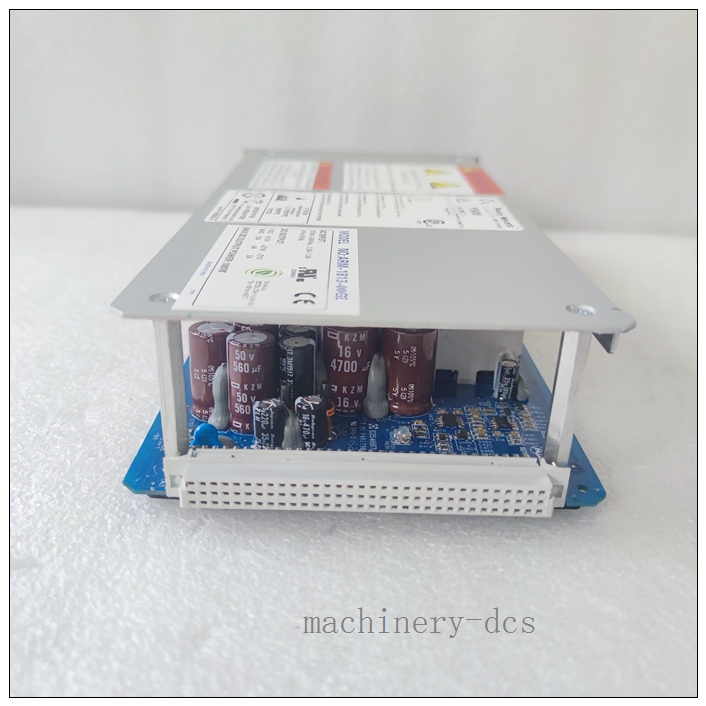

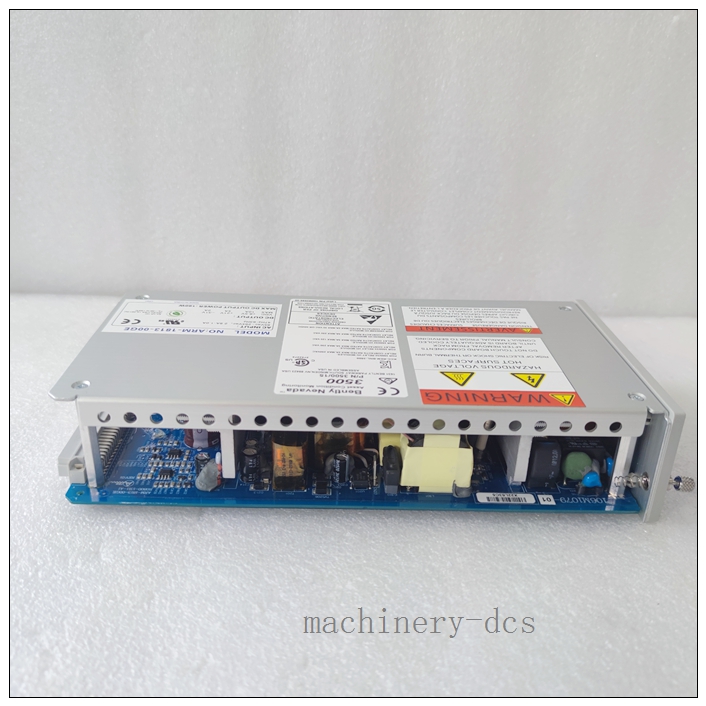

Bently Nevada 3500/15 106M1079-01 Universal AC Power Supply Module

Executive Brief

The Bently Nevada 3500/15 106M1079-01 is a half-height universal AC power supply module purpose-built for the Bently Nevada 3500 Machinery Protection System, delivering stable, reliable DC power for all internal components of the 3500/15 system rack. It is designed for 24/7 continuous operation in demanding industrial environments, and is a core power component that guarantees uninterrupted operation of critical rotating machinery protection systems. Brand new original units are in stock globally, with a standard 12-month manufacturer warranty.

350015 106M1079-01

Core Technical Specifications

1. Manufacturer: Bently Nevada (Baker Hughes)
2. Exact Part Number: 106M1079-01
3. Model: 3500/15
4. Product Category: Universal AC Power Supply Module
5. Product Origin: USA
6. Form Factor: Half-height module, must be installed in designated slots on the left side of the 3500 system rack
7. Input Voltage Range: 85 to 264 VAC (wide universal AC input for global compatibility)
8. Output Voltage Range: 20 to 30 VDC
9. Typical Power Consumption: 8.0 watts
10. Input Impedance: 20 kΩ
11. Maximum Switched Current: 5 A
12. Physical Dimensions (H x W x D): 120.7 mm x 50.8 mm x 251.5 mm (9.50 in x 0.96 in x 9.52 in)
13. Weight: 1.39 kg (1390 g)
14. Manual Reference Document: 141530
15. Rack Installation: Each 3500 system rack can accommodate 1 or 2 power supplies, supporting any combination of AC and DC power supplies
16. Protection Features: Built-in overvoltage, undervoltage and short-circuit protection
17. Warranty: 12 months official manufacturer warranty for brand new original units

Key Features & Advantages

• Global Universal Input Compatibility: 85-264 VAC wide AC input range automatically adapts to different industrial power grid standards worldwide, no manual configuration required.
• Stable Clean DC Output: Delivers consistent 20-30 VDC regulated power for all 3500 series modules, effectively suppressing power grid interference and ensuring system operation stability.
• Compact Half-height Design: Slim half-height profile saves valuable rack space, allowing more functional monitoring modules to be installed in the same 3500 system rack.
• Multi-layer Circuit Protection: Integrated overvoltage, undervoltage and short-circuit protection mechanisms, effectively eliminating power safety hazards and extending service life.
• Industrial-grade High Reliability: Rugged construction and high-quality components ensure long-term stable operation in harsh industrial operating conditions.
• Flexible Redundancy Support: The rack can install 1 or 2 power supplies, supporting mixed AC and DC redundant configuration to eliminate power supply single point of failure.

Typical Application Scenarios

1. Petrochemical Rotating Machinery Protection: Core power supply unit for 3500 machinery protection systems on large compressors, pumps and turbines in refineries and chemical plants.
2. Power Generation Turbine Monitoring: Stable power supply for 3500 protection systems on steam turbines and gas turbines in thermal power and combined cycle power plants.
3. Offshore Oil & Gas Platforms: Reliable power supply for 3500 monitoring systems on offshore oil and gas production facilities, adapting to harsh marine operating conditions.
4. Mining & Metallurgical Equipment Monitoring: Power supply unit for 3500 protection systems on large motors, rolling mills and mining equipment in metallurgical and mining sites.
5. Pipeline & Compressor Station Monitoring: Continuous power supply for 3500 machinery protection systems on long-distance natural gas pipeline compressor stations.

Related Supporting Product Model Display

1. Bently Nevada 3500 System Rack: Standard 3500 series system frame, providing dedicated half-height installation slots for 106M1079-01 power supply modules.
2. Bently Nevada 3500/16 DC Power Supply Module: DC input power supply unit, which can form mixed AC-DC redundant power configuration with 106M1079-01 in the same rack.
3. Bently Nevada 3500/42M Vibration & Position Monitor: Core monitoring module powered by 106M1079-01, for continuous vibration and shaft position monitoring of rotating machinery.
4. Bently Nevada 136719-01 Internal Barrier Ground / Power Module: Intrinsically safe power distribution accessory, working with 106M1079-01 to provide safe power for hazardous area I/O modules.

Frequently Asked Questions

Q1: What is the core function of Bently Nevada 3500/15 106M1079-01?
A1: It is a universal AC power supply module that provides reliable DC power for all components inside the 3500/15 system.

Q2: What is the input voltage range of this power supply module?
A2: It supports 85 to 264 VAC wide universal AC input, compatible with global industrial power grids.

Q3: What protection features does 106M1079-01 have?
A3: It is equipped with overvoltage, undervoltage and short-circuit protection functions, ensuring safe and stable operation.

Q4: Can multiple power supplies be installed in one 3500 rack?
A4: Yes, the rack can accommodate 1 or 2 power supplies, supporting any combination of AC and DC power supplies.

Q5: What is the standard warranty period for brand new original units?
A5: All brand new original 106M1079-01 modules come with a 12-month official manufacturer warranty.
