Bently Nevada 330850‑90‑00 3300‑XL 25 mm Proximitor Sensor, 9‑Meter System Length, Panel‑Mount

Description

Bently Nevada 330850‑90‑00 3300‑XL 25 mm Proximitor Sensor, 9‑Meter System Length, Panel‑Mount

Product Details

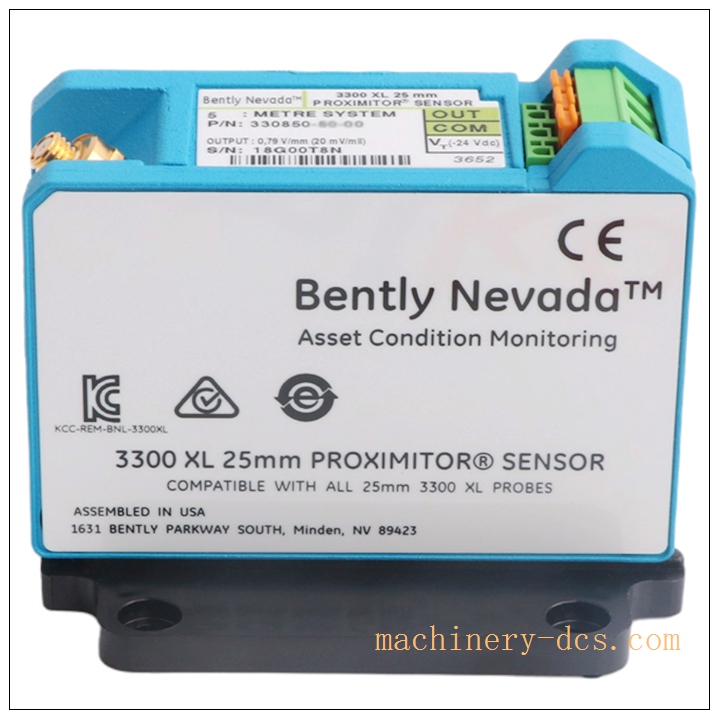

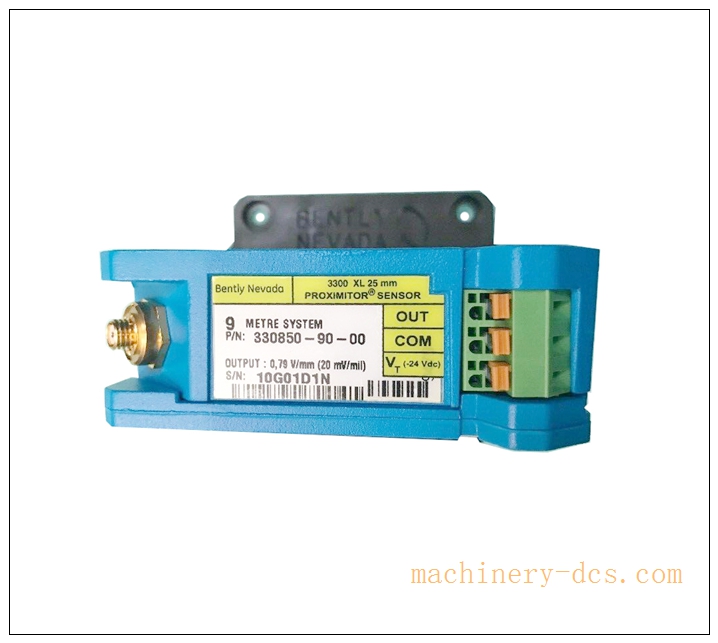

330850‑90‑00 is the proximitor sensor for 3300‑XL 25 mm eddy‑current proximity transducer system, widely used for large turbo‑machinery differential expansion, axial‑position and large‑range shaft displacement measurement. Origin: USA. Lifecycle status: Active production, brand‑new original available, standard factory warranty. ‑ Code parsing: 90 = total system length 9 meters, panel‑mount housing; 00 = no agency certifications selected电子工程世… ‑ Sensitivity: 0.787 V/mm (200 mV/mil) ‑ Linear range: 0‑12.7 mm (0‑500 mil) for 25 mm probe ‑ Power supply:‑17.5 VDC ~‑26 VDC (nominal‑24 VDC), max 50 mA consumption ‑ Wiring terminal: SpringLoc spring‑clamp terminals, tool‑free field wiring ‑ Mechanical mounting: Panel‑mount type (not DIN‑rail); aluminum housing A380 ‑ Operating temperature: ‑35℃ ~ +85℃, storage‑51℃ ~ +100℃ ‑ EMC: CE compliant, enhanced RFI/EMI noise immunity ‑ Compatible probes: 330851‑xx‑xx series 25 mm eddy‑current probe + matching 9‑m total‑length extension cable ‑ Compatible monitor rack: 3500 / 3300 series TSI monitoring system ‑ Weight: approx 0.22 kg

Applications

‑ Steam turbine / gas turbine rotor differential‑expansion measurement ‑ Large‑range shaft axial‑thrust position monitoring for turbo‑machinery ‑ Petrochemical compressors, heavy rotating‑equipment TSI protection ‑ Cooperate with 3500 rack to send displacement signal to DCS/SCADA ‑ New project build‑up & spare‑part replacement for existing 3300‑XL 25 mm systems ‑ Spare inventory for power‑plant and petrochemical rotating‑machinery maintenance department

330850-90-00

Related Series Models (6+)

1. 330850‑50‑00 (25 mm proximitor, 5‑meter total length, panel‑mount)
2. 330850‑91‑00 (25 mm proximitor, 9‑meter, DIN‑rail mount)
3. 330851‑00‑00 (25 mm eddy‑current probe)
4. 330180‑90‑00 (3300‑XL 8 mm proximitor, 9‑meter system)
5. 3500/45 (3500 rack differential‑expansion monitor module)
6. 330854‑xx (25 mm extension cable assembly)
7. 3500/42M (shaft vibration / position monitor module)

Key Features

1. Proximitor sensor for 3300‑XL 25 mm eddy‑current transducer system, dedicated for large‑range rotor differential‑expansion and shaft‑position measurement.
2. Standard 9‑meter total system length, panel‑mount housing, SpringLoc tool‑free spring‑clamp terminals for fast field wiring.
3. Excellent temperature stability and EMI/RFI suppression, CE certified, fully meets API‑670 rotating‑machinery‑protection requirements.
4. Output voltage signal linearly proportional to probe‑to‑target gap for static position and dynamic displacement measurement.
5. System‑wide component interchangeability within same‑length 25 mm series; no individual component matching required.
6. Continuous self‑diagnosis for probe open‑circuit / short‑circuit cable faults.
7. Works seamlessly with Bently 3500 /3300 TSI racks for machinery protection and condition monitoring.
8. Manufactured in USA; active‑lifecycle product, brand‑new original parts commercially available.

Main Functions

1. Excites 25 mm eddy‑current probe, converts gap‑variation between probe tip and metallic shaft target into proportional analog voltage signal.
2. Deliver real‑time displacement data for turbine differential‑expansion, shaft axial‑position monitoring.
3. Detect probe cable open‑circuit and short‑circuit faults, send fault status to TSI monitor rack.
4. Transfer gap‑proportional voltage signal to 3500 monitor module for alarm/trip logic processing.
5. Cooperate with probe and extension cable to complete large‑range non‑contact position measurement for rotating‑machinery.
6. Provide measured variable to upper‑level DCS/SCADA system via TSI rack analog output or communication interface.
7. Support continuous long‑term on‑line monitoring for critical turbo‑machinery.
8. Serve as signal‑conditioning proximitor unit of Bently Nevada 3300‑XL 25 mm proximity transducer system.
