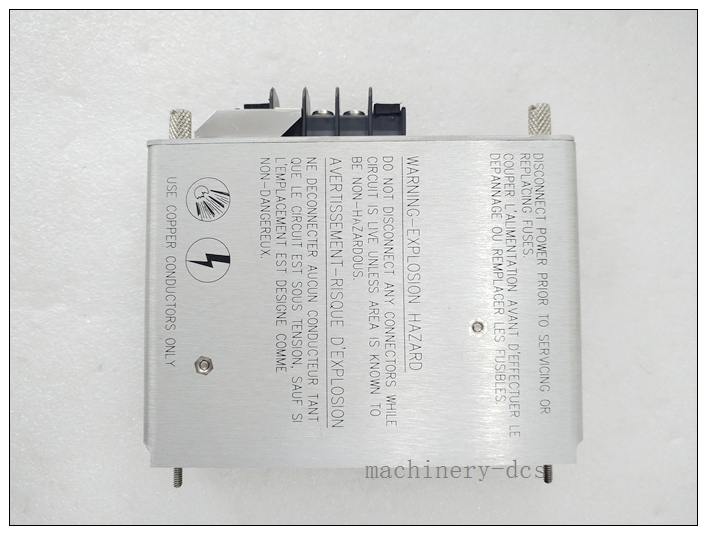

Bently Nevada 114M5335-01 Low Voltage DC Power Input Module - Image 3

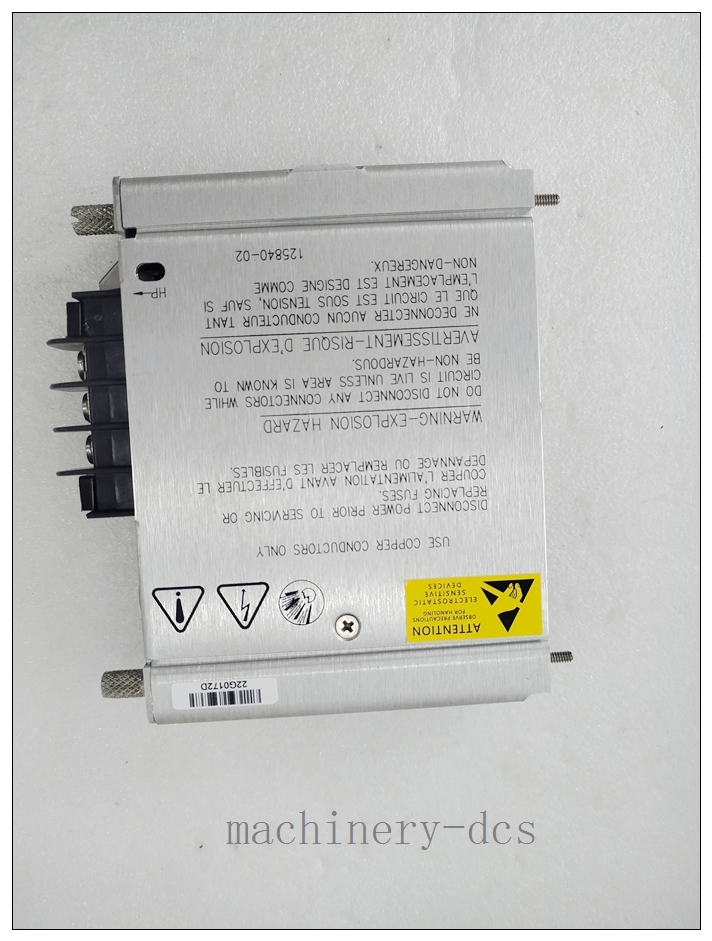

Bently Nevada 114M5335-01 Low Voltage DC Power Input Module - Image 4

Bently Nevada 114M5335-01 Low Voltage DC Power Input Module

3500/15 106M1079-01
3500/15 133292-01
3500/15 114M5330-01
3500/15 129489-01
3500/15 127610-99
3500/15 125840-01
3500/15 106M1081-01
3500/15 133300-01
3500/15 125840-02
3500/15 114M5335-01
3500/15 129478-01
Add To Quote
Category: SKU: Bently 114M5335-01 Brand:

Description

Bently Nevada 114M5335-01 Low Voltage DC Power Input Module



Executive Brief

The Bently Nevada 114M5335-01 is a dedicated Low Voltage DC Power Input Module (PIM) for the Bently Nevada 3500 Monitoring System, delivering reliable, consistent 24 VDC power to ensure uninterrupted performance for all modules in the 3500 series rack. It is engineered for flexible, redundant power deployment in industrial applications, and is a core power component for mission-critical rotating machinery protection systems. Brand new original units are in stock globally, with a standard 12-month manufacturer warranty.

125840-02

Core Technical Specifications

  1. Manufacturer: Bently Nevada
  2. Exact Part Number: 114M5335-01
  3. Product Category: Low Voltage DC Power Input Module
  4. Product Origin: USA
  5. Input Voltage Range: 20 to 30 VDC
  6. Output Voltage: 24 VDC
  7. Physical Dimensions: Height 120.7 mm, Width 25.4 mm, Depth 114.3 mm
  8. Net Weight: 0.34 kg (340g)
  9. System Compatibility: Exclusively designed for Bently Nevada 3500 Series racks
  10. Minimum Order Quantity: 1 unit
  11. Supply Capacity: 50 units per month
  12. Payment Terms: 100% T/T (Telegraphic Transfer) before shipping
  13. Shipping Port: Xiamen
  14. Compliance Certification: RoHS certified
  15. Warranty: 12 months official manufacturer warranty for brand new original units
  16. Documentation Support: Certificates of Origin, Conformance and full export paperwork available upon request



Key Features & Advantages

  • Dedicated Low Voltage DC Input Design: 20-30 VDC wide DC input range perfectly adapts to industrial low-voltage DC power supply scenarios, delivering highly stable 24 VDC regulated output.
  • Native 3500 System Compatibility: Exclusively optimized for Bently Nevada 3500 series monitoring racks, no additional adaptation work required for system integration.
  • Compact Lightweight Form Factor: Ultra-compact dimensions and 0.34kg lightweight design save valuable rack space, making it ideal for space-constrained industrial cabinet deployments.
  • High Reliability Industrial Construction: Rugged industrial-grade components ensure long-term 24/7 continuous operation, fully meeting the 3500 system’s mission-critical operation requirements.
  • Flexible Redundancy Support: Can be paired with other AC power supply modules in the same 3500 rack to form mixed AC-DC redundant power configuration, eliminating power supply single point of failure.



Typical Application Scenarios

  1. Petrochemical Rotating Machinery Protection: Core DC power supply unit for 3500 machinery protection systems on large compressors, pumps and turbines in refineries and chemical plants.
  2. Power Generation Turbine Monitoring: Stable DC power supply for 3500 protection systems on steam turbines and gas turbines in thermal power and combined cycle power plants.
  3. Offshore Oil & Gas Platforms: Reliable DC power supply for 3500 monitoring systems on offshore oil and gas production facilities, adapting to marine industrial DC power grid environments.
  4. Mining & Metallurgical Equipment Monitoring: DC power supply unit for 3500 protection systems on large motors, rolling mills and mining equipment in metallurgical and mining sites.
  5. Industrial DC Power Grid Scenarios: Dedicated power supply module for 3500 machinery protection systems deployed in industrial facilities that primarily use DC power distribution.



Related Supporting Product Model Display

  1. Bently Nevada 3500 System Rack: Standard 3500 series system frame, providing dedicated installation slots for 114M5335-01 DC power modules.
  2. Bently Nevada 3500/15 AC Power Supply Modules: AC input power units (such as 127610-01, 106M1079-01, 106M1081-01, 129489-01), which can form mixed AC-DC redundant power configuration with 114M5335-01.
  3. Bently Nevada 3500/42M Vibration & Position Monitor: Core monitoring module powered by 114M5335-01, for continuous vibration and shaft position monitoring of rotating machinery.
  4. Bently Nevada 136719-01 Internal Barrier Ground / Power Module: Intrinsically safe power distribution accessory, working with 114M5335-01 to provide safe power for hazardous area I/O modules.



Frequently Asked Questions

Q1: What is the core function of Bently Nevada 114M5335-01?
A1: It is a low voltage DC power input module that converts 20-30 VDC input into stable 24 VDC power for the Bently Nevada 3500 monitoring system.

Q2: What is the input voltage range of this module?
A2: It supports 20 to 30 VDC low voltage DC input, perfectly adapting to industrial DC power supply scenarios.

Q3: What is the weight of 114M5335-01?
A3: The net weight of the module is 0.34 kg (340g), with ultra-compact physical dimensions.

Q4: Which system is 114M5335-01 compatible with?
A4: It is exclusively designed for the Bently Nevada 3500 Series machinery monitoring system racks.

Q5: What is the standard warranty period for brand new original units?
A5: All brand new original 114M5335-01 modules come with a 12-month official manufacturer warranty.
