Applied Materials (AMAT) 0190‑34055 Taurus‑3 System Controller Assembly for Semiconductor Process Equipment

Description

Applied Materials (AMAT) 0190‑34055 Taurus‑3 System Controller Assembly for Semiconductor Process Equipment

Product Details

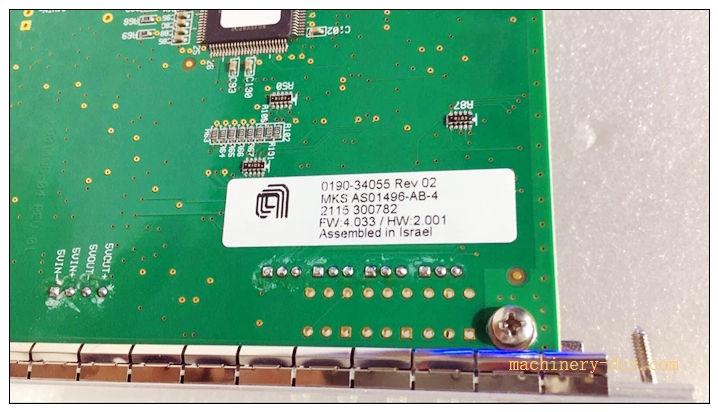

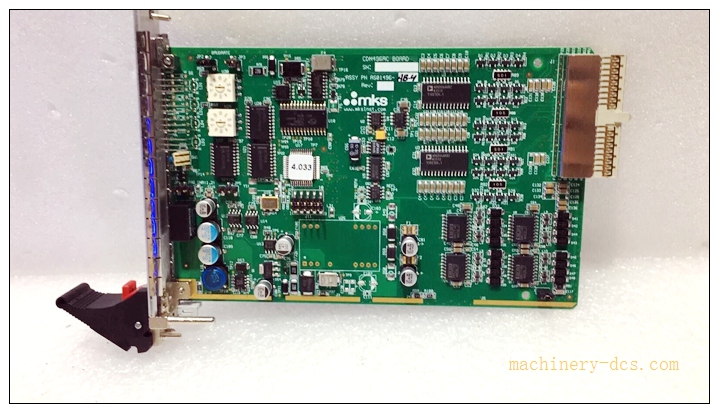

The 0190‑34055 is a complete integrated system controller assembly for AMAT Taurus‑3 semiconductor processing platform. Origin: USA, EOL end‑of‑life discontinued original OEM spare part. It integrates embedded CPU board, memory, power regulation circuit, multi‑channel digital I/O and multiple communication interfaces to perform equipment sequence control, process logic execution, sensor signal acquisition and fault diagnosis for the semiconductor chamber. Supports serial communication, Ethernet for host equipment communication. It is installed inside the equipment electronics cabinet, powered by 24 VDC. Original factory no longer supplies new units; market supply mainly comes from surplus new‑old‑stock and tested refurbished units for fab equipment maintenance & retrofit projects.

Applications

‑ AMAT Taurus‑3 semiconductor processing chamber main system control ‑ Semiconductor wafer fabrication equipment spare‑part replacement ‑ Fab production‑line old‑generation process equipment maintenance ‑ Refurbishment & upgrade for legacy AMAT process tools ‑ Vacuum chamber sequence and interlock control for semiconductor equipment ‑ Spare inventory for semiconductor equipment maintenance department

0190-34055

Related Series Models (6+)

1. 0190‑34056
2. 0190‑34057
3. 0190‑20035
4. 0190‑76005
5. 0190‑09442
6. 0190‑76050
7. 0100‑00003

Key Features

1. Dedicated integrated controller assembly for AMAT Taurus‑3 semiconductor process equipment, executes chamber‑level process and interlock logic.
2. On‑board embedded processing unit, onboard memory for equipment configuration, runtime parameters and fault log storage.
3. Rich I/O and communication interfaces: digital input/output, serial port and Ethernet for host tool communication.
4. 24 VDC equipment cabinet power supply, compact assembly form for internal electronics‑bay installation.
5. Built‑in comprehensive self‑diagnosis function for hardware, communication and interlock signal monitoring.

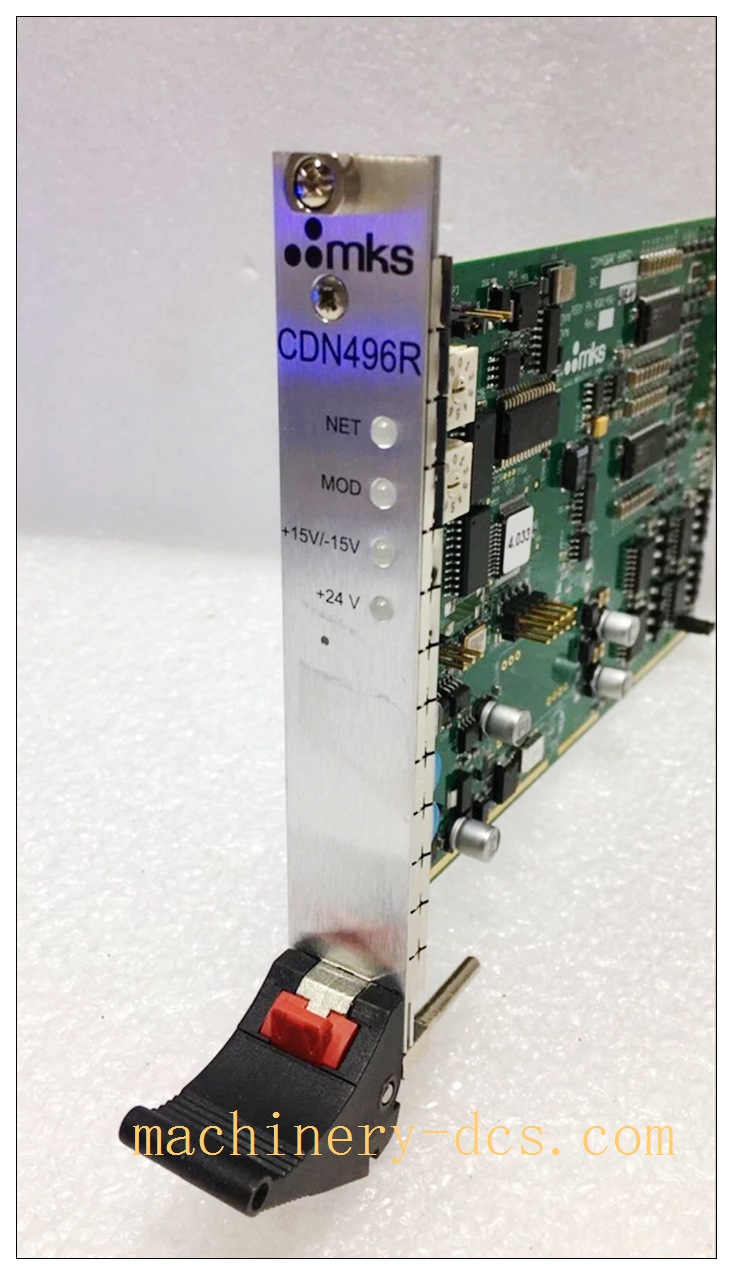

6. Front‑panel LED indicators for operating status and fault visual troubleshooting.
7. Manufactured in USA, OEM proprietary assembly; original factory EOL discontinued, no direct drop‑in replacement part number.
8. Only available as NOS surplus or fully tested refurbished spare parts for existing fab equipment.

Main Functions

1. Execute chamber‑level process sequence, safety interlock and equipment logic control for Taurus‑3 process tool.
2. Collect status signals from field sensors, valves and actuators, output control commands to field components.
3. Store equipment configuration parameters, runtime variables and fault event logs for maintenance traceability.
4. Realize bidirectional data exchange with upper‑level host equipment controller via Ethernet / serial interfaces.
5. Continuously monitor hardware health, trigger safety interlock protection under abnormal fault conditions.
6. Visualize operating and fault status via onboard LED indicators for on‑site fab maintenance personnel.
7. Accept parameter configuration download, support equipment commissioning, diagnosis and fault read‑out.
8. Serve as core control assembly to realize normal process running of AMAT Taurus‑3 semiconductor chamber.
