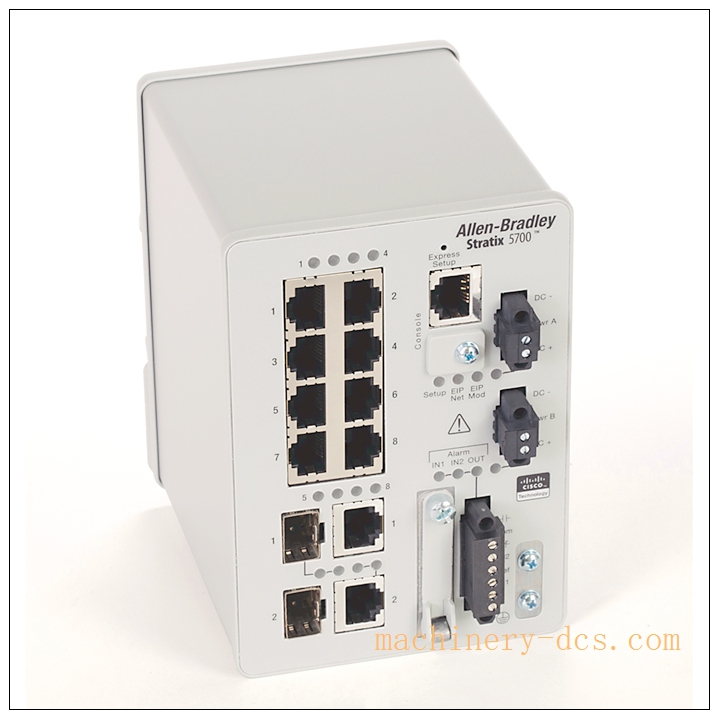

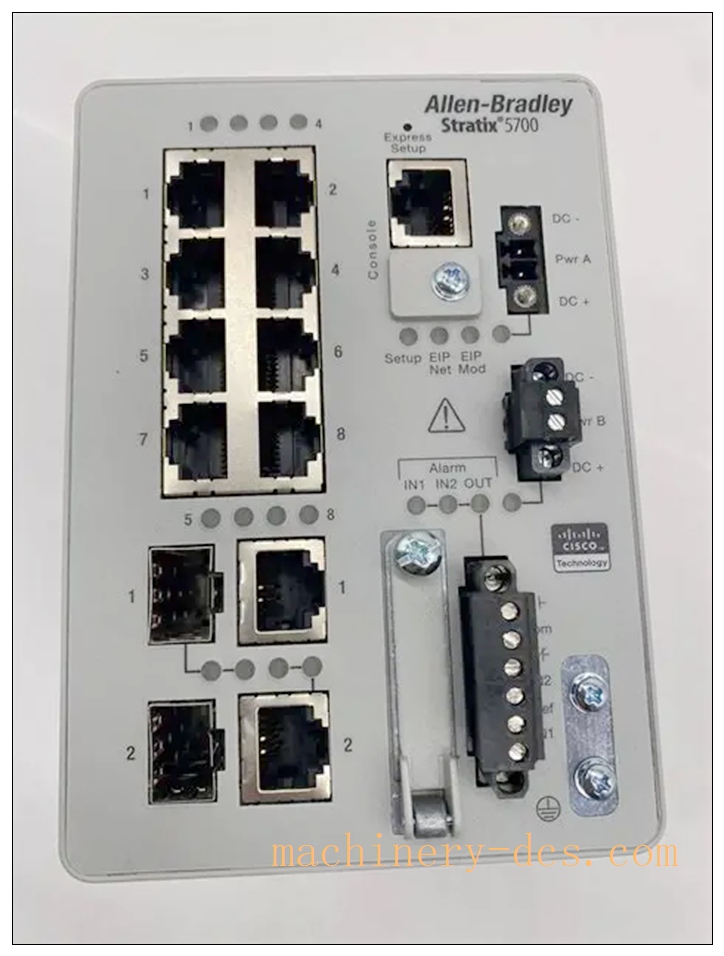

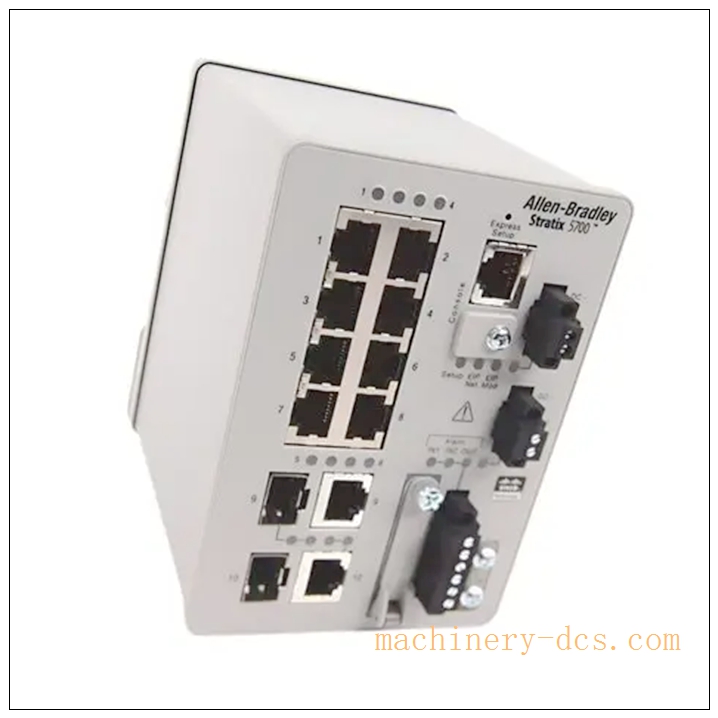

Allen‑Bradley 1783‑BMS10CGN Stratix 5700 10‑Port Fully‑Managed Industrial Ethernet Switch

Description

Allen‑Bradley 1783‑BMS10CGN Stratix 5700 10‑Port Fully‑Managed Industrial Ethernet Switch

Product Details

The 1783‑BMS10CGN belongs to Rockwell Automation Stratix 5700 series, a discontinued full‑feature managed industrial Ethernet switch for EtherNet/IP‑based automation networksRockwell A…. It delivers 10 ports in total: 8×10/100 Mbps RJ45 copper ports plus 2×Gigabit combo ports supporting copper RJ45 or SFP fiber transceivers for long‑distance cabling. Powered by 12‑48 VDC redundant DC input, fan‑less passive cooling design supports wide operating temperature from ‑40 °C to +60 °C. This unit supports key industrial functions including DLR (Device Level Ring), CIP Sync (IEEE 1588 PTP time synchronization), NAT, VLAN, QoS, IGMP snooping and SNMP management. DIN‑rail mounting design fits standard industrial control cabinets. It supports web‑based configuration, monitoring and fault diagnosis. Widely used as spare‑part replacement for legacy automation networks, ideal for connecting PLCs, HMIs, servo drives and field instruments within harsh factory environments.

Applications

‑ Manufacturing automation EtherNet/IP network infrastructure ‑ Automotive assembly line industrial communication networking ‑ Packaging & material‑handling equipment control network ‑ Process industry plant control system network deployment ‑ DLR ring‑topology high‑availability industrial network construction ‑ Connect PLC, HMI, servo drives and remote I/O devices ‑ Retrofit and spare‑part replacement for existing Stratix 5700 network systems ‑ Machine‑builder integrated network solution for heavy‑duty industrial sites

1783-BMS10CGN

Related Series Models (6+)

1. 1783‑BMS10CL
2. 1783‑BMS10CGP
3. 1783‑BMS20CL
4. 1783‑BMS06SL
5. 1783‑BMS06TA
6. 1783‑BMS4S2SGL
7. 1783‑CMS10DN

Key Features

1. 10‑port managed industrial switch, 8 Fast‑Ethernet copper ports and 2 Gigabit combo SFP ports for flexible fiber‑copper mixed networking.
2. Supports Device Level Ring (DLR) for fast network ring redundancy, minimizes communication downtime upon single‑point link failure.
3. Built‑in CIP Sync IEEE 1588 precision time synchronization for time‑critical motion‑control applications.
4. Redundant 12‑48 VDC power input improves power‑supply reliability for mission‑critical sites.
5. Fan‑less passive cooling, wide‑range operating temperature ‑40 °C ~ +60 °C, adapts to harsh factory conditions.
6. Rich network functions: VLAN, QoS, IGMP snooping, NAT, port security, SNMP and RMON for full network management.
7. DIN‑rail mounting structure, compact size for cabinet installation.
8. Web‑browser accessible configuration interface, convenient for on‑site commissioning, status monitoring and fault troubleshooting.

Main Functions

1. Realize high‑speed data forwarding for EtherNet/IP and standard Ethernet industrial automation devices.
2. Build DLR ring‑network topology to achieve fast link‑failure recovery for high‑availability control networks.
3. Execute CIP Sync PTP time synchronization to provide unified high‑precision timestamp for distributed control nodes.
4. Support VLAN division, QoS traffic scheduling and IGMP snooping to optimize real‑time control‑message transmission performance.
5. Offer NAT function for network address translation between different sub‑net segments.
6. Accept redundant DC power supply input, realize power‑source backup to avoid network outage caused by single power failure.
7. Provide web‑based and SNMP remote management, monitor port status, network traffic and device operating status.
8. Work as central network node to interconnect PLCs, HMIs, servo drives, remote I/O and other field automation equipment.
