Allen‑Bradley 1769-OF4VI CompactLogix 4-Channel Isolated Voltage Analog Output Module
Product Description
The 1769-OF4VI is a 4-channel galvanically isolated analog voltage output module within Rockwell Allen‑Bradley Compact I/O family for CompactLogix controllers. It converts digital setpoint values from the PLC backplane into configurable analog voltage signals to drive control valves, positioners, variable-speed drives and other analog actuators. It features group isolation between the analog output circuit and controller backplane, which mitigates ground loop interference and protects the control rack from field-side electrical transients. The module supports multiple voltage signal ranges and also optional 4–20mA current output with external field power supply. Equipped with removable wiring arm terminals, built-in short-circuit and overvoltage protection, it performs continuous self-diagnosis and reports channel faults back to the CompactLogix CPU. This compact DIN rail module is widely deployed for precision closed-loop analog control in medium and small automation systems.
Technical Specifications
- Part Number: 1769-OF4VI
- Manufacturer: Rockwell Automation (Allen‑Bradley)
- Series: CompactLogix Compact I/O
- Device Type: 4-Channel Isolated Analog Output Module
- Output Channels: 4 isolated channels, voltage priority
- Signal Ranges: ±10V, 0–10V, 0–5V, 1–5V; supports 4–20mA with external 24VDC field power
- Resolution: 15-bit
- Accuracy: ±0.8% full scale
- Isolation Rating: 500VAC / 710VDC between output group and backplane
- Backplane Current Draw: 110mA @5VDC
- External Field Power: 20–30VDC (nominal 24VDC)
- Protection: Short-circuit protection, overvoltage protection
- Operating Temperature: 0°C ~ +60°C
- Storage Temperature: -40°C ~ +85°C
- Relative Humidity: 5%~95%, non-condensing
- Mounting: 35mm DIN rail or panel mounting
- Dimensions: 118 × 35 × 87 mm
- Weight: Approx. 0.27 kg
- Certifications: UL508, CE, Class I Div.2 hazardous location approval

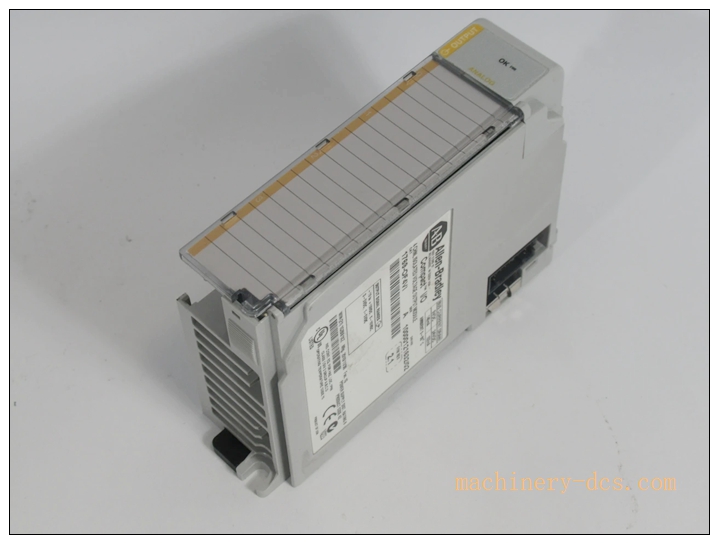

1769-OF4VI
Key Features
- Four galvanically isolated analog output channels to suppress ground loop noise
- Multiple configurable voltage ranges for analog actuators, valves and drives
- Optional 4–20mA current output when supplied with external 24VDC field power
- Built-in short-circuit and overvoltage protection for field wiring faults
- Removable wiring arm terminals for convenient wiring and module replacement
- Continuous self-diagnosis, reports open/short circuit and channel fault status to PLC
- Compact Compact I/O form factor for flexible DIN rail cabinet layout
- Configuration and diagnostics via Studio5000 programming software
Application Scenarios
- Water & wastewater treatment plant analog valve closed-loop control
- Petrochemical skid-mounted process control for modulating valves
- Food & beverage batch production temperature and flow regulation
- Packaging machinery speed control via VFD analog setpoint
- Building HVAC damper and valve positioning control
- Cement and mining auxiliary equipment actuator control
- Renewable energy skid local analog regulation
- Small chemical plant continuous process modulation control
Matching / Auxiliary Components
- CompactLogix controller (L30ER, L35E, L43 etc.)
- 1769 Compact I/O chassis, expansion cable and end cap
- 1769 series rack power supply
- 1769-RN10 / RN20 removable wiring arm
- Shielded twisted pair field instrument cables
- Modulating control valves, positioners and variable frequency drives
- Studio5000 programming & diagnostic software
- 1769-ECL / ECR end termination caps
Related Rockwell CompactLogix 1769 Series Models (9 pcs)
- 1769-OF4VI 4CH Isolated Voltage Analog Output Module
- 1769-OF4CI 4CH Isolated Current Analog Output Module
- 1769-OF4 4CH Non-isolated Analog Output Module
- 1769-OF2 2CH Analog Output Module
- 1769-IF4I 4CH Isolated Analog Input Module
- 1769-IF8 8CH Analog Input Module
- 1769-IR6 6CH RTD Temperature Input Module
- 1769-IT6 6CH Thermocouple Input Module
- 1769-IQ16 16CH Digital Input Module
