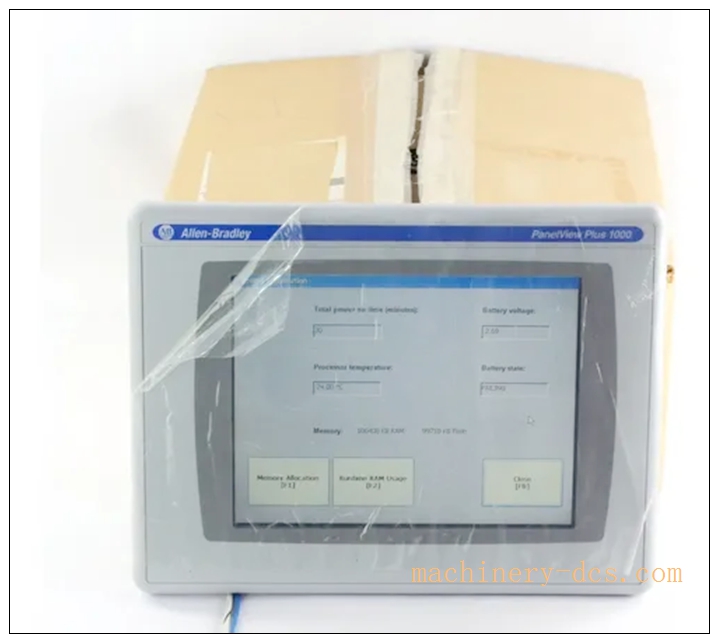

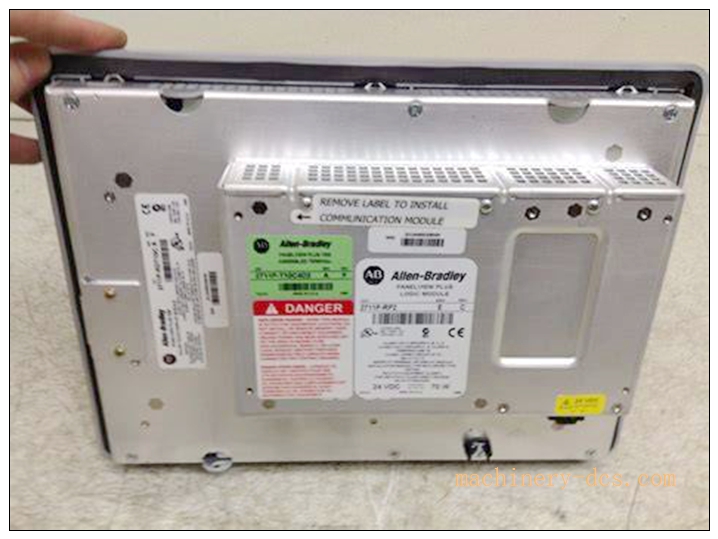

Allen Bradley 2711P-T10C4D2 PanelView Plus 1000 10.4-inch color touch human-machine interface HMI



Product Description

The 2711P-T10C4D2 is a 10.4-inch color touchscreen HMI terminal from Rockwell Allen‑Bradley PanelView Plus 1000 series. It adopts Windows CE embedded operating system, equipped with 128MB RAM and 128MB flash memory. It features an 8-wire analog resistive touchscreen, supports glove and wet-hand operation, suitable for harsh industrial workshop environments. It is built with 10/100Mbps EtherNet/IP Ethernet port, RS232 serial port, USB host port and CF card slot. It communicates with ControlLogix, CompactLogix and other Rockwell controllers for real-time data display, parameter setting, alarm logging and recipe management. It uses panel cutout mounting on control cabinet, powered by 24VDC. This is a classic legacy HMI, widely used for Rockwell Logix platform industrial site operation and monitoring, and is a common spare part for retrofitting and replacement of old automation systems.



Technical Specifications

  • Part Number: 2711P-T10C4D2
  • Manufacturer: Rockwell Automation (Allen‑Bradley)
  • Series: PanelView Plus 1000
  • Device Type: Industrial HMI Touch Terminal
  • Display: 10.4″ TFT color LCD, resolution 640×480
  • Touch Type: 8-wire analog resistive touch screen
  • Backlight: CCFL cold cathode backlight, min 50,000 hours life
  • Memory: 128MB RAM, 128MB Flash
  • OS: Windows CE Embedded
  • Communication Ports: 1 × 10/100Mbps EtherNet/IP RJ45; 1 × RS232; 1 × USB-A; CF card slot
  • Supported Protocol: EtherNet/IP, DF1
  • Power Supply: 18~32VDC, nominal 24VDC
  • Max Power Consumption: 70W, typical 39W
  • Operating Temperature: 0°C ~ +60°C
  • Storage Temperature: -40°C ~ +85°C
  • Relative Humidity: 5%~95%, non-condensing
  • Mounting: Cabinet panel embedded installation
  • Cutout Size: 215 × 272 mm
  • Weight: Approx. 2.0 kg
  • Certifications: UL508, CE, Class I Div.2 hazardous location approval

2711P-T10C4D2

Key Features

10.4-inch color resistive touch panel, suitable for glove and humid operating conditions, with strong durability for industrial sites
Native EtherNet/IP port, seamlessly integrated with ControlLogix and CompactLogix series PLCs
Equipped with Windows CE embedded system, supporting screen monitoring, parameter modification, alarm recording, and recipe functions
Rich interfaces: RS232 serial port, USB, CF card slot, convenient for program download, data export and backup
CCFL backlight, supports long-term continuous operation, and the backlight module can be replaced separately on site
RTC real-time clock with backup lithium battery, maintains timestamp and historical alarm data during power outage
Developed configuration screen using FactoryTalk View ME software, compatible with the entire Rockwell automation architecture
Embedded panel installation, industrial protective panel design, suitable for front operation of control cabinets



Application Scenarios

  • Petrochemical skid and refinery local operation station
  • Power plant auxiliary boiler, pump and fan local HMI monitoring
  • Automotive production line machine operation panel
  • Water & wastewater treatment plant on-site operator terminal
  • Food & beverage batch production line monitoring and parameter setting
  • Cement and mining heavy equipment local control panel
  • Packaging and material handling line machine HMI
  • Legacy Rockwell ControlLogix system upgrade and spare replacement



Matching / Auxiliary Components

  • ControlLogix / CompactLogix PLC controller
  • 24VDC industrial power supply (1606-XLE series recommended)
  • CF memory card for project backup
  • FactoryTalk View Machine Edition (FTView ME) configuration software
  • Shielded CAT5e Ethernet cable for EtherNet/IP
  • Panel mounting gasket and installation clips
  • Replacement RTC battery (CR2032)
  • RS232 serial cable for legacy device communication
