Description

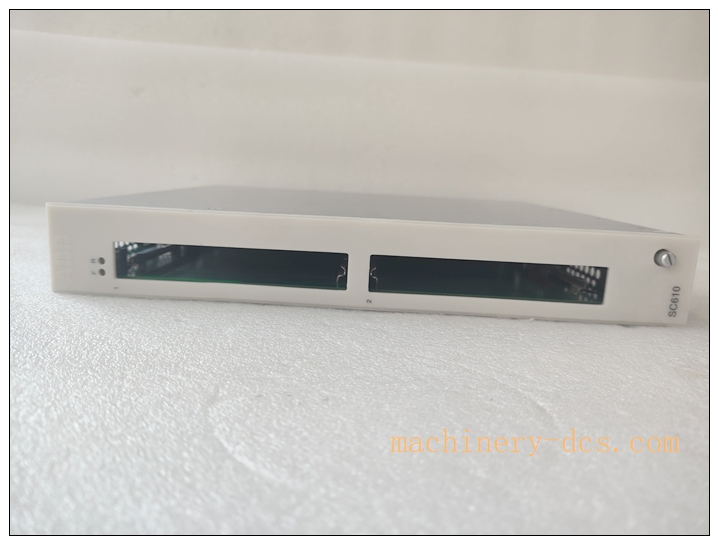

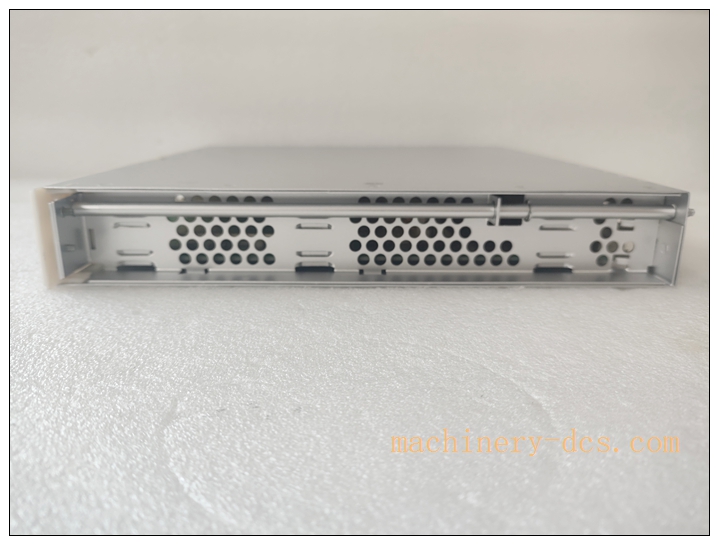

ABB SC610 is a Submodule Carrier Unit
Model: SC610 | Part No: 3BSE001552R1
Product Title & Description
The ABB SC610 is a Submodule Carrier Unit, belonging to ABB Advant OCS / MasterPiece DCS control system. It is a rack carrier board designed to host up to two CI532 RCOM communication submodules, establishing long-distance serial RCOM communication links between distributed controllers. Widely used in thermal power, hydropower, chemical plant legacy ABB Advant control systems for inter-controller data exchange and synchronization. It is a key spare for old ABB DCS cabinet retrofit and maintenance.
Core Product Overview
SC610 acts as a carrier backplane. It provides power supply, mechanical slot and signal routing for two CI532 submodules (CI532V01 / CI532V02). RCOM communication runs over RS232 serial ports, supporting peer-to-peer data transmission between remote Advant controllers, exchanging process values, control setpoints and alarm information. Two DB9 serial ports are on the front panel for RCOM cable connection. The carrier board monitors submodule health and reports communication faults to the master controller.
Lifecycle note: SC610 is discontinued, only available as NOS or refurbished spare parts for existing legacy Advant OCS systems.

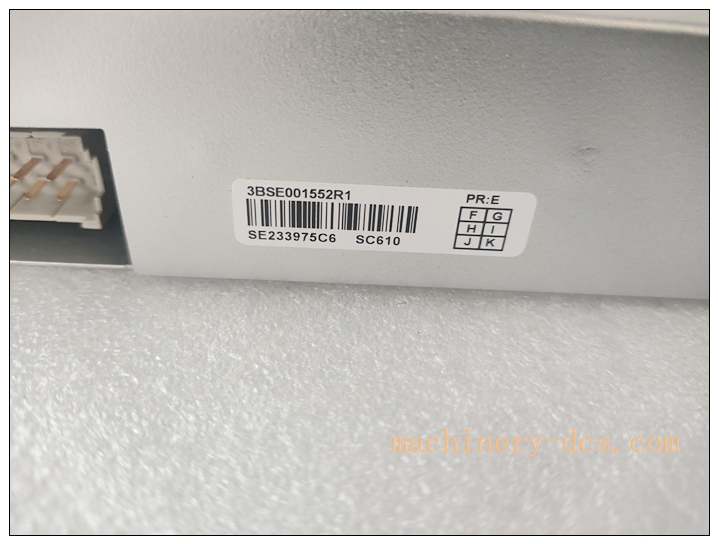

SC610 3BSE001552R1
Main Technical Specifications
- Manufacturer: ABB
- Part Number: 3BSE001552R1
- Model: SC610
- Product Type: Submodule Carrier Unit
- Supported submodules: Max 2 × CI532V01 / CI532V02 RCOM interface
- Communication: RCOM protocol over RS232 (DB9)
- Mounting: Standard ABB Advant rack slot
- Auxiliary power: Supplied from Advant rack backplane
- Front interface: Dual DB9 connectors for serial communication
- Operating Temperature: 0°C ~ +60°C
- Storage Temperature: -40°C ~ +85°C
- Relative Humidity: 5%~95%, non-condensing
- Protection Class: IP20 (cabinet installation)
- Certifications: CE, UL
Quality Control Procedures
ABB Advant series boards comply with ISO9001 industrial control standards.
- Incoming Component Inspection: backplane connectors, power regulation IC, bus interface chips screening.
- Automated SMT assembly, unique serial number for full lifecycle traceability.
- Full functional test: backplane power test, CI532 submodule hot insertion test, RS232 RCOM communication and fault diagnosis verification.
- Environmental stress screening: thermal cycling, vibration, EMC surge test for power plant and chemical cabinet environments.
- Final inspection & packing: visual inspection, anti-static packaging with factory test report.
Brand Related Matching & Replacement Models
- CI532V01 / CI532V02: RCOM communication submodule, installed into carrier
- AC100 / AC160: Advant MasterPiece controllers that work with
- PPC380AE01: ABB UNITROL6000 digital input board
- UFC718AE01: UNITROL6000 main circuit interface board
SC610 3BSE001552R1
FAQ
Q1: What is ? A1: It is a submodule carrier board, not a standalone communication card. It must be fitted with CI532 RCOM submodules to realize remote serial communication between Advant controllers.
Q2: How many CI532 modules can be installed? A2: Up to two CI532 submodules on one carrier.
Q3: Is still in production? A3: Discontinued. Only new old stock and refurbished units available for legacy system maintenance.
Q4: What is RCOM? A4: ABB Remote Communication protocol, using RS232 for long-distance controller-to-controller peer communication in Advant OCS DCS.
Q5: Warranty for original ABB 3BSE001552R1? A5: Original / refurbished unit carries standard 12-month factory warranty under proper installation and operating conditions.
Installation & Configuration Guide
7.1 Pre-installation Preparation
Verify carrier board, inspect backplane connector and dual DB9 ports. Prepare submodules, shielded RS232 serial cables, Advant rack. Power off rack before installation, wear ESD protection.
7.2 Installation Steps
Insert into empty Advant rack slot and lock. Insert submodules into slots. Wire RS232 shielded serial cables to DB9 ports, single-point shield grounding in cabinet. Check rack backplane power connection.
7.3 System Configuration & Commissioning
Power up the rack, check module LED status. Configure RCOM communication address and data exchange table in Advant engineering tool. Verify bi-directional data exchange between paired remote controllers. Simulate cable break to verify communication fault alarm. Save system configuration database.
7.4 Maintenance & Precautions
During plant outage, inspect DB9 connectors, serial cable shielding and board dust accumulation. Keep cabinet clean. If communication loss occurs, check submodules, wiring and grounding before replacing carrier.
