Description

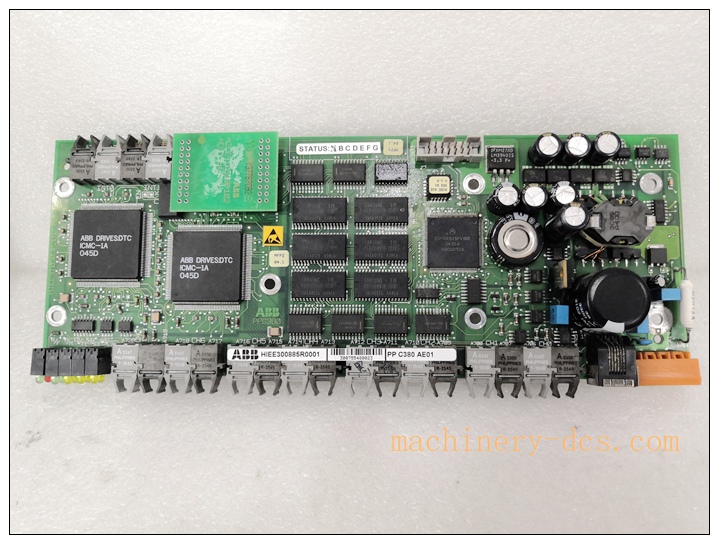

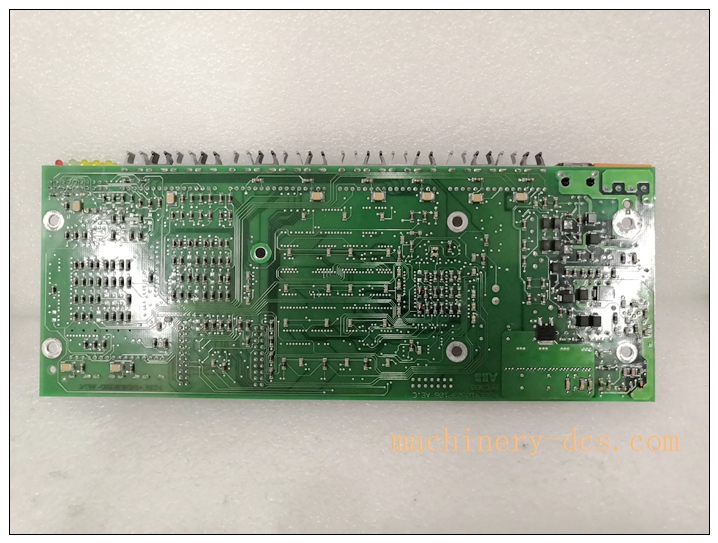

ABB PPC380AE01 (HIEE300885R0001) is a Digital Input / Status Monitoring Board
Model: PPC380AE01 | Part No: HIEE300885R0001
Product Title & Description
The ABB PPC380AE01 (HIEE300885R0001) is a Digital Input / Status Monitoring Board, designed for ABB UNITROL 6000 generator excitation system and AC800PEC power electronic controller. It collects field discrete digital signals, performs signal isolation and conditioning, then transmits digital status data to the main controller. Widely used in thermal power, hydropower, nuclear power plant excitation cabinets; it is a standard spare for UNITROL6000 static excitation retrofit and maintenance, and always works together with UFC718AE01.
Core Product Overview
PPC380AE01 is rack-mounted digital I/O PCB inside UNITROL6000 excitation cabinet. It receives dry contact / 24V discrete signals from breaker status, auxiliary relays, interlock switches and field fault contacts. It provides electrical isolation for field digital signals, filters interference, converts them into internal bus data and sends to AC800PEC main controller. The board monitors input channel health, reports channel failure or wiring fault alarms to the excitation regulator. Conformal coated versions are available for power plant dusty and humid environments. It handles excitation system interlock logic signals, breaker feedback, field flashing status and external protection trip signals.
PPC380AE01
Main Technical Specifications
- Manufacturer: ABB
- Part Number: HIEE300885R0001
- Model: PPC380AE01
- Product Type: Digital Input / Status Monitoring Interface Board
- Compatible System: UNITROL 6000 Generator Excitation System, AC 800PEC
- Auxiliary Power: 24VDC control supply
- Signal Type: 24V discrete digital input / dry contact
- Interface: Internal backplane bus to main controller
- Mounting: Rack slot installation inside excitation cabinet
- Operating Temperature: -20°C ~ +60°C
- Storage Temperature: -40°C ~ +85°C
- Relative Humidity: 5%~95%, non-condensing
- Protection Class: IP20 (cabinet installation only)
- Cooling: Cabinet forced air cooling
- Certifications: CE, UL
- Optional: Conformal coating
Quality Control Procedures
ABB power electronic boards comply with ISO9001 and IEC power conversion standards.
- Incoming Component Inspection: optocoupler isolation chips, signal processing ICs, terminal blocks and PCBs screened from qualified suppliers.
- Automated SMT assembly, each board with unique serial number for full lifecycle traceability.
- Full functional test: channel input simulation, isolation test, bus communication test and fault diagnosis verification.
- Environmental stress screening: thermal cycling, vibration, EMC surge test for high-noise power cabinet environment.
- Final inspection & packing: visual inspection, anti-static shockproof export packaging with factory test records.
Related Matching & Replacement Models
- UFC718AE01 HIEE300936R0101: Main circuit interface board, paired with PPC380AE01 for UNITROL6000 cabinet
- UNITROL6000 AC800PEC Main CPU Board: master controller communicating with
- 3BHE037864R1110 CVM12B: Voltage & current measurement board for ABB ACS1000 MV drives
- KUC711AE101 3BHB004661R0101: IGCT gate power supply for ACS1000 medium voltage drives
PPC380AE01
FAQ
Q1: Which system is HIEE300885R0001 used for? A1: Exclusively for ABB UNITROL 6000 generator excitation system and AC800PEC power electronic controller.
Q2: What is its core function? A2: Collect, isolate and condition field digital status signals (breaker, interlock, relay contacts), send status information to excitation main controller.
Q3: Is it hot-swappable? A3: ❌ Not hot-swappable. Before removal/replacement, all high voltage and auxiliary 24V power must be locked out and tagged. High voltage hazard exists in excitation cabinet.
Q4: What signals connect to ? A4: Discrete 24V / dry contact signals: generator breaker feedback, external trip, field flashing status, auxiliary equipment alarms and interlock contacts.
Q5: Warranty for original ABB HIEE300885R0001? A5: Original ABB board carries standard 12-month factory warranty against manufacturing defects under proper installation and operating conditions.
Installation & Configuration Guide
7.1 Pre-installation Preparation
Verify HIEE300885R0001, inspect PCB and terminal block for scratches or damage. Prepare cabinet drawings, shielded discrete signal cables, 24VDC control power, ABB UNITROL commissioning tool. Lock out & tag all high voltage and auxiliary power before entering excitation cabinet. Wear ESD protection.
7.2 Installation Steps
Insert into designated rack slot inside UNITROL6000 cabinet and fasten mounting screws. Connect 24VDC auxiliary control power terminals. Wire field discrete signals to input terminals, use shielded control cables with single-point shield grounding in cabinet. Tighten terminals, check protective earthing. Ensure cabinet cooling airflow.
7.3 System Configuration & Commissioning
Energize only 24V control power (high voltage kept off). Check board LED status and internal bus communication. Use UNITROL commissioning software to read each digital input channel status. Simulate contact on/off to verify signal acquisition and alarm reporting. After successful low-voltage test, perform step-by-step high voltage energization and monitor excitation interlock logic. Save commissioning parameters and logs.
7.4 Maintenance & Precautions
During plant shutdown outages, inspect terminal tightness, cable shielding and PCB dust accumulation, check cooling fan status. Do not disassemble PCB housing. If signal reading failure or missing status feedback appears, check field contact, wiring and 24V supply before replacing .
