Description

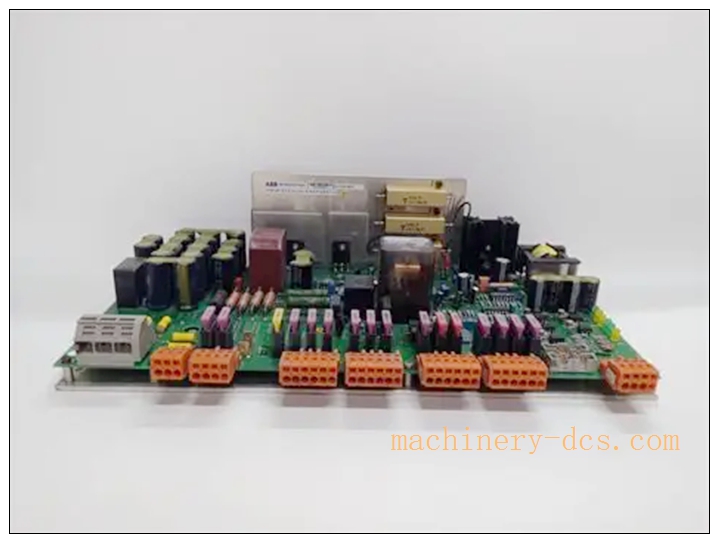

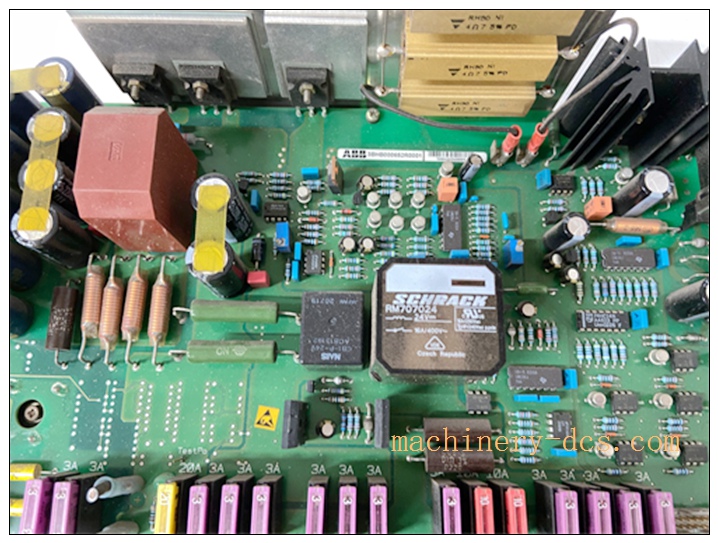

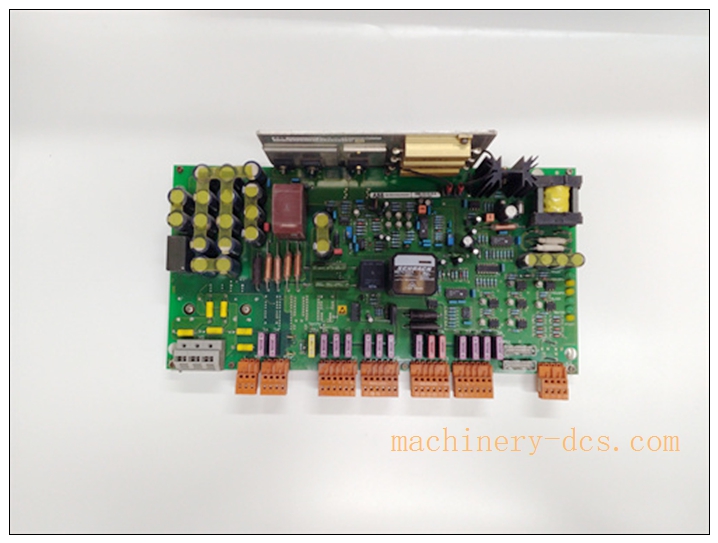

ABB KUC720AE01 is an IGCT Gate Unit (Gate Driver Board)
Model: KUC720AE01 | Part No: 3BHB000652R0001 / 3BHB003431R0001
Product Title & Description
The ABB KUC720AE01 is an IGCT Gate Unit (Gate Driver Board) for ABB ACS1000 / ACS6000 medium voltage IGCT variable frequency drives. It receives optical trigger commands from the main control board, generates high-current gate drive pulses to turn on/off IGCT power semiconductors, meanwhile detects IGCT fault status and sends fault feedback via fiber optics back to the controller. Widely deployed in power plant, mining, oil & gas, metallurgy high-power MV drive systems for large fans, pumps and compressors. It is the core power semiconductor gate driver spare for legacy ABB IGCT medium voltage drives.
Core Product Overview
KUC720AE01 is the IGCT gate unit mounted inside ABB ACS1000 / ACS6000 medium voltage drive power cabinet. It relies on KUC711AE101 (GUSP) to supply isolated auxiliary power. It converts optical firing signals from the control side into powerful gate current pulses to trigger IGCT. It continuously monitors IGCT device health, detects device short-circuit, gate supply failure and misfire faults, then feeds fault signals back by fiber. Fiber communication provides complete galvanic isolation between high-voltage power stage and low voltage control circuits, isolating strong EMI interference in high-power converter cabinets. Conformal coated versions are available for dusty, humid industrial environments. This board is a critical maintenance spare for old ABB MV IGCT drives.
KUC720AE01
Main Technical Specifications
- Manufacturer: ABB
- Part Number: 3BHB000652R0001 / 3BHB003431R0001
- Model: KUC720AE01
- Product Type: IGCT Gate Unit / Gate Driver Board
- Compatible Drives: ABB ACS1000, ACS6000 medium voltage IGCT drives
- Auxiliary Power: Isolated power supplied by KUC711AE101 GUSP module
- Interface: Fiber optic links for command input & fault feedback
- Mounting: Rack mount inside MV drive power cabinet
- Operating Temperature: -20°C ~ +60°C
- Storage Temperature: -40°C ~ +85°C
- Relative Humidity: 5% ~95%, non-condensing
- Protection Class: IP20 (cabinet installation only)
- Cooling: Forced air cooling inside drive cabinet
- Certifications: CE, UL
- Optional: Conformal coating
Quality Control Procedures
ABB medium voltage drive electronic boards comply with ISO9001 and IEC adjustable speed drive standards.
- Incoming Component Inspection: Gate drive power chips, optical transceivers, pulse transformers and PCBs screened from qualified suppliers.
- Automated Assembly & Serial Traceability: SMT soldering and assembly. Unique serial number for full lifecycle traceability.
- Full Functional Test: Optical signal receive/transmit test, gate pulse output test, fault simulation and high voltage isolation test.
- Environmental Stress Screening: Thermal cycling, vibration and EMC surge testing for high-power drive cabinet environments.
- Final Inspection & Packing: Visual inspection, anti-static shockproof export packaging with factory test documentation.
Brand Related Model Recommendations
- 3BHB004661R0101 KUC711AE101: GUSP gate unit power supply, paired together to power KUC720AE01
- 3BHE037864R1110 CVM12B: Voltage & current measurement board for ACS1000
- PPC380AE01: Digital input board for UNITROL6000 excitation cabinet
- UFC718AE01 HIEE300936R0101: Main circuit interface board for UNITROL6000 excitation system
KUC720AE01
Frequently Asked Questions (FAQ)
Q1: What drive system is used for? A1: Exclusively for ABB ACS1000 and ACS6000 medium voltage IGCT variable frequency drives.
Q2: What is the core function of ? A2: It is IGCT gate driver: receives optical firing command, outputs gate pulse to trigger IGCT, monitors IGCT health and reports faults via fiber.
Q3: Is it hot-swappable? A3: ❌ Not hot-swappable. Before removing/replacing this gate unit, all medium voltage and auxiliary power must be locked out and tagged, high voltage hazard inside MV cabinet.
Q4: What is the pairing board for ? A4: KUC711AE101 (GUSP) provides isolated auxiliary power for this IGCT gate unit.
Q5: What is the warranty for original ABB ? A5: Original ABB board carries standard 12-month factory warranty against manufacturing defects under proper installation and operating conditions.
Installation & Configuration Guide
7.1 Pre-installation Preparation
Verify , inspect PCB, fiber ports and terminals for scratches or damage. Prepare cabinet drawings, optical fiber cables, ABB ACS1000 commissioning tool. Lock out & tag all medium voltage and auxiliary power before entering the drive cabinet. Wear ESD protection.
7.2 Installation Steps
Insert IGCT gate unit into designated slot inside / ACS6000 cabinet and secure mounting screws. Connect power wiring from KUC711AE101 GUSP. Install optical fibers between and GUSP, keep fiber connectors clean and avoid sharp bending. Verify protective earthing, ensure cabinet cooling airflow.
7.3 System Configuration & Commissioning
Energize only 24V control power (medium voltage remains off). Check board LED status and optical communication links. Use ABB drive commissioning software to check gate unit status and fault signals. Simulate gate unit fault to verify drive protection trip response. After successful low voltage test, perform step-by-step medium voltage energization and monitor IGCT firing performance. Save commissioning parameters and baseline logs.
7.4 Maintenance & Precautions
During plant shutdown outages, inspect fiber connector cleanliness, terminal tightness and PCB dust accumulation, check cooling fan and filter status. Do not open module housing. High voltage danger in drive cabinet. If IGCT firing fault or gate supply alarm appears, check GUSP (KUC711AE101), fiber links and 24V control supply before replacing .
