Description
ABB KUC711AE101 (Order code:3BHB004661R0101) is a Gate Unit Power Supply (GUSP) designed
Product Title & Description
Model: 3BHB004661R0101 (KUC711AE101) The ABB KUC711AE101 (Order code:3BHB004661R0101) is a Gate Unit Power Supply (GUSP) designed for ABB medium voltage drives, mainly ACS1000 and ACS6000 series high-power MV drives. It provides isolated regulated power and gate drive signal conditioning for IGCT power semiconductor gate units. Widely used in mining, oil & gas, power plant, large pump and fan medium-voltage variable speed drive systems to guarantee reliable firing and protection of high-power IGCT stacks.
Core Product Overview
KUC711AE101 GUSP module is a critical sub-assembly inside ABB medium voltage IGCT drive cabinets. It delivers isolated auxiliary power supply and signal interface to each IGCT gate unit. It converts the control cabinet auxiliary power into multiple isolated low-voltage supplies for gate drive circuits, while receiving optical fiber trigger commands from the drive control board and transmitting optical fault feedback signals back. The module includes multi-layer internal PCBs, isolated power conversion circuits, optical transceivers and built-in monitoring logic. It continuously monitors gate unit power health and fault status. Any gate supply loss or IGCT fault will be reported back to the main drive controller for fast protection shutdown. This unit is a mandatory spare for maintenance of legacy ABB ACS1000 / ACS6000 medium voltage drives. Country of origin: Switzerland.

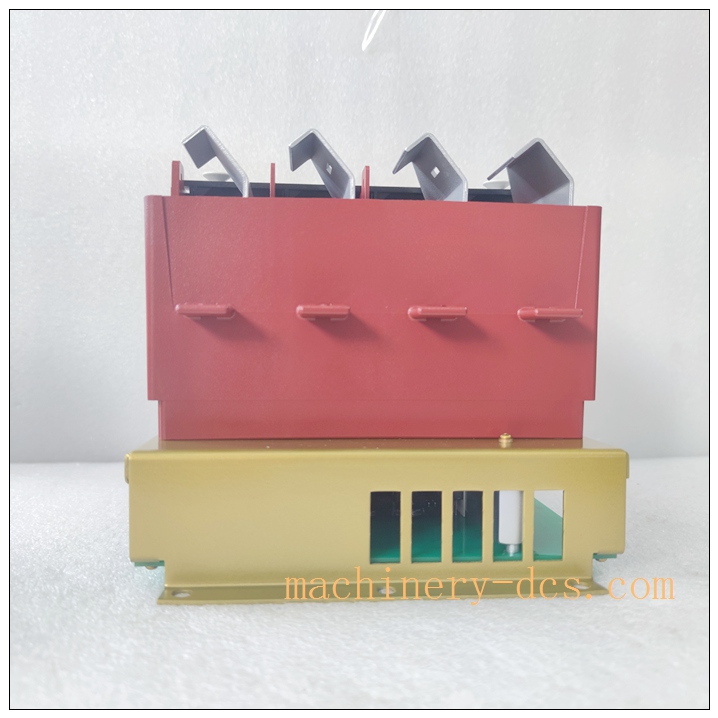

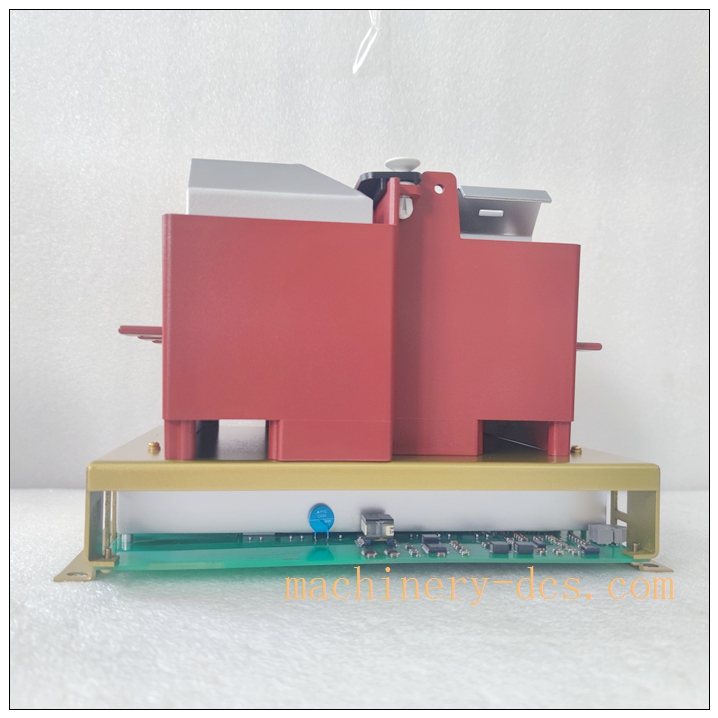

KUC711AE101 3BHB004661R0101
Main Technical Specifications
- Manufacturer: ABB
- Part Number: 3BHB004661R0101
- Type: KUC711AE101, Gate Unit Power Supply (GUSP)
- Compatible Drives: ABB ACS1000, ACS6000 medium voltage IGCT drives
- Function: Isolated power supply & optical signal interface for IGCT gate units
- Auxiliary Input Power: 24VDC control supply
- Communication Interface: Fiber optic links (to gate units & drive controller)
- Weight: ~4.58 kg
- Dimension: approx 330 × 210 × 230 mm
- Protection Class: IP20 (installed inside drive cabinet)
- Operating Temperature: -20°C ~ +60°C
- Storage Temperature: -40°C ~ +85°C
- Relative Humidity: 5% ~ 95%, non-condensing
- Cooling: Cabinet forced air cooling
- Certifications: CE, UL
Quality Control Procedures
ABB power electronic modules follow ISO9001 and IEC adjustable speed drive standards.
- Incoming Component Inspection: Power semiconductors, transformers, optical receivers, PCBs screened from qualified suppliers.
- Automated Assembly & Serial Traceability: SMT assembly and wiring. Unique serial number for full lifecycle traceability.
- Full Functional Test: Each unit undergoes power loading test, optical transmit/receive test, fault signal simulation and isolation test.
- Environmental Stress Screening: Batch samples perform thermal cycling, vibration and EMC testing for high-power drive cabinet environments.
- Final Inspection & Packing: Visual inspection, anti-static and shockproof export packaging with factory test records.

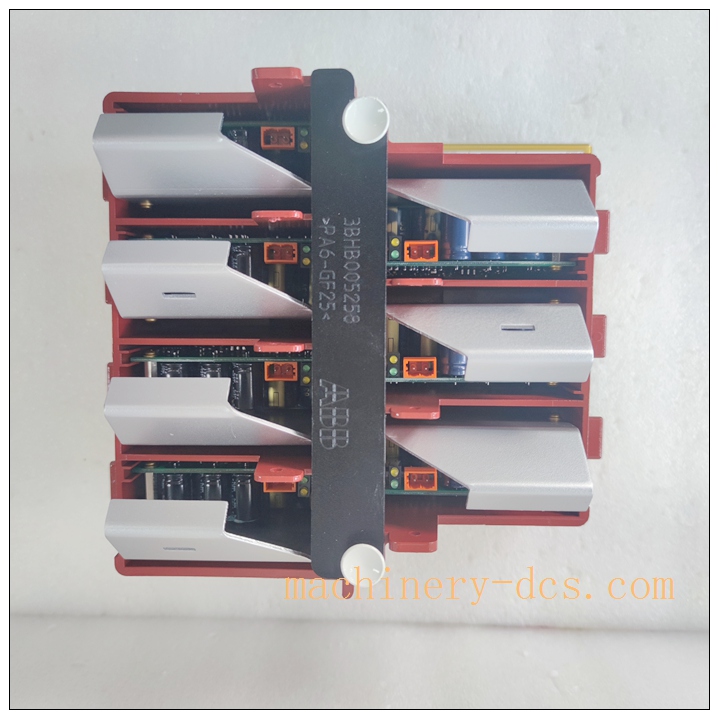

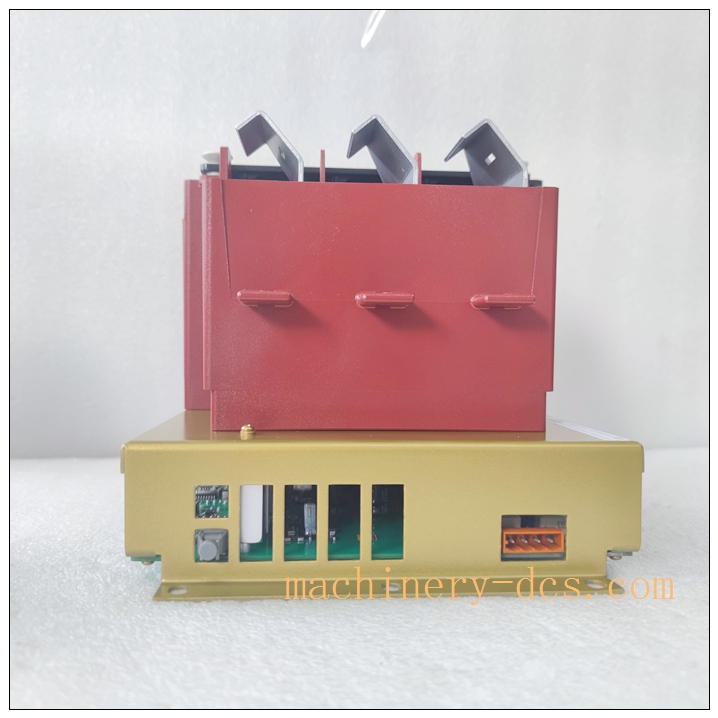

KUC711AE101 3BHB004661R0101
Brand Related Model Recommendations
- KUC711AE102: Updated revision of GUSP gate power supply for later ACS1000/ACS6000 firmware.
- 3BHB003431R0001: IGCT Gate Unit (the gate unit powered by KUC711AE101).
- 3BHB000664R0001: ABB drive control board for ACS1000, communicates with GUSP via fiber.
- KUC721AE: Newer generation gate power supply for latest ABB medium voltage drives.
Frequently Asked Questions (FAQ)
Q1: What drive does (3BHB004661R0101) fit? A1: It is for ABB ACS1000 and ACS6000 medium voltage IGCT variable frequency drives.
Q2: What is the function of GUSP? A2: It supplies isolated power to IGCT gate units and transfers optical trigger / fault signals between drive controller and IGCT gate boards.
Q3: Is it hot-swappable? A3: No. Must fully isolate the medium voltage drive and lock out power before removal/replacement. High voltage hazard exists in cabinet.
Q4: What signal connects this module to IGCT gate units? A4: Fiber optic cables, providing galvanic isolation between low voltage control circuit and high power IGCT power stage.
Q5: What is the warranty for original ABB 3BHB004661R0101 ? A5: Original ABB module carries standard 12-month factory warranty against manufacturing defects under proper installation and operating conditions.
Installation & Configuration Guide
7.1 Pre-installation Preparation
Verify part number 3BHB004661R0101 . Inspect housing, fiber ports and connectors for damage. Prepare drive cabinet drawings, fiber optic cables, 24VDC control power supply and ABB drive commissioning tool. Lock out and tag all medium voltage and auxiliary power sources before working inside MV drive cabinet. Wear ESD protection.
7.2 Installation Steps
Mount the module in designated slot of the / ACS6000 drive cabinet. Connect 24VDC control power terminals. Install optical fiber links between GUSP, IGCT gate units and main drive controller, keep fiber connectors clean and avoid sharp bending. Tighten all electrical terminals, check grounding connections. Maintain proper cabinet airflow for forced cooling.
7.3 System Configuration & Commissioning
Power up control supply only (medium voltage kept off). Check module LED status and optical communication link health. Use ABB drive tool to read gate unit power status and fault signals. Simulate gate power fault to verify drive protection response. After successful low voltage test, perform medium voltage energization step by step, monitor IGCT firing and fault reporting. Save commissioning logs and fault baseline.
7.4 Maintenance & Precautions
During shutdown outages, inspect fiber cleanliness, connector integrity, terminal tightness and dust accumulation. Keep cabinet cooling fans and filters clean. Never open module housing. High voltage danger in the drive cabinet. If gate supply faults appear, check 24V control supply, fiber links and gate units before replacing the .
