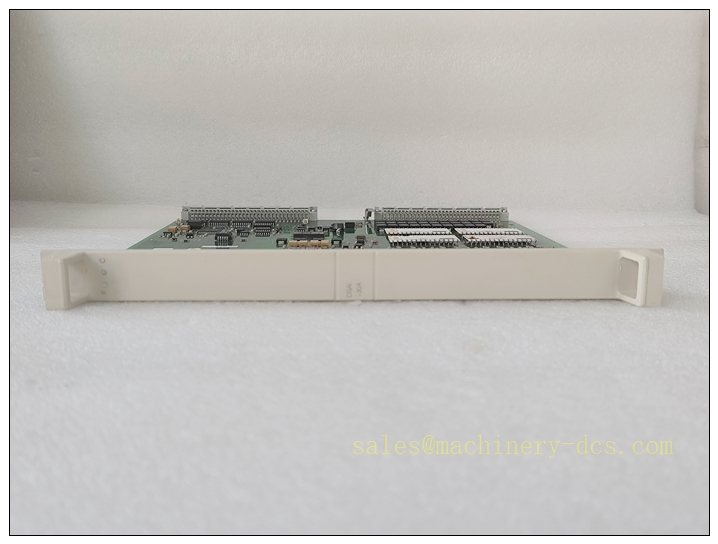

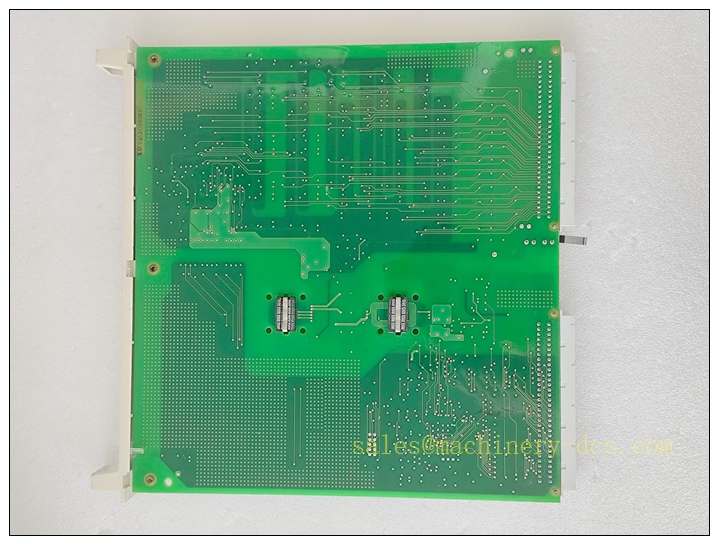

ABB DSAI130A (3BSE018292R1) 16‑Channel Differential Analog Input Module for Advant OCS S100 I/O System - Image 3

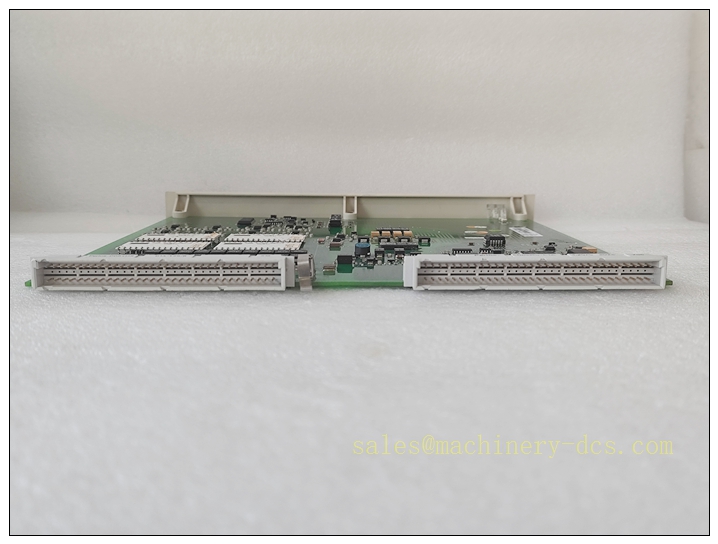

ABB DSAI130A (3BSE018292R1) 16‑Channel Differential Analog Input Module for Advant OCS S100 I/O System - Image 4

ABB DSAI130A (3BSE018292R1) 16‑Channel Differential Analog Input Module for Advant OCS S100 I/O System

  1. DSAO120A — 8‑Channel Analog Output Module (previous finished item)
  2. DSDI120AV1 — 32‑Channel Digital Input Module
  3. DSDO110AV1 — 32‑Channel Digital Output Board
  4. DSAI133A — 32‑Channel Single‑ended Analog Input Module
  5. DSAI145 — 3‑wire Pt100 RTD Input Board
  6. DSAI155A — Thermocouple Temperature Input Module
  7. DSBC170AV1 — Bus Communication Interface Board
  8. DSPC172AV1 — Advant Processor Controller
Add To Quote
Category: SKU: ABB DSAI130A (3BSE018292R1) 16 Brand:

Description

ABB DSAI130A (3BSE018292R1) 16‑Channel Differential Analog Input Module for Advant OCS S100 I/O System



Product Introduction

The ABB DSAI130A, factory part number 3BSE018292R1, is a high‑density differential analog input board within the ABB Advant S100 I/O family. It converts continuous analog field measurements into digital signals for the Advant OCS main controller. This module supports flexible channel configuration: full 16 differential inputs, or a mixed mode of 8 differential plus 8 single‑ended channels. Featuring excellent common‑mode noise rejection, it delivers high‑precision sampling for long cable field transmitters. Communicating over the native S100 backplane bus, it is widely deployed on legacy Advant MOD300 / AC460 control racks and also compatible with AC 800M via CI856 interface. As a mature spare I/O board, it is commonly stocked for plant preventive maintenance and emergency replacement of aging DCS systems.

DSAI130A 3BSE018292R1

Specific Application Information

  • Process variable acquisition: Collect 4‑20mA / ±20mA, ±10V signals from pressure, temperature, flow and level transmitters.
  • Differential signal sampling: Capture low‑level analog signals from remote field instruments with long wiring distance.
  • Closed‑loop control feedback: Provide real‑time measured values for PID regulation loops in continuous production processes.
  • Vibration & condition monitoring: Acquire analog sensor signals for rotating machinery auxiliary monitoring points.
  • Water quality parameter measurement: Receive analog output signals from online water analyzers in wastewater plants.
  • Furnace and boiler parameter monitoring: Sample steam pressure, flue gas temperature and water level sensors in thermal power units.



Technical Parameters

Parameter Specification
Model DSAI130A
ABB Part No. 3BSE018292R1
Channel Count 16 channels (configurable: 16 differential / 8 diff + 8 single‑ended)
Input Signal Ranges ±10 V DC, ±20 mA DC
Resolution 12 bits + sign bit
Accuracy ±0.025% Full Scale
Common‑Mode Voltage Max. 50 V
CMRR ≥100 dB @ 50Hz
Backplane Power 24 V DC
Operating Temperature -20°C ~ +55°C
Isolation Channel‑to‑system electrical isolation
Compatibility Platform ABB Advant OCS, MOD300, AC460, AC800M + CI856
Installation Plug‑in rack mounting for S100 backplane
Approx. Weight 0.52 kg



Main Features

✅ Dual channel wiring mode: Freely switch between full differential or mixed differential/single‑ended input via software configuration. ✅ Superior common‑mode noise suppression: High CMRR design to eliminate ground loop interference on long field cables. ✅ High measurement precision: Ultra‑low drift circuit for stable high‑accuracy process value acquisition. ✅ Built‑in channel diagnostics: Detect open circuit, wiring faults and module communication anomalies. ✅ Seamless S100 bus integration: Direct data exchange with Advant controller, no additional signal converter required. ✅ Hot‑swap support: Module replacement without shutting down the whole control rack to minimize plant downtime. ✅ Rugged industrial hardware: Designed for continuous 24/7 operation in heavy‑industry control rooms. ✅ Wide system compatibility: Works with classic Advant controllers and modern AC800M through S100 communication interface.



Application Scenarios

  1. Thermal Power Plants: Boiler pressure, temperature, water level and steam flow signal collection.
  2. Pulp & Paper Mills: Pulping process parameter monitoring and paper‑machine auxiliary analog measurement.
  3. Metallurgical Smelting Lines: Furnace temperature, feeding flow and tank level monitoring.
  4. Chemical Continuous Production Plants: Pressure, flow and liquid‑level acquisition for reactor and pipeline loops.
  5. Mining Mineral Processing: Thickener level, flotation reagent flow and slurry parameter monitoring.
  6. Water & Wastewater Treatment Plants: Pump outlet pressure, tank level and online analyzer signal acquisition.

DSAI130A 3BSE018292R1

Supporting Components

  • ABB Advant system rack & backplane
  • Advant AC460 / MOD300 main processor unit
  • CI856 interface module (for AC800M connection)
  • Rack 24VDC power supply module
  • Analog signal terminal base and terminal blocks
  • Shielded twisted‑pair field signal cables
  • Advant engineering & diagnostic software
  • Module mounting connectors and spare accessories
