Description

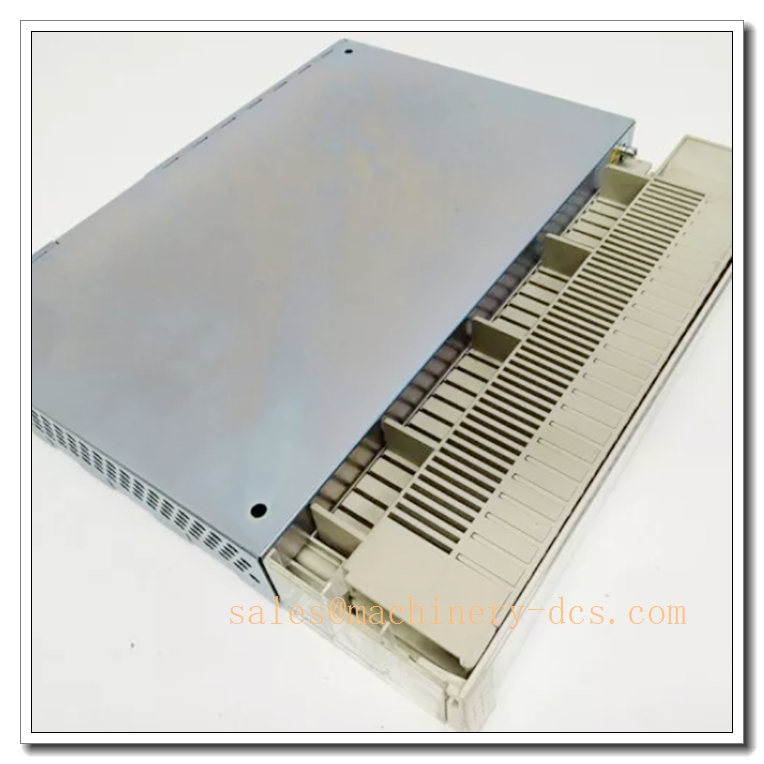

ABB DO620 Digital Output Module (3BHT300009R1) – 32-Channel High-Reliability Output Solution for Industrial Control Systems

Executive Summary
The ABB DO620 (3BHT300009R1) is a high-density digital output module engineered for the ABB S600 I/O series. Designed to deliver precise control in demanding industrial environments, it features 32 independent output channels utilizing robust transistor technology. With integrated short-circuit protection and advanced optical isolation, the DO620 ensures exceptional signal integrity and operational safety, making it an ideal component for complex automation architectures, process control systems, and machinery protection applications.

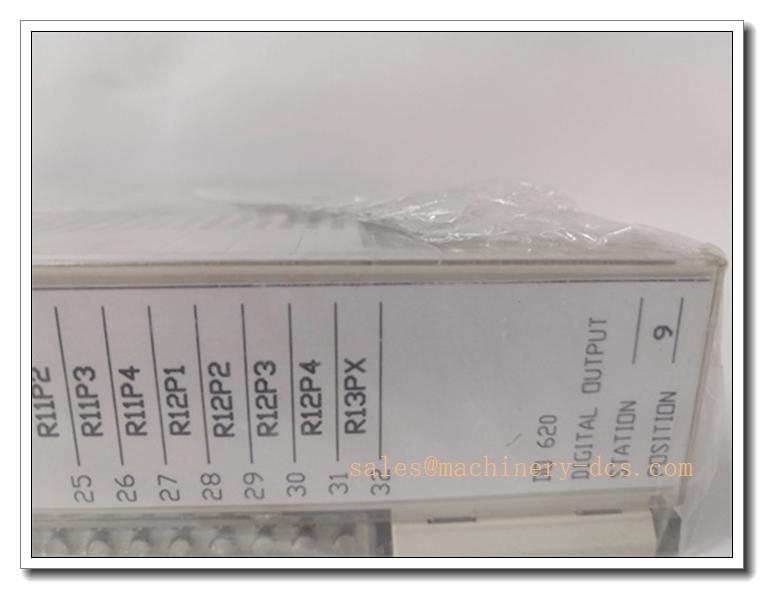

DO620 3BHT300009R1

Core Technical Specifications

  • Module Type: Digital Output Module (S600 I/O Series)
  • Part Number: 3BHT300009R1
  • Channel Density: 32 independent output channels
  • Output Technology: Transistor-based switching
  • Output Voltage Range: < 60 V DC
  • Maximum Output Current: 0.5 A per channel
  • Isolation Architecture: 4 groups of optical isolation
  • Protection Features: Integrated short-circuit protection
  • Physical Dimensions: 252 mm (Depth) x 273 mm (Height) x 40 mm (Width)
  • Net Weight: 1.2 kg

Key Features and Advantages

  • High-Density Integration: The 32-channel configuration significantly reduces rack space requirements and simplifies wiring complexity in large-scale control panels.
  • Enhanced Signal Integrity: Four groups of optical isolation effectively decouple field-side noise from the internal control logic, preventing ground loops and ensuring stable data transmission in electrically noisy environments.
  • Robust Fault Protection: Built-in short-circuit protection safeguards both the module and connected field devices from unexpected current surges, minimizing downtime and hardware damage.
  • Solid-State Reliability: Utilizing transistor technology instead of mechanical relays eliminates contact wear, ensuring a longer operational lifespan and faster switching speeds for high-cycle applications.

Application Scenarios

  • Industrial Automation & Production Lines: Precise control of solenoid valves, indicator lights, and small contactors in automated manufacturing sequences.
  • Robotics Control Systems: High-speed digital signaling for robot peripheral devices and safety interlocks.
  • Power Generation & Distribution: Integration into turbine control systems and electrical switchgear monitoring.
  • Process Control Systems: Execution of discrete control commands in oil & gas, chemical processing, and water treatment facilities.

Related Product Recommendations
For comprehensive system integration and maintenance, consider the following compatible components and alternatives:

  1. ABB DI620: Complementary 32-channel Digital Input Module for cohesive S600 I/O architecture.
  2. ABB AI610 / AO610: Analog Input/Output Modules for process variable monitoring and control.
  3. ABB S600 Series Terminal Units: Dedicated terminal bases for streamlined field wiring and maintenance.
  4. ABB PM610 / PM620 Series: Reliable power supply modules to ensure stable rack operation.
  5. ABB CI610 / CI620 Series: Communication interface modules for fieldbus integration (Profibus, Modbus).
  6. Honeywell CC-TDIL01 / CC-TAOX01: Alternative digital I/O solutions for heterogeneous DCS environments.
  7. Siemens SIMATIC ET 200SP Digital Output Modules: Compact alternatives for distributed I/O applications.

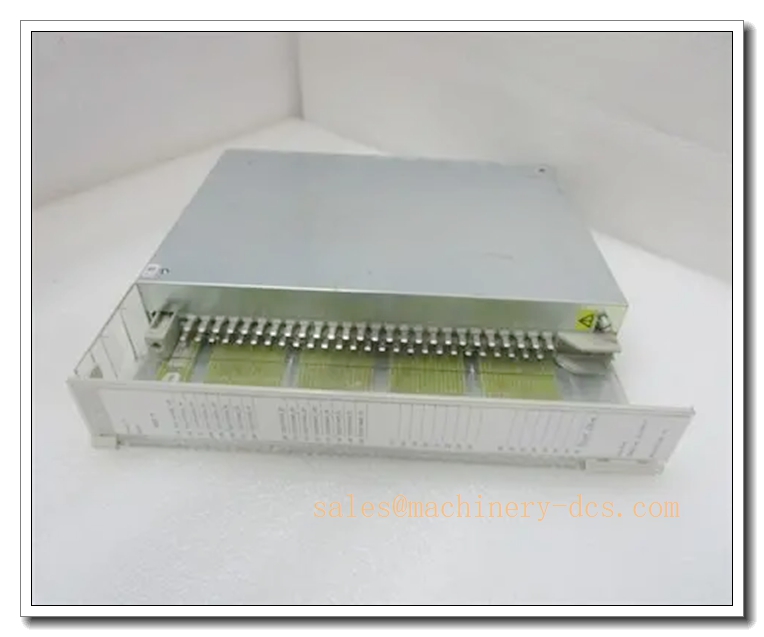

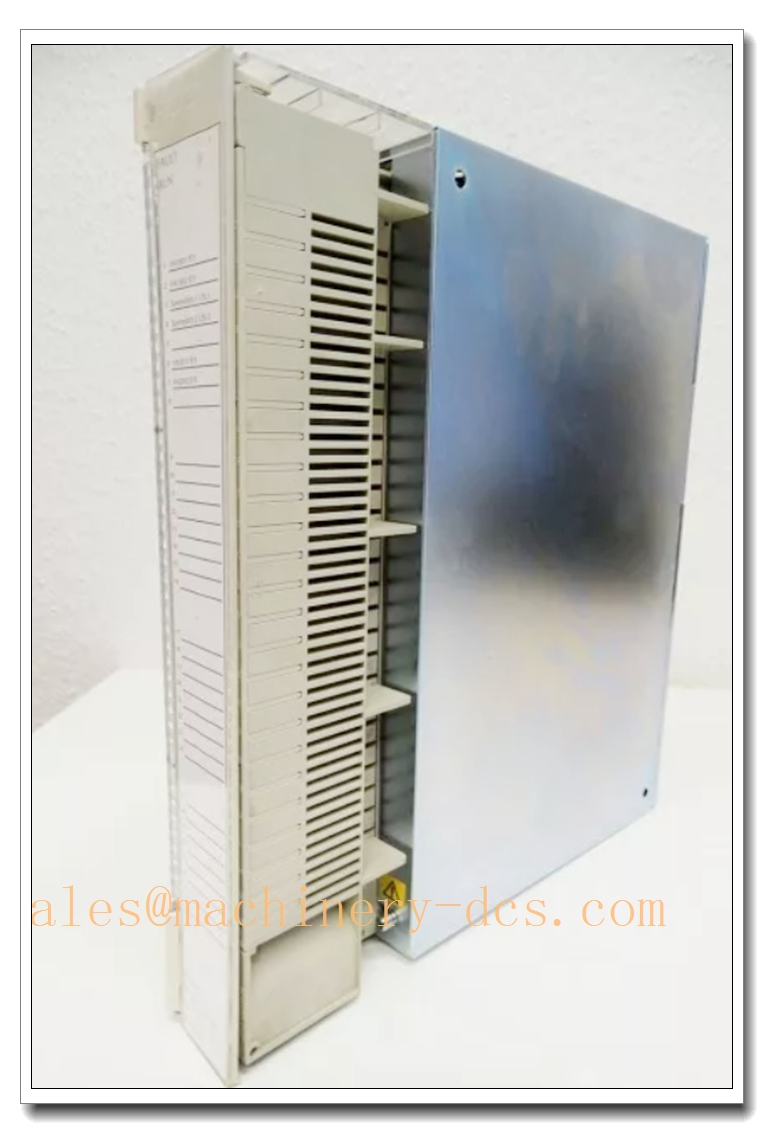

DO620 3BHT300009R1

Frequently Asked Questions (FAQ)

  • Q: What is the maximum current rating for a single channel on the DO620?
    A: Each of the 32 channels supports a maximum output current of 0.5 A. Ensure your field devices do not exceed this limit to trigger the internal short-circuit protection.
  • Q: How does the optical isolation work on this module?
    A: The DO620 features 4 groups of optical isolation. This means the 32 channels are divided into 4 isolated banks (typically 8 channels per bank), preventing electrical faults or noise on one bank from affecting the others or the backplane.
  • Q: Can the DO620 module be hot-swapped?
    A: Hot-swapping capabilities depend on the specific configuration of the ABB S600 I/O rack and the controller redundancy. Always consult the specific S600 hardware manual before removing modules during operation to prevent process disruption.
  • Q: What voltage range is supported by the ?
    A: The module is designed for DC applications with an output voltage range of less than 60 V DC. It is not suitable for direct AC load switching.
  • Q: Is the 3BHT300009R1 a discontinued part?
    A: Availability varies by region and distributor. While it is a legacy component for the series, it is widely available through specialized industrial automation spare parts suppliers.
