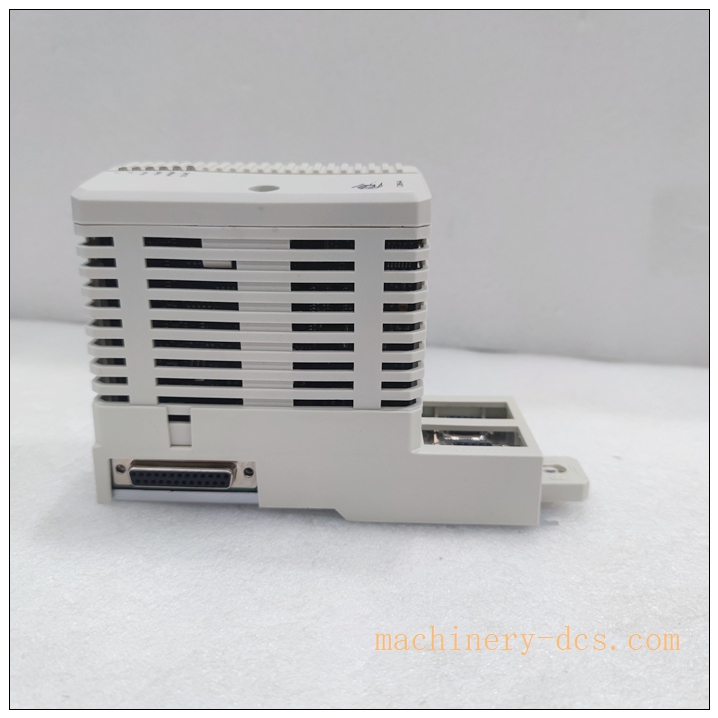

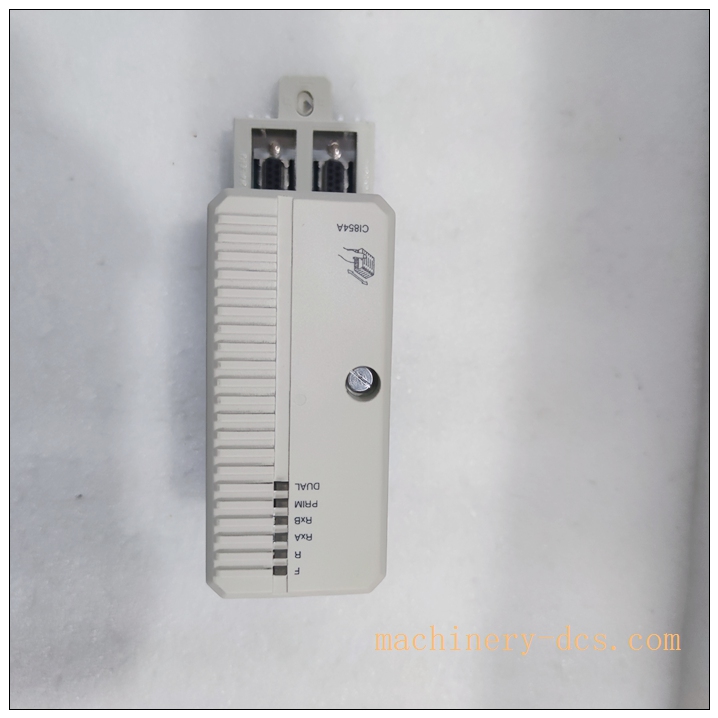

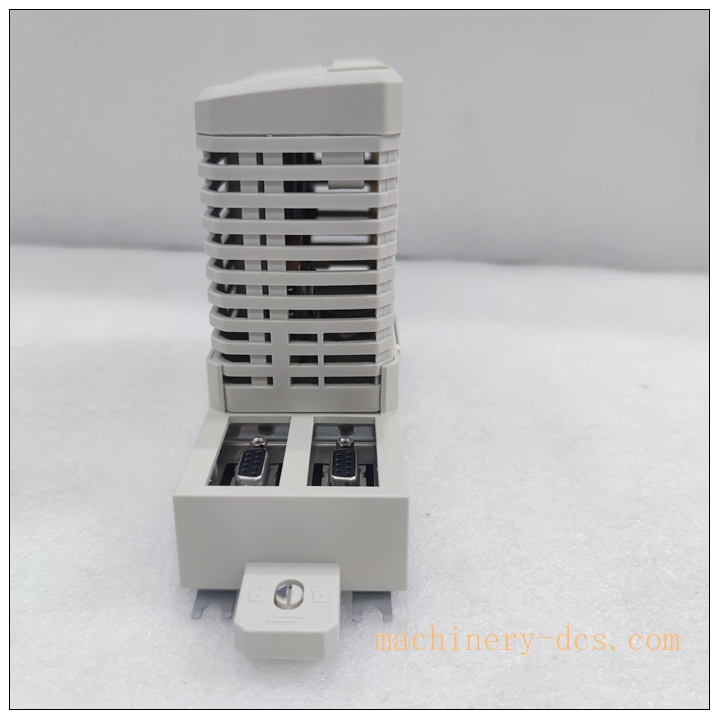

ABB CI854AK01 3BSE030220R1 PROFIBUS DP Master Interface Module for AC 800M / AC 800PEC Control Systems
Executive Summary
The CI854AK01 (Part Number: 3BSE030220R1) is a high-reliability communication interface module designed for ABB’s flagship AC 800M and AC 800PEC High-Integrity controllers. As a critical node within the 800xA distributed control system, this module functions as a PROFIBUS DP Master, enabling seamless, high-speed connectivity between the ABB controller and a vast array of field devices. It acts as the bridge for deterministic data exchange, ensuring that complex industrial processes maintain precise synchronization and operational efficiency.
CI854AK01 3BSE030220R1
Core Technical Specifications
| Specification | Details |
|---|---|
| Product Name | CI854AK01 |
| Order Number | 3BSE030220R1 |
| Module Type | PROFIBUS DP Master Interface |
| Protocols | PROFIBUS DP, DPV1 |
| Physical Interface | RS-485 |
| Data Rate | Configurable from 9.6 kbps up to 12 Mbps |
| Port Configuration | 1 Channel (1 x Sub-D 9-pin Female Connector) |
| Load Capacity | Supports up to 125 slaves per segment (dependent on bus load) |
| Power Consumption | Approx. 2.5 W (supplied via CEX-Bus) |
| Dimensions | Standard module size (compatible with TB/TU series baseplates) |
| Operating Temperature | 0 to +60 °C (32 to 140 °F) |
| Isolation | Galvanic isolation (500V AC) between the PROFIBUS network and the controller logic |
Key Features and Advantages
- Seamless Integration: The CI854AK01 mounts directly onto the CEX-Bus of AC 800M controllers or the ModuleBus of AC 800PEC systems, eliminating the need for external gateways and simplifying system architecture.
- High-Speed Deterministic Communication: Supporting speeds up to 12 Mbps, the module ensures fast, real-time data transmission, crucial for motion control and time-critical process applications.
- Robust Redundancy Support: In high-availability configurations, the module supports seamless switchover. If the primary controller fails, the standby controller (and its associated CI854) takes over communication without interrupting the process.
- Advanced Engineering: Configuration is handled efficiently through ABB’s Control Builder M, allowing for intuitive device mapping, diagnostics, and parameterization without complex coding.
- Industrial Durability: The unit features high-grade galvanic isolation to protect sensitive control electronics from ground loops, voltage spikes, and electrical noise typical in harsh industrial environments.
- Comprehensive Diagnostics: Built-in LED indicators and system diagnostic tools allow operators to monitor bus health, cable breaks, and device errors in real-time, significantly reducing Mean Time To Repair (MTTR).
Application Scenarios
The CI854AK01 is deployed across a wide spectrum of industries requiring robust fieldbus connectivity:
- Process Industries: Integration of drives, actuators, and analyzers in chemical, petrochemical, and pharmaceutical plants.
- Power Generation: Communication with turbine governors, excitation systems, and balance-of-plant (BOP) equipment in both fossil and renewable energy facilities.
- Manufacturing: Linking Variable Frequency Drives (VFDs) and robotic units in automotive and discrete manufacturing assembly lines.
- Water & Wastewater: Managing SCADA interfaces and remote terminal units (RTUs) for pump stations and filtration systems.
- Mining & Metals: Controlling heavy-duty conveyors, crushers, and hoists where vibration resistance and reliable communication are mandatory.
CI854AK01 3BSE030220R1
Recommended Related Models (Brand: ABB)
- CI851: Ethernet TCP/IP Communication Module.
- CI853: Alternative PROFIBUS DP Master (often used in specific legacy setups).
- CI855: Foundation Fieldbus H1 Interface Module.
- CI858: Modbus TCP/IP Communication Module.
- TK850 / TK857: Mounting kits and baseplates required for physical installation of the CI854.
Frequently Asked Questions (FAQ)
Q: Does the CI854AK01 support PROFIBUS PA?
A: No, the is designed for PROFIBUS DP (Decentralized Periphery) which uses RS-485. To connect PROFIBUS PA devices (typically used in process instrumentation), a segment coupler or DP/PA link is required to bridge the RS-485 network to the IEC 1158-2 physical layer.
Q: Can this module be used in a redundant control system configuration?
A: Yes, the is fully compatible with redundant AC 800M controller setups. In such configurations, the system ensures that the PROFIBUS communication is maintained via the standby controller if the primary fails, though the physical connection to the slaves usually remains on a single shared bus via a redundancy adapter or specific cabling topology.
Q: What software is required to configure the ?
A: Configuration is performed using the ABB Control Builder M tool, which is part of the 800xA System Engineering environment. GSD files (General Station Description) of the connected slave devices are imported into this software to facilitate configuration.
Q: What is the maximum cable length supported by this module?
A: According to PROFIBUS standards, the maximum cable length depends on the baud rate. At 12 Mbps, the maximum length is typically 100 meters; at 1.5 Mbps, it extends to 400 meters; and at lower speeds (e.g., 9.6 kbps), it can reach up to 1,200 meters. Repeaters can be used to extend these distances.
