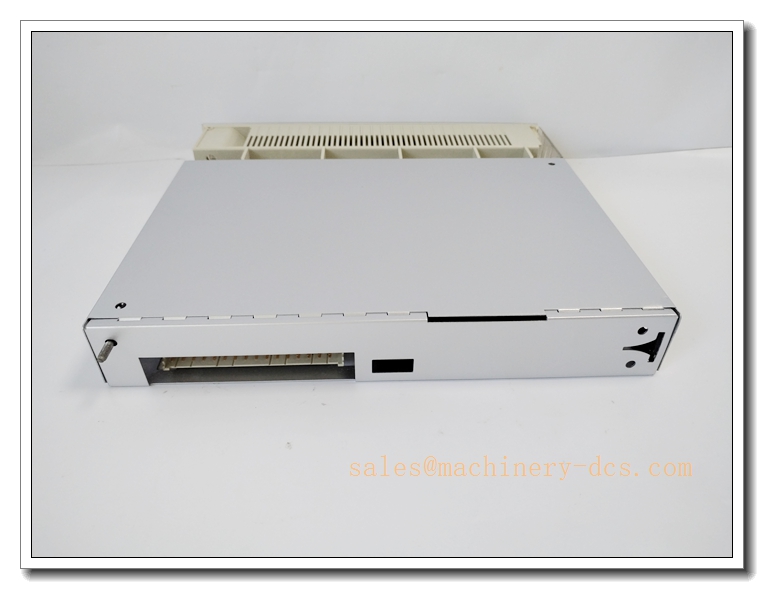

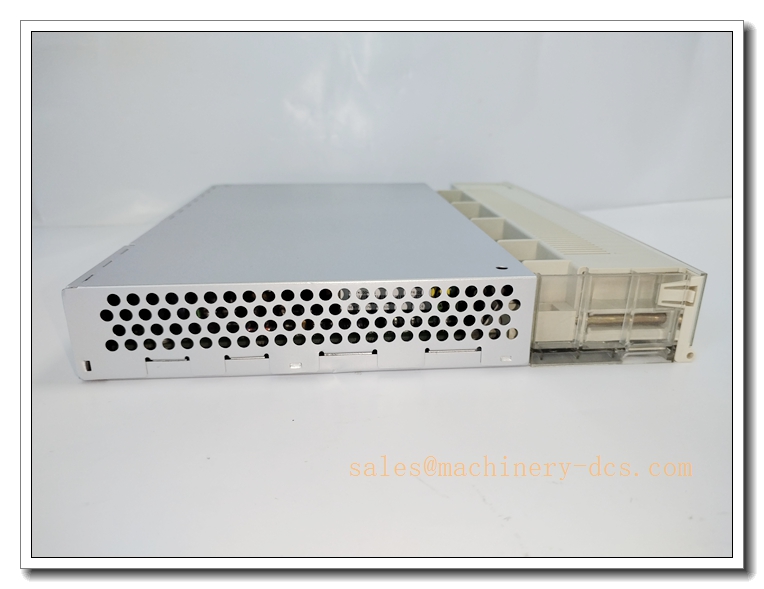

ABB AI620 Analog Input Module (3BHT300010R1) – 16-Channel High-Precision Analog Signal Acquisition for Process Control Systems

Description

ABB AI620 Analog Input Module (3BHT300010R1) – 16-Channel High-Precision Analog Signal Acquisition for Process Control Systems

Executive Summary
The ABB AI620 (3BHT300010R1) is a high-performance analog input module engineered for the ABB S600 I/O series. Designed for critical process control applications, it provides 16 independent analog input channels capable of accepting standard current and voltage signals from field transmitters. Featuring advanced channel-to-channel isolation and high-resolution A/D conversion, the AI620 ensures precise, noise-free data acquisition for complex industrial automation architectures.

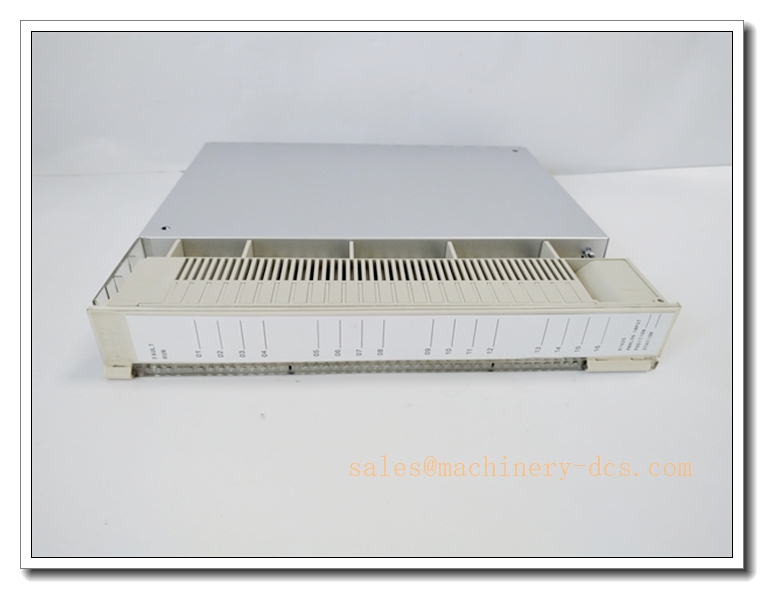

AI620 3BHT300005R1

Core Technical Specifications

• Module Type: Analog Input Module (S600 I/O Series)
• Part Number: 3BHT300010R1
• Channel Density: 16 independent analog input channels
• Supported Signal Types: 4-20 mA, 0-20 mA, 0-10 V, ±10 V (software configurable)
• A/D Resolution: 16-bit
• Input Impedance: ≥250 kΩ (current input); ≥1 MΩ (voltage input)
• Isolation Architecture: Channel-to-channel and channel-to-backplane optical isolation
• Conversion Time: ≤10 ms per channel (typical)
• Accuracy: ±0.1% of full scale at 25°C
• Physical Dimensions: 252 mm (Depth) x 273 mm (Height) x 40 mm (Width)
• Net Weight: 1.2 kg

Key Features and Advantages

• High-Precision Signal Acquisition: 16-bit resolution ensures accurate capture of process variables (temperature, pressure, flow, level) with minimal quantization error, critical for tight-loop control.
• Superior Noise Immunity: Full optical isolation between each channel and the backplane eliminates ground loops and prevents electrical noise from field devices from propagating into the control system.
• Flexible Signal Configuration: Software-selectable current/voltage ranges eliminate the need for external signal conditioners, reducing panel space and wiring complexity.
• Hot-Swap Capability: The module supports hot-swapping when used in a redundant S600 rack configuration, allowing maintenance without process shutdown.
• Diagnostics & Status Indication: Built-in self-diagnostics detect open-circuit, short-circuit, and over-range conditions, providing real-time status feedback to the controller for predictive maintenance.

Application Scenarios

• Process Control Systems: Acquisition of 4-20 mA signals from pressure, temperature, and flow transmitters in oil & gas, chemical, and pharmaceutical plants.
• Power Generation: Monitoring of analog parameters in turbine control systems, boiler feedwater systems, and generator excitation systems.
• Water & Wastewater Treatment: Integration with level sensors, pH analyzers, and dissolved oxygen meters for automated plant control.
• HVAC & Building Automation: Collection of temperature and humidity data from field sensors for energy management systems.
• Test & Measurement Rigs: High-precision data acquisition for laboratory and production line quality control applications.

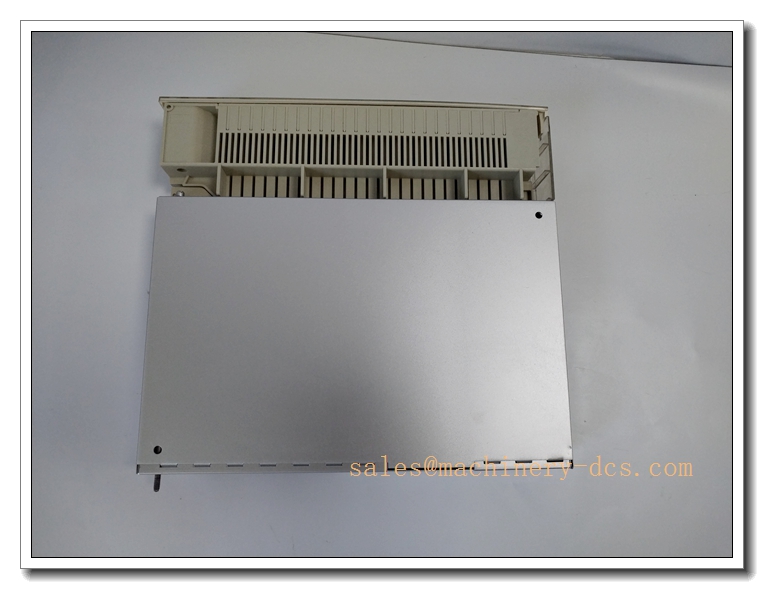

AI620 3BHT300005R1

Related Product Recommendations
For comprehensive system integration and maintenance, consider the following compatible components and alternatives:

1. ABB AO620: Complementary 8-channel Analog Output Module for closed-loop control actuation.
2. ABB DI620 / DO620: 32-channel Digital Input/Output Modules for discrete signal handling in the same S600 rack.
3. ABB S600 Series Terminal Units: Dedicated screw/spring terminal bases for streamlined field wiring.
4. ABB PM610 / PM620 Series: Redundant power supply modules for uninterrupted rack operation.
5. ABB CI610 / CI620 Series: Communication interface modules for Profibus DP, Modbus TCP, or Ethernet/IP integration.
6. Honeywell CC-TAIH01 / CC-AIMX01: Alternative analog input modules for heterogeneous DCS environments.
7. Siemens SIMATIC ET 200SP Analog Input Modules: Compact distributed I/O alternatives for space-constrained applications.
8. ABB 800xA System Platform: Seamless integration with ABB’s distributed control system for unified visualization and control.

Frequently Asked Questions (FAQ)

• Q: What signal types does the AI620 support?
  A: The AI620 supports standard industrial signals including 4-20 mA, 0-20 mA, 0-10 V, and ±10 V. Signal type is software-configurable per channel via the ABB engineering tool, eliminating the need for hardware jumpers.
• Q: How many channels are isolated from each other?
  A: All 16 channels feature channel-to-channel optical isolation, meaning each channel is electrically independent. This prevents ground loop issues when connecting sensors with different ground potentials.
• Q: What is the A/D resolution and accuracy?
  A: The module provides 16-bit resolution with a typical accuracy of ±0.1% of full scale at 25°C, making it suitable for high-precision process control applications.
• Q: Can the AI620 be hot-swapped?
  A: Yes, the supports hot-swapping in a properly configured redundant S600 rack. Always ensure the rack redundancy is active before removing or inserting modules during operation.
• Q: What is the conversion time per channel?
  A: The typical conversion time is ≤10 ms per channel. For applications requiring faster sampling, consider the update rate impact when using all 16 channels simultaneously.
• Q: Is the compatible with the ABB 800xA system?
  A: Yes, the is fully compatible with the ABB I/O series and integrates seamlessly into the ABB 800xA distributed control system.
