ABB 5SHX1960L0004 (3BHL000390P0104) Reverse‑Conducting IGCT Power Semiconductor Module

Description

ABB 5SHX1960L0004 (3BHL000390P0104) Reverse‑Conducting IGCT Power Semiconductor Module

Product Details

The 5SHX1960L0004, part number 3BHL000390P0104, is a high‑power RC‑IGCT (Reverse‑Conducting Integrated Gate‑Commutated Thyristor) manufactured by ABB. It adopts press‑pack disc ceramic housing with integrated gate commutated drive unit, rated blocking voltage 5500 V, continuous current 1960 A, optimized for medium‑voltage megawatt‑level power conversion systems. It combines thyristor’s low conduction loss with hard forced turn‑off capability, snubberless operation capability. Double‑side cooling interface supports water‑cooling or forced‑air cooling for high heat dissipation efficiency. Hermetically sealed packaging provides strong shock‑resistance and anti‑pollution performance for heavy‑duty power‑electronic cabinets. Widely used as spare‑part for ABB ACS1000 and other medium‑voltage converter retrofitting projects.

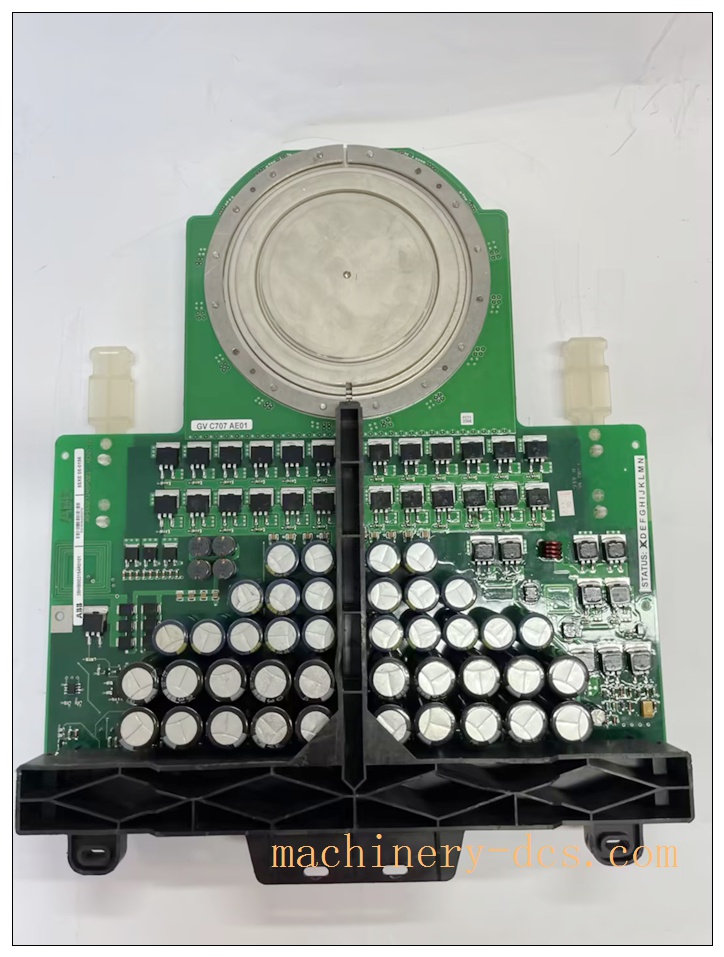

5SHX1960L0004  3BHL000390P0104

Applications

‑ Medium‑voltage high‑power variable frequency drive inverter units ‑ Static Var Compensator (SVC) and STATCOM reactive‑power compensation equipment ‑ Large‑scale industrial power converter & inverter systems ‑ Mining and metallurgy heavy‑duty motor drive power cabinets ‑ Grid‑connected energy conversion and power‑quality conditioning equipment ‑ Railway traction power conversion systems ‑ Spare‑part replacement & retrofitting for legacy ABB medium‑voltage converter racks

Related Series Models (6+)

1. 5SHX1060H0003
2. 5SHX2645L0002
3. 5SHY3545L0010
4. 5SHY4045L0006
5. 5SHX1445H0002
6. 5SHY5045L0002
7. 5SGA30J4502

Key Features

1. RC‑IGCT reverse‑conducting integrated gate‑commutated thyristor technology, snubberless hard turn‑off performance.
2. Press‑pack disc‑type ceramic package, supports double‑side thermal cooling for high‑efficiency heat dissipation.
3. 5500 V high blocking voltage, 1960 A high continuous current capacity for megawatt‑grade power conversion occasions.
4. Low on‑state conduction loss, improves overall system energy efficiency under heavy‑load continuous operation.
5. Strong surge‑current withstand capability, adapts to transient impact in industrial power‑electronic loops.
6. Integrated gate drive unit, simplifies external power‑cabinet circuit design.
7. Hermetically sealed rugged housing, anti‑vibration and anti‑pollution for long‑term cabinet‑based operation.
8. Direct replacement for original components of ABB medium‑voltage converters, convenient for field‑site refurbishment.

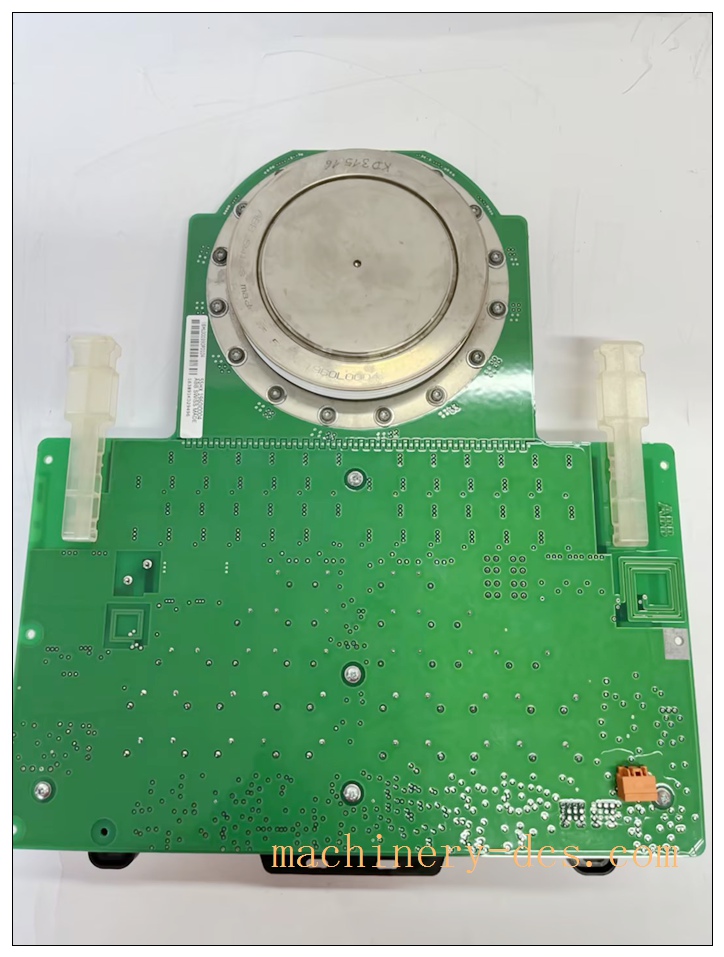

5SHX1960L0004  3BHL000390P0104

Main Functions

1. Serve as core high‑power switching component for medium‑voltage inverters and converters, realize fast power switching.
2. Complete forced gate‑commutated turn‑off and turn‑on control for large‑current power loops.
3. Convert DC‑bus energy into adjustable AC output for medium‑voltage motor drive systems.
4. Bear rated working current and transient surge current inside power‑electronic circuits.
5. Realize power‑energy conversion for SVC / STATCOM static reactive‑power compensation devices.
6. Transfer massive heat to cooling system through double‑side press‑pack contact interface.
7. Execute power‑switching tasks for mining, metallurgy, traction and grid‑connected power‑electronic equipment.
8. Support stable continuous operation under high‑voltage, high‑current and strong‑EMI industrial power‑electronics environment.
