ABB 5SHX1060H0003 High‑power IGCT Thyristor Power Semiconductor Module

Description

ABB 5SHX1060H0003 High‑power IGCT Thyristor Power Semiconductor Module

Product Details

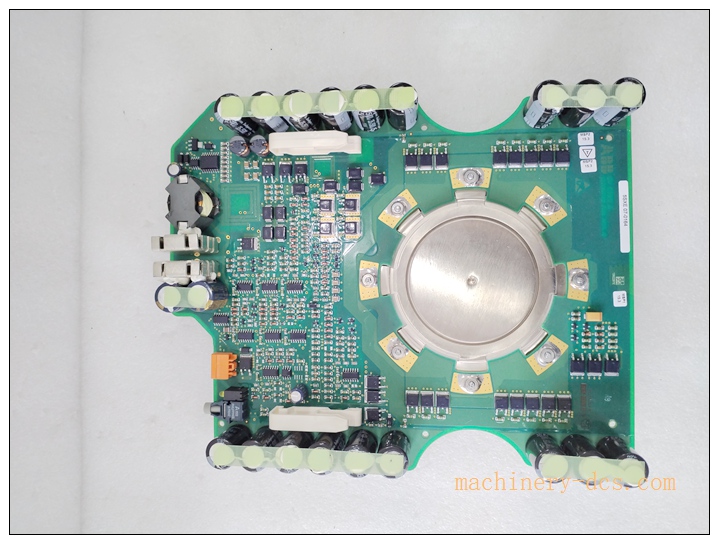

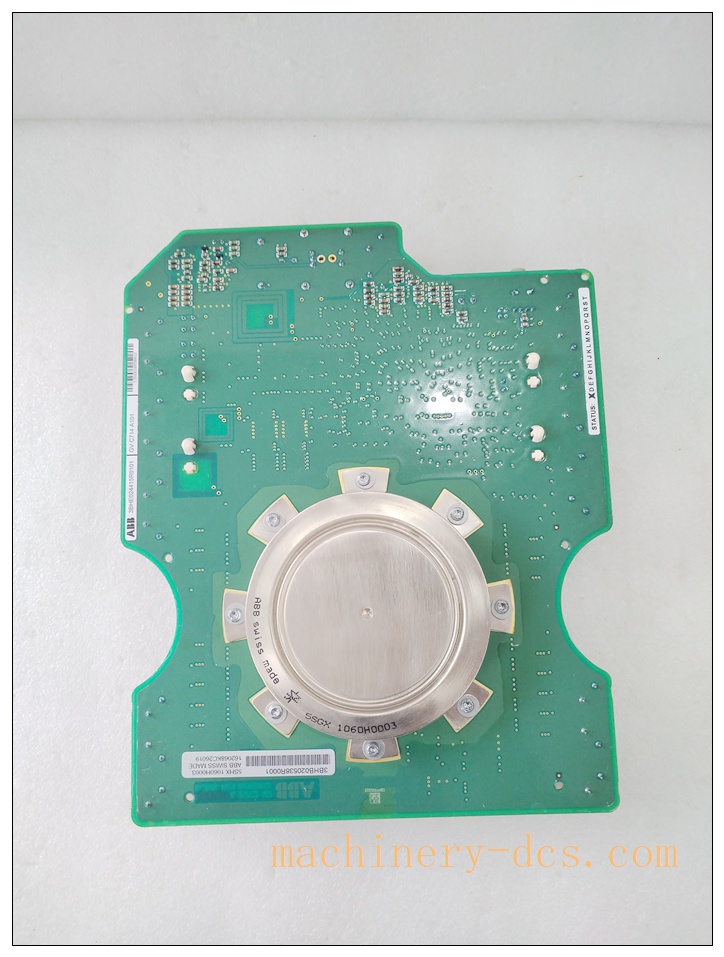

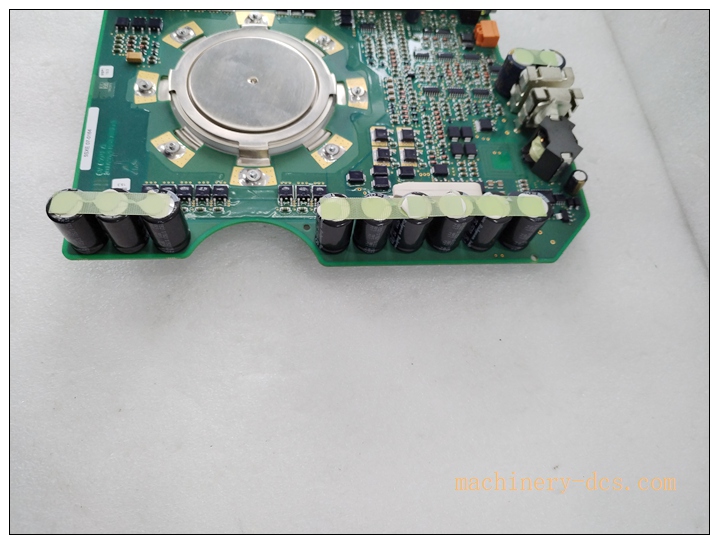

The 5SHX1060H0003 is an integrated gate‑commutated thyristor (IGCT) power module manufactured by ABB. As a core high‑voltage power semiconductor component, it combines high‑power thyristor chip with compact gate drive unit inside one sealed housing. It features high turn‑off capability, low conduction loss and excellent surge‑current tolerance. Designed for medium‑voltage high‑power converter systems, it handles high‑voltage and large‑current switching tasks. Equipped with reliable press‑pack mechanical structure, it supports double‑side cooling for efficient heat dissipation. Strict industrial‑grade encapsulation ensures stable performance under high‑voltage, high‑current and strong electromagnetic interference conditions. Widely used as original spare‑part for medium‑voltage drives, static var compensators and power‑electrical retrofit projects.

Applications

‑ Medium‑voltage high‑power variable frequency drive (VFD) inverter units ‑ Static Var Compensator (SVC) and static synchronous compensator (STATCOM) power equipment ‑ Industrial large‑scale power converter & inverter system ‑ Railway traction power conversion equipment ‑ Power‑generation plant excitation and power conditioning system ‑ Heavy‑industry medium‑voltage converter spare‑part replacement & retrofitting ‑ Grid‑connected energy conversion industrial power electronics devices

5SHX1060H0003

Related Series Models (6+)

1. 5SHX2645L0002
2. 5SHX08F4502
3. 5SHY3545L0010
4. 5SHY4045L0006
5. 5SGA30J4502
6. 5SHX1445H0002
7. 5SHY5045L0002

Key Features

1. Advanced IGCT (Integrated Gate‑Commutated Thyristor) power semiconductor technology, high‑speed hard‑gate turn‑off performance.
2. Press‑pack package structure, supports double‑side thermal cooling to reduce thermal resistance.
3. High rated voltage and current capacity, suitable for medium‑voltage high‑power power conversion occasions.
4. Low on‑state conduction loss, improves overall system energy efficiency.
5. Strong short‑circuit and surge‑current withstand capability for harsh power‑system working conditions.
6. Integrated gate drive assembly, simplifies external circuit design of power cabinets.
7. Sealed rugged packaging, anti‑vibration and anti‑pollution for long‑term continuous operation.
8. Standard industry footprint, convenient for replacement of old‑generation converter power units.

Main Functions

1. Realize high‑speed power switching for medium‑voltage high‑power inverter and converter circuits.
2. Control turn‑on and forced turn‑off of main power current via integrated gate‑commutated drive unit.
3. Convert DC bus voltage into adjustable AC output for medium‑voltage drive systems.
4. Bear large‑magnitude working current and transient surge current in power‑electrical loops.
5. Cooperate with snubber circuit to complete energy conversion for SVC / STATCOM reactive‑power compensation equipment.
6. Transfer massive heat to cooling system through double‑side press‑pack cooling interface.
7. Serve as core power switching component for traction, power‑generation and industrial medium‑voltage converter racks.
8. Support stable long‑time operation under high‑voltage industrial power‑electronics environment.
