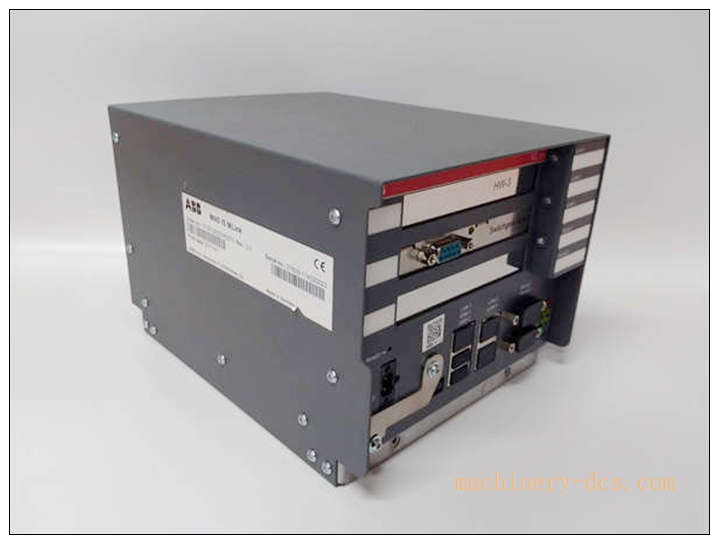

ABB 1TGE120021R6010 M‑Link V2 Industrial Communication Gateway for MNS‑iS Low‑Voltage Switchgear System

Description

ABB 1TGE120021R6010 M‑Link V2 Industrial Communication Gateway for MNS‑iS Low‑Voltage Switchgear System

Product Details

The 1TGE120021R6010 is second‑generation M‑Link communication gateway for ABB MNS‑iS intelligent low‑voltage switchgear. Origin: Switzerland. Lifecycle status: EOL discontinued, OEM new production stopped; market supply consists of NOS surplus and fully‑tested refurbished spare‑parts for plant maintenance。

Hardware Version 2 multi‑protocol gateway for low‑voltage motor‑control‑center data acquisition and protocol conversion. ‑ Power supply: 9‑32 VDC (nominal 24 VDC) ‑ Interfaces: 2×Ethernet RJ45, RS485, fieldbus terminal block ‑ Supported protocols: Modbus‑TCP, Modbus‑RTU, Profibus‑DP, PROFINET‑IO ‑ Mounting: Standard DIN‑rail 35 mm ‑ Operating temperature: ‑25℃ ~ +55℃, humidity 5‑95 % non‑condensing ‑ Protection class: IP20 (cabinet‑installation only) ‑ Dimension: H140 × W160 × D250 mm, weight approx 2.87 kg ‑ Configuration: ABB MNS‑iS configuration software ‑ Function: collect measurement data, status and fault alarms from MNS‑iS feeders/motor‑starter units; convert internal bus data to standard industrial protocols for upper‑level SCADA/DCS system.

Applications

‑ MNS‑iS intelligent motor control centre (MCC) data‑gateway in power plant, petrochemical plant ‑ Low‑voltage switchgear system connect to DCS / SCADA monitoring system ‑ Protocol conversion between MNS‑iS internal bus and Modbus‑TCP / Profinet / Profibus‑DP ‑ Retrofit & spare‑part replacement for existing ABB MNS‑iS cabinet ‑ Centralized monitoring for motor‑starter protection relays and feeder units ‑ Spare inventory for electrical maintenance department of industrial site

1TGE120021R6010

Related Series Models (6+)

1. 1TGE120021R0010 (M‑Link V2 base variant)
2. 1TGE120021R6210 (Alternative firmware variant)
3. 1TGE120011Rxxxx (M‑Link V1 older generation gateway)
4. CI867K01 (AC800M Modbus‑TCP communication module)
5. CI854A (AC800M Profibus‑DP interface)
6. PM866K01 (AC800M main CPU unit)
7. MNS‑iS feeder monitoring unit

Key Features

1. Dedicated M‑Link V2 gateway for ABB MNS‑iS intelligent low‑voltage MCC switchgear system.
2. Multi‑protocol conversion: bridge proprietary MNS‑iS internal bus to Modbus‑TCP/RTU, Profinet‑IO, Profibus‑DP.
3. DIN‑rail cabinet‑mount, wide operating temperature range adapts to industrial plant environment.
4. Collect feeder current, voltage, power, relay status, trip and warning alarms from MNS‑iS motor‑starter units.
5. Dual Ethernet ports support network redundancy for higher system availability.
6. Real‑time data forwarding to upper‑level DCS / SCADA for centralized monitoring.
7. Requires matching configuration software for parameter setting and device mapping.
8. Manufactured in Switzerland; EOL obsolete, only NOS or fully‑tested refurbished spare‑parts available.

Main Functions

1. Collect measuring values, running status and fault‑trip signals from MNS‑iS motor‑starter and feeder protection units.
2. Realize protocol conversion between MNS‑iS internal bus and standard industrial fieldbus / Ethernet protocols.
3. Provide standardized data interface for DCS, SCADA or HMI system to monitor low‑voltage MCC equipment remotely.
4. Support network redundancy via dual Ethernet ports to improve communication reliability.
5. Upload motor overload, short‑circuit, phase‑loss trip alarms to plant supervisory system.
6. Realize remote parameter read‑back for MNS‑iS intelligent feeder units.
7. Work cooperatively with MNS‑iS monitoring units to complete whole‑set intelligent low‑voltage switchgear monitoring architecture.
8. Serve as central data‑communication gateway inside ABB MNS‑iS MCC cabinet.
