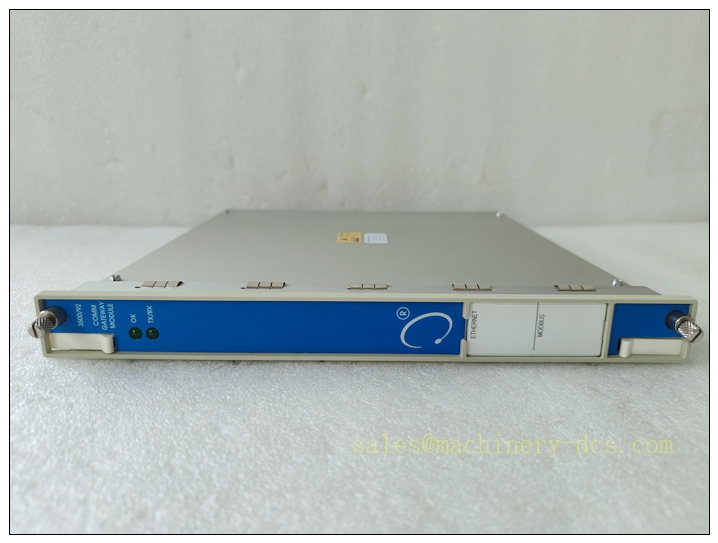

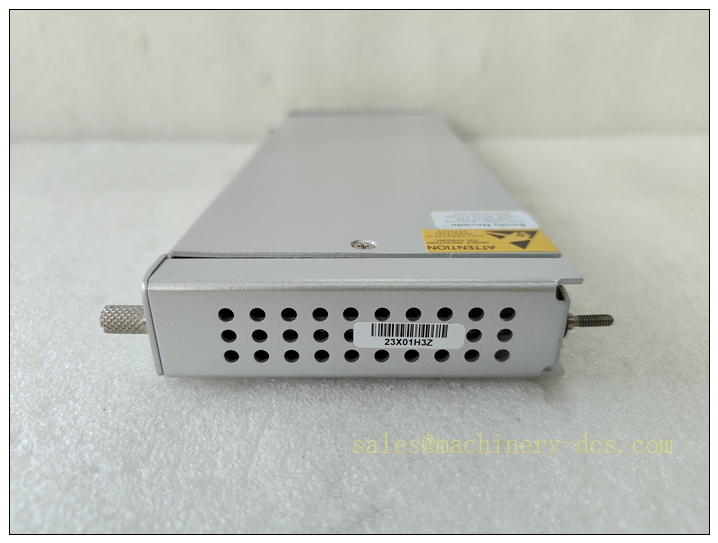

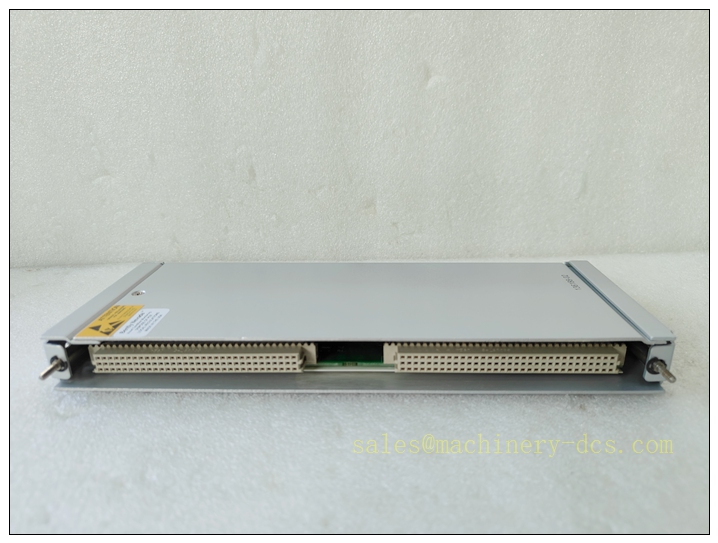

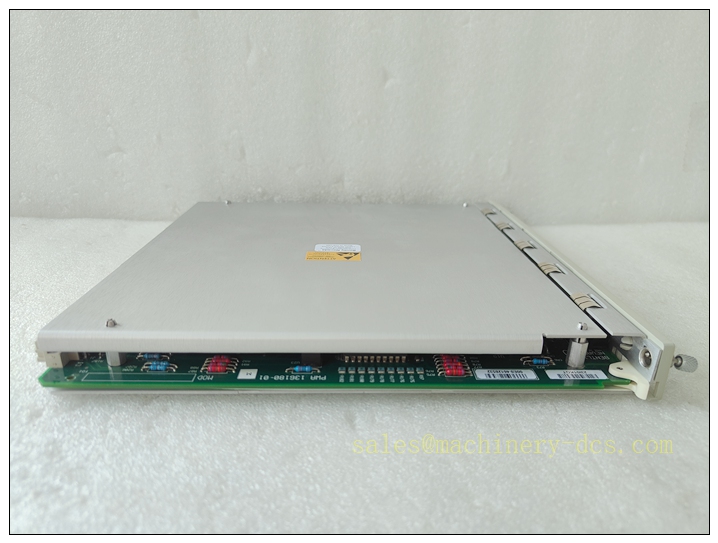

3500/92-02-01-00 Bently Nevada System Communication & Gateway Module, Rack Interface I/O Module for 3500 Machinery Protection System

Description

3500/92-02-01-00 Bently Nevada System Communication & Gateway Module, Rack Interface I/O Module for 3500 Machinery Protection System

Product Overview & Detailed Description

The 3500/92-02-01-00 is a core rack-level communication and system interface module designed for the Bently Nevada 3500 machinery protection platform. Serving as the primary data gateway between the 3500 rack and external host systems, this module undertakes all system-level data transmission, configuration downloading, alarm reporting, and remote diagnostic functions. It acts as the “brain communication hub” of the entire rack, centrally collecting monitoring data from all internal monitor modules, relay modules, and safety modules, and uploading standardized data streams to upper-level monitoring software, DCS, SCADA, and host display systems.

The 3500/92-02-01-00 variant features dual communication ports and standard industrial protocol configuration, supporting real-time parameter transmission, event log recording, fault message uploading, and system configuration management. It provides continuous health status monitoring of the entire rack, including power supply status, module online/offline status, temperature conditions, and system fault codes. With high anti-interference capability and industrial-grade communication stability, this module ensures long-term reliable data interaction in high-vibration, high-noise industrial environments. It is a mandatory central control module for centralized monitoring, remote maintenance, and intelligent management of the 3500 system.

3500/92-02-01-00

Core Technical Parameters

3.1 Communication Interface Specifications

• Interface Configuration: Dual isolated communication ports (Ethernet + Serial interface)
• Network Protocol Support: Bently Nevada proprietary communication protocol, open Modbus TCP/IP
• Data Refresh Rate: Real-time data update within 100 ms
• Maximum Rack Data Capacity: Supports full data collection of 14-slot 3500 rack
• Event Storage: Onboard non-volatile memory for system alarm history, fault logs, and event timestamps
• Remote Function: Remote configuration upload/download, remote diagnosis, firmware online upgrade

3.2 Electrical & Performance Parameters

• Operating Voltage: 24 VDC rack backplane power supply
• Power Consumption: Maximum 6.0 W
• Isolation Level: Communication port electrical isolation, anti-surge and anti-static protection
• System Diagnosis: Real-time self-diagnosis of communication link status, backplane bus status, and module operating health
• Data Accuracy: Zero data loss and zero packet error under continuous industrial operation

3.3 Environmental & Physical Parameters

• Operating Temperature: -20 °C to +65 °C (-4 °F to +149 °F)
• Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
• Relative Humidity: 0%–95% non-condensing
• Shock & Vibration: Compliant with IEC 60068 industrial mechanical environmental standards
• Form Factor: Standard 3500 half-height hot-swappable module
• Certification Compliance: CE, FCC, API 670 industrial machinery protection standard

Compatibility & Installation Pitfalls

4.1 System & Hardware Compatibility

The 3500/92-02-01-00 is fully compatible with all standard 3500 series racks including 3500/05 14-slot chassis. It supports full docking with all 3500 series functional modules, including proximity monitors, vibration monitors, temperature monitors, keyphasor modules, and SIL-certified relay output modules. It works seamlessly with official 3500 Rack Configuration Software and is compatible with mainstream industrial upper computer systems, DCS and SCADA platforms. This module supports mixed installation with safety barrier modules and SIL-level safety modules without system conflict or signal interference.

4.2 Critical Installation Pitfalls & Common Risks

• Mandatory Fixed Slot Priority: The 3500/92 communication module should be installed in the upper front slot close to the power supply area. Improper slot position may cause backplane bus communication delay and intermittent offline issues.
• Network Cable Anti-Interference Rule: Communication Ethernet cables must use shielded industrial Ethernet lines. Non-shielded ordinary network cables will lead to data packet loss and unstable remote connection in high-electromagnetic industrial sites.
• Isolated Wiring Requirement: Communication signal wiring must be separated from high-current relay output wiring and power wiring with a minimum 50 mm isolation distance to avoid electromagnetic interference causing communication failure.
• Firmware Mismatch Risk: Mismatched firmware versions between the 3500/92 module and rack backplane will result in unrecognized rack configuration and failure of data uploading. Firmware version consistency must be verified before commissioning.
• Hot-Swap Restriction During Operation: Hot swapping is allowed for replacement, but will cause temporary data interruption and log recording pause. Avoid hot swap during critical equipment operating periods to prevent missing alarm records.
• IP Address Conflict Risk: Fixed static IP must be set for module network port. Random DHCP acquisition will cause upper computer communication disconnection and remote monitoring failure.

3500/92-02-01-00

Standard Operating Procedure (SOP)

5.1 Pre-Installation Inspection

Check the integrity of the 3500/92-02-01-00 module appearance, connectors and circuit board; verify firmware version matching the current rack system; inspect industrial network cables and shielding performance; confirm upper computer and DCS communication parameter planning; prepare static IP address and communication protocol parameters in advance.

5.2 Standard Installation & Commissioning Steps

1. Perform LOTO safety isolation for rack system construction; 2. Insert the 3500/92 module into the standard reserved slot and lock the fastening handle tightly; 3. Connect shielded Ethernet cable and serial communication cable according to specifications; 4. Power on the rack system, open 3500 configuration software to confirm module online status; 5. Set static IP address, communication protocol and baud rate parameters; 6. Download overall rack configuration to the communication module; 7. Verify real-time data uploading, alarm message feedback and remote connection functions; 8. Complete communication loop test with upper computer and DCS system, and archive configuration files.

5.3 Daily Operation & Maintenance

Regularly check module running temperature, network link status and data transmission continuity; quarterly inspect communication cable shielding layer and terminal tightness; semi-annually back up system configuration and historical event logs; annually verify firmware stability and communication link health status; clean module surface dust to ensure heat dissipation and stable communication performance.

5.4 Module Replacement Procedure

Stop remote monitoring function and record current system configuration; power off the rack or perform hot-swap replacement according to site safety regulations; remove communication wiring and mark cable numbers; replace with new qualified 3500/92 module; restore wiring and re-configure IP and protocol parameters; download rack configuration and test full communication functions; confirm normal data uploading and alarm reporting before resuming formal operation.

Application Scenarios

The 3500/92-02-01-00 communication module is widely applied in industrial machinery protection systems that require real-time data upload, remote monitoring and centralized management. Typical scenarios include: thermal power turbine and generator set monitoring systems, petrochemical large centrifugal compressor and steam turbine protection platforms, oil and gas offshore platform rotating equipment monitoring, metallurgical rolling mill and large fan condition monitoring, chemical plant explosion-proof area machinery safety systems, and industrial intelligent factory DCS/SCADA centralized data acquisition systems. It is the core gateway device for realizing digitization and remote intelligent operation of the 3500 protection system.

Supporting Components

• System Rack: 3500/05 14-slot standard industrial rack chassis
• Power Supply: 3500/15 AC/DC redundant power supply module
• Core Matching Modules: 3500/40 proximity monitor, 3500/42 vibration monitor, 3500/50 temperature monitor
• Safety Output Module: 3500/33 SIL2 relay output module
• Configuration Tool: 3500 Rack Configuration Software V2.3 or higher
• Field Accessories: Industrial shielded Ethernet cable, anti-interference communication wire, network terminal isolator
• Extended Accessories: 3500/22M TDI transient data interface module for high-speed data acquisition

Brand Matching Model Recommendations (8 Models)

The following 8 original Bently Nevada 3500 series models are fully compatible in rack structure, system firmware and industrial application scenarios, supporting integrated system configuration:

1. 3500/15-01-00-00: AC Redundant Power Supply Module, provides stable system power for communication and monitoring units
2. 3500/22M-01-02-00: TDI Transient Data Interface Module, cooperates with 3500/92 for high-speed dynamic data upload
3. 3500/25-01-00-00: Keyphasor Speed & Phase Monitor Module, provides synchronous operation data for system collection
4. 3500/40 SIL-01-00: SIL Certified Proximity Monitor Module, collects shaft position and vibration data
5. 3500/42-01-00-00: Multi-Channel Vibration Monitor Module, provides full-band vibration monitoring data
6. 3500/50-01-00-00: Temperature Monitor Module, collects equipment temperature operating parameters
7. 3500/33 SIL2-01-00: 16-Channel SIL2 Relay Output Module, executes system alarm and trip logic output
8. 3500/04-01-00: IS Earthing Module, supports safe communication operation in hazardous area systems
