Woodward 8440‑2088 (easYgen‑3500XT‑P2) Generator Paralleling & Power‑Management Controller
Product Brand & Model Title
Official Product Name: easYgen‑3500XT‑P2 Generator Paralleling & Power‑Management Controller Brand: Woodward Model No: 8440‑2088 Product Grade: Advanced genset synchronizing & load‑sharing controller for combined‑heat‑and‑power (CHP / Co‑Gen) applications; active production, available as new‑stock & spare‑part supply
General Product Overview

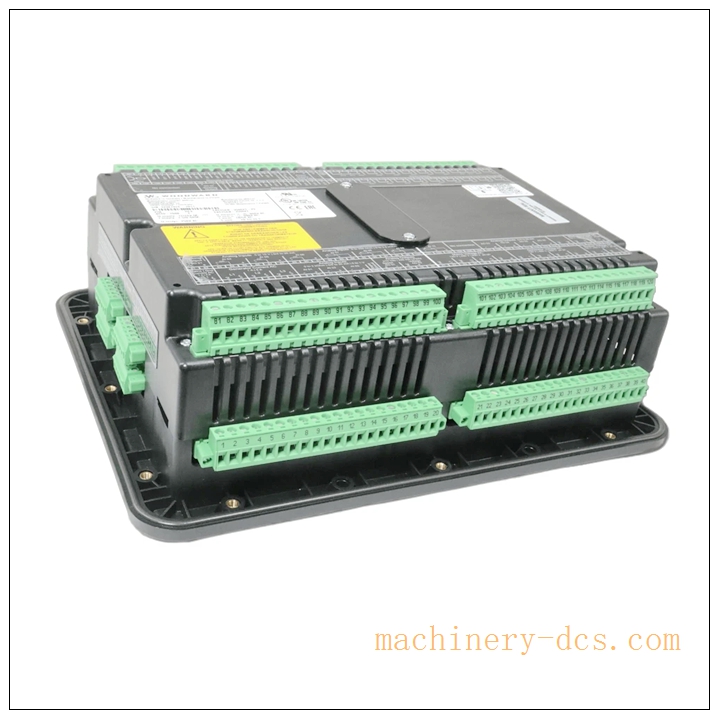

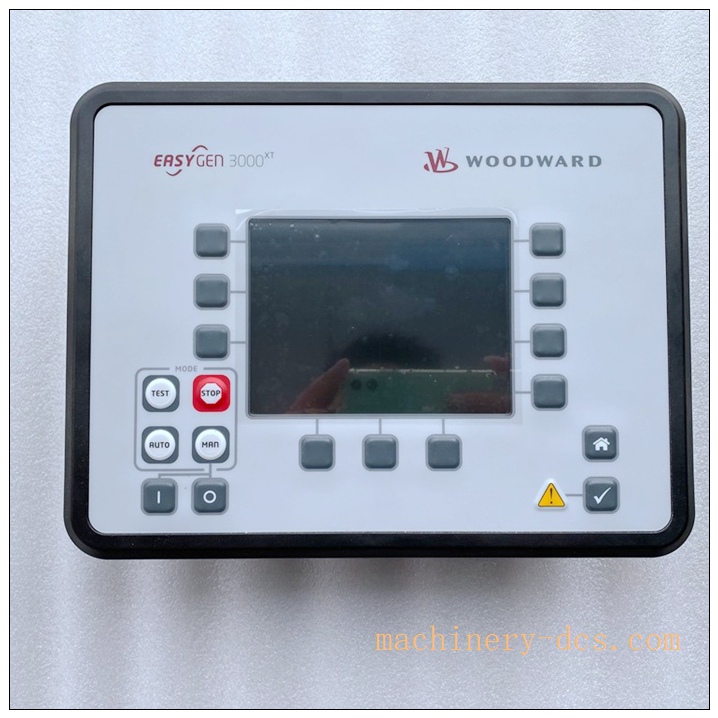

The 8440‑2088 is a panel‑mount genset control unit within Woodward easYgen‑3000 series, designated easYgen‑3500XT‑P2. It performs generator start‑stop logic, automatic synchronisation, load‑sharing, mains‑genset paralleling, comprehensive electrical protection and CHP / co‑generation functions. It supports three‑phase busbar voltage measurement and phase‑rotation supervision between utility bus and generator bus. Equipped with graphical LCD display and membrane soft‑keys, it supports expansion via IKD remote I/O modules, CANbus and Ethernet communication. Widely used for standby generators, prime‑power sets, combined‑heat‑power plants, industrial multi‑gen‑set paralleling systems and cogeneration installations。
Model Coding Definition
‑ 8440: Woodward easYgen generator‑controller series part‑number prefix ‑ 2088: Order‑code for easYgen‑3500XT‑P2 variant ‑ P2: Feature variant: enables Co‑Gen / CHP function, 3‑phase bus‑voltage monitoring, utility‑generator phase‑rotation check capability
8440-2088
Technical Specifications
Electrical Parameters
‑ Supply Voltage: 24 VDC (18‑32 VDC operating range) ‑ Typical Power Consumption: ≤15 W ‑ Measuring Voltage: Up to 690 V AC; supports 3P‑3W / 3P‑4W / single‑phase wiring ‑ Measuring Frequency: 40‑85 Hz (50 Hz / 60 Hz nominal) ‑ Analog Input Resolution: 11‑bit ADC resolution ‑ Digital I/O: Built‑in configurable DI/DO; expandable via external IKD‑series remote I/O modules ‑ Front‑panel: Graphical LCD display, soft‑key navigation buttons, status & alarm LED indicators
Communication Interfaces
‑ Ethernet: For easYview HMI software, Modbus‑TCP ‑ CANbus: For IKD remote‑I/O expansion and multi‑unit genset‑to‑genset communication ‑ RS‑232 service port: Local commissioning, parameter download via easYgen‑Tool software
Environmental Specifications
‑ Operating Temperature: −20 ℃ ~ +70 ℃ (front‑panel derating above +60 ℃) ‑ Storage Temperature: −40 ℃ ~ +85 ℃ ‑ Relative Humidity: 5 %‑95 %, non‑condensing ‑ Vibration & Shock: Compliant with IEC 60068‑2 for generator‑cabinet environments ‑ Ingress Rating: Front panel IP54; rear side IP20 (panel‑cutout mounting)
Mechanical & Certification
‑ Mounting: Panel‑cutout mounting (standard industrial control panel cutout) ‑ Weight: Approx. 1.1 kg ‑ Certifications: CE, UL listed for generator‑set control equipment ‑ Lifecycle Status: Active production, new‑build & spare‑part availability
Core Product Features
- Multi‑genset automatic synchronisation & load‑sharing: Paralleling between multiple generators and also generator‑utility mains tie‑breaker control.
- CHP / Co‑Gen dedicated functionality: Heat‑and‑power co‑generation control logic for combined‑heat‑power installations (P2 variant exclusive feature).
- Three‑phase bus‑voltage & phase‑rotation supervision: Monitors phase‑sequence matching between utility‑side bus and generator‑side bus to prevent wrong‑phase closing faults.
- Comprehensive generator‑protection functions: Over‑current, overload, over‑voltage / under‑voltage, over‑frequency / under‑frequency, reverse‑power protection.
- Graphical local HMI: Onboard LCD display, alarm‑event logging, real‑time electrical‑value viewing, parameter modification onsite.
- Remote I/O expandable architecture: CANbus connects IKD‑series DI/DO expansion modules for larger‑scale I/O demands.
- Multiple industrial communication protocols: Ethernet Modbus‑TCP and CANbus support SCADA / plant‑system integration.
- PC‑based commissioning: easYgen‑Tool software for offline configuration, firmware upgrade, fault‑log export and diagnostics.
Application Fields
‑ Cogeneration / CHP plants: Combined‑heat‑power generator‑set control ‑ Industrial power‑house: Multi‑generator‑set paralleling & load‑management ‑ Stand‑by power‑plants: Critical‑facility backup‑power automatic mains‑failure operation ‑ Oil‑gas & petrochemical: On‑site captive power‑generator‑control ‑ Hospital & data‑center: High‑reliability standby‑power‑management systems ‑ Retrofit‑maintenance projects: Spare‑part replacement for existing easYgen‑3500XT‑P2 installations
Product Advantages & Value
‑ Purpose‑built P2 variant natively supports CHP co‑generation workflow without extra auxiliary controllers. ‑ Built‑in phase‑rotation check reduces risk of wrong‑phase paralleling accidents. ‑ Flexible IKD remote‑I/O expansion adapts to small‑to‑large genset‑system requirements. ‑ Rich communication options simplify connection with upper‑level SCADA monitoring systems. ‑ Integrated protection‑functions reduce requirement for separate protective‑relays in many applications. ‑ Mature Woodward easYgen ecosystem with comprehensive configuration‑tool and global‑support documentation.
8440-2088
Compatible System & Interface Description
‑ Compatible Platform: Woodward easYgen‑3000 system ecosystem ‑ Expansion Hardware: IKD‑IN‑16, IKD‑OUT‑16, IKD1‑M remote I/O modules via CANbus ‑ Mounting: Panel‑cutout installation; rear‑side wiring via screw‑plug terminals ‑ Configuration‑Tool: easYgen‑Tool PC‑software for programming, parameter tuning, firmware update ‑ HMI Option: easYview series remote touch‑screen HMI via Ethernet connection
Related Recommended Products
- 8440‑2087: easYgen‑3500XT‑P1 (without CHP Co‑Gen function)
- IKD‑IN‑16 (8440‑2304): 16‑channel digital‑input expansion module
- IKD‑OUT‑16 (8440‑2305): 16‑channel digital‑output expansion module
- easYview‑07‑030: 7‑inch remote touch‑screen HMI
- IKD1‑M: Mixed‑digital‑I/O expansion unit for easYgen‑3500XT series
- easYgen‑Tool configuration software: Official commissioning‑software suite
