TRICONEX MP3101S2 Redundant Main Processor Module for Trident Safety Instrumented System (SIS)

Description

TRICONEX MP3101S2 Redundant Main Processor Module for Trident Safety Instrumented System (SIS)

Product Details

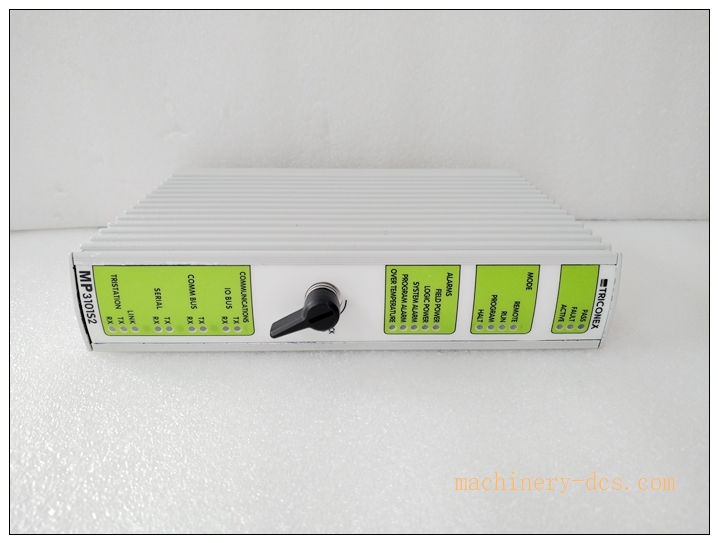

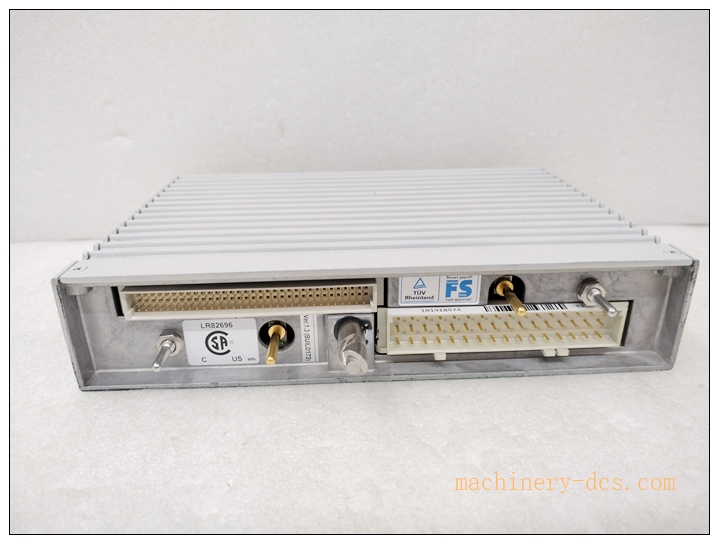

The MP3101S2 is the core main processor unit of TRICONEX Trident safety control platform, built on proven Triple Modular Redundancy (TMR) fault‑tolerant architecture. Powered by Motorola MPC860 32‑bit 50 MHz processor, it is equipped with 6 MB Flash PROM for system firmware and application storage, 16 MB DRAM for logic execution and Sequence‑of‑Events (SOE) data logging, plus 8 KB CRC‑protected NVRAM for retention of process variables. It runs on 24 VDC logic power and integrates multi‑channel communication interfaces including Modbus, TriBus, diagnostic bus and debug port. The module performs real‑time logic computation, cross‑channel voting, I/O data interaction and system diagnosis, supporting hot‑swap and on‑line maintenance without system shutdown. It complies with international safety standards and delivers stable performance under wide‑range temperature and heavy electromagnetic interference industrial conditions.

3101S2

Applications

• Oil & gas production, pipeline safety interlock
• Petrochemical and chemical process safety control
• Power generation, thermal plant emergency shutdown (ESD)
• Refinery furnace and burner management system (BMS)
• Pharmaceutical critical process protection
• Heavy‑industry safety instrumented system (SIS) retrofitting & new project deploymentTriconex1 …

Related Series Models (6+ Units)

1. MP3101
2. MP3008
3. MP3009
4. 4351B
5. 3805E
6. 3700A
7. 3625
8. 3511

Key Features

1. Adopts Triple Modular Redundancy (TMR) design with three independent processing lanes for hardware voting, eliminating single‑point‑of‑failure risks.
2. Supports hot‑swap replacement; module maintenance can be completed without stopping the whole safety system.
3. Built‑in comprehensive self‑diagnostic mechanism, quickly detects hardware faults, communication abnormalities and memory errors.
4. Rich onboard memory resources for complex safety logic and SOE event timestamp recording.
5. Multiple standard industrial communication interfaces for seamless connection with SCADA, HMI and third‑party automation devices.
6. Rugged hardware construction, suitable for harsh industrial environments with wide operating temperature range and strong anti‑interference capability.
7. Safety‑certified hardware design for high‑risk process safety‑related control scenarios.

3101S2

Main Functions

1. Execute user‑defined safety control logic and interlock algorithms in real‑time.
2. Collect and process data from all connected TRICONEX I/O modules.
3. Implement TMR cross‑voting among three processor channels to ensure valid output results.
4. Realize Sequence‑of‑Events (SOE) high‑precision event logging for post‑incident analysis.
5. Manage system communication, exchange data with upper‑level monitoring systems via Modbus and TriBus interface.
6. Continuous hardware self‑diagnosis, report fault status and trigger fault handling logic automatically.
7. Maintain retentive process variables via battery‑backed NVRAM during power interruption.
8. Support on‑line configuration download and on‑line diagnostic access for system commissioning and troubleshooting.
