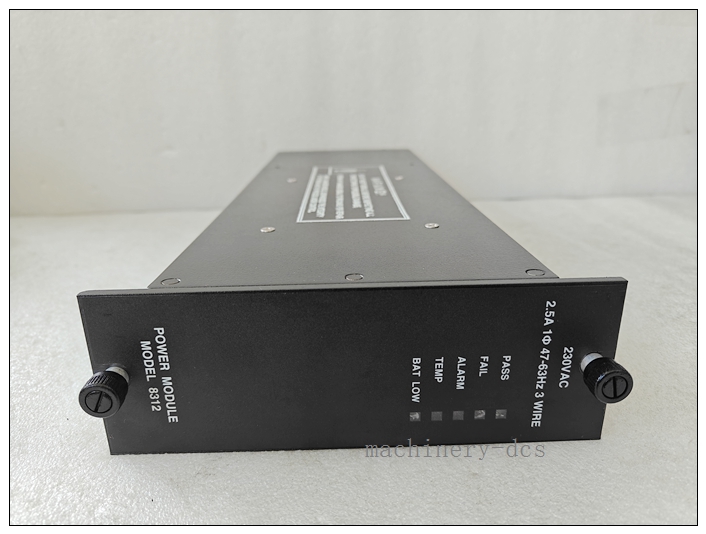

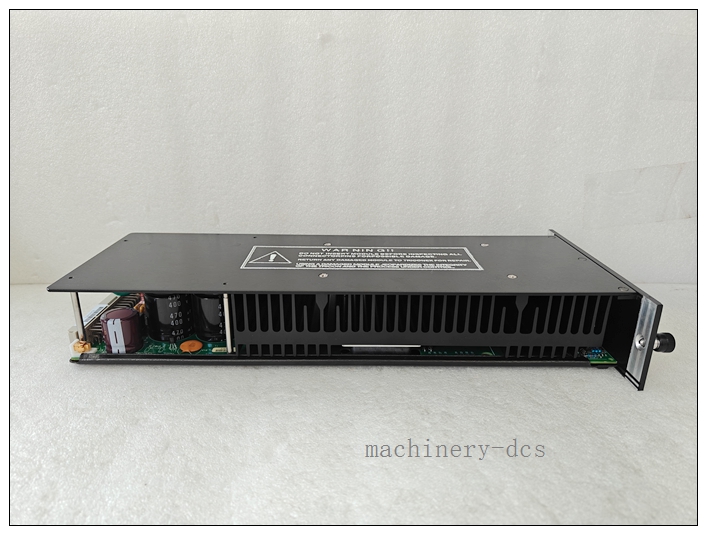

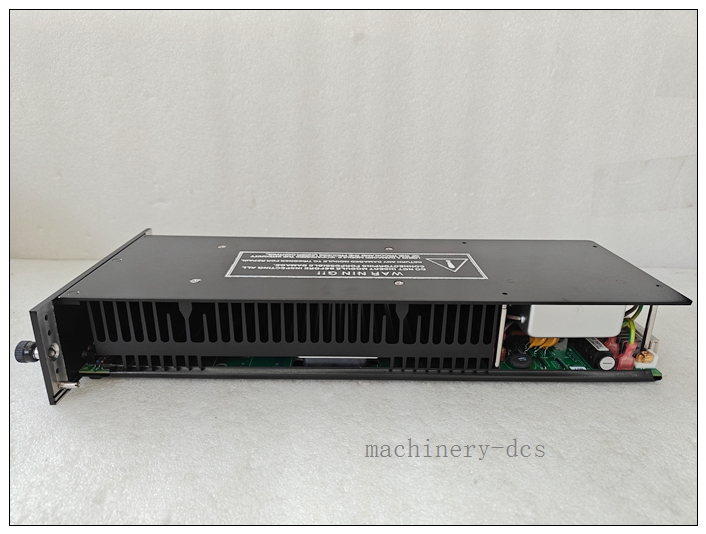

TRICONEX 8312 230VAC TMR Safety Power Supply Module

Description

Product Brand & Model Full Title

‌Brand‌: TRICONEX (Schneider Invensys Safety Automation)
‌Model‌: 8312
‌Product Title‌: TRICONEX 8312 230VAC TMR Safety Power Supply Module for Tricon SIS Rack

Product Description

The TRICONEX 8312 is a SIL 3 certified, hot-swappable power supply purpose-built for the Tricon Triple Modular Redundancy safety instrumented system. Designed to convert 230VAC industrial field power into regulated, stable 24VDC system power, it acts as the core power backbone for all components inside the Tricon rack — including main TMR processors, digital/analog I/O modules, communication cards and backplane diagnostic circuits. Built to eliminate single points of power failure in safety-critical control loops, this module is fully validated for continuous operation in high-hazard industrial environments, perfectly aligning with the native fault-tolerant logic of TRICONEX Tricon platforms for ESD, FGS and critical process protection applications.

TRICONEX 8312

Technical Specifications

• ‌Nominal Input Voltage‌: 230 VAC, dual independent isolated input channels
• ‌Input Operating Range‌: 85VAC ~ 264VAC
• ‌Regulated Output‌: 24VDC ±1% precision system power
• ‌Rated Continuous Output Current‌: 10A, 15A peak transient support
• ‌Conversion Efficiency‌: ≥92% for low thermal load in enclosed control cabinets
• ‌Safety Integrity Level‌: IEC 61508 SIL 3 certified, TÜV audited
• ‌Operating Temperature‌: -20°C ~ +70°C
• ‌Storage Temperature‌: -40°C ~ +85°C
• ‌MTBF Rating‌: >500,000 hours per MIL-HDBK-217F reliability standard
• ‌Physical Dimensions‌: 177mm (W) × 101mm (H) × 203mm (D)
• ‌Net Weight‌: 2.85kg
• ‌Certifications‌: ATEX, IECEx, CE, UL Listed for hazardous zone deployment
• ‌Backplane Compatibility‌: Fully interoperable with Tricon T8100 main chassis and T8400 series I/O modules

Main Features and Advantages

1. ‌Native TMR Architecture Matching‌
   Purpose-engineered to integrate seamlessly with TRICONEX triple modular redundancy logic, delivering fault-tolerant power delivery that matches the system-level safety integrity of Tricon processors and I/O modules, no third-party general-purpose power supply can achieve this native compatibility.
2. ‌Dual Independent Input Redundancy‌
   Two isolated AC input channels support 1+1 parallel redundant configuration, enabling bumpless automatic switchover between separate plant power grids, drastically cutting power-related unplanned downtime risk.
3. ‌Zero-Downtime Hot-Swap Capability‌
   No system shutdown, no safety loop isolation, no process interruption required for module replacement. Maintenance teams can swap a faulty 8312 while the full SIS system remains online and fully protective.
4. ‌Harsh Environment Hardening‌
   All critical circuit boards are coated with industrial-grade conformal coating, resisting corrosion, dust, strong electromagnetic interference and heavy vibration, extending service life in offshore, chemical and high-pollution plant sites.
5. ‌Full Diagnostic Transparency‌
   Every power anomaly — from minor voltage drift to impending over-temperature — is logged and fully visible in TriStation 1131 diagnostic dashboard, enabling predictive maintenance before faults escalate into unplanned safety trips.

TRICONEX 8312

Application Fields

• Petrochemical refinery emergency shutdown (ESD) safety loops
• Offshore oil & gas platform fire & gas (FGS) protection systems
• High-risk chemical production process safety control architectures
• Thermal power generation turbine safety and burner management systems
• ATEX/IECEx classified hazardous zone industrial installations
• Marine and shipboard critical process safety control panels

Related Product Recommendations

• TRICONEX 8310 120VAC/VDC Redundant Power Supply Module
• TRICONEX 8311 24VDC Field Input Power Supply Module
• TRICONEX 5301S2 Tricon TMR Core Control Processor
• TRICONEX 5481-1S2 32-Channel Differential Analog Input Module
• Bently Nevada 3500/15 230VAC System Power Module for complementary vibration monitoring racks

Installation and Maintenance

1. ‌Pre-Installation Check‌
   Confirm the exact part number and 230VAC input rating before deployment, never mix it up with 8310 or 8311 modules to avoid permanent damage from mismatched voltage. Verify both independent AC input sources are isolated and within the 85~264VAC operating range before rack insertion.
2. ‌Mounting Procedure‌
   Align the module with the designated Tricon backplane slot, push firmly until the front latch clicks into locked position, then tighten the captive mounting screws to ensure zero loose backplane connection resistance. For safety-critical deployments, always install two 8312 units in 1+1 redundant configuration.
3. ‌Routine Preventive Maintenance‌
   Conduct quarterly thermal scans to check for abnormal surface temperature rise on the module housing, and clear accumulated dust from ventilation slots to preserve cooling efficiency. Confirm the front “Power Good” status LED shows normal indication during every scheduled plant walkdown.
4. ‌Fault Troubleshooting & Replacement‌
   When the FAULT LED illuminates, first measure input voltage with a calibrated multimeter, then connect TriStation software to pull the exact fault code. Confirm the redundant 8312 is carrying full load before initiating hot-swap replacement, and validate full redundant switchover functionality after the new module is fully seated.
5. ‌Spare Part Management‌
   Store backup 8312 modules in a temperature-controlled ESD-safe industrial cabinet, and perform annual bench power validation on spare units to guarantee immediate operational readiness when on-site replacement is required.
