Description

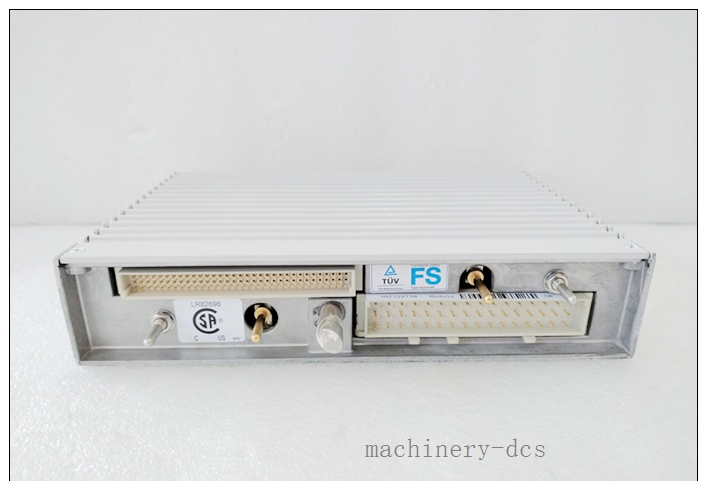

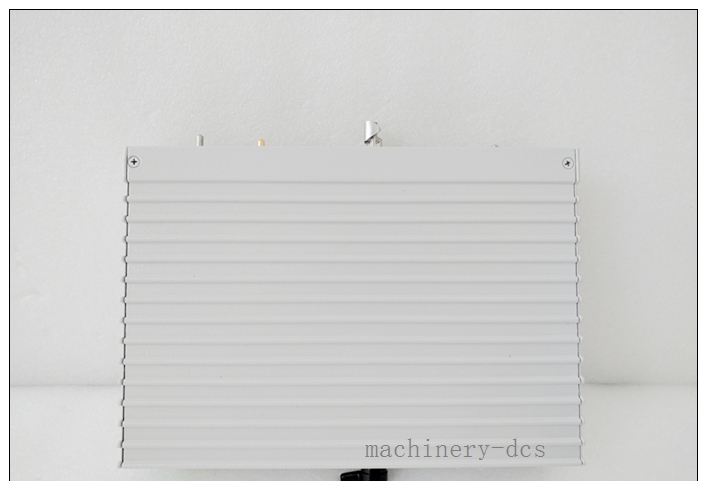

TRICONEX 5481-1S2 high-performance analog input industrial control module
Product Brand & Model Title
TRICONEX 5481-1S2, Tricon TMR 32-Channel Differential Analog Input Industrial Control Module
Product Core Introduction
The TRICONEX 5481-1S2 is a high-performance analog input industrial control module built for the Tricon Triple Modular Redundant (TMR) fault-tolerant control system. Manufactured by Invensys (TRICONEX) in the USA, it features 32 DC-coupled differential input points, designed to receive analog signals from field sensors and transmitters, and convert them into digital signals for the Tricon control system processing. Its rugged industrial-grade design supports stable operation in harsh industrial environments, and it can be installed and maintained online at module level without disturbing on-site field wiring.
3481S2
Main Technical Specifications
- Brand & Origin: TRICONEX, USA
- Manufacturer: Invensys
- Product Type: Analog Input Control Module
- Input Points: 32 differential input points, DC coupled
- Communication Interface: Modbus, compatible with Tricon system hosts and dependent devices
- Maximum System Expansion: Supports up to 118 I/O modules (analog and digital) with optional communication modules
- Warranty: 12-month official warranty for brand new original units
- Packaging: Original factory sealed packaging
- Stock Status: In stock, available for immediate shipment
Recommended Same-Series Models
- TRICONEX 5481-1S1: Earlier generation 32-channel differential analog input module, fully backward compatible with existing Tricon chassis, ideal for legacy system spare part replacement
- TRICONEX 3501E: TMR 16-channel analog input module, for scenarios requiring fewer input points with higher signal isolation level
- TRICONEX 3721: TMR analog output module, paired with 5481-1S2 to complete full analog signal acquisition and closed-loop control workflow
- TRICONEX 5482-1S2: Enhanced high-precision analog input module, with extended signal range and higher measurement accuracy for metering-grade industrial applications
Professional Quality Control Test Standard Operating Procedure
- Pre-Power Visual Inspection: Verify module housing integrity, 32 differential input channel connector pins are intact, no physical damage or residual contamination on the circuit board
- Power Supply Validation: Apply rated operating voltage through Tricon backplane, monitor steady-state power consumption and temperature rise to confirm no abnormal overheating or overcurrent
- Input Channel Calibration: Inject standard analog signals covering full range to all 32 differential input channels, verify signal conversion accuracy meets specified tolerance
- Communication Function Test: Establish stable Modbus connection with Tricon host system, verify data transmission of all 32 channels runs continuously for 2 hours with zero packet loss
- TMR Redundancy Check: Simulate single sub-circuit fault condition, confirm the system maintains normal signal acquisition without data loss or misreading
- Environmental Stress Screening: Conduct industrial temperature cycle test, followed by EMC interference test to confirm no signal drift or measurement error under harsh industrial electromagnetic noise
- Final Sign-off: Archive all test data, generate traceable quality report, label qualified unit with unique serial number before delivery.
New Module Installation
- Power off the target Tricon control chassis, confirm all connected field analog loops are placed in safe state to avoid unintended signal disturbance during installation
- Align the module with the designated slot of Tricon chassis, push it firmly until fully seated to ensure reliable electrical connection with the system backplane
- Terminate all 32 differential input field wiring strictly following TRICONEX official technical drawings, torque all terminals to specified standard value
- Restore chassis power, observe front-panel status LEDs to confirm the module is recognized by the system and enters normal running state
- Complete system configuration synchronization via Tricon dedicated programming software, perform full loop test to verify all 32 input channels work correctly before putting the system into formal operation.
3481S2
Application Scenarios and Features
This module is widely deployed in steel plants, thermal power plants, tire manufacturing plants, water treatment plants, oil & gas and chemical industrial facilities. Its core features include native TMR triple modular redundant architecture to eliminate single point of failure, 32 differential input points with DC coupling for strong common-mode interference rejection, support for online module-level hot-swap maintenance without disturbing field wiring, and seamless interoperability with Modbus hosts and Tricon system components. It helps end users improve analog signal acquisition reliability, reduce unplanned downtime risk, and ensure continuous stable operation of critical industrial control processes.
Frequently Asked Questions
- Q: What is the number of differential input points of TRICONEX 5481-1S2?
A: It is equipped with 32 DC-coupled differential analog input points. - Q: Can this module be hot-swapped when the system is running?
A: Yes, it supports online module-level replacement, and no disturbance to existing field wiring is required during maintenance. - Q: What communication protocol does it support?
A: It is equipped with Modbus communication interface, which can connect to Modbus hosts and dependent devices seamlessly. - Q: What is the warranty period for a brand new original unit?
A: Regular new original TRICONEX 5481-1S2 comes with 12-month manufacturer warranty.
