Description

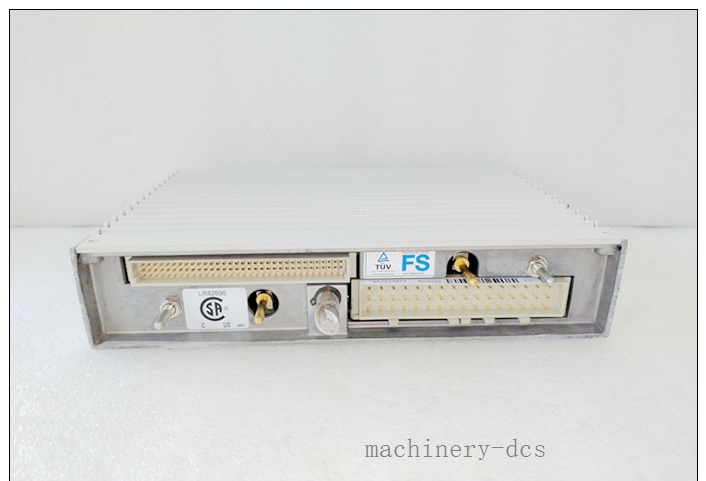

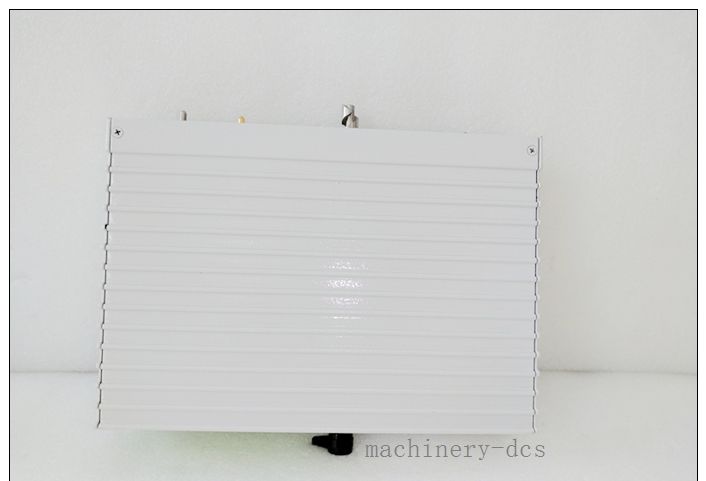

TRICONEX 5401S2 high-reliability digital output module
Product Brand & Model Title
TRICONEX 5401S2, Tricon TMR Digital Output Industrial Control Module
Product Core Introduction
The TRICONEX 5401S2 is a high-reliability digital output module purpose-built for the Tricon Triple Modular Redundant (TMR) fault-tolerant process control system, manufactured by TRICONEX in the USA. As a core component of the Tricon programmable safety control architecture, it leverages dedicated hardware/software voting logic to deliver consistent, fail-safe digital output signals to field actuators. Designed to withstand harsh industrial environments, it supports on-site module-level online installation and repair without disrupting existing field wiring, making it ideal for critical safety and process control loops that demand zero single-point failure tolerance.

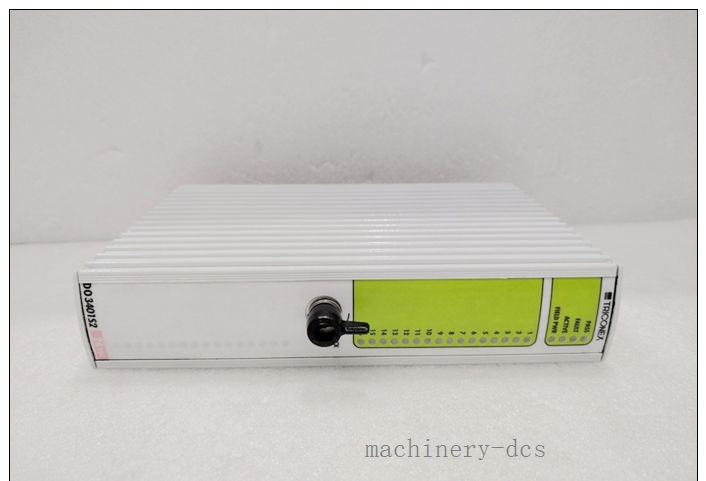

3401S2
Main Technical Specifications
- Brand & Origin: TRICONEX, USA
- Product Category: Digital Output Module for Tricon TMR Control System
- System Architecture Compatibility: Fully compliant with Tricon triple modular redundant (TMR) control framework
- Maximum System Scalability: Supports up to 118 total I/O modules (analog + digital) with optional communication modules
- Communication Capability: Natively connects to Modbus hosts and dependent devices, compatible with Foxboro and Honeywell distributed control system interfaces
- Environmental Adaptability: Rated for harsh industrial operating conditions, with wide temperature and strong electromagnetic interference resistance
- Maintenance Feature: Supports on-site online module-level hot-swap without disturbing field wiring
- Warranty: 12-month official warranty for brand new original units
- Packaging: Original factory sealed industrial-grade packaging
Recommended Same-Series Models
- TRICONEX 5401S1: Earlier generation digital output module, fully backward compatible with legacy Tricon chassis, perfect for existing system spare part replacement and maintenance
- TRICONEX 3625: 16-channel TMR digital output module, optimized for scenarios requiring fewer output points with higher individual channel load capacity
- TRICONEX 3503E: TMR digital input module, designed to pair with 5401S2 to complete full discrete signal acquisition and interlock execution workflow
- TRICONEX 5402S2: Enhanced high-isolation digital output module, with reinforced surge protection for high-noise industrial field environments
Professional Quality Control Test Standard Operating Procedure
- Pre-Power Visual Inspection: Verify module housing integrity, output channel connector pin alignment, no physical damage, loose components or residual contamination on the circuit board
- Backplane Power Validation: Insert the module into standard Tricon test chassis, confirm it draws stable power from system backplane without abnormal current or overheating
- Output Channel Calibration: Activate every digital output channel sequentially, verify each channel outputs correct rated signal with no delay or mis-trigger
- TMR Voting Logic Test: Simulate abnormal signal from one of the three redundant sub-circuits, confirm the dedicated voting hardware/software filters out the fault and outputs correct control signal
- Communication Function Verification: Establish stable Modbus connection with Tricon host, confirm all output commands are transmitted and executed accurately during 2-hour continuous test
- Environmental Stress Screening: Conduct industrial temperature cycle test across full operating range, followed by EMC interference test to confirm no false output or signal loss under harsh industrial electromagnetic noise
- Final Sign-off: Archive all test data, generate traceable quality report, label qualified unit with unique serial number before delivery.
3401S2
New Module Installation
- Power off the target Tricon control chassis, confirm all connected field actuators and safety loops are placed in locked bypass state to prevent unintended action during installation
- Align the module with the designated slot of Tricon chassis, push it firmly until fully seated to ensure reliable electrical connection with the system backplane
- Terminate all digital output field wiring strictly following TRICONEX official technical drawings, torque all terminals to specified standard value
- Restore chassis power, observe front-panel status LEDs to confirm the module is recognized by the system and enters normal running state
- Complete system configuration synchronization via Tricon dedicated programming software, perform full loop test to verify all output channels work correctly before removing safety bypasses and returning the system to normal online operation.
Application Scenarios and Features
This module is widely deployed in oil & gas refineries, chemical plants, thermal power stations, mining facilities and high-risk industrial production lines. Its core features include native TMR triple modular redundant architecture to eliminate single point of failure, dedicated hardware/software voting mechanism to ensure output signal accuracy, strong environmental adaptability for harsh industrial sites, and support for online hot-swap maintenance to minimize system downtime. It helps end users meet strict industrial safety standards, prevent unplanned safety shutdowns, and ensure continuous stable operation of critical process control systems.
Frequently Asked Questions
- Q: What system architecture is TRICONEX 5401S2 designed for?
A: It is purpose-built for the Tricon Triple Modular Redundant (TMR) fault-tolerant process control system. - Q: Can I replace this module online without disconnecting field wiring?
A: Yes, it supports on-site module-level online installation and repair, no disturbance to existing field wiring is required. - Q: What communication protocols and systems can it connect to?
A: It natively supports Modbus protocol, and can connect to Foxboro and Honeywell distributed control systems. - Q: What is the warranty period for a brand new original unit?
A: Regular new original TRICONEX 5401S2 comes with 12-month manufacturer warranty.
