TRICONEX 3625 TMR SIL 3 32-Channel Sourcing Digital Output Module

Description

Brand‌: TRICONEX (Schneider Electric EcoStruxure Tricon Safety Automation)
‌Model‌: 3625
‌Official Full Title‌: TRICONEX 3625 TMR SIL 3 32-Channel Sourcing Digital Output Module for Tricon Safety Instrumented Systems

Product Description

The TRICONEX 3625 is a 32-channel Triple Modular Redundant (TMR) digital output module purpose-built for the Triconex Safety Instrumented System (SIS), part of Schneider Electric’s EcoStruxure Tricon platform. Designed as the final control link between the SIS system and field actuators, it delivers both supervised and non-supervised digital output signals for safety-critical industrial applications. Leveraging patented 2-out-of-3 TMR voting architecture, it ensures fault tolerance and ultra-high reliability, meeting strict Safety Integrity Level 3 (SIL3) requirements for emergency shutdown (ESD), fire and gas systems, and critical process control loops across high-risk industries.

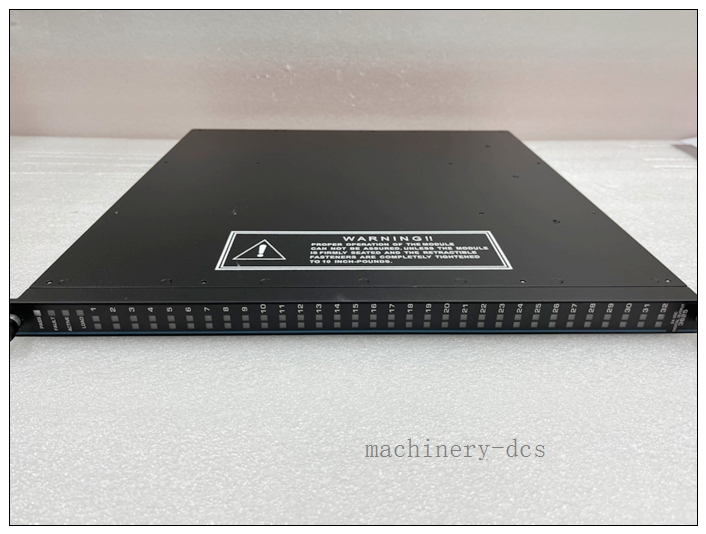

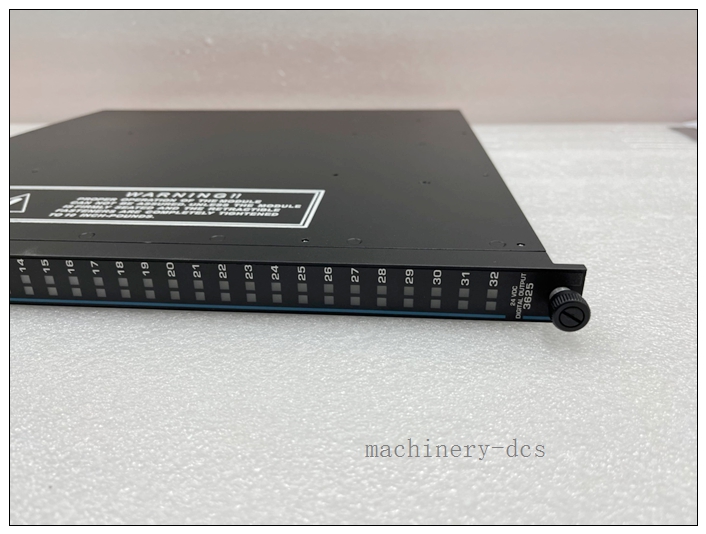

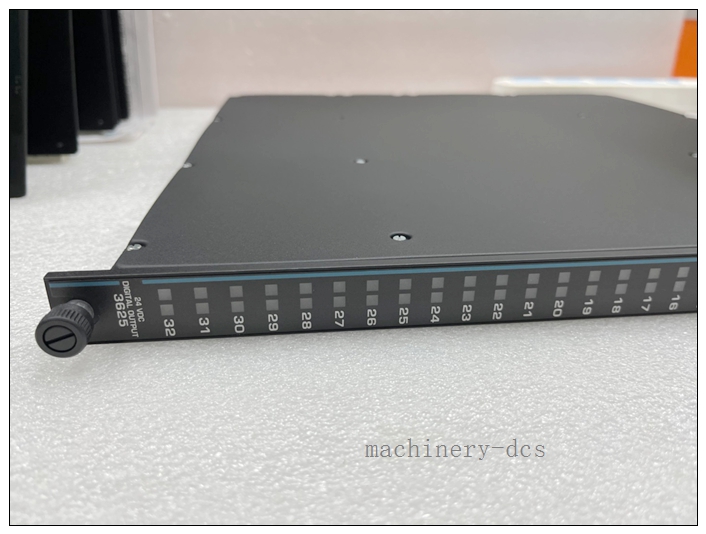

TRICONEX 3625

Technical Specifications

• ‌Output Channels‌: 32 independent digital output channels
• ‌Output Type‌: Sourcing (PNP) with native TMR 2-out-of-3 voting
• ‌Operating Voltage Range‌: 20.4–30V DC
• ‌Maximum Continuous Current per Channel‌: 0.5A
• ‌Total Permissible Module Output Current‌: 1200 mA
• ‌Safety Certification‌: IEC 61508 SIL 3 certified
• ‌Field Wiring Diagnostics‌: Real-time monitoring for open circuit, short circuit and abnormal voltage levels
• ‌Backplane Compatibility‌: Fully interoperable with Tricon T8100 main chassis and standard Tricon I/O racks
• ‌Mandatory Accessories‌: Matches ELCO 8016 56-position termination carrier for field wiring connection
• ‌EMC Compliance‌: Class A industrial electromagnetic compatibility rating
• ‌Insulation Rating‌: Basic insulation, Overvoltage Category II, Pollution Degree 2

Main Features and Advantages

1. ‌Native TMR Fault-Tolerant Voting Architecture‌
   Three independent output circuits run parallel 2-out-of-3 voting logic, ensuring the output state remains correct even if one circuit fails, eliminating single points of failure completely.
2. ‌Full Field Wiring Real-Time Diagnostics‌
   Embedded monitoring detects open circuits, short circuits and voltage anomalies on every field loop, automatically reporting fault details to the main processor and front-panel status LEDs for rapid troubleshooting.
3. ‌SIL 3 Top-Tier Safety Integrity Performance‌
   Fully certified to IEC 61508 SIL 3 standards, meeting the strictest global regulatory requirements for safety-critical emergency shutdown and fire & gas protection loops.
4. ‌High-Density 32-Channel Design‌
   32 output channels in a single compact module drastically reduce rack space occupation, cutting overall system deployment cost and cabinet footprint for large-scale safety control systems.
5. ‌Seamless Hot-Swap Support‌
   The module can be replaced online without system shutdown or safety loop isolation, eliminating unplanned process interruption risks during planned maintenance operations.

TRICONEX 3625

Application Fields

• Oil and gas refinery and offshore platform ESD emergency shutdown control loops
• Petrochemical plant fire & gas (F&G) system solenoid valve and alarm actuation control
• High-risk chemical production process safety interlock and emergency trip systems
• Power generation turbine safety protection and burner management system output control
• Hazardous zone classified industrial installations requiring SIL 3 certified digital output performance
• Industrial sites controlling field actuators including solenoids, motor starters and safety alarms

Related Product Recommendations

• TRICONEX 3625C Supervised Digital Output Module
• TRICONEX 3721 TMR 32-Channel Differential Analog Input Module
• TRICONEX 3805E TMR 8-Channel Digital Output Module
• TRICONEX 3009X Tricon TMR High-Performance Main Processor Module
• TRICONEX 8312 230VAC TMR Safety Power Supply Module

Installation and Maintenance

1. ‌Pre-Installation Validation‌
   Confirm the 3625 module voltage rating matches your field actuator 24VDC operating specification before wiring, avoid connecting loads that exceed the 0.5A per-channel current limit to prevent permanent channel damage.
2. ‌Rack Mounting Procedure‌
   Align the module with the designated Tricon backplane slot, push firmly until the locking latch clicks into place, then tighten the captive mounting screws to ensure stable electrical contact. Use the matching ELCO 8016 56-position termination carrier for standardized field wiring connection.
3. ‌Field Wiring Best Practice‌
   Follow the official installation directive specifications strictly, separate digital output power cables from low-voltage signal cables to minimize electromagnetic interference, and confirm all wiring insulation meets the module’s basic insulation requirements.
4. ‌Routine Preventive Maintenance‌
   Conduct periodic inspections to verify all channel status LEDs show normal operation, check field wiring terminals for loose connections, and confirm the module operating environment stays within the rated temperature and humidity range.
5. ‌Fault Troubleshooting & Replacement‌
   When a fault alarm appears in the system diagnostic interface, first verify field wiring integrity for open/short circuit issues. Confirm the remaining two TMR output circuits are fully operational before initiating hot-swap replacement, and validate all connected field actuators return to normal state after the new module is seated.
6. ‌Spare Part Management‌
   Store backup 3625 modules in a temperature-controlled ESD-safe industrial cabinet, and perform annual bench functionality validation on spare units to guarantee immediate operational readiness when on-site replacement is required.
