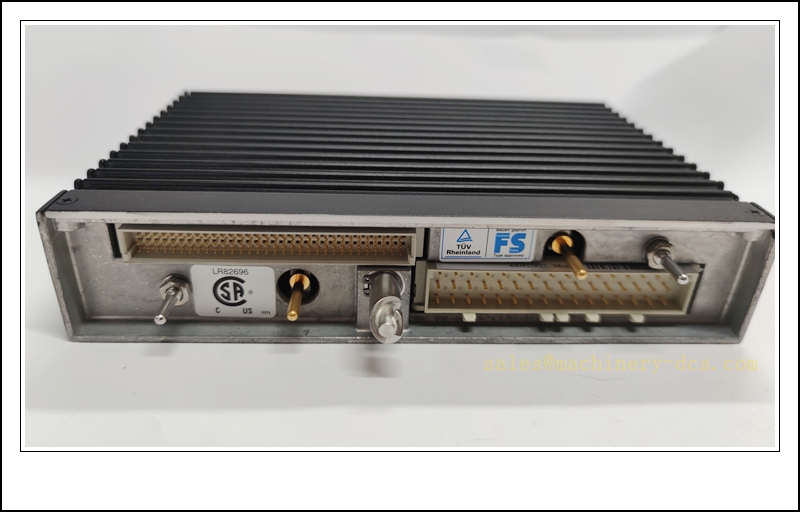

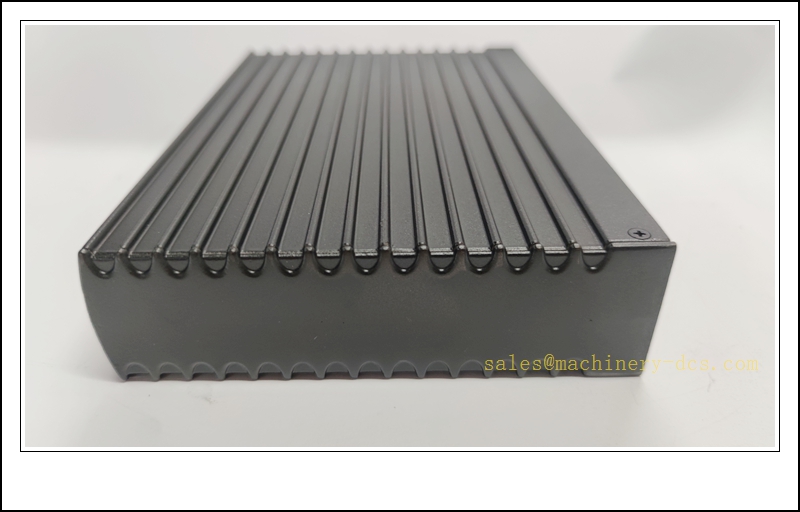

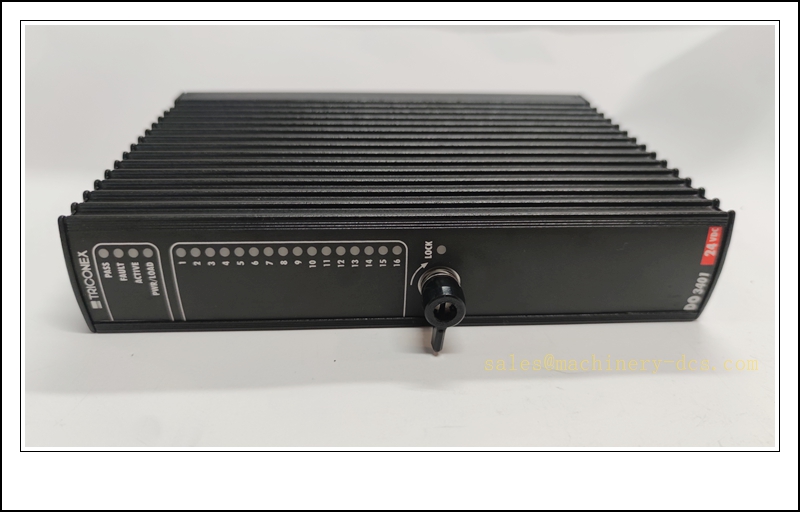

Triconex 3401 8-Channel TMR Analog Output Module for Trident SIS, SIL 3 Rated

Description

Triconex 3401 8-Channel TMR Analog Output Module for Trident SIS, SIL 3 Rated

Product Description

The Triconex 3401 is a triple modular redundant (TMR) analog output module developed for the Triconex Trident safety instrumented system. It receives voted digital output commands from the Trident 3101 main processor triplet and converts digital values into isolated 4–20 mA analog field signals to control I/P converters, valve positioners and other analog final control elements. Built on 2oo3 voting architecture, three independent internal processing paths execute the same output command, and the mid-value vote suppresses single internal hardware faults without causing unexpected process actuation or loss of safety control. Integrated diagnostics monitor open load, short circuit, out-of-range output and internal leg failures, and fault status is transmitted to the Trident processor and TriStation 1131 software for alarm logging and maintenance. The module supports hot-swap under online rack operation to facilitate maintenance in continuous process facilities. It must be installed with a dedicated Trident baseplate and matched external termination assembly for field wiring termination.

TRICONEX 3401

Technical Specifications

• Brand: Triconex (Schneider Electric / Invensys Legacy)
• Model: 3401
• Module Type: Analog Output (AO)
• Architecture: TMR Triple Modular Redundancy, 2oo3 mid-value voting
• Channel Count: 8 analog output channels
• Output Signal: 4–20 mA
• Resolution: 16-bit
• Typical Accuracy: ±0.1% full span
• Max Load Resistance: 750 Ω per channel
• Galvanic Isolation: Field-to-backplane isolation
• Diagnostics: Open load, short circuit, overload, out-of-range, module self-test, leg fault detection
• Backplane Interface: Trident dedicated I/O bus
• Hot Swap: Supported when Trident rack remains online with all three main processors healthy
• Operating Temperature: 0 °C to +60 °C
• Storage Temperature: -40 °C to +85 °C
• Relative Humidity: 5% to 95%, non-condensing
• Safety Certification: SIL 3 capable per IEC 61508
• Configuration Software: TriStation 1131 (Trident platform only)
• Power Supply: Powered via Trident baseplate backplane

Application Scenarios

• Legacy petrochemical and refinery ESD analog control loops
• Onshore and offshore oil & gas Trident SIS valve position control
• Power plant boiler and turbine safety related analog regulation
• Burner Management System (BMS) analog setpoint control for Trident racks
• LNG and cryogenic plant safety instrumented analog output control
• Chemical continuous process safety I/P and positioner driving
• Hazardous Class I Div 2 / Zone 2 SIS cabinets based on Trident platform
• Spare part replacement and outage maintenance for existing Trident installations

8 Related Triconex Model Recommendations

1. 3101 – Trident Main Processor Module
2. 3102 – Trident Redundant Communication Module
3. 3301 – Trident 32-Channel Commoned Digital Input Module
4. 3302 – Trident Digital Output Module
5. 3351 – Trident Analog Input Module
6. 3501 – Trident Chassis and Backplane Assembly
7. 4000098-510 – Tricon / Trident Redundant Power Supply
8. 3805E – Tricon Main Processor (Modern Migration Platform)

Compatibility & Installation Pitfalls

Compatibility

• Designed exclusively for the Trident chassis and Trident backplane; not compatible with Tricon 3700/3600 series racks.
• Only configured via TriStation 1131; modern Tricon TriStation software cannot connect to Trident hardware.
• Requires a dedicated Trident baseplate and matching termination assembly; Tricon ETPs are not pin-compatible.
• Application logic and I/O configuration are stored in the 3101 main processor, not locally on the 3401. Module replacement requires downloading the validated Trident application.
• SIL 3 safety integrity relies on a complete healthy TMR processor triplet; a standalone 3401 cannot achieve SIL 3.
• Firmware revision must match the 3101 processors and other Trident I/O modules to retain safety certification.

Installation Pitfalls

1. Hot-swap is permitted only when all three Trident main processors are in PASS state. Do not hot-swap during processor faults or active safety trips.
2. Do not exceed the maximum 750 Ω loop resistance; excessive load causes signal clamping and loss of 4–20 mA control.
3. Analog field cables must be separated from high-voltage AC and VFD power cables; electromagnetic interference leads to signal drift and valve hunting.
4. Configure failsafe state (fail high / fail low) carefully in TriStation 1131. Incorrect failsafe settings defeat the safety instrumented function design.
5. Onboard electrical diagnostics detect wire breaks and shorts, but cannot identify mechanical valve sticking or actuator degradation; full functional proof-test is mandatory.
6. Mechanical keying prevents insertion into the wrong baseplate; never force the module into an incompatible slot, which may damage backplane connectors.
7. Inductive loads on field devices require suitable surge suppression; inductive kickback may degrade output circuits and trigger false load diagnostics.
8. Ground potential differences between the SIS cabinet and field devices create ground loops and unstable mA readings; follow SIS single-point shielding rules.

TRICONEX 3401

Standard Operating Procedure (SOP)

SOP for 3401 Analog Output Module Inspection, Installation and Functional Test

1. Pre-Installation Inspection Inspect the module for physical damage, bent connector pins or contamination. Confirm the part number is 3401 for the Trident platform. Verify the matching baseplate and termination assembly. Review field loop impedance, I/P or positioner specifications and safety failsafe philosophy. Apply lockout-tagout to associated ESD and control circuits before rack access.
2. Rack Installation Power down the Trident chassis if the module controls a critical safety loop without redundant I/O path. Insert the 3401 into the designated Trident I/O baseplate and secure the locking latch. Connect the ribbon cable from the module rear connector to the external termination assembly. Terminate 4–20 mA field wiring on the terminal base. Separate low-level analog wiring from high-energy power cables and install surge suppression for inductive loads per approved SIS drawings.
3. Software Configuration Launch TriStation 1131 and upload the validated Trident application. Map the 3401 in the I/O configuration table. Set each channel’s output range, engineering units and failsafe value, and enable load diagnostics per the SIL safety plan. Download the application to the 3101 processor triplet and resolve configuration or firmware mismatch faults. Archive the compiled application for IEC 61508 audit traceability.
4. Channel Calibration and Signal Test Isolate field final elements as required. Force output values from TriStation 1131. Verify 4 mA, 12 mA and 20 mA readings are accurate at module terminals and field side. Simulate open load and short-circuit conditions to confirm fault reporting. Confirm each channel transitions to the configured failsafe state on detected fault.
5. Final Element Functional Verification Reconnect I/P converters or valve positioners. Force setpoints and confirm valve stroke and position response match control demand. Verify TMR voting rejects single leg faults and prevents unintended actuator movement. Record calibration accuracy, diagnostic response and failsafe behaviour in the SIS proof-test log.
6. Return to Service Clear all temporary test forces and diagnostic latches. Remove lockout tags and restore the safety control loop to online status. Monitor module health and analog output stability for the required observation period. Notify operations that Trident analog safety control is active.
7. Periodic Maintenance and Replacement During planned outages, inspect baseplate terminal torque, cable shielding and field loop integrity. Repeat mA calibration and failsafe testing per the site SIS proof-test schedule. If the 3401 reports persistent unrecoverable leg faults, confirm the three main processors are healthy before hot-swap. After installing a replacement module, confirm synchronization with the Trident processor triplet, reload validated I/O configuration and run full calibration and actuator functional test before releasing the module to safety duty.
