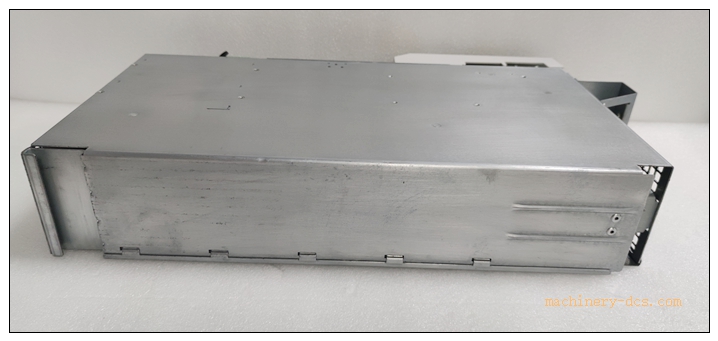

Rexroth HDS03.2‑W075N‑HS12‑01FW (R911190008) Digital Servo Drive Controller Module - Image 3

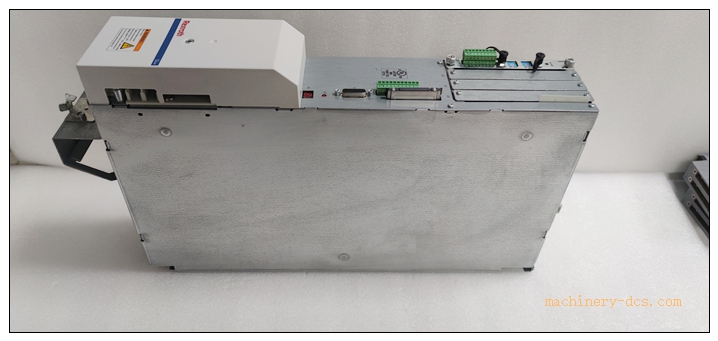

Rexroth HDS03.2‑W075N‑HS12‑01FW (R911190008) Digital Servo Drive Controller Module - Image 4

Rexroth HDS03.2‑W075N‑HS12‑01FW (R911190008) Digital Servo Drive Controller Module

  1. HDS03.2‑W040N‑HS12‑01FW
  2. HDS03.2‑W100N‑HS12‑01FW
  3. HDS03.2‑W150N‑HS12‑01FW
  4. HDS03.2‑W200N‑HS12‑01FW
  5. HDS02.2‑W040N‑HS23‑01FW
  6. HDS04.2‑W200N‑HS01‑01FW
  7. HDS05.2‑W300N‑HS01‑01FW
Add To Quote
Category: SKU: Rexroth HDS03.2‑W075N‑HS12‑01FW (R911190008) Brand:

Description

Rexroth HDS03.2‑W075N‑HS12‑01FW (R911190008) Digital Servo Drive Controller Module



Product Details

The HDS03.2‑W075N‑HS12‑01FW, part number R911190008, belongs to Rexroth HDS03 series compact digital servo drive. It delivers high‑performance motion control for multi‑axis industrial drive systems. This unit supports flexible motor matching for synchronous and asynchronous servo motors. It integrates power stage, position loop, speed loop and current loop closed‑loop control inside one compact housing. Equipped with multi‑fieldbus interface options, it realizes high‑speed real‑time data exchange with upper‑level PLC or motion controller. It offers complete hardware monitoring and protective functions against over‑current, over‑voltage, over‑temperature and short‑circuit. Designed for cabinet‑mount installation, it is widely used for retrofitting and replacement of original production line drive units.



Applications

  • CNC machine tools and machining centers
  • Automated production lines & material handling equipment
  • Packaging and printing machinery
  • Robotics auxiliary axis drive system
  • Metal forming and pressing equipment
  • Textile industrial high‑speed motion equipment

HDS03.2-W075N-HS12-01FW
R911190008

Related Series Models (6+)

  1. HDS03.2‑W040N‑HS12‑01FW
  2. HDS03.2‑W100N‑HS12‑01FW
  3. HDS03.2‑W150N‑HS12‑01FW
  4. HDS03.2‑W200N‑HS12‑01FW
  5. HDS02.2‑W040N‑HS23‑01FW
  6. HDS04.2‑W200N‑HS01‑01FW
  7. HDS05.2‑W300N‑HS01‑01FW



Key Features

  1. Compact modular servo drive structure, saving control cabinet installation space.
  2. High‑resolution closed‑loop control for position, velocity and current to achieve smooth dynamic motion performance.
  3. Multiple safety protection mechanisms to guard drive and motor against various abnormal operating conditions.
  4. Support mainstream industrial bus communication for convenient connection with host automation system.
  5. Compatible with a wide range of Rexroth servo motors for flexible axis configuration.
  6. Robust industrial hardware design, stable operation under factory electromagnetic interference environment.
  7. Support parameter upload/download, convenient for commissioning, backup and equipment replacement.



Main Functions

  1. Real‑time execution of current loop, speed loop and position loop closed‑loop servo control.
  2. Drive and control matched synchronous / asynchronous servo motors for precise positioning and speed regulation.
  3. Realize real‑time data interaction and motion command reception via industrial fieldbus interface.
  4. Continuously monitor operating status including temperature, voltage, current, and trigger alarm when faults occur.
  5. Store drive configuration parameters, support fast parameter backup and restore during maintenance.
  6. Provide built‑in fault diagnosis codes to accelerate on‑site troubleshooting.
  7. Support diverse motion modes: point‑to‑point positioning, speed operation, torque‑limited control.
