KONGSBERG RMP201‑8 Remote Multi‑Purpose Universal I/O Module (Part‑No:324400)

Description

KONGSBERG RMP201‑8 Remote Multi‑Purpose Universal I/O Module (Part‑No:324400)

Product Detailed Description

The KONGSBERG RMP201‑8 is a marine‑grade remote multipurpose I/O module for Kongsberg K‑Chief 500 / K‑Chief 600 distributed vessel automation systems. It features 8 software‑configurable universal input channels for field sensor signal acquisition, supporting RTD, thermocouple, 4‑20 mA, 0‑10 V and millivolt signals. The unit is equipped with dual redundant CAN‑Bus 2.0B communication interfaces for reliable data exchange with DPU main controllers, local signal conditioning, 16‑bit high‑precision ADC conversion, hardware channel‑to‑channel galvanic isolation and comprehensive self‑diagnostic functions. Two local adjustment knobs MSD / LSD are accessible on front panel for on‑site calibration. Designed for DIN‑rail mounting in engine‑room cabinets, this module is widely used for ship tank measurement, machinery monitoring and process signal collection. OEM production is discontinued; available stock includes new‑old‑stock, refurbished and pulled‑used spare parts for vessel retrofitting and maintenance projects.

Kongsberg RMP201-8

Technical Parameters

Compatibility & Installation Pitfalls

Compatibility

1. KONGSBERG K‑Chief 500 / K‑Chief 600 vessel automation DCS system
2. Matches with DPU‑type main processing units via redundant CAN‑Bus network
3. Field sensors: Pt100/Pt1000 RTD, multi‑type thermocouples, 4‑20 mA transmitters

Critical note: RMP201‑8 cannot operate standalone. It must be configured by K‑Chief engineering tool. Channel mode must match actual field sensor type.

Installation Pitfalls

1. Channel configuration mismatch: Each channel must be assigned correct signal type via engineering software. Wrong setup leads to completely wrong measurement readings without hardware fault alarm.

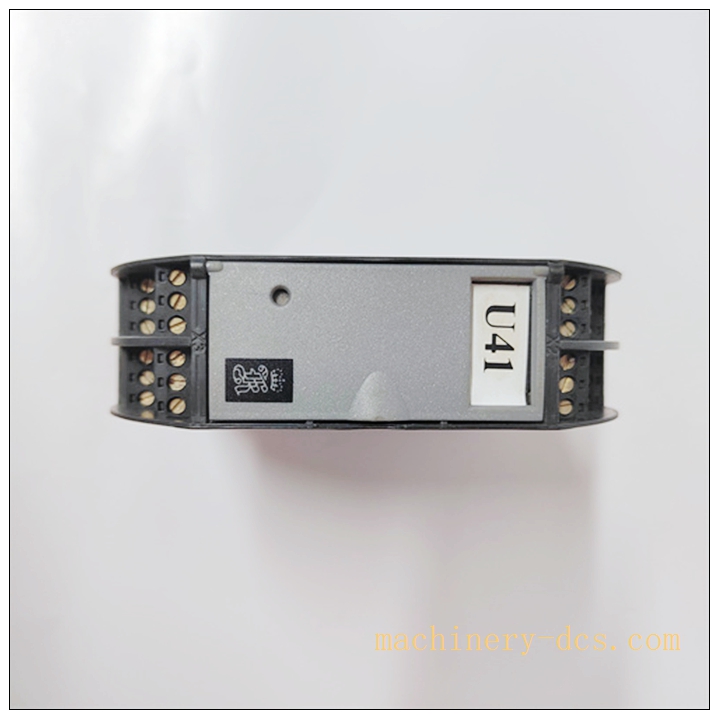

2. MSD / LSD potentiometer mis‑adjustment: Front‑panel knobs are for fine calibration only. Random twisting without reference calibration will shift measurement offset and gain. Record original positions before replacement.
3. CAN‑bus termination risk: Dual redundant CAN‑bus requires correct termination resistor settings. Missing or duplicate termination triggers intermittent communication drop‑out, especially in noisy engine‑room environment.
4. Ground‑loop interference: Though channels carry galvanic isolation, avoid multiple grounding points for field sensor cables. Marine long‑distance cabling easily introduces ground‑loop noise.
5. ESD damage: Module input terminals are static‑sensitive. Wear anti‑static wrist strap during replacement; invisible static damage causes unstable channel drift.
6. Marine environmental stress: Do not install in direct spray, high‑vibration zone without shock‑absorbing cabinet. Condensation inside cabinet will corrode screw terminals.

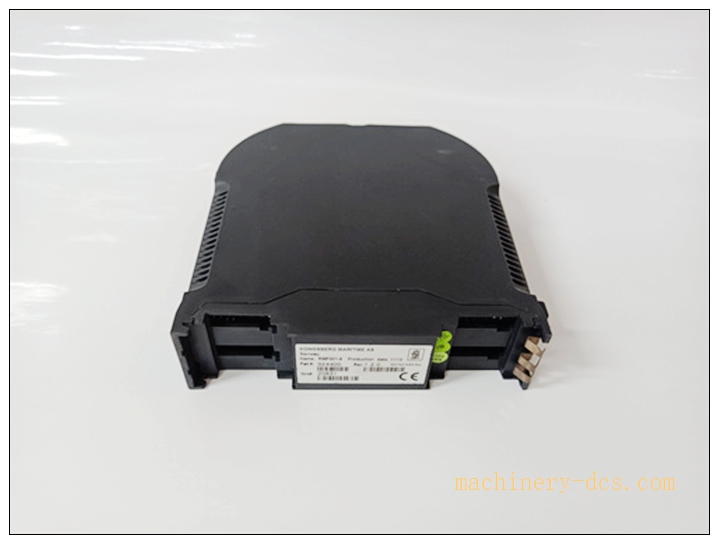

7. Part‑number verification: Confirm both silk‑screen RMP201‑8 and part code 324400. Do not confuse with other RMP‑series variants (RMP200‑8, RMP202‑8) which are not drop‑in replacements.

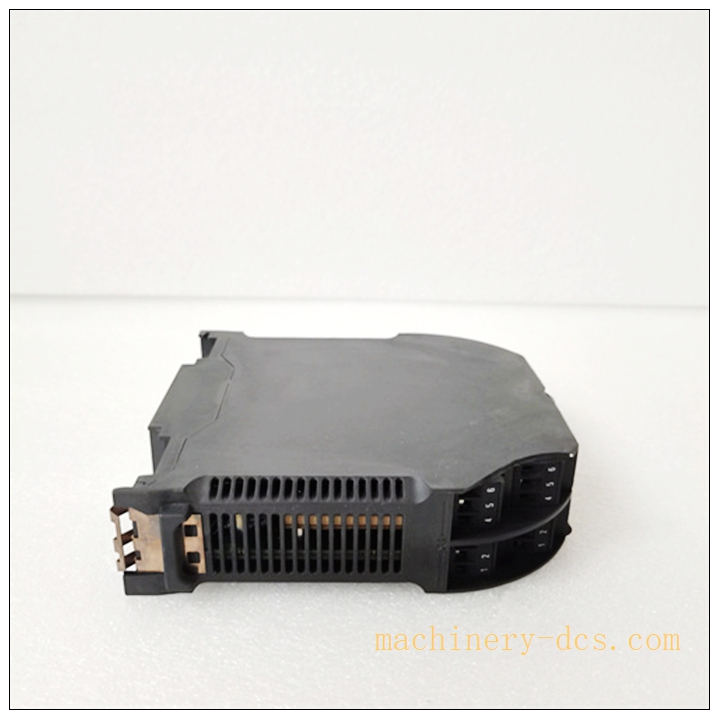

Kongsberg RMP201-8

Standard Operating Procedure (SOP)

1. Pre‑work: Apply lock‑out‑tag‑out for related automation segment, cut 24 VDC supply to module cabinet. Wear ESD anti‑static protection.
2. Record data: Back‑up K‑Chief project configuration, record existing channel parameter setup, mark original MSD/LSD knob positions.
3. Module removal: Label each field wiring terminal, release DIN‑rail latch, pull out old module steadily. Inspect cabinet internal CAN‑bus terminal block.
4. Incoming inspection: Visual check spare unit for housing crack, terminal damage, confirm full part‑number marking.
5. Mechanical mounting: Clip new module firmly onto DIN‑rail, keep minimum clearance for ventilation.
6. Wiring: Reconnect field sensor wiring and dual CAN‑bus communication cables strictly according to drawing, verify termination resistor configuration.
7. Power‑on commissioning: Restore 24 VDC power supply. Download matching project configuration to assign each channel sensor type. Restore MSD/LSD calibration reference.
8. Functional validation: Observe front‑panel status LED. Verify each channel real‑time measurement value on K‑Chief operator station. Inject reference signal for loop calibration test. Confirm no CAN‑bus communication alarms.
9. Documentation: Fill installation & commissioning log. Store defective removed module properly. Release lock‑out‑tag‑out only after full function acceptance test passed.

Application Scenarios

‑ Marine vessel automation: Cargo ships, container vessels, oil tankers, offshore platform K‑Chief DCS system ‑ Tank level & temperature monitoring: Ballast tank, fuel oil tank, fresh water tank multi‑sensor signal acquisition ‑ Engine‑room machinery monitoring: Main engine auxiliary equipment, generator set temperature & process parameter collection ‑ Off‑shore energy platform distributed signal front‑end acquisition ‑ Vessel refit & life‑extension projects: Legacy K‑Chief500/600 system spare‑part replacement

Matching & Supporting Components

1. KONGSBERG DPU main processing unit for K‑Chief system
2. Redundant CAN‑bus marine shielded communication cable
3. 24 VDC marine‑grade regulated power supply
4. Marine‑certified RTD, thermocouple, 4‑20 mA field transmitters
5. CAN‑bus termination resistors
6. K‑Chief engineering configuration software & service tool

Brand‑Related Alternative & Recommended Models

1. RMP202‑8: Updated hardware revision of multi‑purpose I/O module for K‑Chief 600 upgrade projects, check firmware compatibility before substitution
2. RMP200‑8: Early‑generation predecessor module, not fully pin‑to‑pin compatible
3. RMP400 series: New‑generation Kongsberg remote I/O unit for full‑system platform migration
